Description

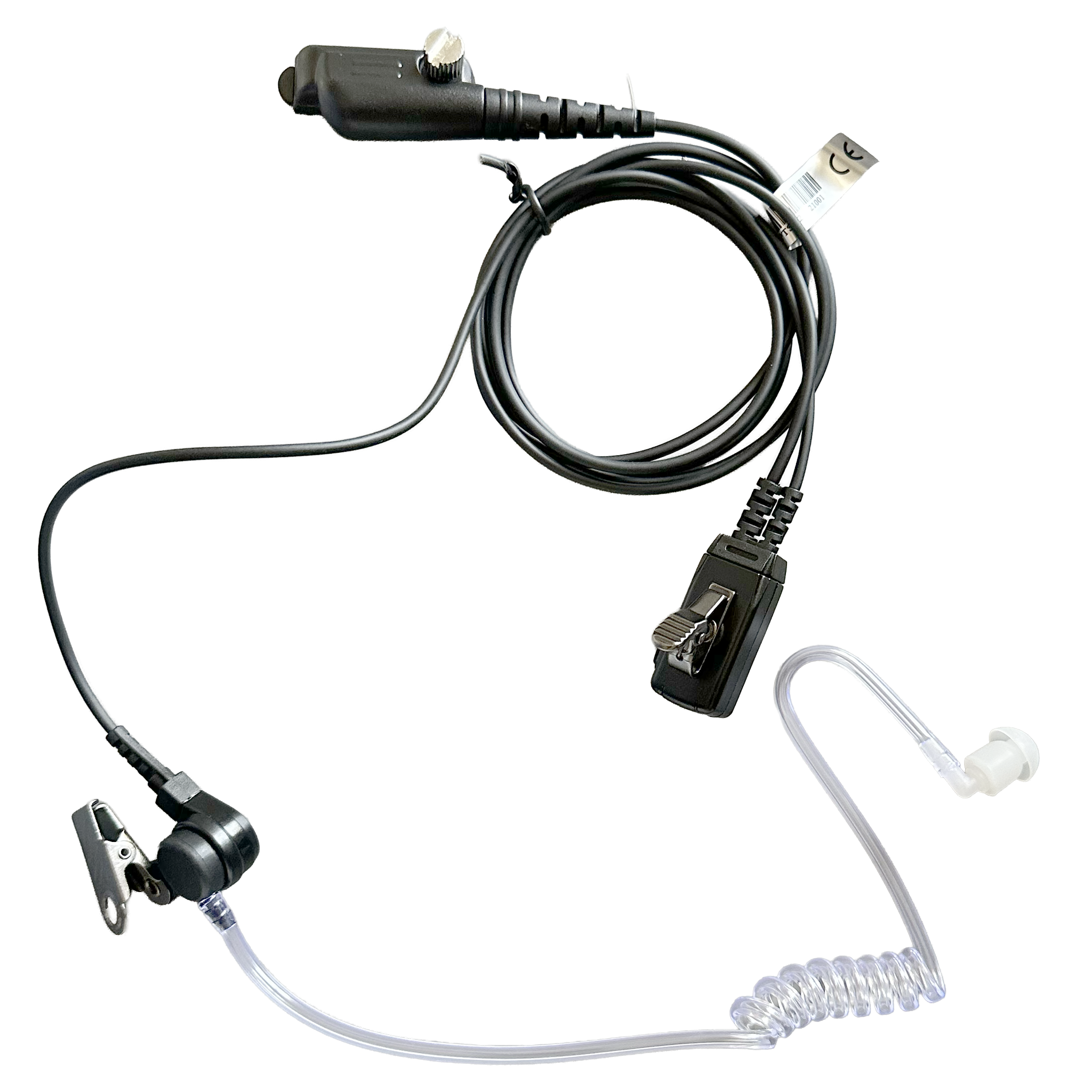

1-Wire Acoustic Tube Earpiece — Discreet and Comfortable Audio Solution
The Atlantic Radio ATL-AT1-F52 is a cost-effective 1-wire acoustic tube earpiece designed for Icom F52D, F62D, M85, and compatible series portable radio users. Featuring UV-protected surgical tubing and hypoallergenic ear tips, it delivers clear, covert audio for extended wear in professional and outdoor environments. The twist-off acoustic tube design allows for quick, hygienic swapping between multiple users, making it ideal for shared radio fleets.
Key Features
-
Acoustic Tube Earpiece: Delivers clear audio through a transparent tube for covert communication.
-

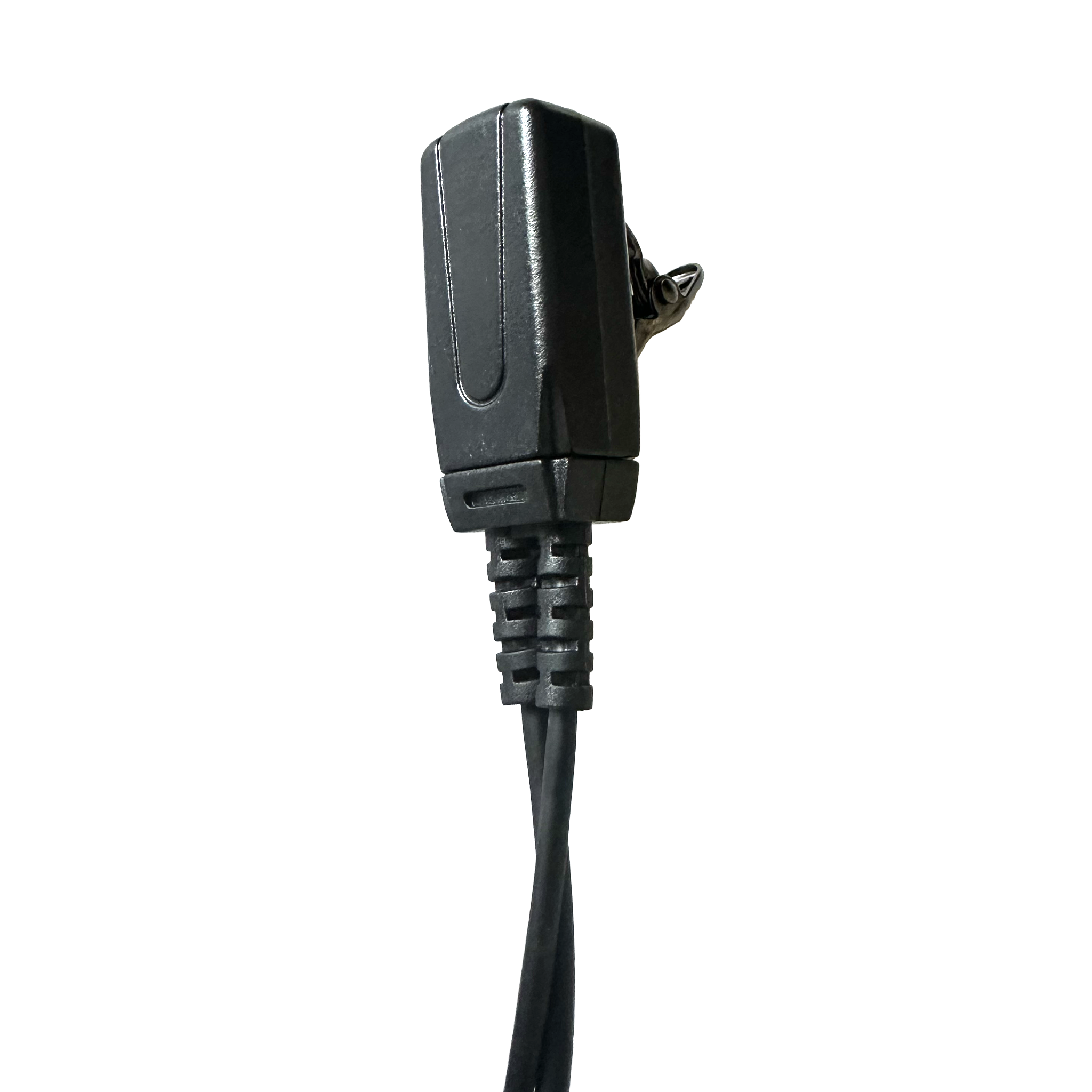

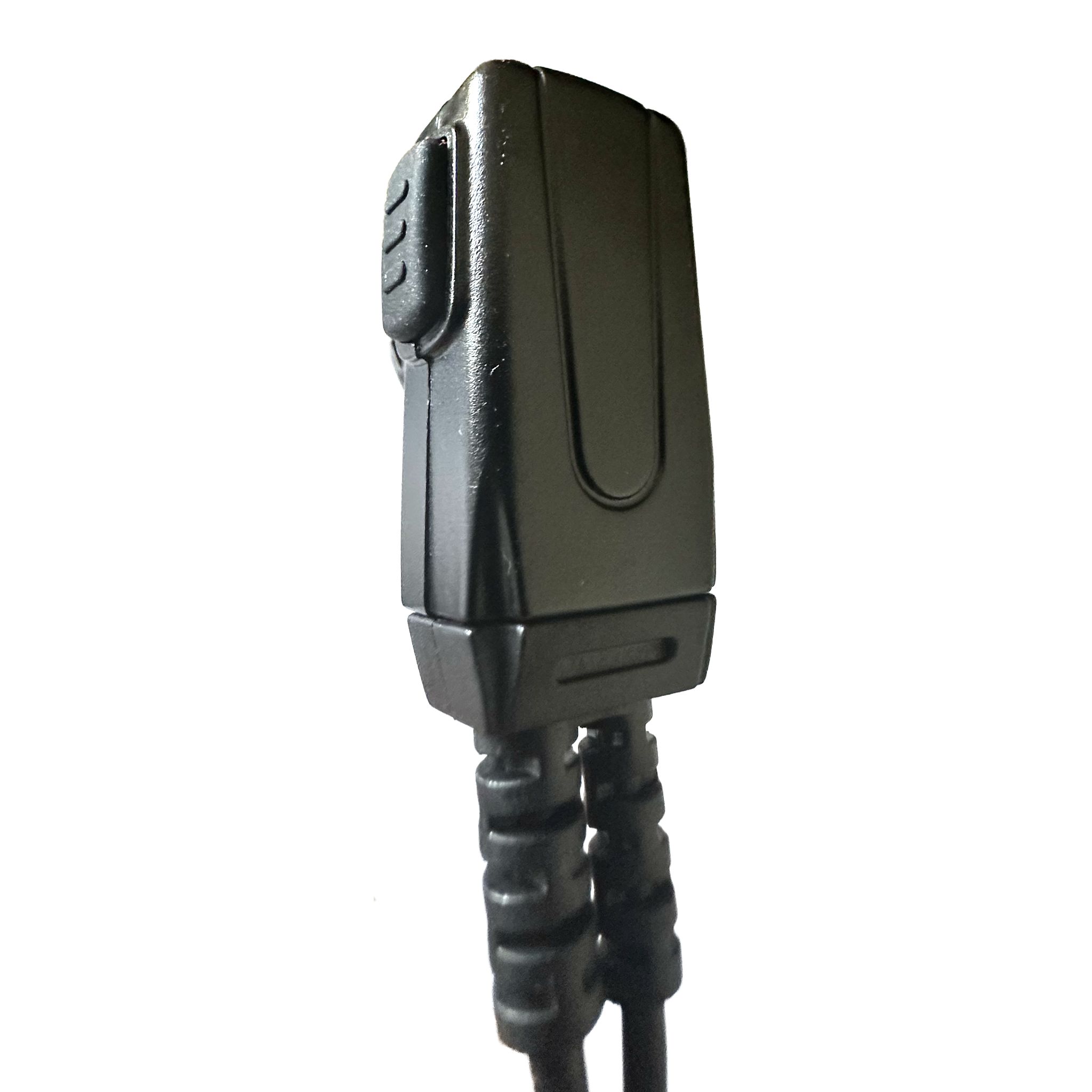

Inline PTT/Microphone: Offers convenient and accessible push-to-talk and voice transmission.
-
UV-Protected Surgical Tubing: Enhances durability and longevity of the acoustic tube, especially for outdoor use.
-
Discreet Communication: The transparent acoustic tube offers a low-profile appearance, ideal for sensitive environments or professional settings.
-
Comfortable Extended Wear: Ear tips manufactured from surgical-grade material ensure user comfort throughout long shifts.
-
Hands-Free Operation: The inline PTT/microphone enables convenient communication without needing to hold the radio, improving efficiency.
-
Quick Disconnect Clip: Secures the earpiece and provides additional cable strain relief.
-

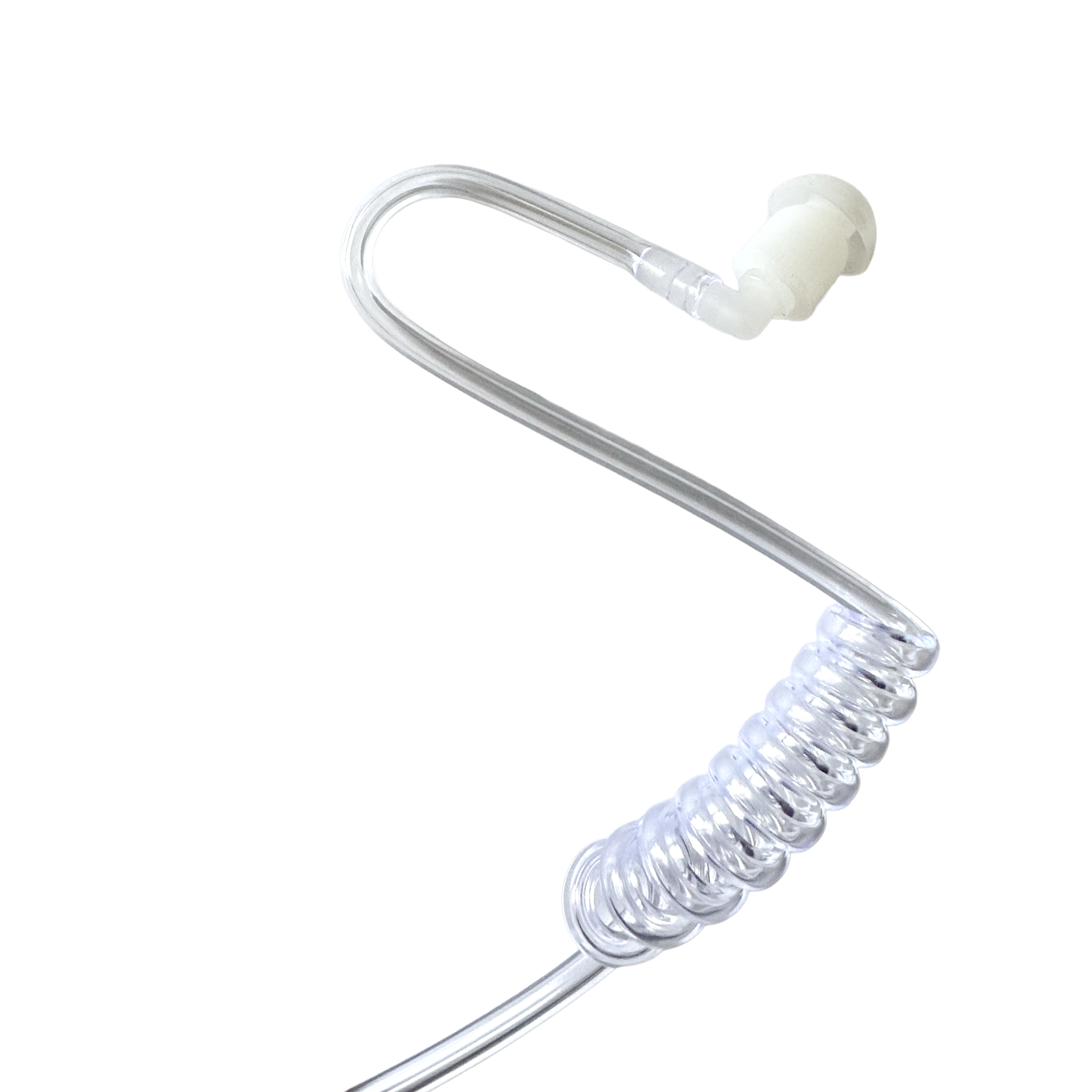

Twist-Off Acoustic Tubes: Allows for hygienic, quick, and easy swapping between multiple users.
-
Hypoallergenic Ear Tips: Designed for comfort and includes 1 extra clear ear tip.
-

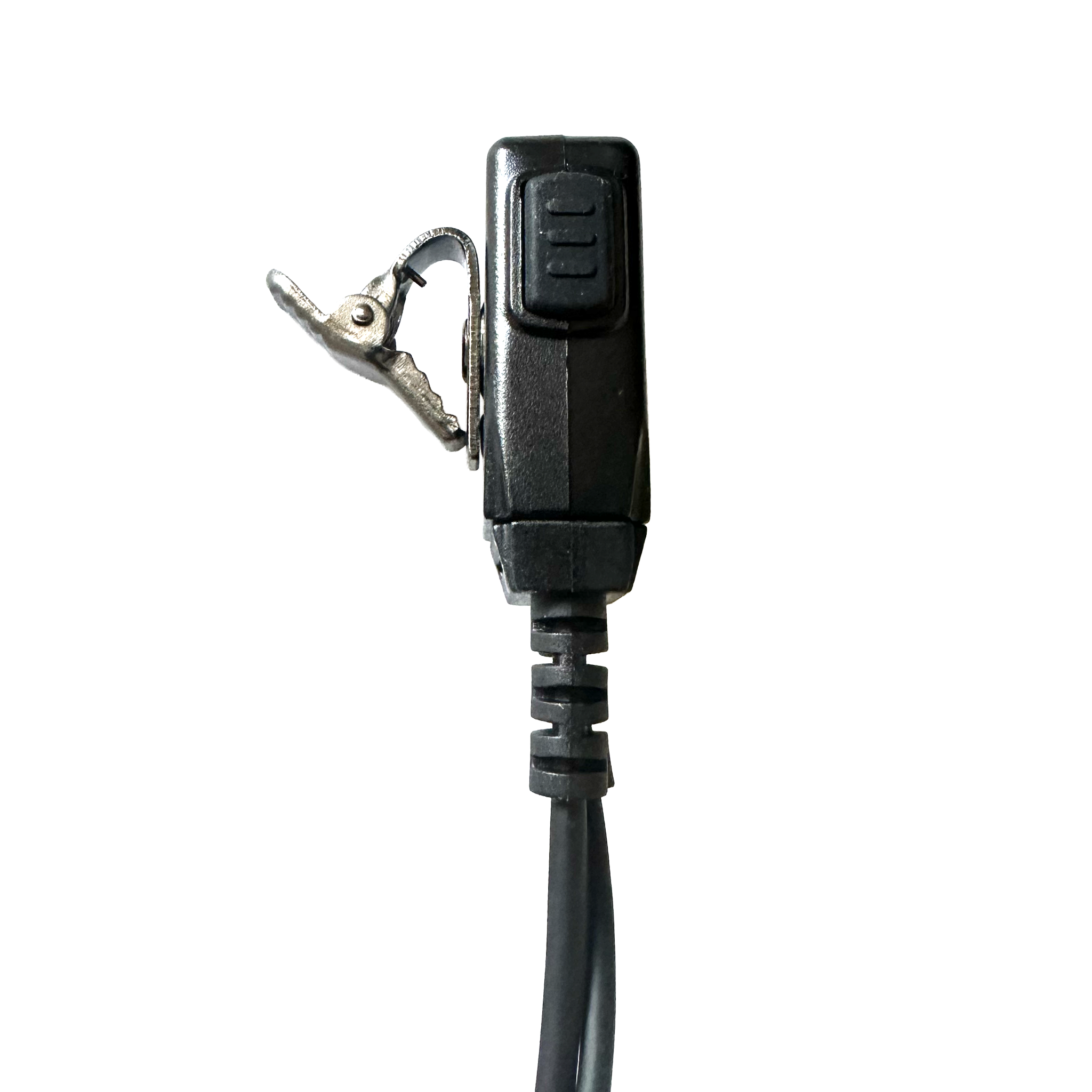

Strong Rotating Clip: Provides secure attachment and flexible positioning on clothing.
Specifications
| Attribute |
Details |
| Brand |
Atlantic Radio |
| SKU |
ATL-AT1-F52 |
| Type |
1-Wire Acoustic Tube Earpiece |
| Microphone |
RF-Shielded Inline Mic |
| PTT |
Inline PTT |

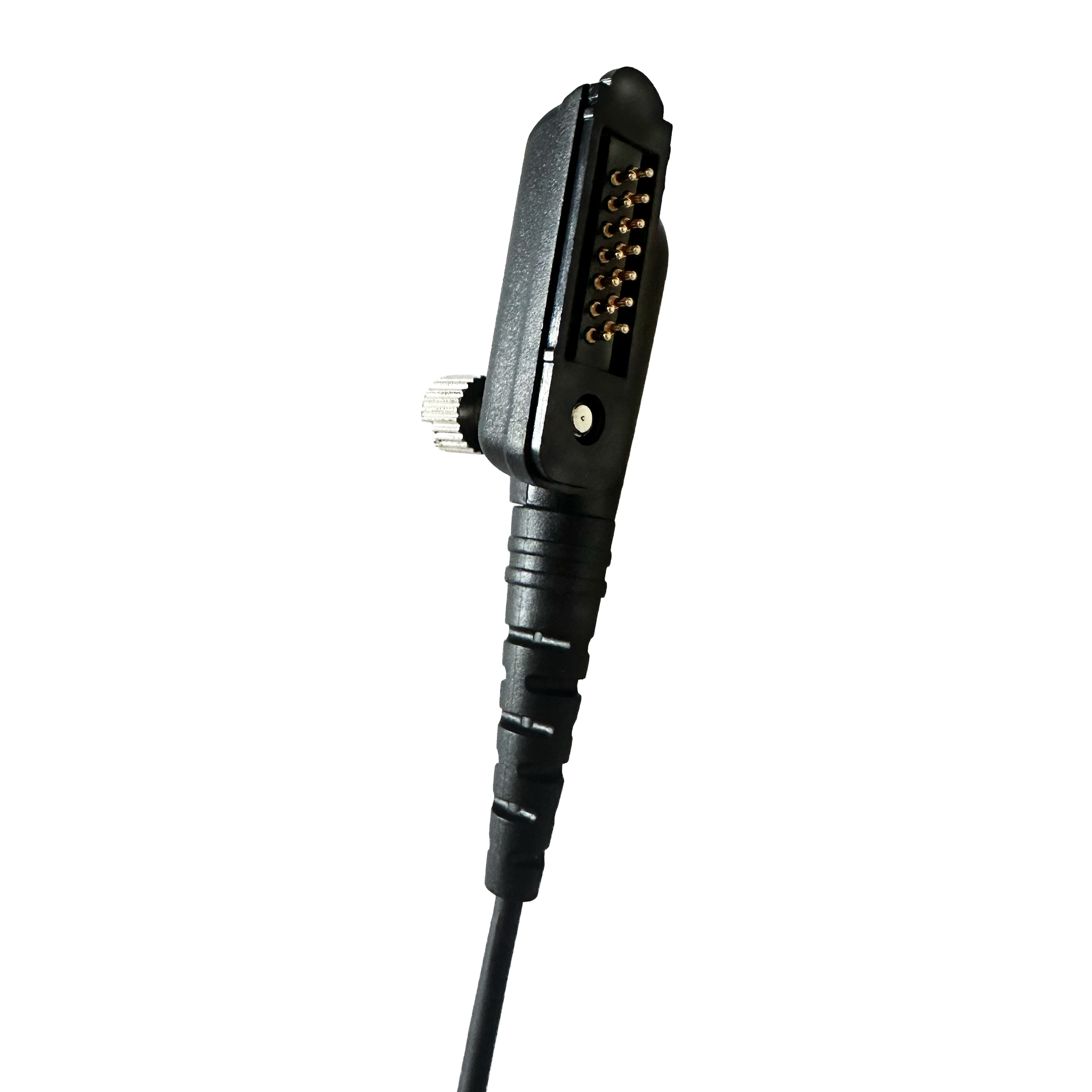

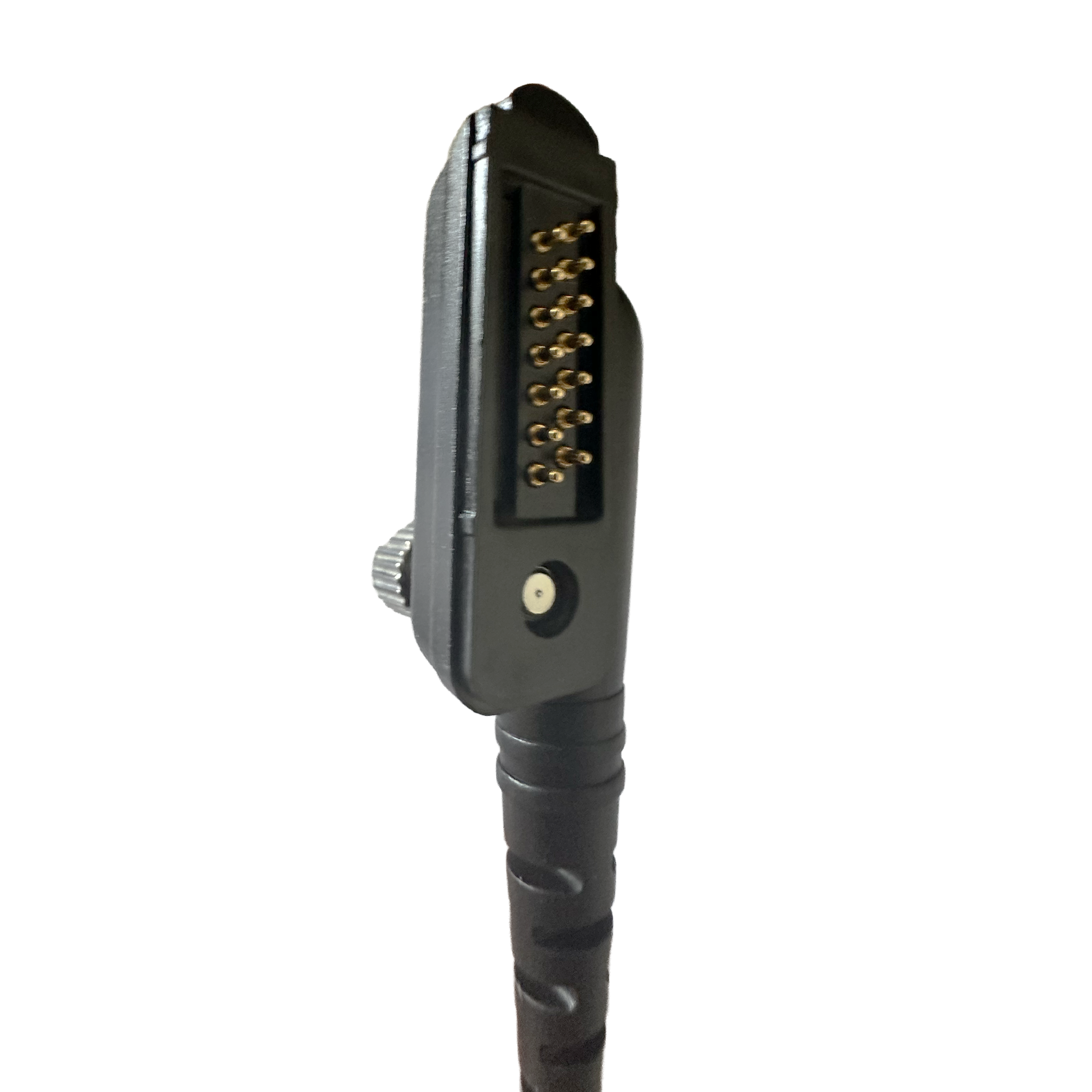

| Connector |
14-Pin with Mounting Screw |
| Tubing |
UV-Protected Surgical Tubing |
| Ear Tips |
Hypoallergenic Surgical-Grade (1 extra included) |
| Wear Style |
Left or Right Ear |
| PTT Pull Strength |
30 lbs (both ends) |
Compatibility
| Radio Model |
Also Known As |
Brand |
Type |
| F3400D |
— |
Icom |
Portable |
| F4400D |
— |
Icom |
Portable |
| F52D |
F52DUL |
Icom |
Portable |
| F62D |
F62DUL |
Icom |
Portable |
| F7010 |
— |
Icom |
Portable |
| F7020 |
— |
Icom |
Portable |
| F7040 |
— |
Icom |
Portable |
| IPM60 |
— |
Icom |
Portable |
| M85 |
M85UL |
Icom |
Marine |
| IP730D |
— |
Icom |
Portable |
| IP740D |
— |
Icom |
Portable |
What's Included
| Description |
Status |
| ATL-AT1-F52 1-Wire Acoustic Tube Earpiece |
Included |
| Extra Clear Hypoallergenic Ear Tip (x1) |
Included |
Replacement Parts & Accessories
Frequently Asked Questions
Will this earpiece fit my Icom radio?
The ATL-AT1-F52 uses a 14-pin connector with mounting screw and is compatible with Icom F52D, F62D, F3400D, F4400D, F7010, F7020, F7040, IPM60, M85, IP730D, and IP740D radios. If you are unsure whether your radio is compatible, please contact Atlantic Radio Communications before ordering.
Is there an OEM alternative for this earpiece?
Yes. The Icom OEM equivalent is the Icom SP28 Earhook Type Earphone paired with the Icom HM163MC Lapel Microphone. The ATL-AT1-F52 provides a cost-effective alternative with the same acoustic tube form factor and compatible 14-pin connector.
Is there a wireless or Bluetooth option for these radios?
Yes. For users who prefer a wireless solution, the VS3 Bluetooth headset is compatible with select radios in this series. Contact Atlantic Radio Communications for more information on Bluetooth audio options for your specific radio model.
How do I replace the acoustic tube?
The acoustic tube features a twist-off design for quick and easy replacement without tools. Simply twist the tube counterclockwise to remove it and twist a replacement tube clockwise to secure it. Replacement tubes are available via the Atlantic Radio Acoustic Tube Set.
Can this earpiece be worn on either ear?
Yes, the ATL-AT1-F52 is designed to be worn comfortably on either the left or right ear.
What does the 1-year warranty cover?
The 1-year warranty covers manufacturing defects in materials and workmanship under normal use conditions. It does not cover damage caused by misuse, accidents, or unauthorized modifications. Please contact Atlantic Radio Communications to initiate a warranty claim.
Warranty
The Atlantic Radio ATL-AT1-F52 includes a 1-year warranty. Please contact Atlantic Radio Communications for warranty claims, support, or replacement inquiries.
