Description
Base Station Antenna
2 dBi omnidirectional white fiberglass base antenna for 420–520 MHz UHF systems.

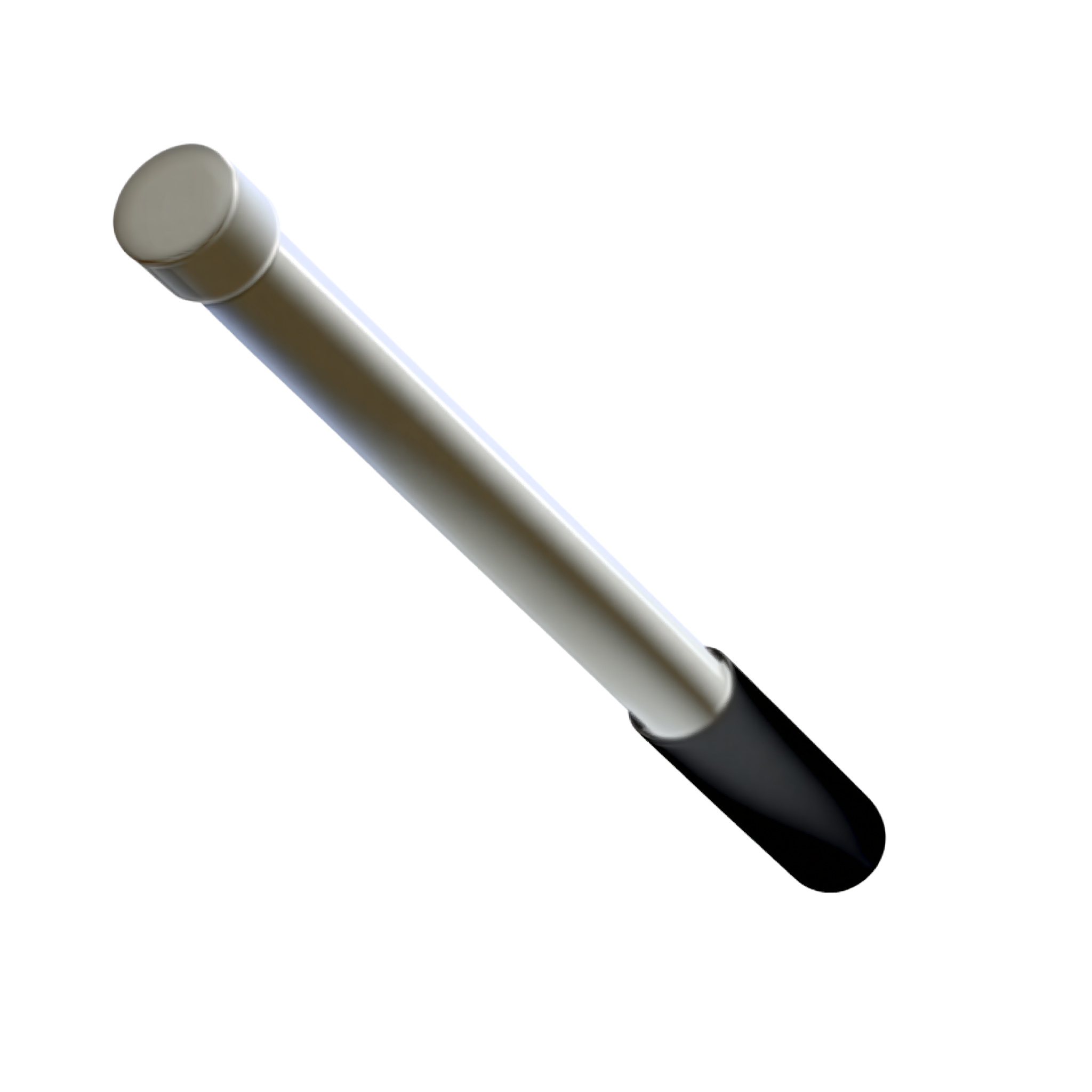

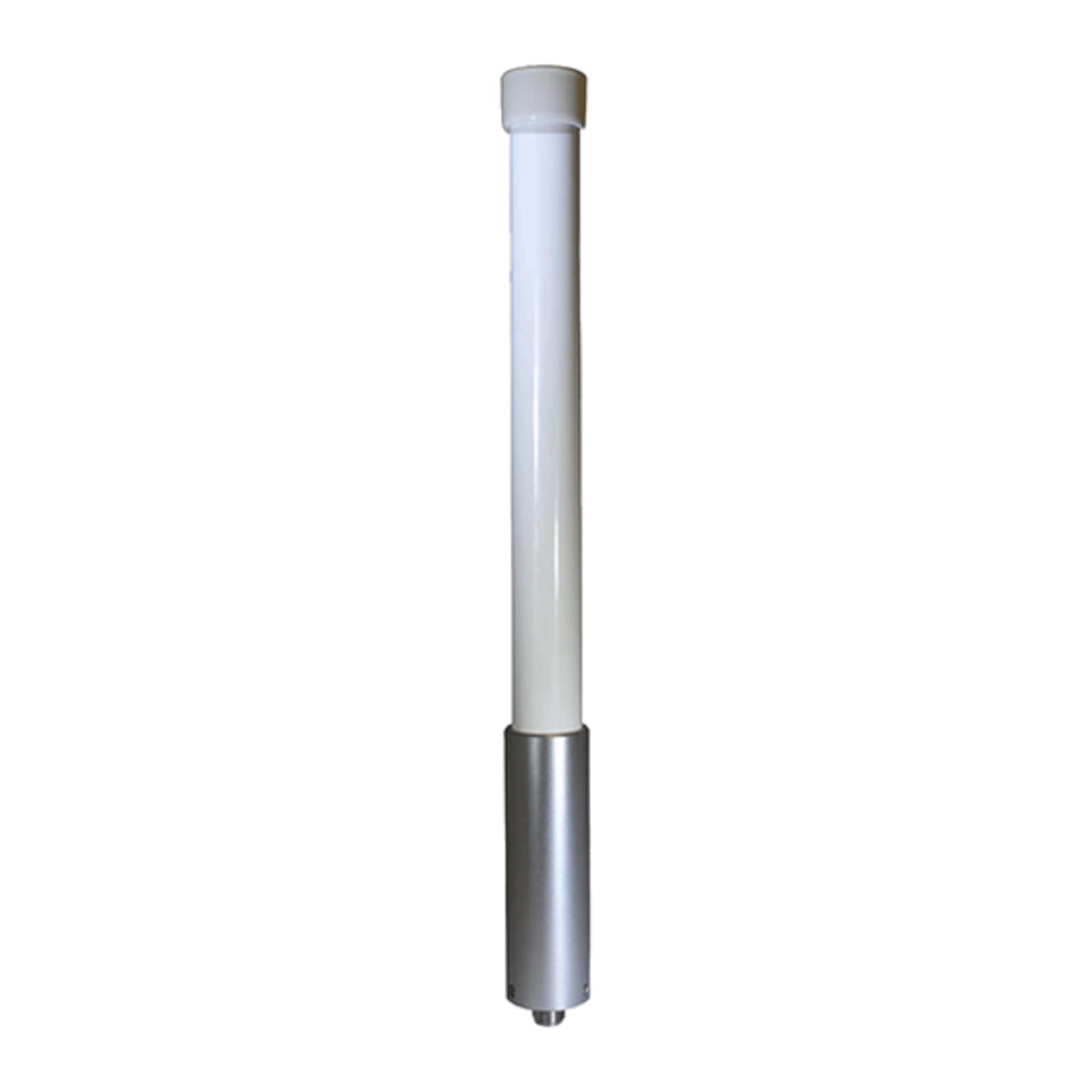

The Atlantic Radio ATL-BASE-420-520-2dBi is a commercial-grade fiberglass base station antenna engineered to deliver wideband omnidirectional coverage across the entire 420–520 MHz UHF frequency spectrum. Built around a high-efficiency silver-plated brass radiator and feed structure, this antenna provides 2 dBi nominal gain with a 70° vertical half-power beamwidth, making it an ideal choice for land mobile radio (LMR) systems, fixed base stations, bi-directional amplifiers (BDA), and UHF repeater sites.
Designed to withstand extreme outdoor conditions, the Atlantic Radio ATL-BASE-420-520-2dBi features a high-strength, filament-wound white fiberglass radome capable of enduring operational wind speeds up to 200 mph (322 kph) and survival gusts up to 224 mph (360 kph). The base is equipped with a silver-plated brass Type N female jack connector and features DC grounding across the structure to dissipate static buildup and enhance lightning protection for connected radio equipment. With 150-Watt power handling and low VSWR performance, this antenna offers reliable long-term service for utility, public safety, industrial, and commercial wireless networks.
Key Features & Benefits
-
Wideband 420–520 MHz Coverage: Operates across the full UHF land mobile frequency band with low VSWR performance (<1.5:1 from 440–470 MHz).
-
High Wind Survival Rating: Filament-wound fiberglass radome withstands operational winds up to 200 mph and survival gusts up to 224 mph.
-
Atlantic Radio ATL-BASE-420-520-2dBi Power Handling: Handles continuous RF input power up to 150 Watts for high-duty-cycle repeaters and base transceivers.
-
DC Grounded Lightning Protection: Direct-current grounded radiation structure dissipates static charge to protect sensitive receiver electronics.
-
Silver-Plated Brass Feed Structure: All-brass internal radiator with silver plating maximizes electrical conductivity and signal efficiency.
Specifications
| Attribute |
Details |
| Brand |
Atlantic Radio |
| Model/SKU |
ATL-BASE-420-520-2dBi |
| Product Type |
Omnidirectional Fiberglass Base Station Antenna |
| Frequency Range |
420 – 520 MHz |
| Nominal Gain |
2 dBi (70° nominal HPBW) |
| VSWR |
<1.5:1 (440–470 MHz) / <2.0:1 (420–520 MHz) |
| Power Rating |
150 Watts |
| Nominal Impedance |
50 Ohms |
| Polarization |
Vertical, Linear |
| Radiation Pattern |
Omnidirectional (360°) |
| Static / Lightning Protection |
DC Grounded |
| Connector Type |
Type N Female (Jack), Silver-Plated Brass |
| Radome Material |
Filament-Wound Fiberglass (White) |
| Wind Rating (Operational / Survival) |
200 mph (322 kph) / 224 mph (360 kph) |
| Dimensions (Length x Diameter) |
24.8 x 1.6 Inches (0.63 m x 40.5 mm) |
| Weight |
2.0 lbs (0.9 kg) max |
| Operating Temperature |
-40°C to +85°C |
Recommended Accessories
Mounting Hardware
More Resources
Frequently Asked Questions
What is the primary application for the Atlantic Radio ATL-BASE-420-520-2dBi antenna?
The Atlantic Radio ATL-BASE-420-520-2dBi is designed for fixed-site UHF base stations, repeaters, and bi-directional amplifiers operating between 420 MHz and 520 MHz.
What RF connector is built into the Atlantic Radio ATL-BASE-420-520-2dBi?

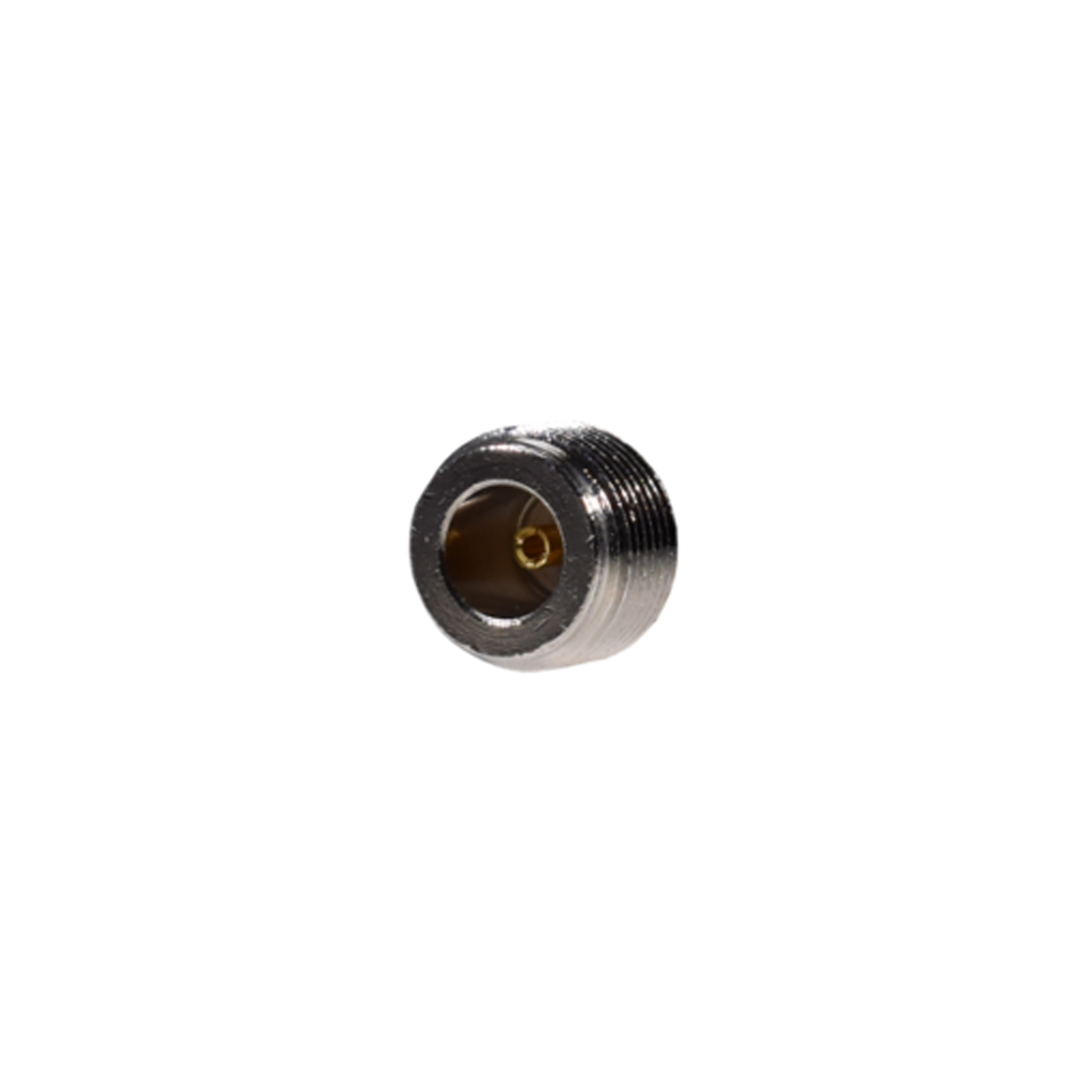

The antenna features a silver-plated brass Type N female (jack) connector integrated into its base.
Does the Atlantic Radio ATL-BASE-420-520-2dBi include mounting hardware?
No, mounting hardware is sold separately to accommodate specific mast or tower pipe diameters. See the Heavy-Duty Base Station Antenna Mast Mounting Bracket Kit.
What power rating does the Atlantic Radio ATL-BASE-420-520-2dBi support?
The antenna supports continuous RF input power levels up to 150 Watts.
How does the Atlantic Radio ATL-BASE-420-520-2dBi handle severe weather?
The antenna is rated for operational wind speeds up to 200 mph (322 kph) and survival gusts up to 224 mph (360 kph), with an operating temperature range of -40°C to +85°C.
Does this antenna feature lightning protection?
Yes, the internal radiating structure is DC grounded to dissipate static build-up and provide enhanced lightning protection for connected transceiver equipment.
Warranty
1-year manufacturer's warranty.
