Atlantic Radio RF Coaxial Adapter
Professional-Grade Between-Series RF Adapters — BNC, SMA, N-Type, UHF, and Mini UHF Configurations
The Atlantic Radio RF Coaxial Adapter series delivers precision-machined, low-loss coaxial interconnects for bridging the most common RF connector families used in two-way radio, test equipment, antenna distribution, and wireless networking applications. Each configuration maintains a constant 50-ohm characteristic impedance and is built from nickel-plated brass with gold-plated center contacts for maximum conductivity and long-term corrosion resistance.
Select your required configuration from the dropdown above. All adapters ship ready to use — no tools, crimping, or soldering required.
Key Features & Benefits
50-Ohm Impedance Matching: Minimizes VSWR and signal reflections across all configurations.
Nickel-Plated Brass Body: Industrial-grade corrosion resistance and mechanical durability for field and lab use.
Gold-Plated Center Pin: Maximum signal conductivity and oxidation resistance at the contact junction.
PTFE Dielectric: Low insertion loss and stable impedance across the frequency spectrum.
Tool-Free Installation: BNC bayonet quick-lock, SMA/N-Type/UHF threaded interfaces for rapid field deployment.
Knurled Grip Body: Hand-tightened installation without specialized wrenches.
Available Configurations
| Configuration |
SKU |
Connector A |
Connector B |
Price |
| BNC-Female to SMA-Female |
BNCF-SMAF |
BNC Female |
SMA Female |
$2.99 |
| BNC-Female to SMA-Male |
BNCF-SMAM |
BNC Female |
SMA Male |
$5.95 |
| BNC-Male to Mini-UHF-Female |
BNCM-MUF |
BNC Male |
Mini UHF Female |
$5.95 |
| BNC-Male to N-Female |
BNCM-NF |
BNC Male |
N-Type Female |
$5.95 |

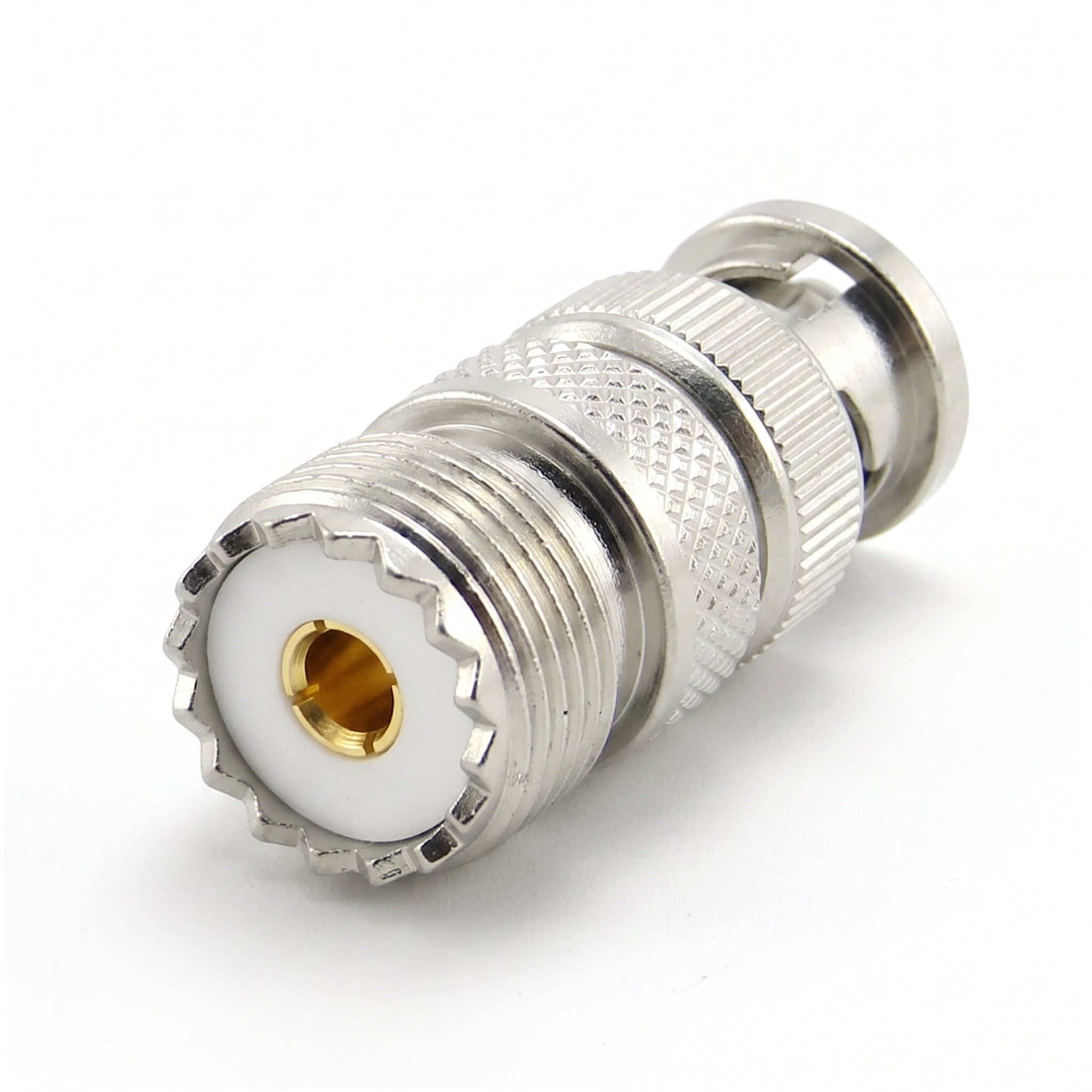

| BNC-Male to UHF Female |
BNCM-UF |
BNC Male |
UHF Female |
$5.95 |
| N-Female to N-Female |
NF-NF |
N-Type Female |
N-Type Female |
$7.95 |

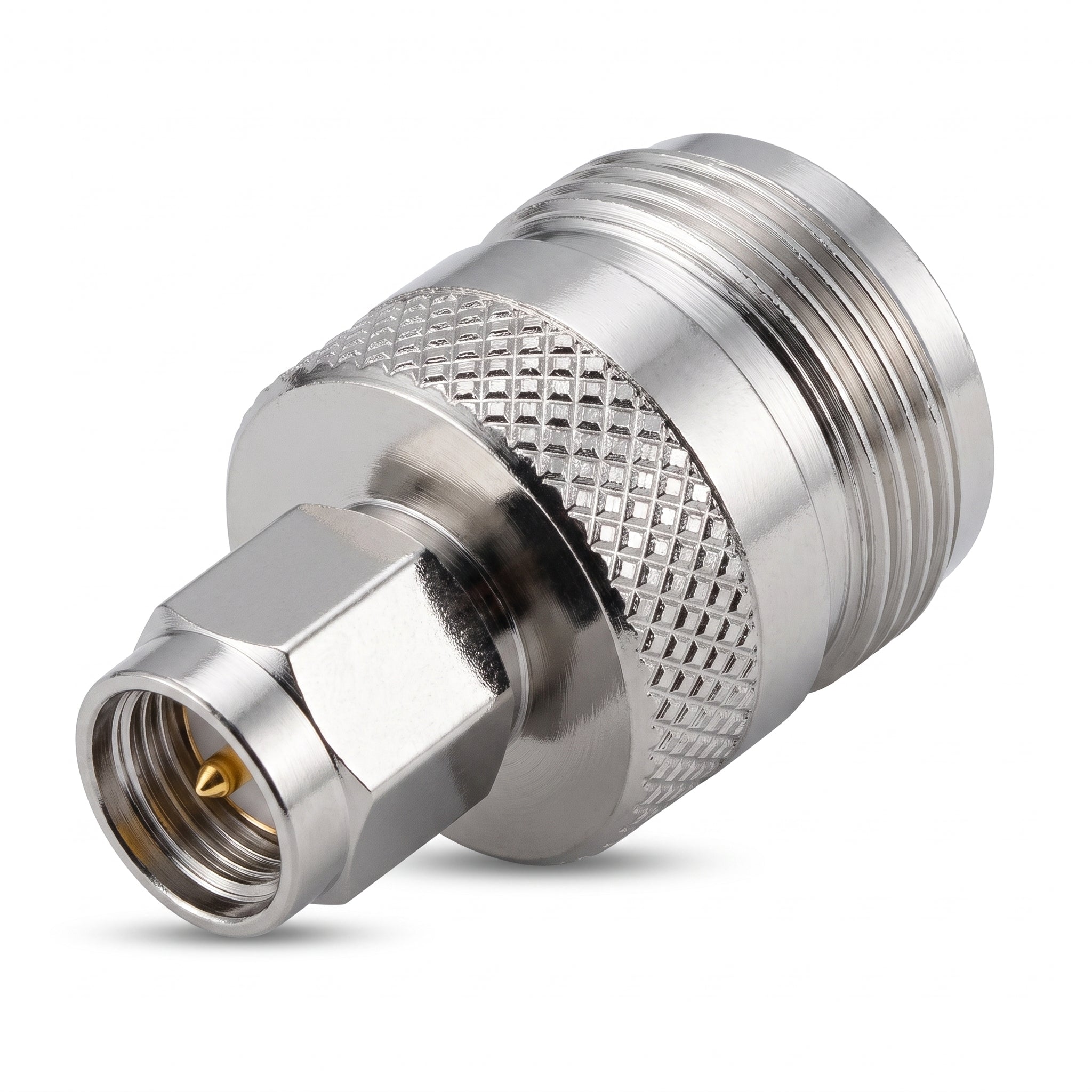

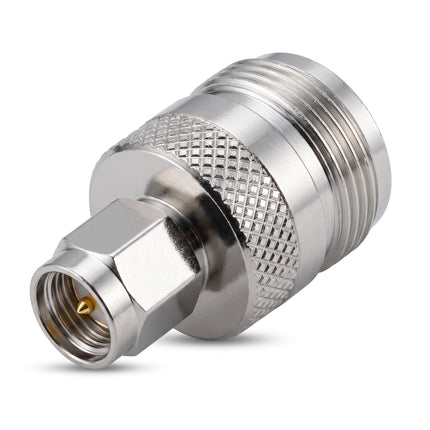

| N-Female to SMA-Male |
NF-SMAM |
N-Type Female |
SMA Male |
$5.95 |

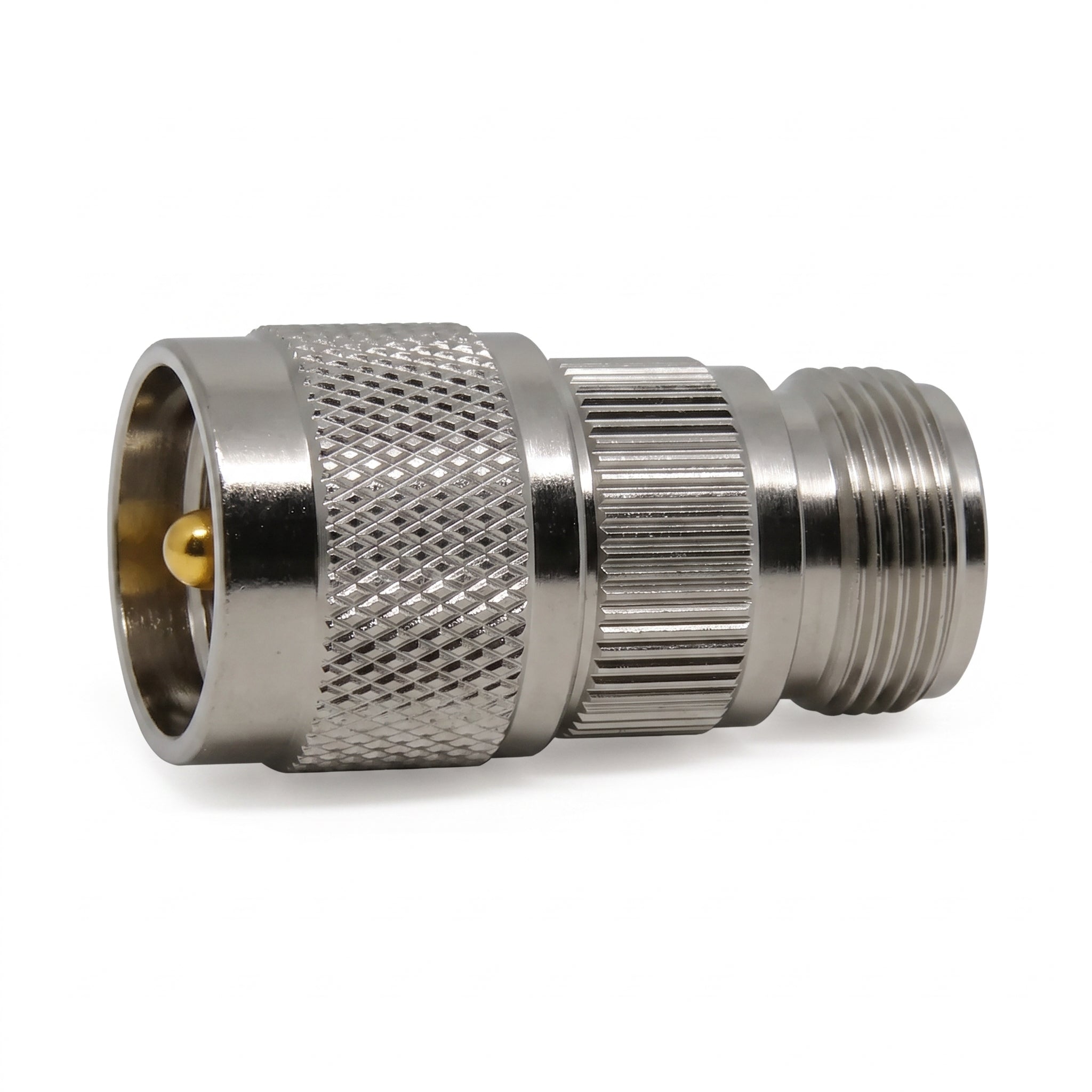

| N-Female to UHF-Male |
NF-UM |
N-Type Female |
UHF Male |
$5.95 |
Specifications
| Attribute |
Details |
| Brand |
Atlantic Radio |
| Impedance |
50 Ohms |
| Body Material |
Nickel-Plated Brass |
| Center Contact |
Gold-Plated Brass |
| Dielectric |
PTFE (Teflon) |
| Configuration |
Straight |
| Weight |
~2 oz per unit |
Frequently Asked Questions
Will these adapters cause signal loss?
Insertion loss is negligible. The gold-plated center pin and PTFE dielectric maintain constant impedance and minimize signal degradation across standard operating bands.
Are these adapters suitable for outdoor use?
The nickel-plated brass body resists corrosion and environmental weathering. For permanent outdoor installations, weatherproofing tape over the connection points is recommended.
Do I need tools to install these adapters?
No. All configurations use hand-tightened interfaces — BNC bayonet quick-lock, SMA threading, N-Type threading, UHF threading, or Mini UHF threading — requiring no specialized tools.
Are these 50-ohm or 75-ohm components?
All configurations are 50-ohm RF components. They are not compatible with 75-ohm video systems.
Can I get a certificate of conformity or sweep test report?
Yes, for lab-grade and high-precision applications, sweep testing and certificates of conformity are available upon request.
Warranty
1-year manufacturer’s warranty.
