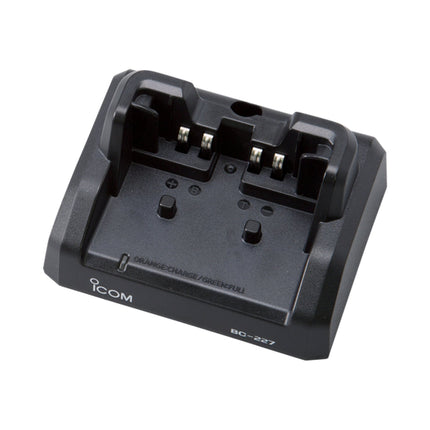

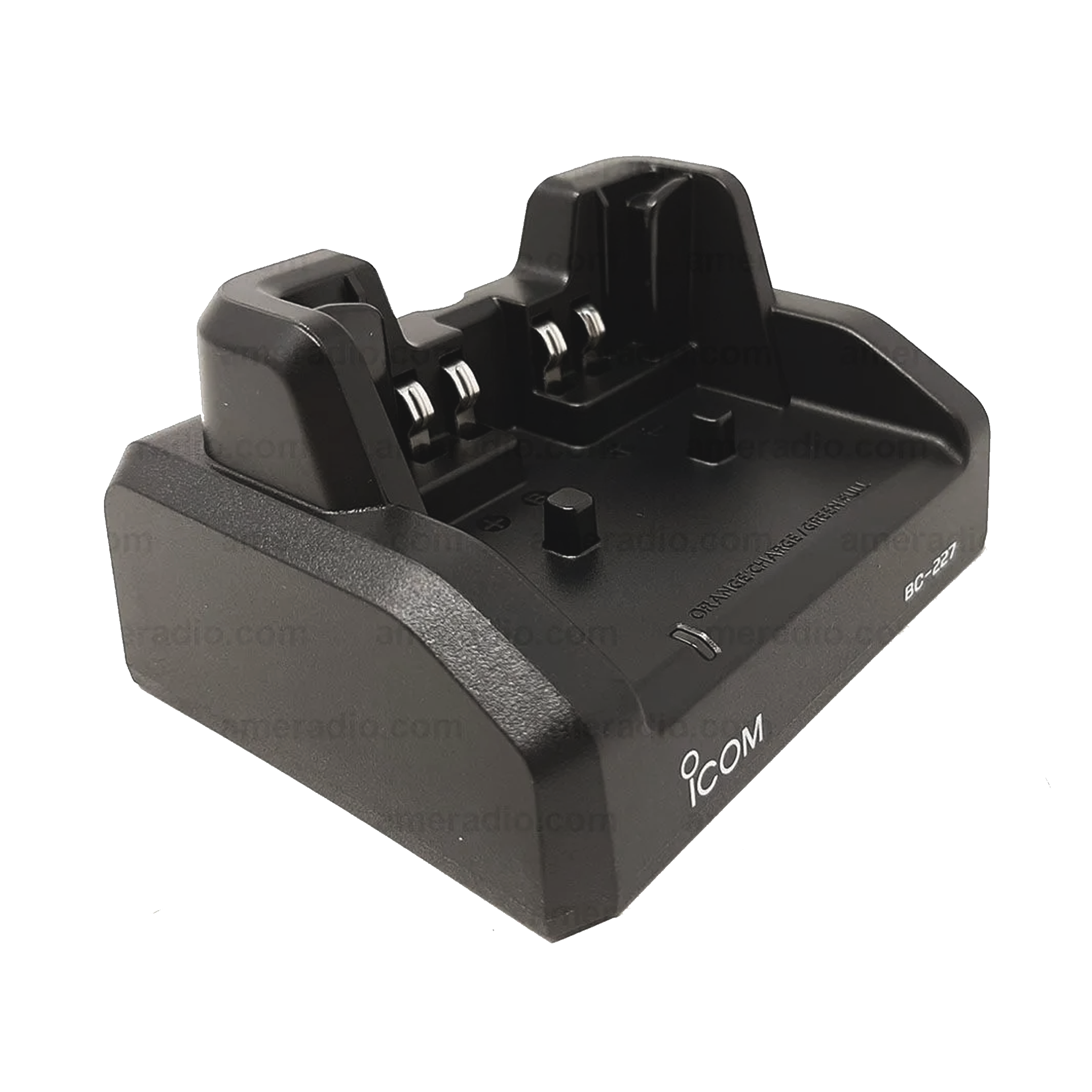

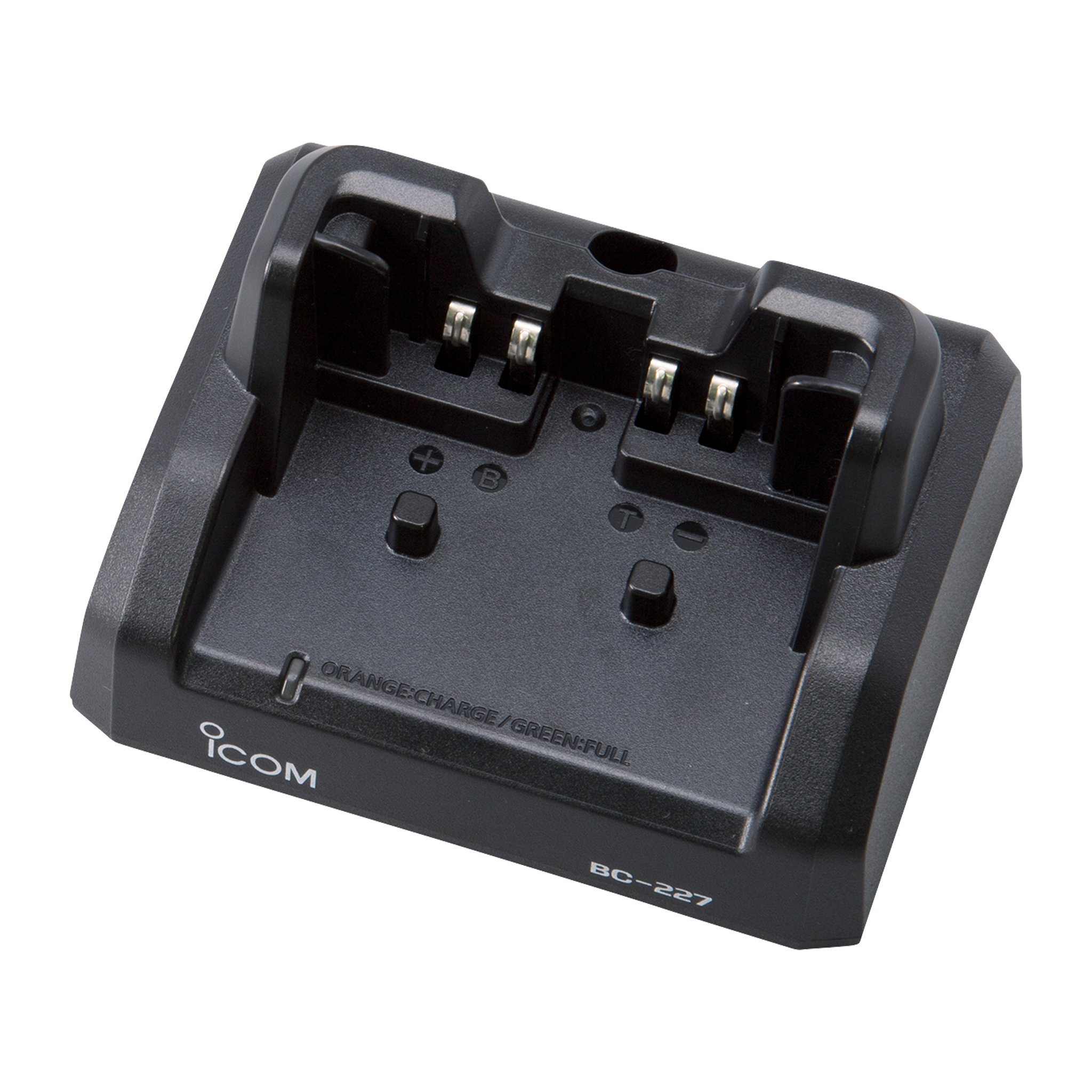

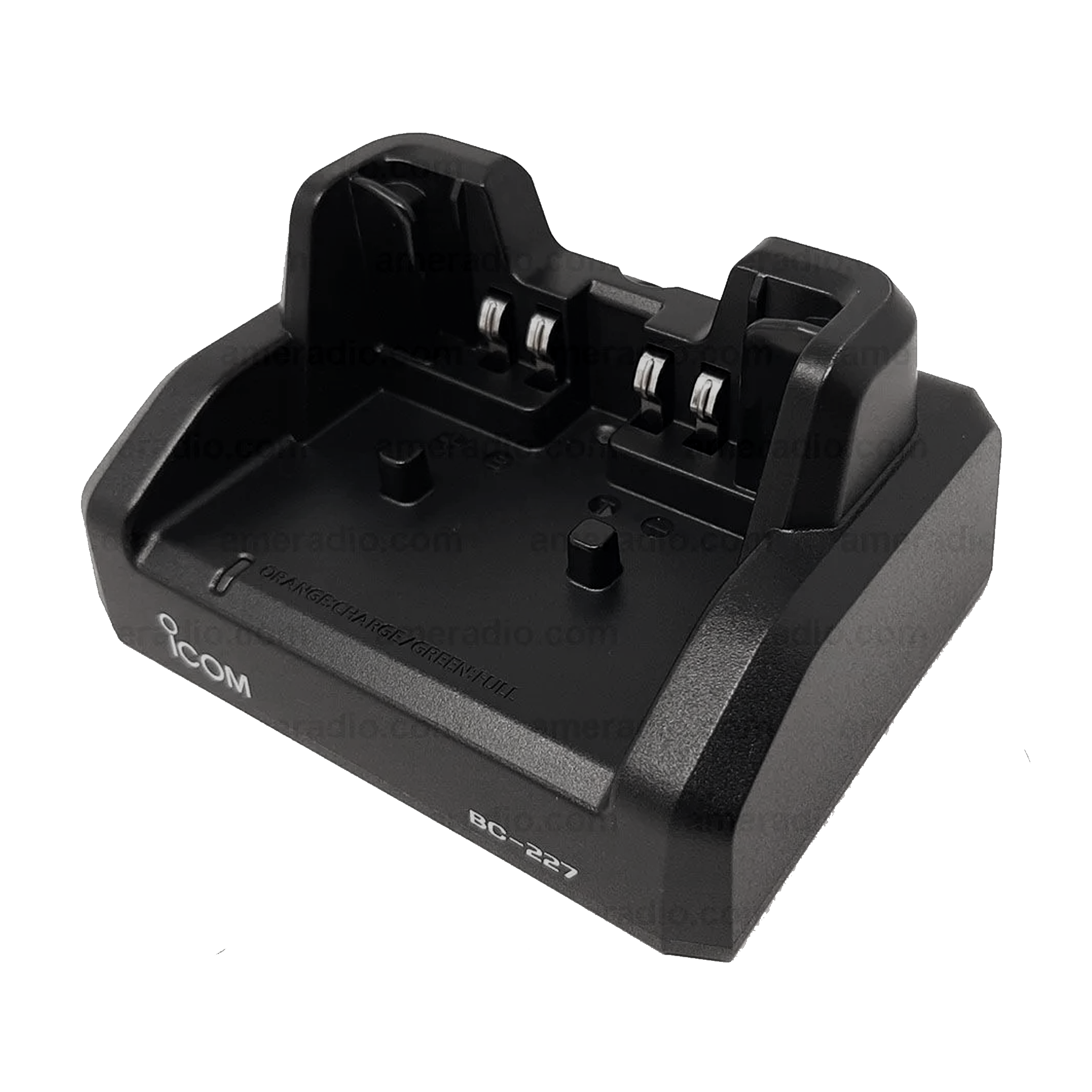

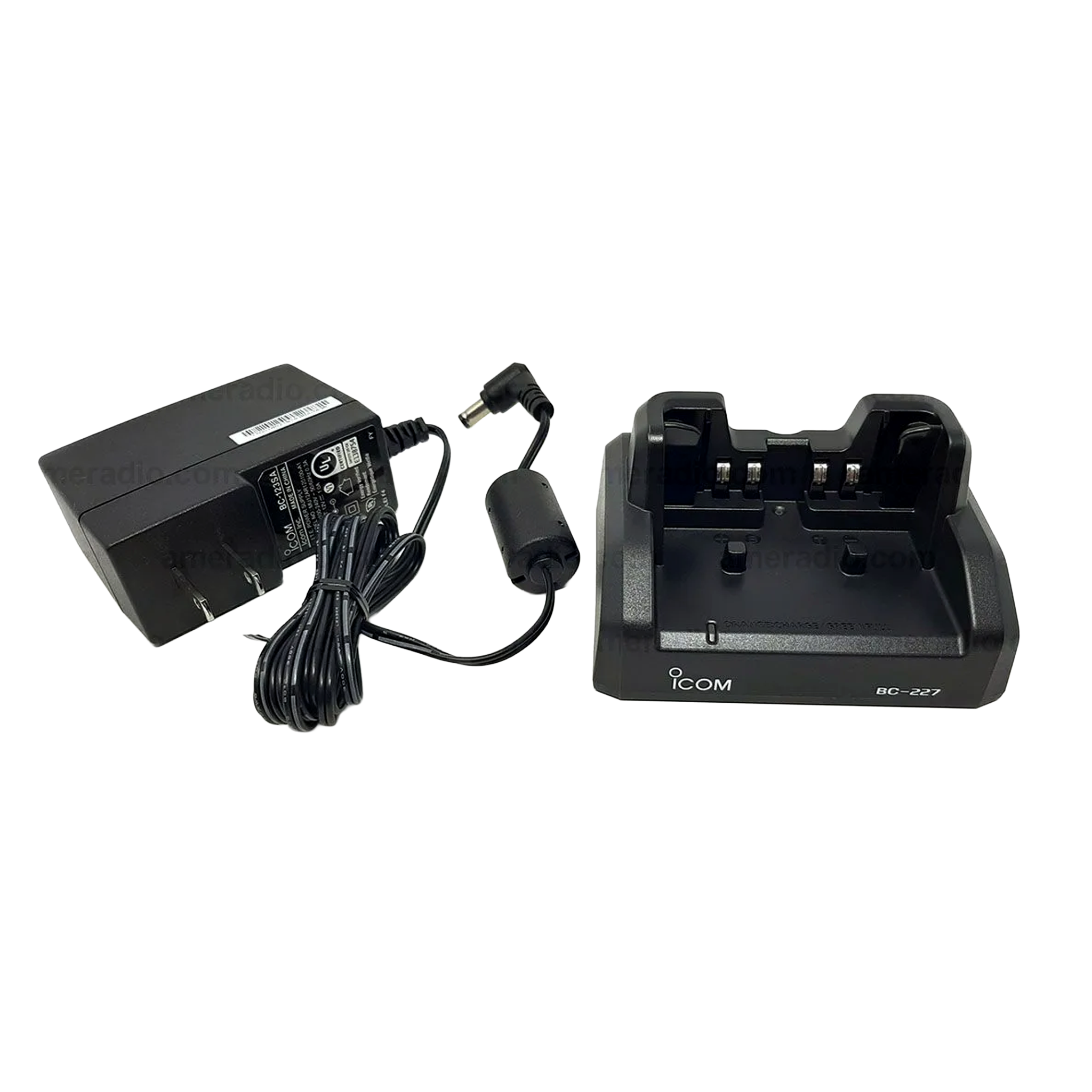

Icom BC227
Rapid Desktop Charger with Trickle Mode
Intelligent Charging for Extended Battery Life
The Icom BC227 is a professional-grade rapid desktop charger engineered for the latest generation of Icom portable two-way radios. Designed to balance speed with battery health, the BC227 features an advanced charging algorithm that switches from rapid charge to trickle mode once the battery reaches 80% capacity. This intelligent transition prevents overcharging and significantly expands the overall lifespan of your battery cells.
This compact charger is an all-in-one power management solution, featuring an integrated IC that monitors voltage and current in real-time. Whether you are powering a fleet of public safety radios or marine handhelds, the BC227 ensures your equipment is safely charged and ready for immediate deployment.
Key Features
-
Smart Trickle Mode: Automatically reduces current at 80% charge to protect battery chemistry and maximize long-term health.
-
LED Status Indicator: Provides clear visual feedback on the charging cycle, so you know exactly when your radio is ready for use.
-
Integrated Power Management: Built-in IC manages supply voltage and charging parameters for consistent performance.
-
Overcharge Protection: Includes a safety timer that automatically cuts off rapid charging after 10.5 hours to prevent damage.
-
Compact Footprint: Space-saving design fits easily on crowded desks or in specialized charging stations.
Compatibility
|
|
|
|
| F52DUL |
F62DUL |
M85 |
M85E |
| M85UL |
IP730D |
IPM60 |
IP740D |
Specifications
-
Part Number: BC227
-
Charge Current: 885 mA
-
Power Supply Voltage: 12.0 – 16.0 V DC
-

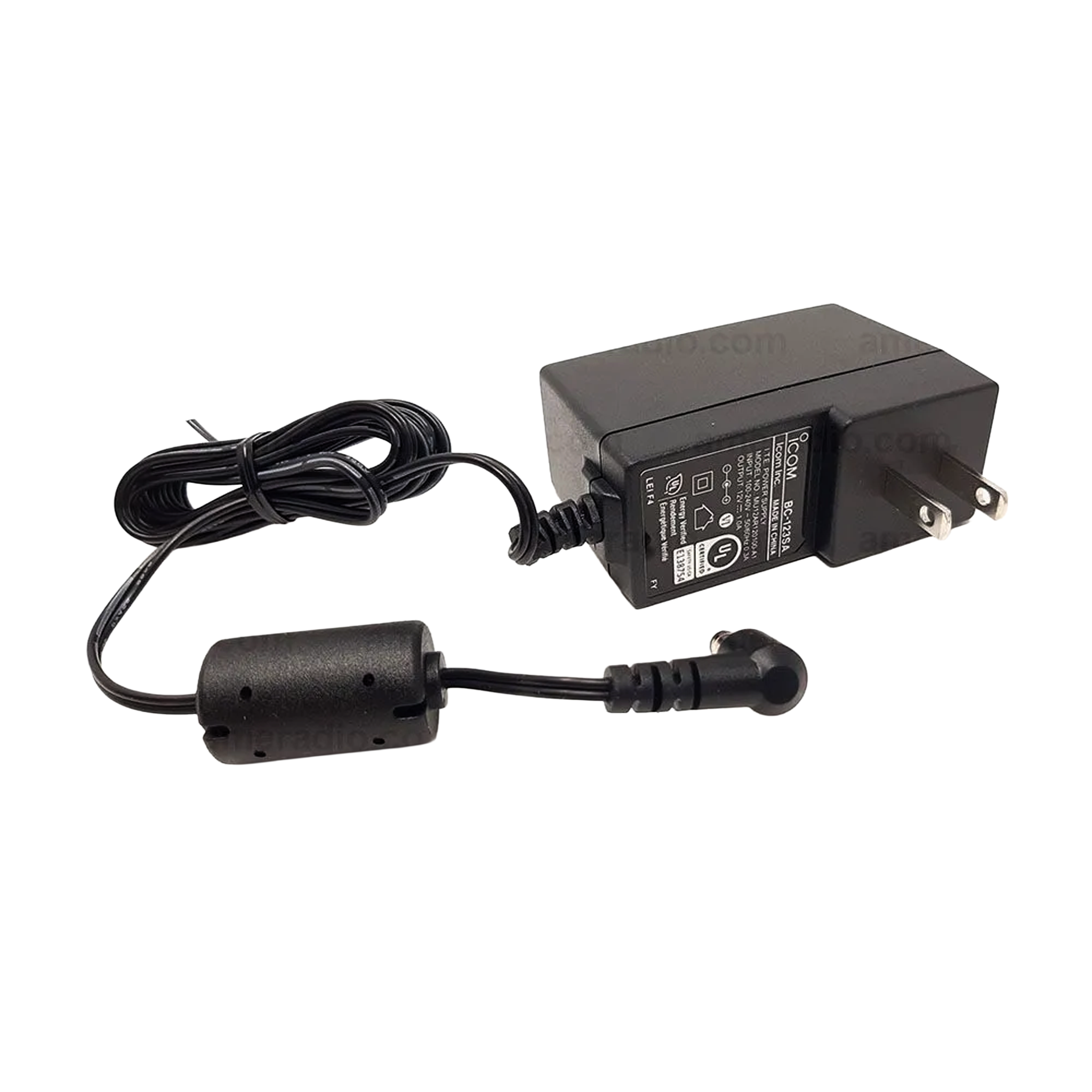

Supplied Adapter: BC-123SA (US Plug)
-
Safety Timer: 10.5 Hours
-
Operating Temperature: +15°C to +40°C
-
Battery Support: BP-283, BP-284, BP-290, BP-294, BP-303
Benefits
-
Optimized Battery Longevity: By avoiding the heat and stress of a full 100% rapid charge cycle, your batteries maintain their capacity longer.
-
Reliable Marine & Land Mobile Use: Perfectly tuned for the high-demand batteries used in the M85 and F52D series.
-
Worry-Free Operation: Multi-stage protection allows for safe overnight charging without the risk of cell degradation.
Warranty
1-year manufacturer's warranty.
