Description

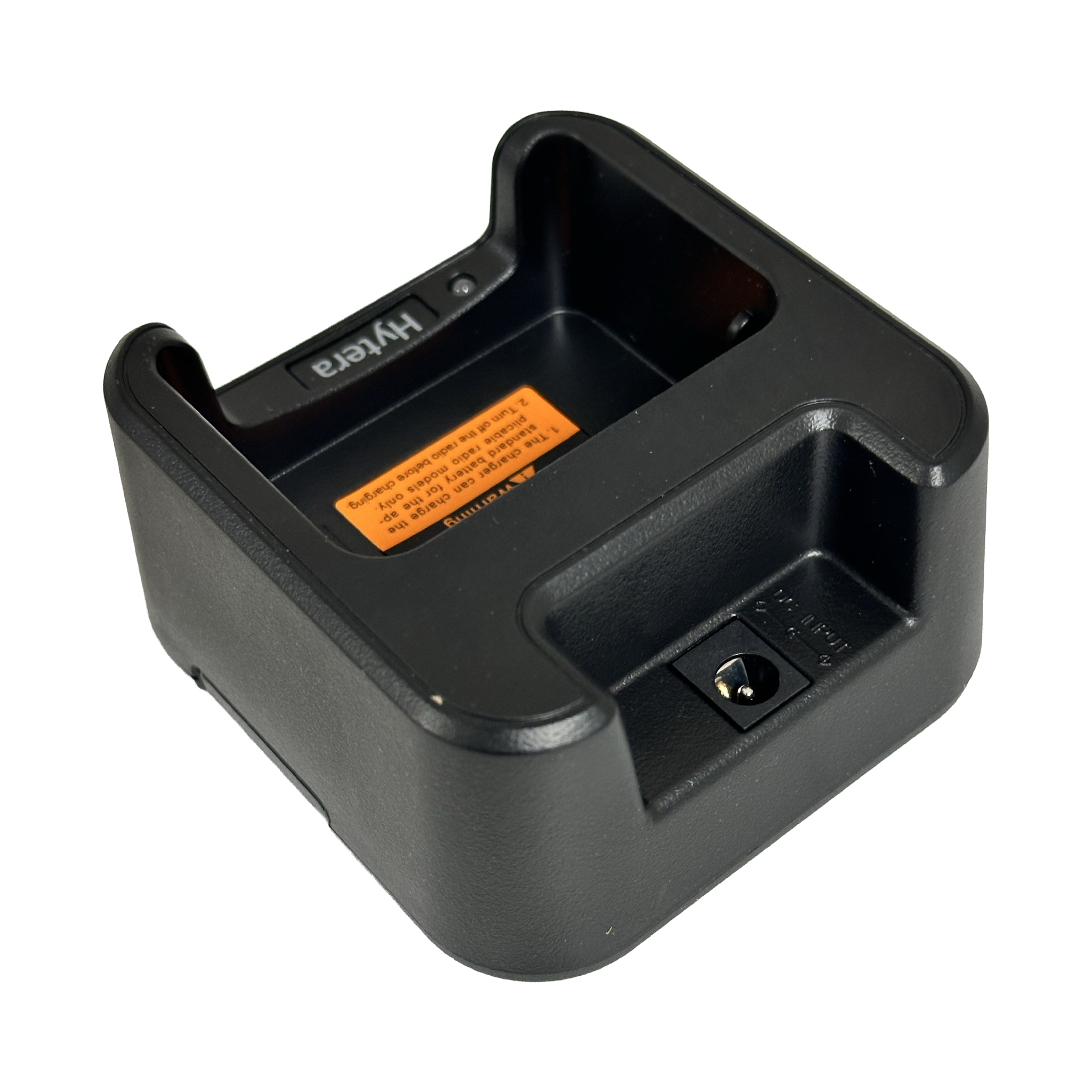

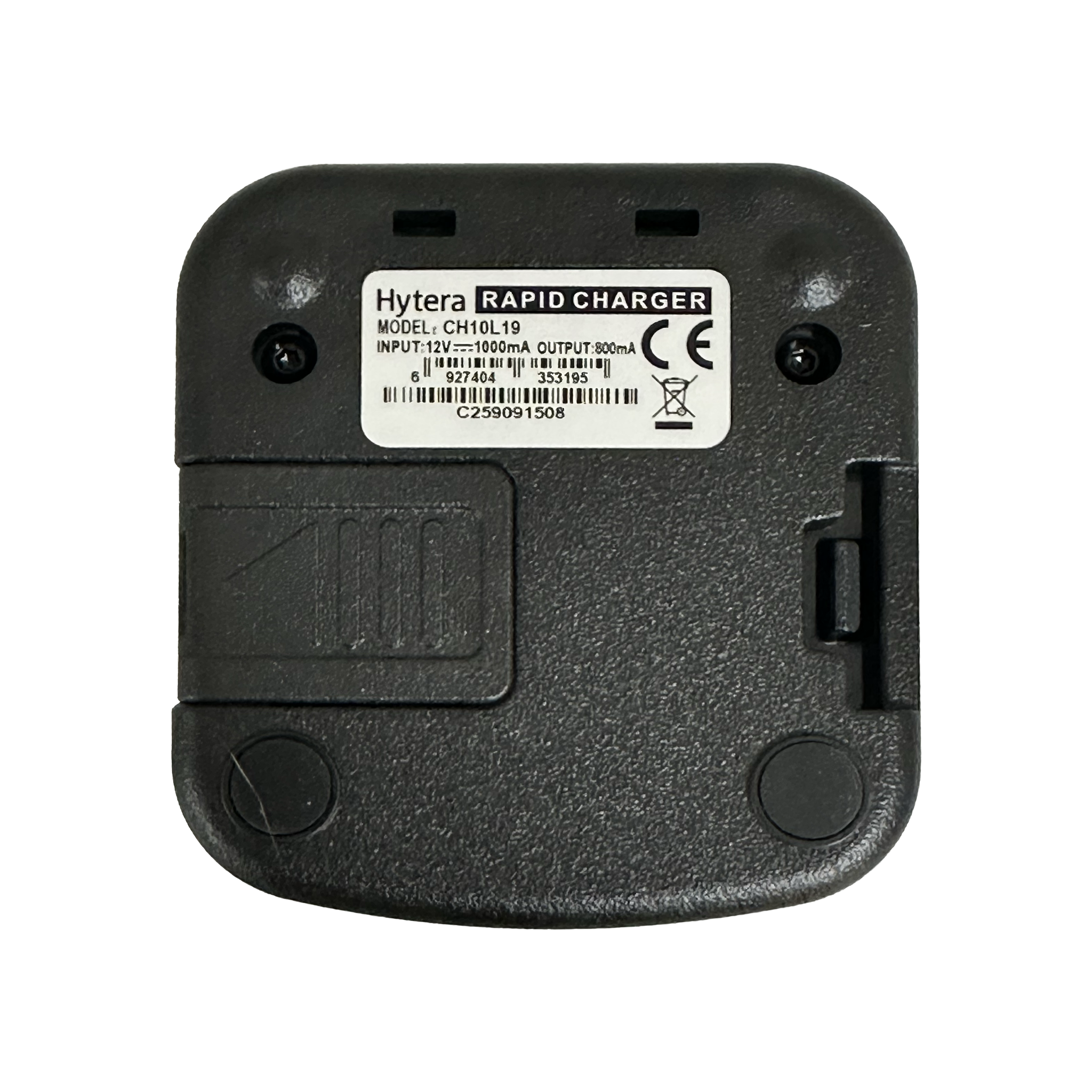

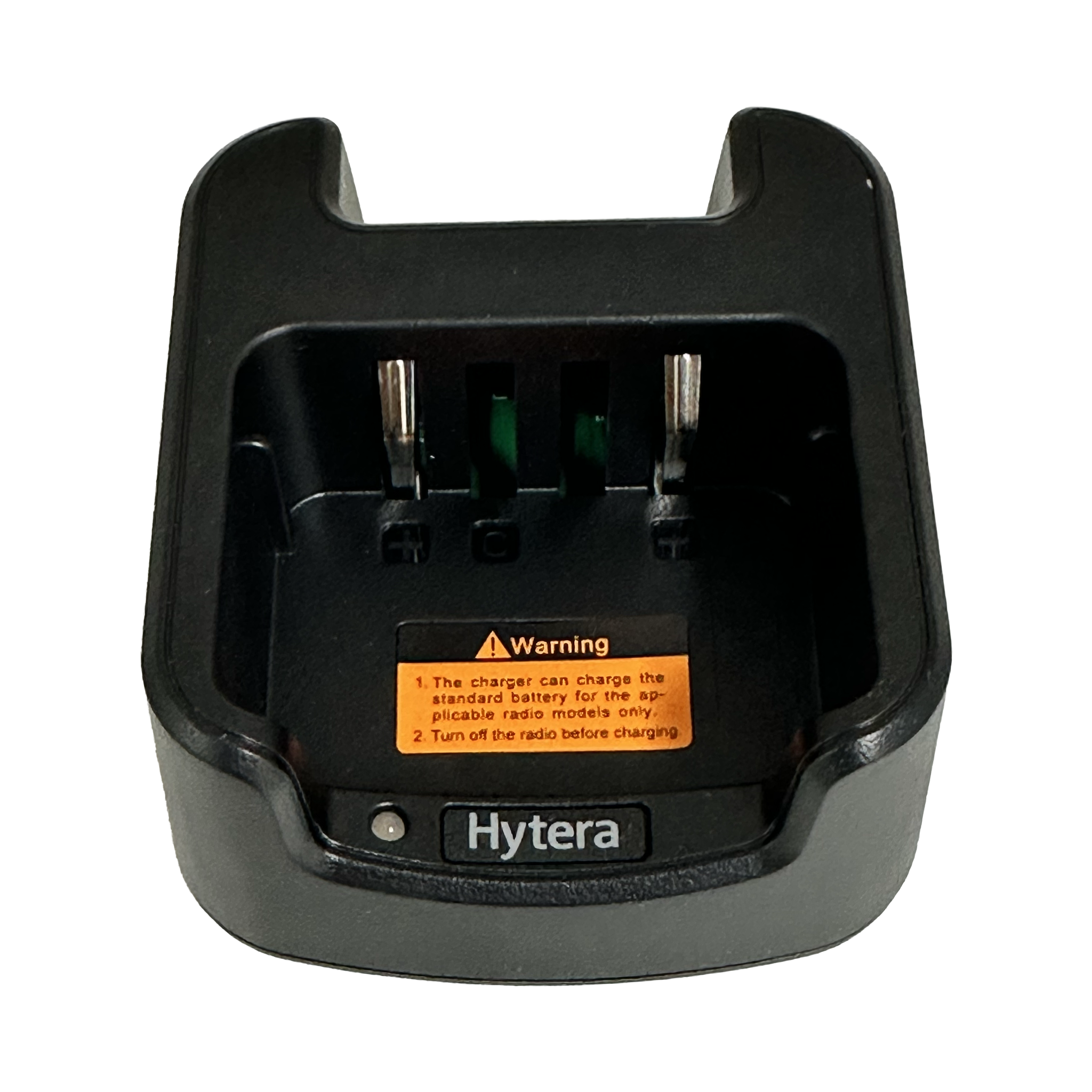

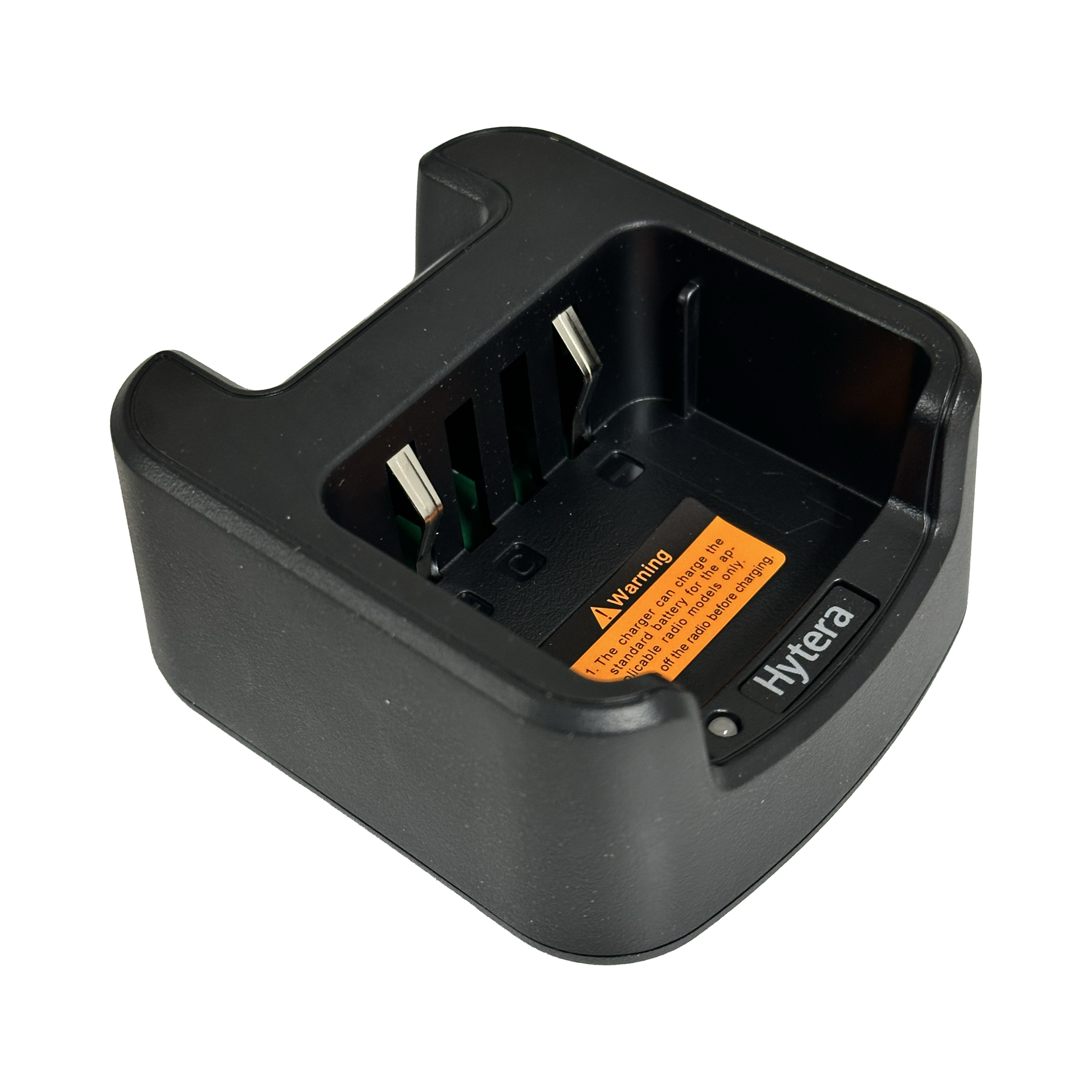

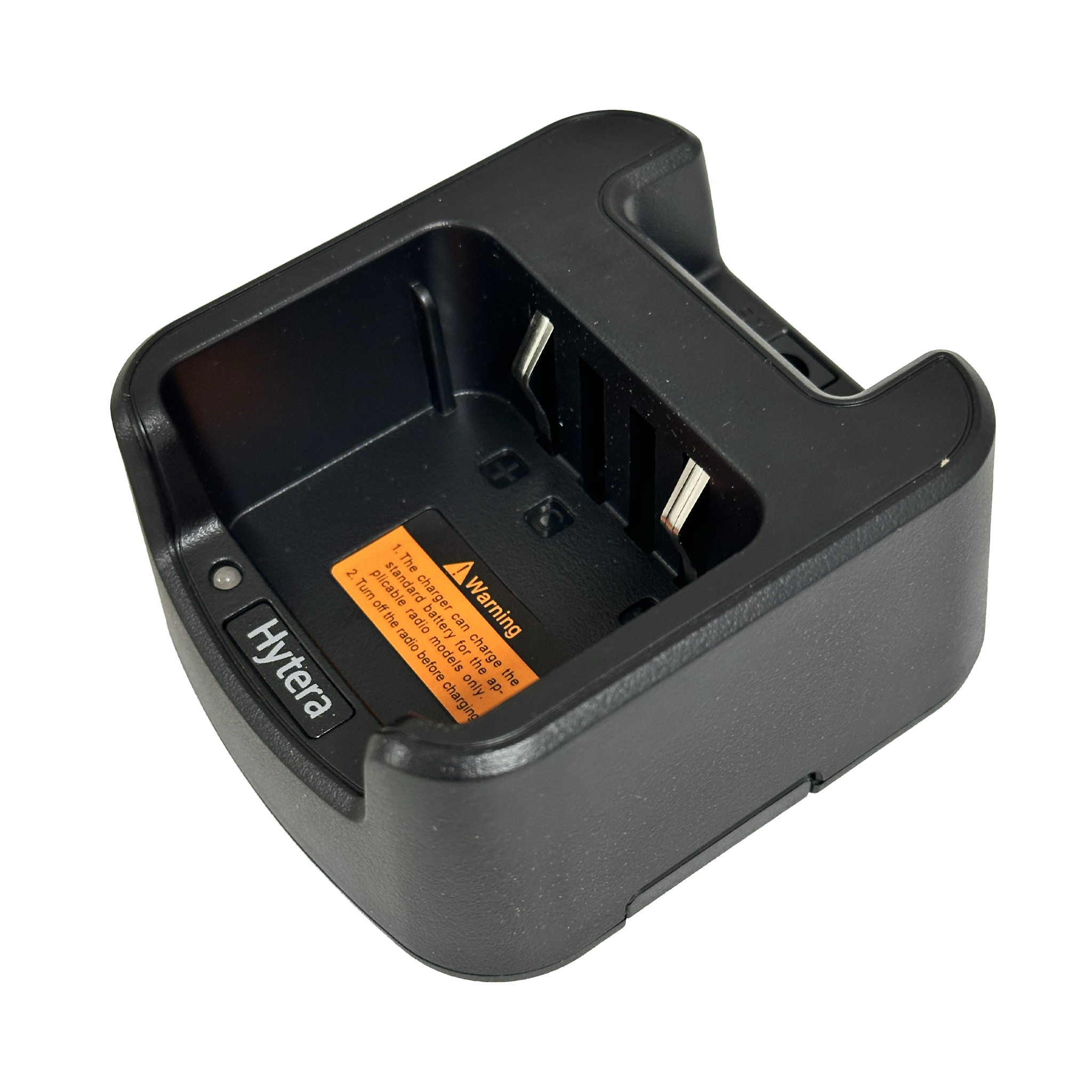

Hytera CH10L19 Rapid-Rate Desktop Charger Base (Cup Only)
Efficient power recovery for Hytera TC-series portable radios.
The Hytera CH10L19 is a professional rapid-rate desktop charger base designed for the TC508, TC518, and TC580 series handheld radios. Engineered for lithium-ion battery chemistry, it delivers a safe and optimized charging cycle that preserves long-term battery health. The CH10L19 accepts either the radio with battery attached or a standalone battery in its drop-in pocket. This is the charger cup only — a compatible power supply (PS1014 for US or PS1018 for EU) is required and sold separately.
Key Features & Benefits
Rapid-Rate Charging: Delivers a maximum charging current of 800 mA to significantly reduce downtime between shifts.
Lithium-Ion Optimized: Specifically programmed for the charging profiles of Hytera BL1719 and BL2407 battery packs.
Single-Pocket Design: Precision-molded pocket accepts the radio with battery attached or the battery alone.
Compact Footprint: Small form factor saves desk space while maintaining a stable base for the radio.
Intelligent Protection: Operates within a safe temperature range (0°C to 45°C) to prevent battery overheating.
Replaceable Cup: Replace damaged charger cups independently without discarding functioning power adapters.
Reliable Contact: High-quality charging pins ensure a consistent connection after thousands of insertion cycles.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
CH10L19 |
| Product Type |
Single-Unit Desktop Charger Base (Cup Only) |
| Max Charging Current |
800 mA |
| Input Voltage |
12V DC, 1A |
| Operating Temperature |
0°C to +45°C |
| Dimensions |
80.3 × 73.0 × 40.7 mm |
| Weight |
~70 g |
| Certification |
CE |
| Power Supply |
Requires PS1014 (US) or PS1018 (EU) — sold separately |
| Country of Origin |
China |
Compatibility
Radios
| Model |
Series |
| TC508 |
Hytera TC5 Series |
| TC518 |
Hytera TC5 Series |
| TC580 |
Hytera TC5 Series |
Batteries
| Model |
Type |
| BL1719 |
Li-Ion 1,650 mAh |
| BL2407 |
Li-Ion Battery |
What's Included
Recommended Accessories
Required Power Supplies
Hytera PS1014 Switching Power Supply — US Plug (100–240V) — Required US power adapter for the CH10L19 charger base.
Hytera PS1018 Switching Power Supply — EU Plug — Required EU power adapter for the CH10L19 charger base.
Compatible Batteries
Hytera BL1719 Li-Ion Battery (1,650 mAh) — Compatible battery for the TC508, TC518, and TC580 radios.
Compatible Radios
Hytera TC508 UHF Analog Portable Two-Way Radio — Primary compatible radio for the CH10L19 charger base.
Frequently Asked Questions
Does the CH10L19 come with a power supply?
No. The CH10L19 is the charger cup only and requires a separate power supply to operate. For US use, order the PS1014. For EU use, order the PS1018. Both are sold separately.
Can I charge a battery without the radio attached?
Yes. The CH10L19 accepts either the radio with the battery attached or a standalone BL1719 or BL2407 battery pack directly in the charging pocket.
Which Hytera radios are compatible with the CH10L19?
The CH10L19 is compatible with the Hytera TC508, TC518, and TC580 portable radios. It is optimized for use with the BL1719 and BL2407 lithium-ion battery packs.
Can I replace just the charger cup if it is damaged?
Yes. The CH10L19 is sold as a standalone cup, allowing fleet managers to replace a damaged charger base without discarding a functioning PS1014 or PS1018 power adapter.
Warranty
1-year manufacturer's warranty.
