Description

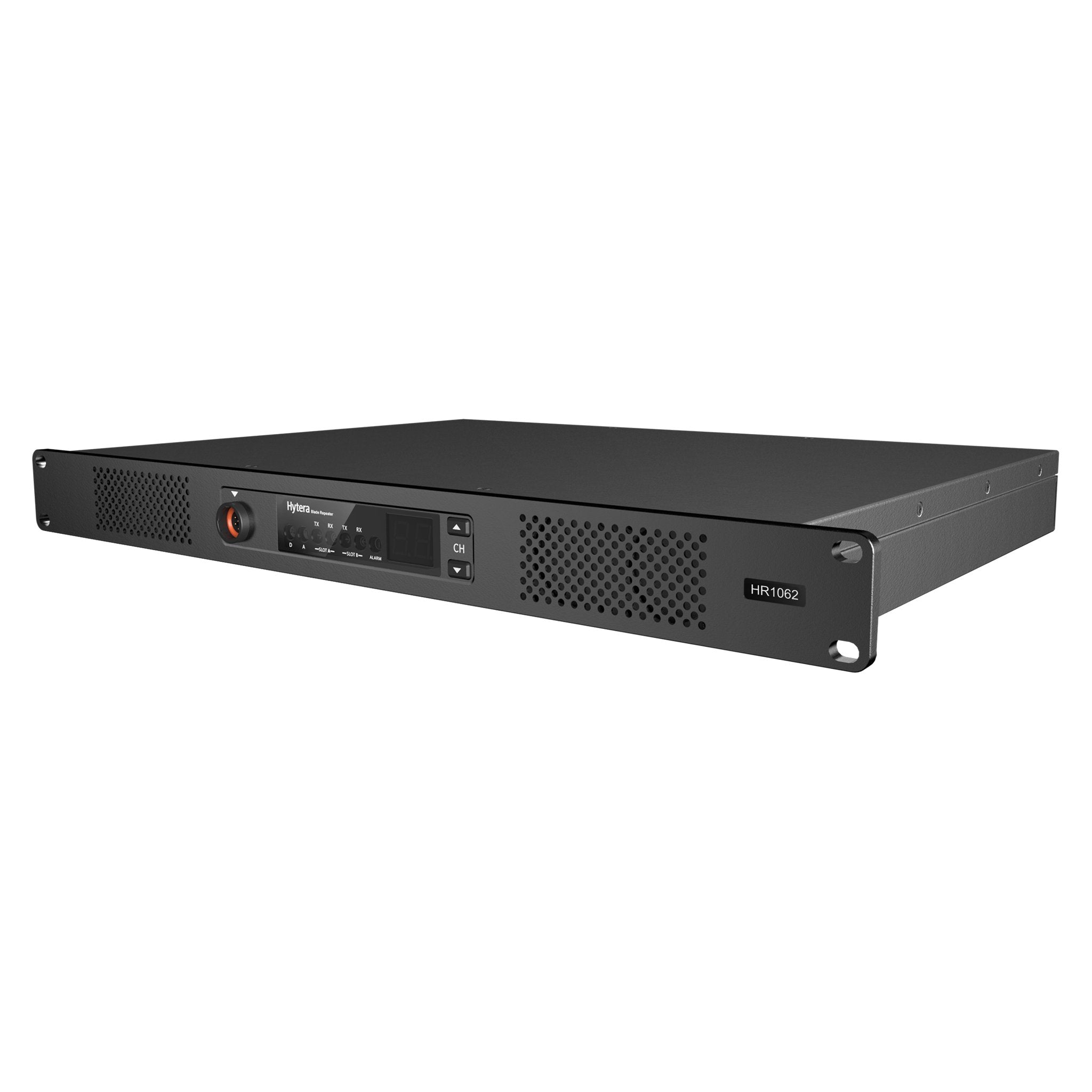

Hytera HR1062
Professional DMR Repeater
High-Performance 1U Digital & Analog Infrastructure
The Hytera HR1062 is a state-of-the-art H-Series DMR repeater engineered to provide a robust and efficient communication backbone for professional two-way radio systems. Featuring a slim 1U rack-mount design with an integrated power supply, the Hytera HR1062 optimizes valuable rack space while delivering 100% continuous duty cycle performance at up to 50 Watts. This repeater offers a seamless migration path for organizations transitioning from analog to digital, ensuring mission-critical reliability for businesses, public safety, and industrial facilities.
Built for high-capacity networking, the Hytera HR1062 utilizes DMR Tier II TDMA technology to provide two simultaneous voice channels, effectively doubling your frequency capacity. With enhanced receiver sensitivity and advanced security features—including Over-the-Air Encryption and support for AES256 algorithms—this repeater ensures that your communications remain clear, secure, and available across a wide coverage area.
Key Features & Benefits
-

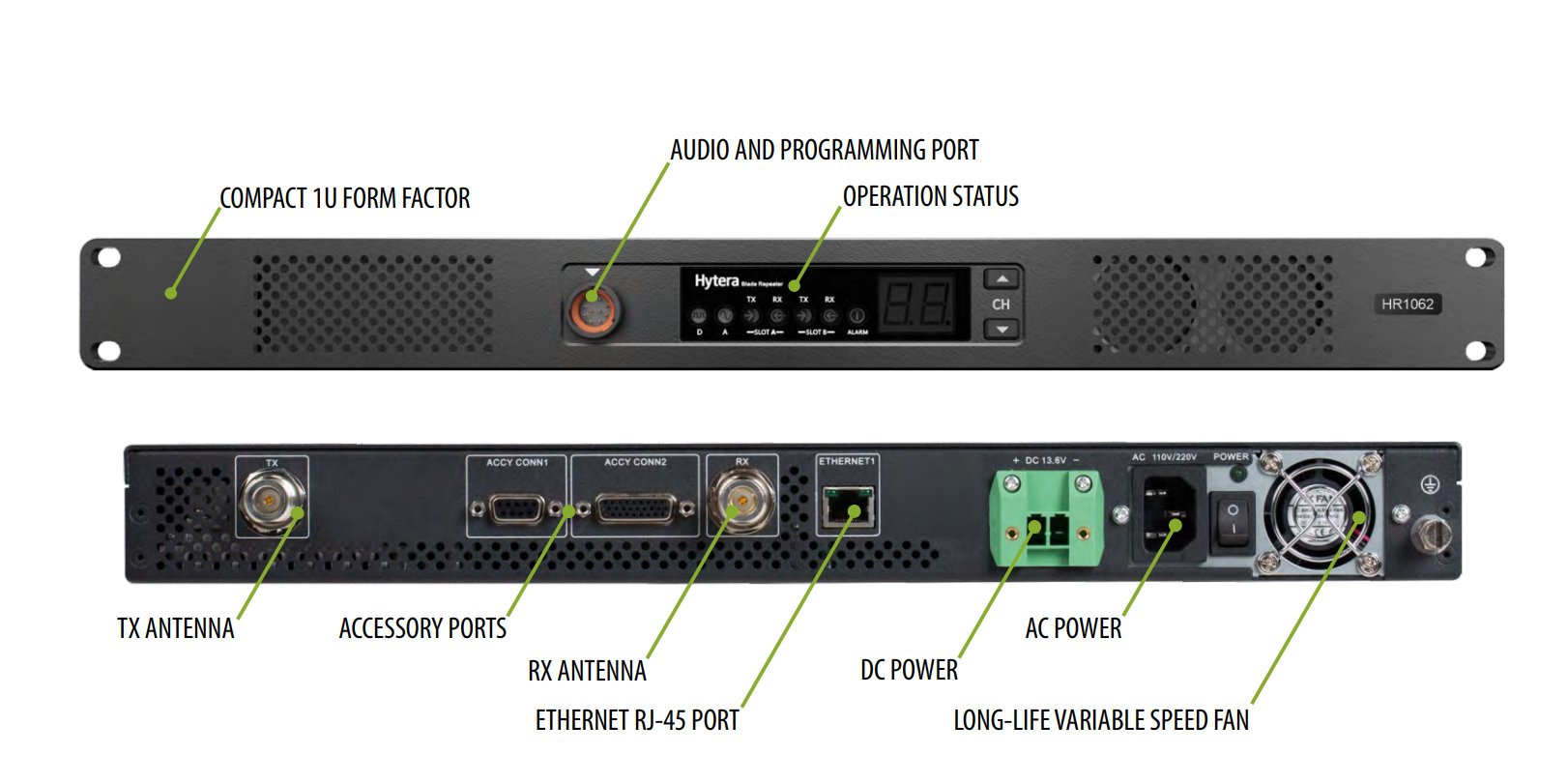

Space-Saving 1U Design: Features an integrated power supply within a compact 1U form factor to maximize efficiency in server rooms and dispatch centers.
-
Analog & Digital Auto Switch: Automatically detects incoming signals and switches modes, allowing for a smooth and cost-effective digital migration.
-
100% Continuous Duty Cycle: Equipped with a variable-speed cooling fan and high-quality components to handle constant transmission at full power.
-
AC/DC Power Redundancy: Supports both AC and DC power inputs with automatic switching to provide battery backup in the event of a power outage.
-
Advanced Encryption: Protects sensitive voice and data with Digital End-to-End encryption using ARC4 and licensed AES algorithms.
-
Extended Range: High Rx sensitivity ensures reliable signal penetration and clearer audio for users at the edge of the coverage zone.
-
IP Site Connect: Integrated Ethernet port allows for linking multiple repeaters across an IP network to cover vast geographic areas or high-rise structures.
Specifications
-
Brand: Hytera
-
Model Number: HR1062
-
Frequency Range: UHF (400-470MHz) or VHF (136-174MHz)
-
Power Output: 5-50W (Adjustable)
-
Channels: 1024
-
Duty Cycle: 100%
-
Rack Height: 1U
Available Versions
| Model Variant |
Frequency |
Features |
| HR1062-U1 |
UHF |
Standard 1U Repeater |
| HR1062-V1 |
VHF |
Standard 1U Repeater |
What's Included
| Description |
SKU |
Status |
| HR1062 Digital Repeater |
HR1062 |
✅ Included |
| AC Power Cord |
PWC03 |
✅ Included |
| DC Power Cable |
PWC06 |
✅ Included |
| User Manual |
N/A |
✅ Included |
Recommended Accessories
| Description |
SKU |
| Hytera USB Programming Cable |
PC152 |
| Hytera Palm Microphone |
SM16A1 |
| Hytera Desktop Microphone |
SM10A1 |
Frequently Asked Questions
-
Can this repeater operate on an existing analog system? Yes, the Hytera HR1062 can be programmed for analog, digital, or mixed-mode operation to support your current fleet while upgrading to DMR.
-
Does it require an external power supply? No, the HR1062 includes an integrated AC/DC power supply that can plug directly into a standard wall outlet.
-
How does it handle power failures? By connecting a 12.5V backup battery to the DC input, the repeater will automatically switch to battery power if the AC source fails.
More Resources
Warranty
2-year manufacturer's warranty.
