Description
High-Performance Signal Integrity N-Type RF Infrastructure Connector
Maintain low insertion loss and high-frequency stability across your digital repeater network.
Engineering Notice (Part Number Update): The official factory part number for this original equipment manufacturer (OEM) component has been updated. Part number HYT-51030500000035 (51030500000035) has been fully superseded by the current manufacturing SKU HYT-51030500091511 (51030500091511). This current model functions as the direct factory-authorized replacement matching or exceeding all original technical performance specifications.

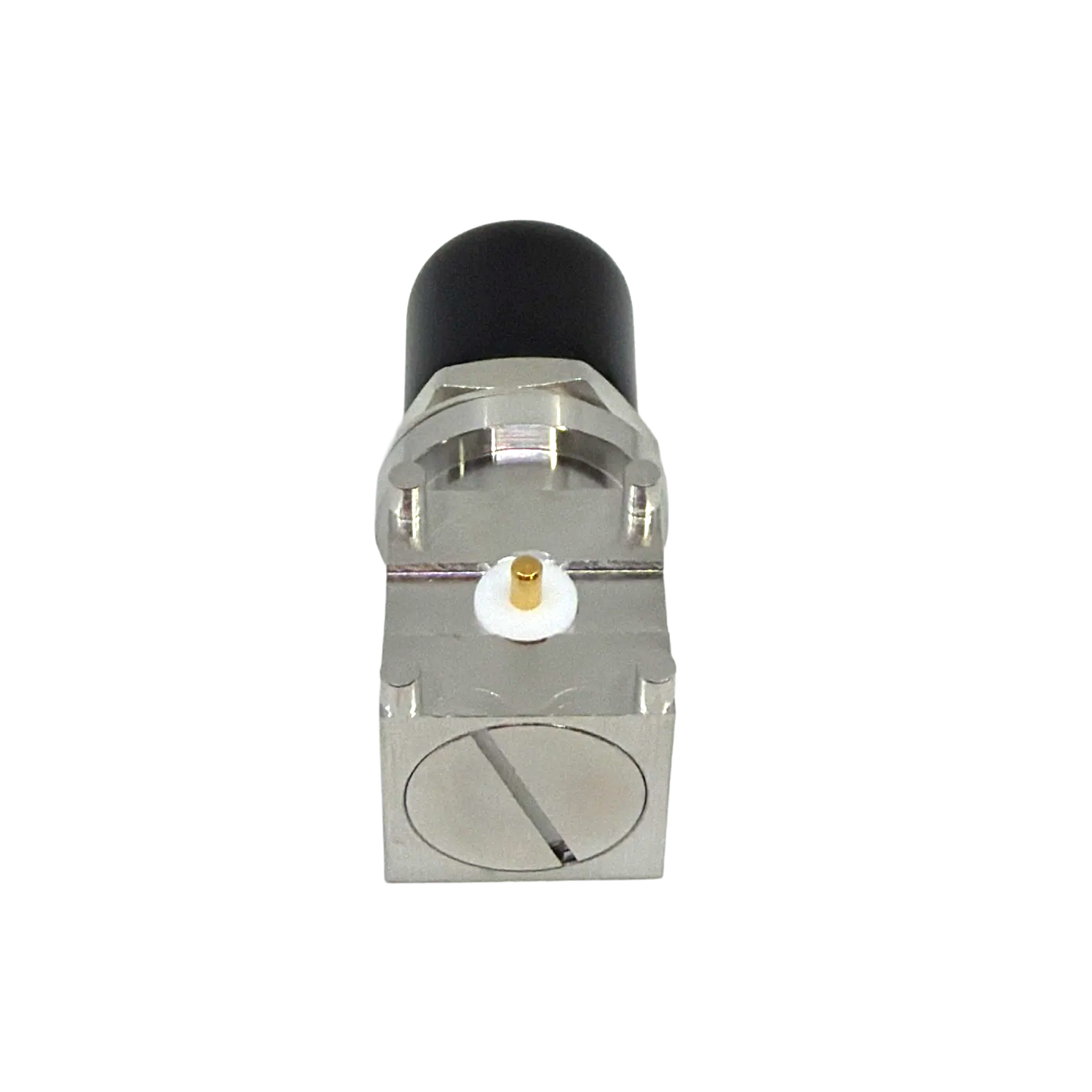

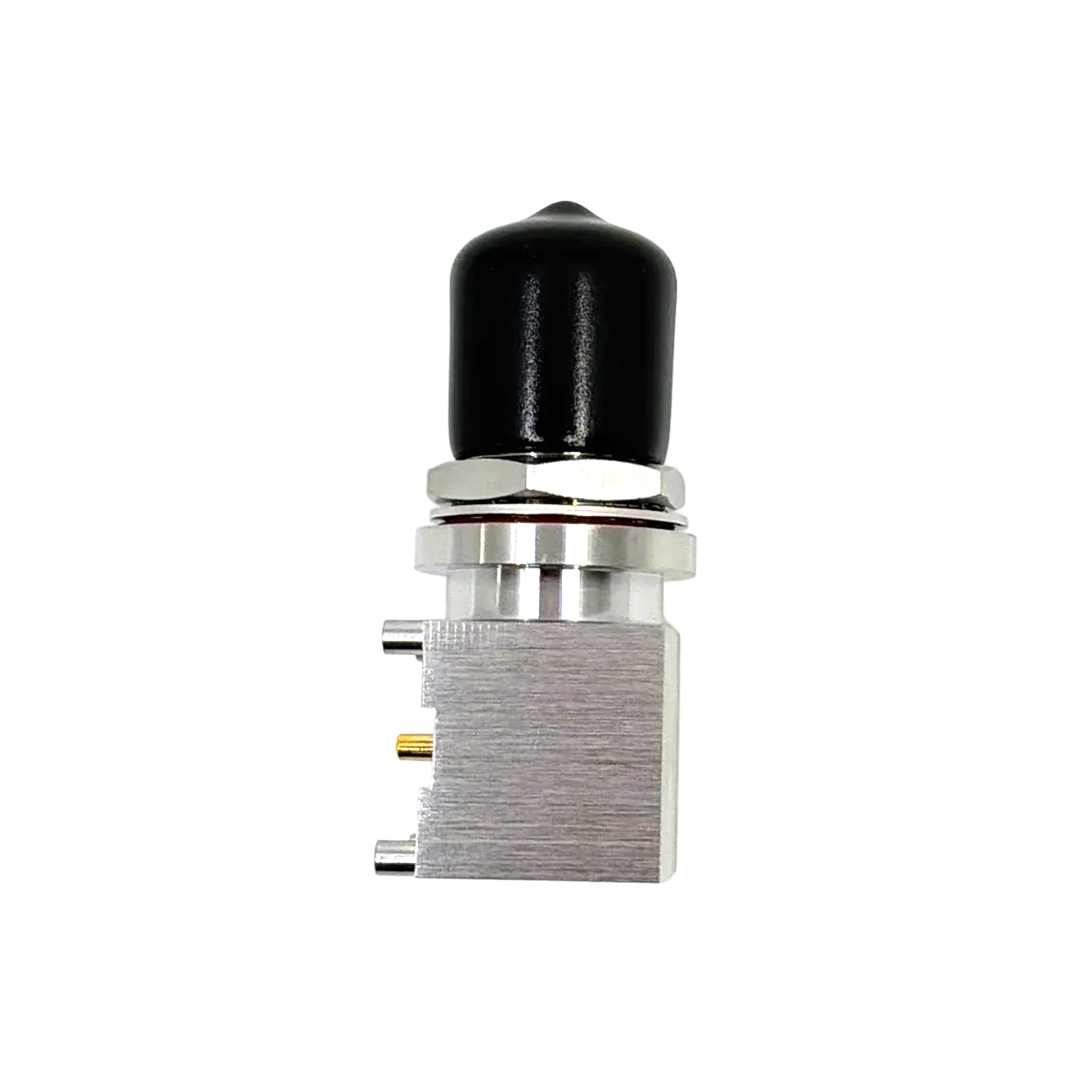

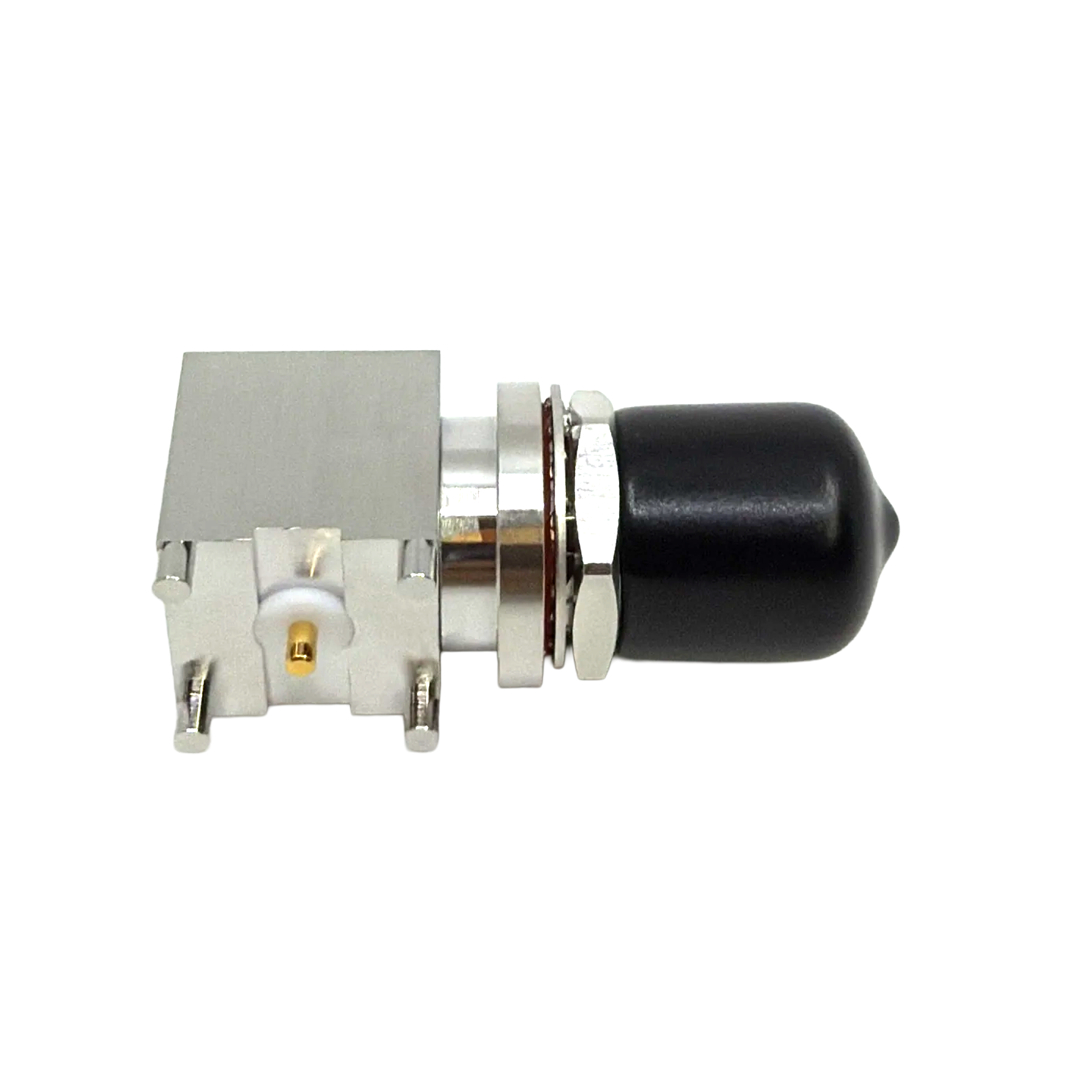

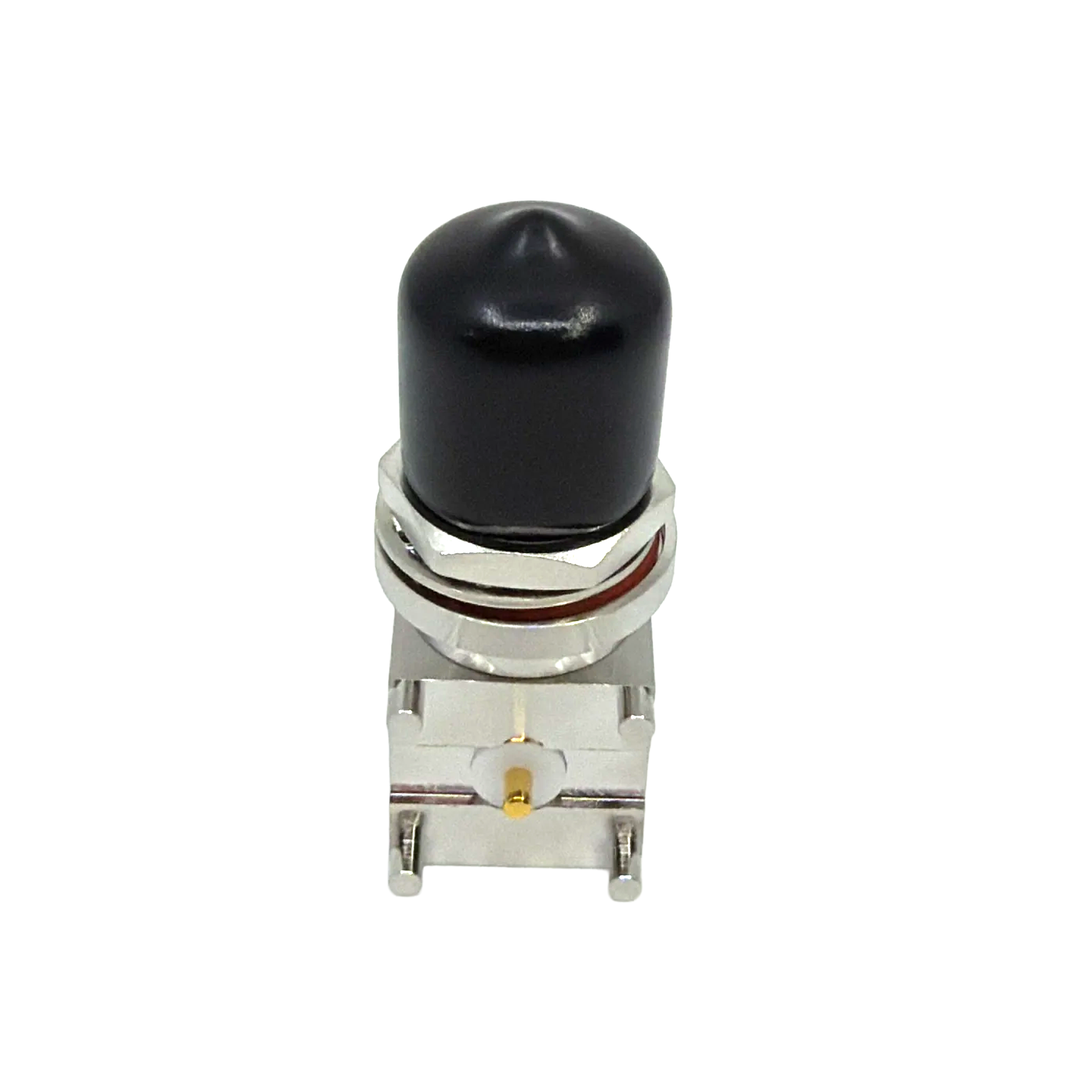

The Hytera HYT-51030500091511 is a professional-grade N-type RF connector engineered specifically for high-performance signal transmission in digital radio infrastructure. Integrating this premium coaxial junction component into your communication node setup provides critical maintenance and repair teams with a reliable electrical foundation. Designed to safeguard ultra-low insertion loss thresholds, this internal hardware component maintains high-frequency stability, ensuring that mission-critical organizational dispatch pathways remain crystal clear and entirely uninterrupted.
Specifically utilized as an internal RF signal junction across Hytera’s next-generation digital repeater systems, this part provides elite mechanical durability and heavy-duty electrical shielding. Whether you are conducting routine hardware servicing, troubleshooting a base station network drop-off, or performing standard infrastructure overhauls, the HYT-51030500091511 delivers the structural resilience needed to withstand continuous-duty commercial operation. Its precision threading protects delicate signal links from thermal expansion cycles and heavy site vibrations inside the main base cabinet.
Key Features & Benefits
-
Precision N-Type Interface: Custom-engineered to handle high-power radio frequency signals with maximum shielding effectiveness and minimal electronic interference.
-
Repeater-Grade Quality Execution: Built to meet the rigorous physical and electrical benchmarks of the official HR106X service manual guidelines for fixed-site setups.
-
Optimized Low Signal Loss: Fine-tuned to process high-tier digital frequencies smoothly, preventing signal attenuation or degradation between internal hardware modules.
-
Robust Mechanical Threading: Built to withstand internal cabinet heat fluctuations, structural expansions, and continuous station vibrations without breaking contact.
-
OEM Direct Factory Replacement: Guaranteed physical compatibility with your digital infrastructure, natively replacing legacy legacy code HYT-51030500000035.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Current Factory Part Number |
HYT-51030500091511 |
| Superseded Part Number |
HYT-51030500000035 / 51030500000035 |
| Component Category |
N-Type RF Coaxial Connector |
| Primary Application |
Internal RF Signal Junction Module |
| Operational Environment |
Digital Repeaters & Base Station Chassis |
| Signal Performance |
High-Frequency Stability / Low Insertion Loss |
Compatibility
|
|
|
|
| HR106X Series |
HR1062 |
HR1065 |
HR1066 |
| HR1068 |
HR1069 |
|
|
What’s Included
| Description |
SKU/Model |
Status |
| Hytera Internal N-Type RF Infrastructure Connector Module |
HYT-51030500091511 |
✅ Included |
| Next-Generation Digital DMR Commercial Infrastructure Repeater |
HR1062 |
❌ Sold Separately |
Recommended Accessories
-
Hytera HR1062 Digital DMR Repeater – The active next-generation high-efficiency digital base station repeater engineered for enterprise-grade dispatch and communication networking.
Frequently Asked Questions
Is the HYT-51030500091511 identical to my original part number 51030500000035?
Yes. The HYT-51030500091511 is the current engineering part number issued directly by the factory. It replaces the old, discontinued part number HYT-51030500000035 completely and mounts directly into the same internal layout slots without modifications.
What specific symptoms indicate that a repeater's internal N-type RF connector needs replacement?
If your system monitor indicates a sudden increase in Voltage Standing Wave Ratio (VSWR) errors, unusual localized signal loss, or intermittent transmission drops that clear up when moving the chassis, the internal RF connector junctions should be inspected for wear.
Can this RF connector module be utilized for external antenna mast lines?
This specific part number is cataloged by the manufacturer as an internal coaxial junction component meant to link modules inside the repeater housing itself, conforming strictly to original equipment service manual schematics.
Do I need advanced soldering equipment to install this replacement connector?
Installation criteria depend on the specific hardware module routing inside the HR106X housing. Technicians should consult the official service manual to maintain correct impedance parameters during assembly swap-outs.
Does this updated component code handle both analog and digital transmission repeaters?
Yes. While optimized to handle the strict signal integrity requirements of modern digital TDMA channels on networks like the HR1062 series, it handles standard RF frequency bands equally well regardless of modulation style.
What baseline manufacturing warranty parameters cover this base station infrastructure part?
This authentic original equipment manufacturer power installation kit is fully covered against early electrical faults, material breakdown, or assembly anomalies under standard 1-year factory warranty parameters.
Warranty
1-year manufacturer’s warranty.
