Description
Palm Microphone for Commercial Mobile and Repeater Fleets
Optimize vehicle dispatch communications with a rugged, field-ready standard mobile microphone.

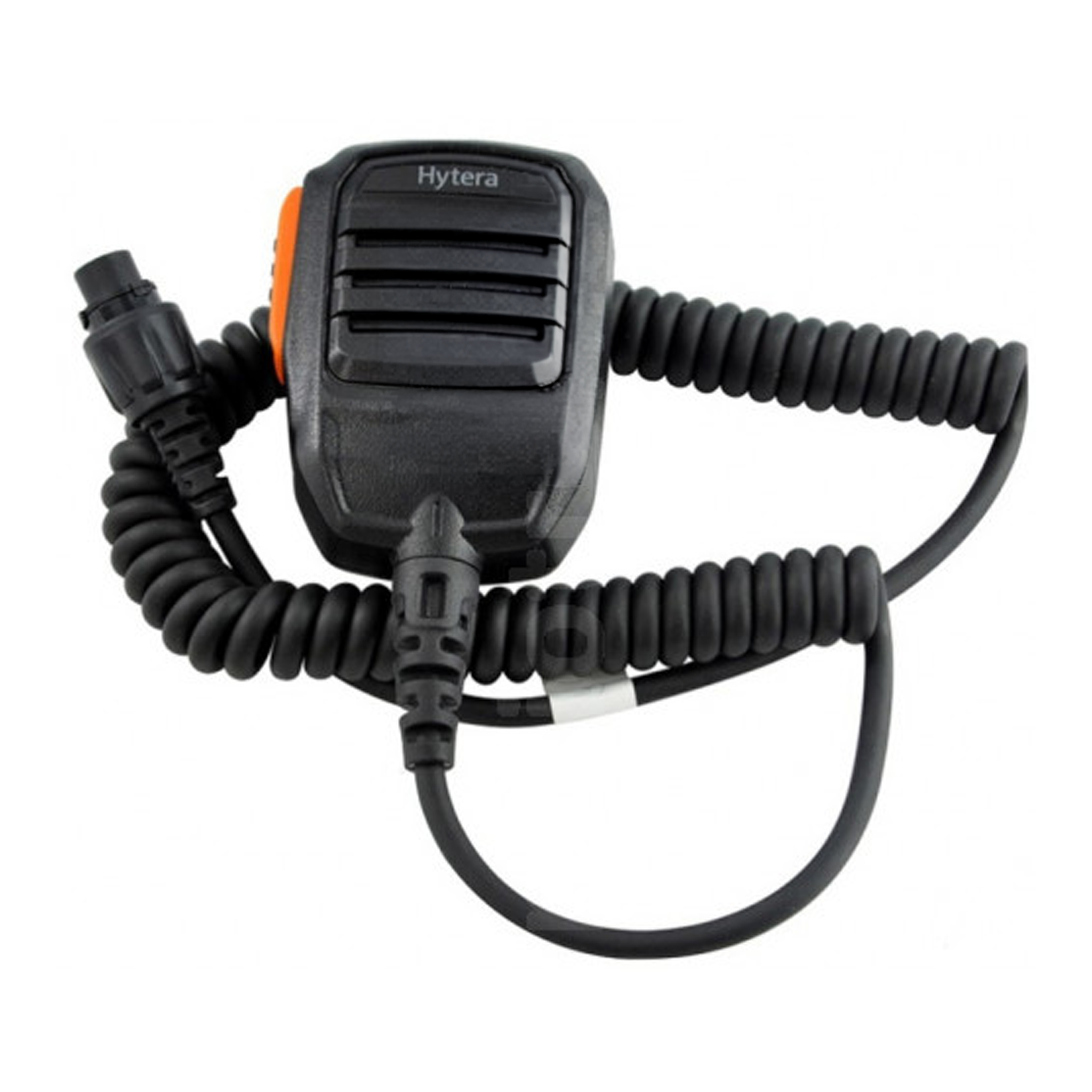

The Hytera SM16A1 is a durable audio accessory engineered for seamless daily operations. This genuine Hytera SM16A1 Palm Microphone for HM782 serves as the standard communication interface for handheld dispatching from vehicles and base stations. Equipped with a heavy-duty coiled cable, the SM16A1 establishes a secure link to your communication hub via its resilient 10-pin aviation connector.
Built for transport dispatchers, security fleets, and public utility operators, the Hytera SM16A1 solves the problem of degraded audio or broken connections in demanding professional environments. This compact accessory features an ergonomic design with an integrated push-to-talk button and a metal dash-mount clip for convenient equipment placement. Before purchasing, users must verify that their vehicle transceiver or repeater base is equipped with the compatible 10-pin aviation interface to ensure proper physical and electrical integration.
Offering exceptional omni-directional voice reproduction, the Hytera SM16A1 ensures your transmissions cut through environmental vehicle noise. The SM16A1 is constructed with an IP54 environmental rating to protect internal electrical components against fine dust particles and outdoor water spray. No specialized alignment software or driver configuration is required, making the SM16A1 a completely plug-and-play replacement for damaged or worn operational field microphones.
Key Features & Benefits
-
Rugged Environmental Build: Rated at IP54 to shield internal components against dust exposure and moisture ingress during field operations.
-
Tactile PTT Transmission: Features an ergonomic push-to-talk button that provides clear tactile feedback for error-free dispatching.
-
Secure Aviation Link: The Hytera SM16A1 Palm Microphone for HM782 utilizes a 10-pin locking aviation connector to eliminate unexpected wire pull-outs.
-
Omni-Directional Voice Capture: Equipped with an advanced acoustic element that delivers uniform sensitivity and consistent clarity across diverse mobile environments.
-
Convenient Storage Mounting: Includes a sturdy metal dash clip to keep the microphone safely docked and accessible inside a vehicle cab.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model/SKU |
SM16A1 |
| Product Type |
Palm Microphone |
| Connector Type |
10-Pin Aviation |
| Sensitivity |
-26±3dB @1KHz (0dB＝1v/Pa) |
| Output Impedance |
≤2.2kΩ |
| Directionality |
Omni-Directional |
| IP Rating |
IP54 |
| Operating Temperature |
-30°C to +65°C |
| Dimensions |
82.0 mm x 56.0 mm x 32.2 mm |
| Weight |
120.0g |
Compatibility
|
|
|
|
| MD782i |
MD782 |
RD622i |
RD622 |
| RD982i |
RD982i-S |
HM682 |
HM782 |
| HR652 |
HR1062 |
MNC360 |
|
What's Included
| Description |
SKU/Model |
Status |
| Standard Palm Microphone Assembly |
SM16A1 |
✅ Included |
| Metal Dash-Mount Clip |
Clip |
✅ Included |
| Digital Mobile Radio Transceiver |
HM782 |
❌ Sold Separately |
Recommended Accessories
More Resources
Frequently Asked Questions
Does the Hytera SM16A1 package include vehicle dashboard mounting hardware?
Yes, this standard microphone kit comes complete with a durable metal dash-mount clip and associated structural retention parts, allowing operators to securely dock the unit inside a truck cab or dispatch console.
What is the exact connector style on this mobile microphone?
This model features an integrated heavy-duty coiled cable terminated with a professional 10-pin locking aviation-style connector, ensuring an uncompromised physical connection that resists vibrational detachment in mobile environments.
Can this hand mic be washed or submerged in water?
While this accessory carries an IP54 environmental rating protecting it against fine dust ingress and splashing water spray from any direction, it is not fully submersible and should never be dropped into liquid or cleaned with direct high-pressure water hoses.
Warranty
1-year manufacturer's warranty.
