Description
High-Output Switching AC Power Supply
Heavy-duty 12V 7.5A power adapter for multi-unit charging stations.

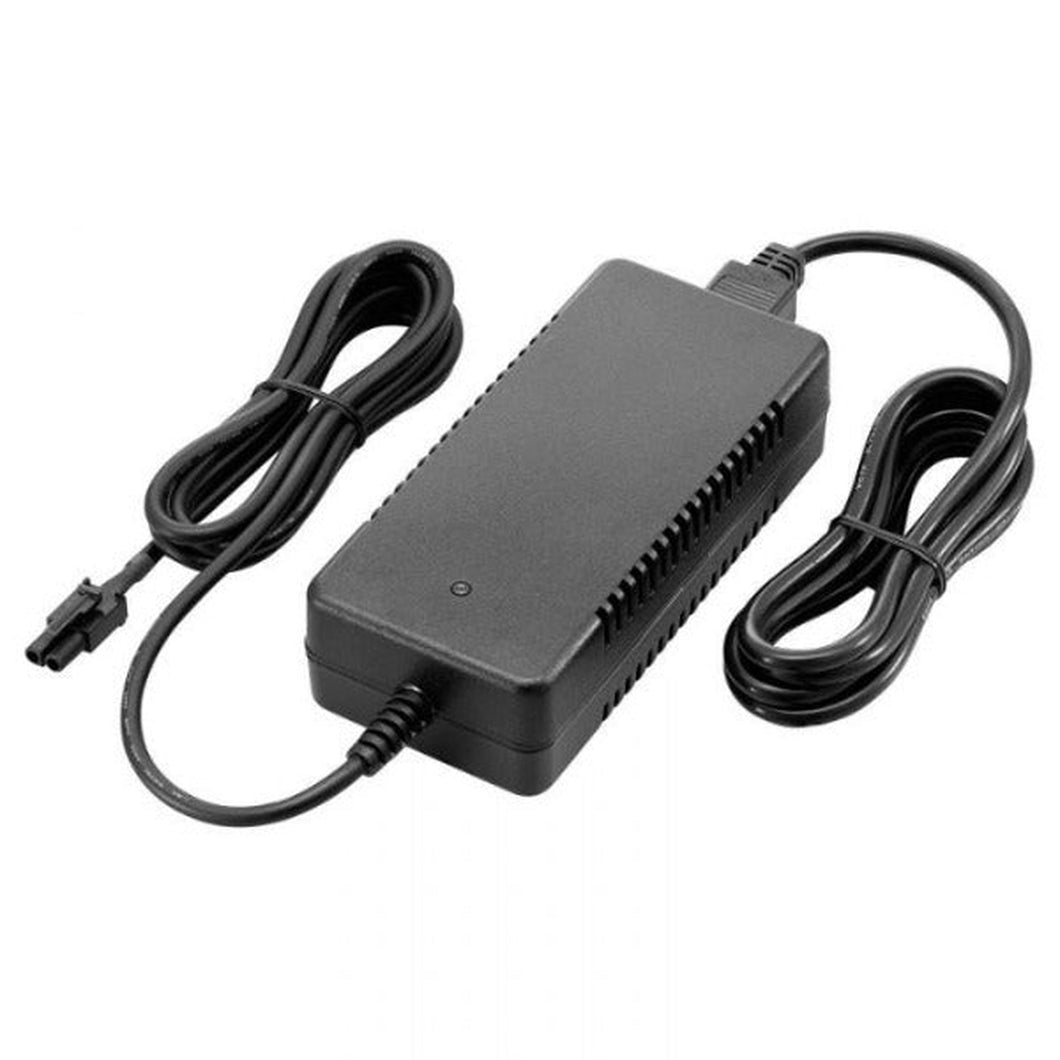

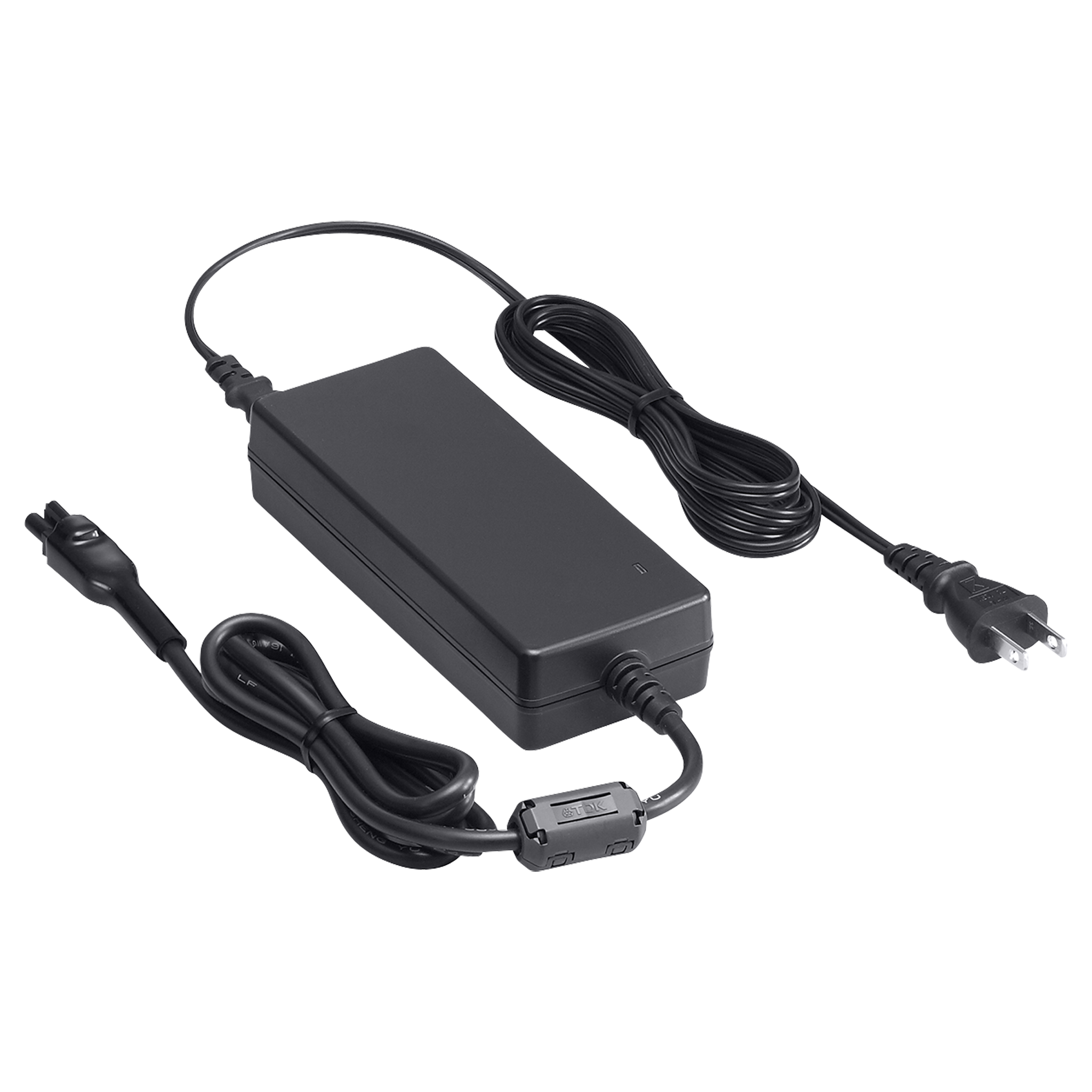

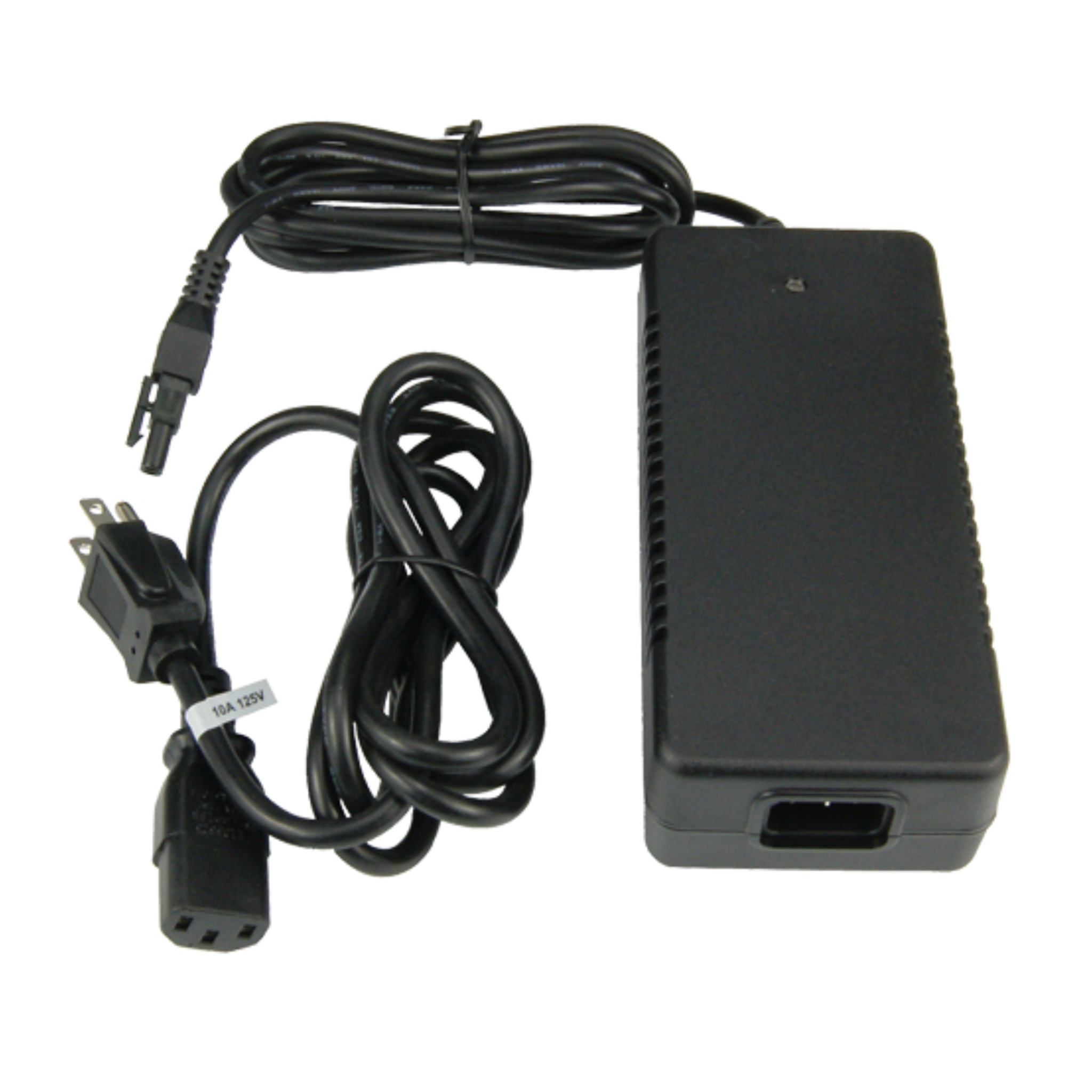

The Icom BC157S is an OEM switching AC power adapter engineered to supply stable, high-current power to multi-unit desktop charger bases. Delivering a regulated 12.0 V DC output at 7.5 A, the Icom BC157S provides the necessary power required to operate multi-bay gang chargers simultaneously, keeping entire radio fleets charged and ready for service.
Designed for international versatility and heavy commercial deployment, the Icom BC157S accepts a wide AC input voltage range of 100–240 V AC. The Icom BC157S features a 47.2 Inch DC output cable terminating in a heavy-duty 2-pin connector, alongside a 72.0 Inch detachable AC power cord to allow flexible desktop positioning in dispatch centers, shop floors, and equipment rooms.
Key Features & Benefits
-
High-Current DC Output: Supplies a regulated 12.0 V DC output at 7.5 A to reliably power multi-pocket radio charging docks.
-
Icom BC157S Universal Input: Universal 100–240 V AC switching input voltage allows operation across global power systems.
-
Extended Cable Reach: Features a 47.2 Inch DC cable and a 72.0 Inch AC cord for adaptable power outlet placement.
-
Secure 2-Pin Connection: Molded 2-pin power connector provides a firm, reliable electrical connection to charger bases.
-
Genuine OEM Reliability: Precision-engineered by Icom to ensure voltage protection and prevent charger overheating.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
BC157S (BC-157S) |
| Power Supply Type |
Switching Power Supply |
| Input Voltage |
100–240 V AC |
| Output Voltage |
12.0 V DC |
| Output Current |
7.5 A |
| Connector Type |
2-Pin Power Connector |
| DC Cable Length |
47.2 Inches |
| AC Cable Length |
72.0 Inches |
Compatibility
Multi-Unit Chargers
|
|
|
|
| BC121N |
BC121NS |
BC197 |
BC211 |
| BC214 |
BC214N |
|
|
Compatible Radios
|
|
|
|
| F1000 |
F2000 |
F1100D |
F2100D |
| F3001 |
F4001 |
F3011 |
F4011 |
| F3230D |
F4230D |
F3261D |
F4261D |
| F3400D |
F4400D |
F52D |
F62D |
| F7010 |
F7020 |
F7040 |
F9011 |
| F9021 |
A16 |
M85 |
SAT100 |
| IP503H |
IP504H |
|
|
Recommended Accessories
Multi-Unit Chargers
-
Icom BC197 Multi-Charger Base – Six-pocket rapid desktop charging station powered by this AC adapter.
-
Icom BC121NS Multi-Charger Unit – Multi-bay battery charger requiring high-output external power.
-
Icom BC214 Six-Way Multi-Charger – Gang charger base utilizing the BC157S power supply for rapid charging.
Compatible Radios
-
Icom SAT100 Satellite PTT Radio – Satellite handheld radio supported by compatible multi-unit charging docks.
-
Icom F3400D Digital Portable Radio – IDAS digital radio charged via multi-bay desktop charger bases.
-
Icom F52D Digital Portable Radio – Compact DMR/IDAS handheld radio utilizing multi-unit charging stations.
-
Icom F7010 P25 Portable Radio – Mission-critical P25 handheld radio charged via multi-bay charging bases.
-
Icom F7020 P25 Portable Radio – Advanced P25 digital radio supported by multi-charger desktop systems.
-
Icom F7040 P25 Portable Radio – High-tier P25 portable radio utilizing multi-unit fleet chargers.
More Resources
Frequently Asked Questions
What is the main purpose of the Icom BC157S AC power adapter?
The Icom BC157S supplies primary AC desktop power to multi-unit charger bases, allowing multi-bay charging docks to rapidly charge several portable radio batteries simultaneously.
What power specifications does the Icom BC157S power supply deliver?
The Icom BC157S features a wide-range AC input voltage of 100–240 V AC and converts it to a regulated 12.0 V DC output at 7.5 A.
Which Icom multi-chargers are compatible with the Icom BC157S?
The Icom BC157S is designed to power Icom BC121N, BC121NS, BC197, BC211, BC214, and BC214N multi-unit charger bases used for fleet radio management.
What cable lengths are provided with the Icom BC157S power adapter?
The Icom BC157S includes a 47.2 Inch DC output cable connected to the adapter body and a 72.0 Inch detachable AC power cord for flexible placement.
What connector type does the Icom BC157S use to attach to the charger base?
The Icom BC157S features a heavy-duty 2-pin connector designed to mate securely with compatible Icom multi-unit charger power ports.
Is the Icom BC157S an official OEM power adapter?
Yes, the Icom BC157S is a genuine original equipment manufacturer power supply engineered by Icom to ensure optimal voltage regulation and charger performance.
Warranty
1-year manufacturer’s warranty.
