Description
2250mAh Lithium-Ion Battery for Compatible Icom Portable Radios

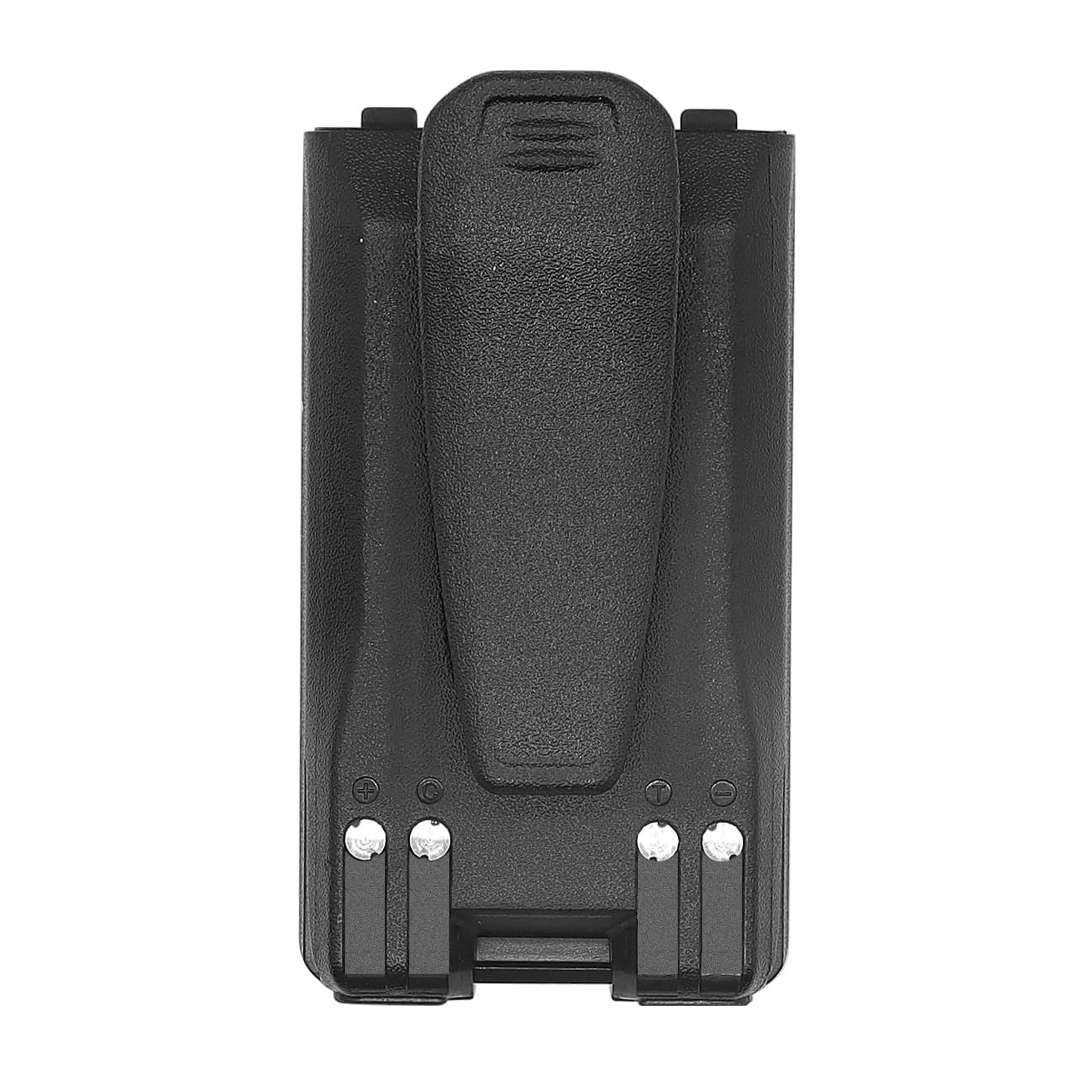

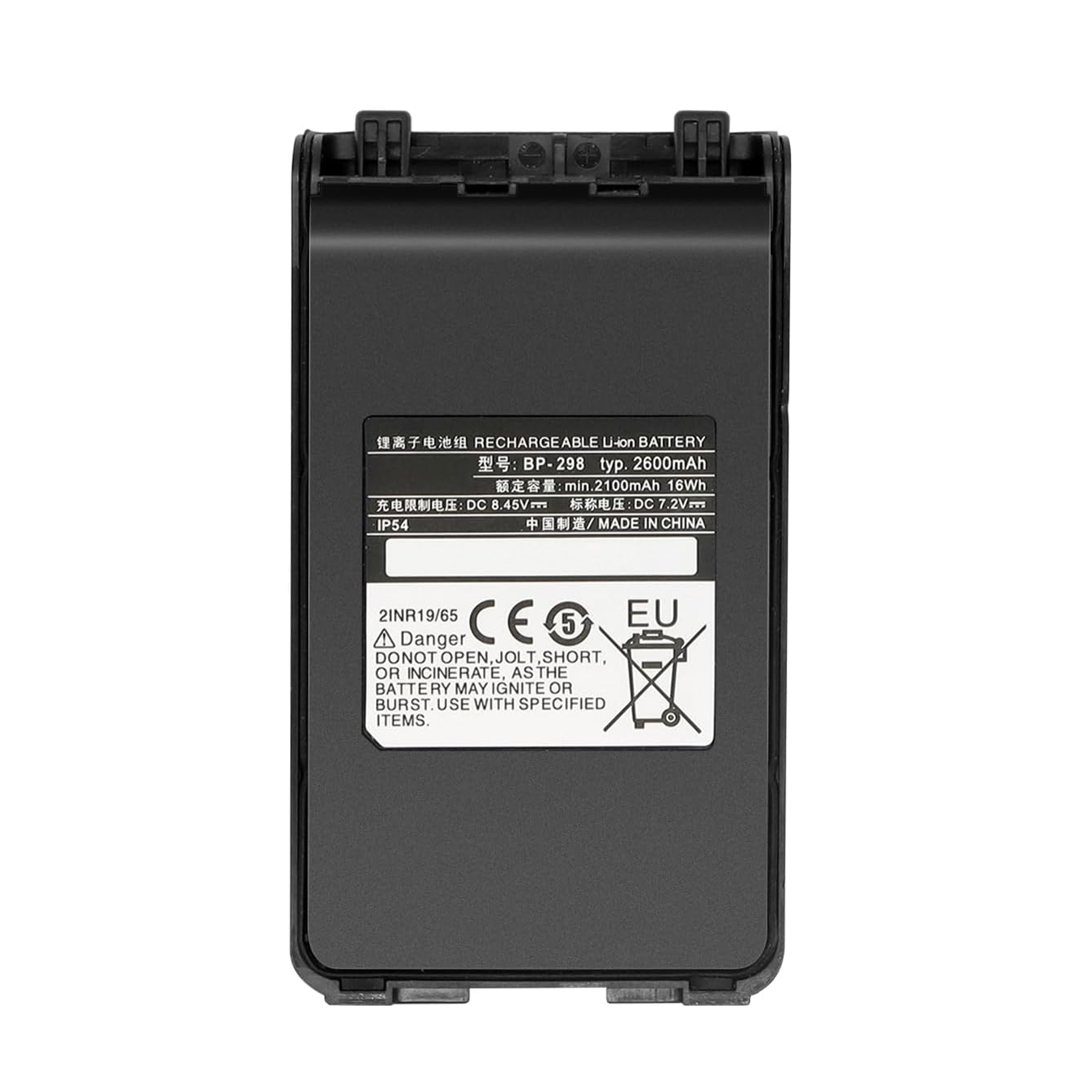

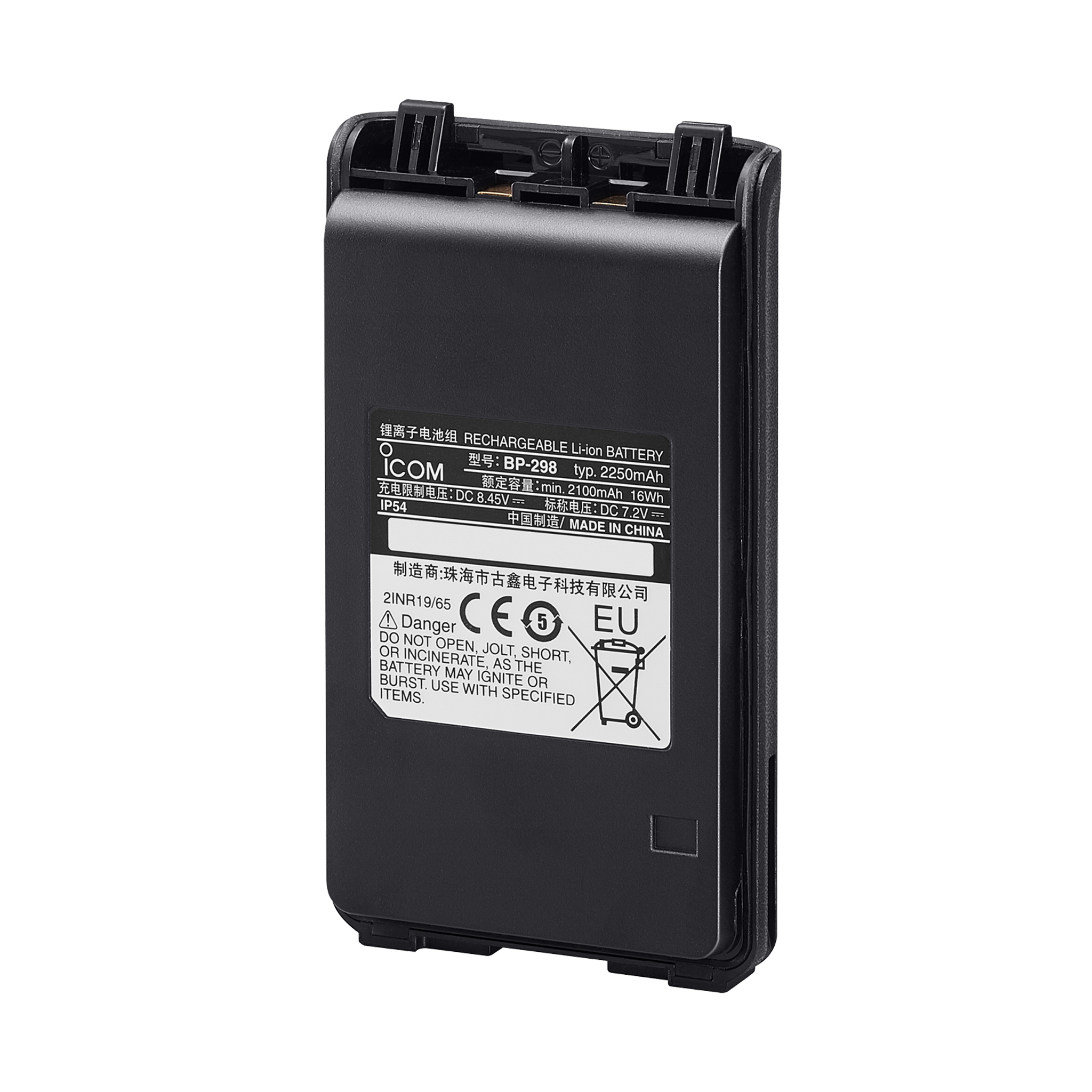

The Icom BP298 is a rechargeable lithium-ion battery pack with a 2250mAh typical capacity and 7.2V nominal voltage. Use it as a replacement or spare battery for compatible Icom radios, including the V3MR and V86, to keep a charged pack available between shifts.
The battery is listed with an IP54 rating for dust protection and resistance to splashing water. It is not a submersible battery. Actual operating time depends on the radio, transmit power, duty cycle, temperature and battery condition.
Key Features
-
Rechargeable lithium-ion chemistry: Replacement or spare power source for the compatible models below.
-
2250mAh typical capacity: Capacity is stated as typical, not a guaranteed minimum or fixed runtime.
-
7.2V nominal voltage: Matches the listed BP298 battery specification.
-
IP54 rating: Dust-protected and splash-resistant, not waterproof for immersion.
-
Spare-battery convenience: Keep a compatible charged pack ready when the installed battery needs recharging.
Specifications
| Specification |
Details |
| Brand |
Icom |
| Model / SKU |
BP298 |
| Product type |
Rechargeable portable radio battery pack |
| Battery chemistry |
Lithium-ion |
| Typical capacity |
2250mAh |
| Nominal voltage |
7.2V |
| Ingress protection |
IP54: dust-protected and splash-resistant |
Compatibility
| Compatible Icom Radio |
Compatible Icom Radio |
| V86 |
U86 |
| F3003 |
F4003 |
| G86 |
V3MR |
Confirm the exact radio model and required battery part number before ordering. Similar-looking battery packs are not necessarily interchangeable.
What's Included
| Description |
SKU / Model |
Status |
| Lithium-ion battery pack |
BP298 |
Included |
| Compatible battery charger |
BC240 or appropriate BC214N-27 configuration |
Sold Separately |
| Portable radio |
Compatible model |
Sold Separately |
Recommended Accessories & Related Products
Alternative Battery Options
-
Icom BP299 Lithium-Ion Battery: Higher-capacity rechargeable option with 3150mAh typical capacity and 7.2V nominal voltage. Its listing includes V86, U86, F3003 and F4003 compatibility. Match the exact radio and charger before substituting.
-
Icom BP263 AA Alkaline Battery Case: Alternative power option that holds six AA alkaline batteries, with listed compatibility including V86, U86, G86, F3003 and F4003. This is a battery case, not a rechargeable lithium-ion pack; do not place the loaded alkaline case in a lithium-ion charger.
These alternatives are sold separately. Their model coverage is not automatically identical to the BP298 compatibility table; confirm fitment for your exact radio, including V3MR, before ordering.
Chargers
-
Icom BC240 Desktop Charger: Single-unit charging option listed for BP298 batteries and compatible radios.
-
Icom BC214N-27 Six-Unit Charger: Select the BC214N-27 V86/V3MR variant for BP298 support. Other variants in the combined listing serve different battery families.
-
Icom BC242 AC Adapter: Replacement power-supply option for the BC240 charging setup. It powers the compatible charging cradle, not a loose battery directly; check whether your charger package already includes it.
Related Radios
-
Icom V3MR: Compatible portable radio that lists the BP298 in its supplied kit.
-
Icom V86: Compatible portable radio listing with BP298 battery support.
Frequently Asked Questions
Does the BP298 fit both the V3MR and V86?
Yes. Both models are included in the compatibility table, along with U86, G86, F3003 and F4003.
Are BP299 and BP263 other battery options?
Yes, for models supported by the specific alternative. BP299 is a higher-capacity rechargeable lithium-ion pack, while BP263 is a case for six AA alkaline batteries. Check the alternative's exact model compatibility rather than assuming every BP298-compatible radio accepts both. The BP263 alkaline case must not be charged in a lithium-ion charger.
Is 2250mAh the typical or minimum capacity?
This listing specifies 2250mAh as the typical capacity. It does not establish a separate minimum-capacity figure.
How long will the battery run my radio?
There is no single runtime for every compatible radio. Transmit power, transmit/receive/standby duty cycle, temperature and battery age all affect operating time. Check the specifications for your exact radio and usage conditions.
Which charger should I use?
The BC240 is listed for BP298 batteries. For multi-unit charging, choose the BP298-compatible BC214N-27 configuration rather than assuming every BC214 variant is suitable.
Does the battery include a charger?
No. This listing is for the BP298 battery pack. The compatible charger and radio are sold separately.
Can I submerge an IP54 battery?
No. IP54 indicates dust protection and resistance to splashing water, not immersion protection. The assembled radio's protection also depends on its own rating and correct installation of its components.
Can I charge the battery directly with a BC242 adapter?
No. The BC242 powers a compatible charging cradle. Use the correct charger between the power adapter and battery.
Can any Icom charger charge the BP298?
No universal charger compatibility is implied. Match the battery part number and lithium-ion charging requirements to the exact charger model and configuration.
Warranty
1-year manufacturer's warranty.
