Description

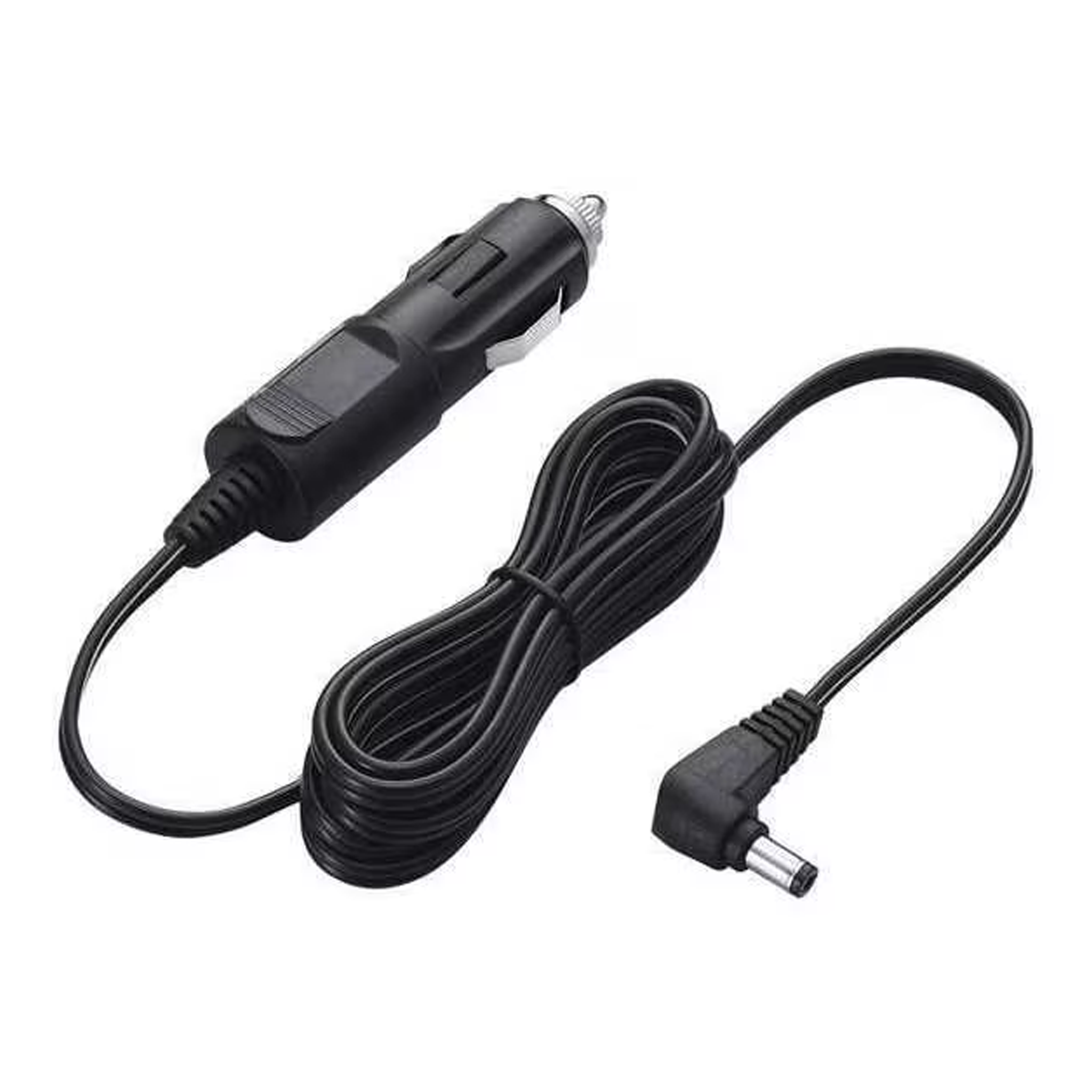

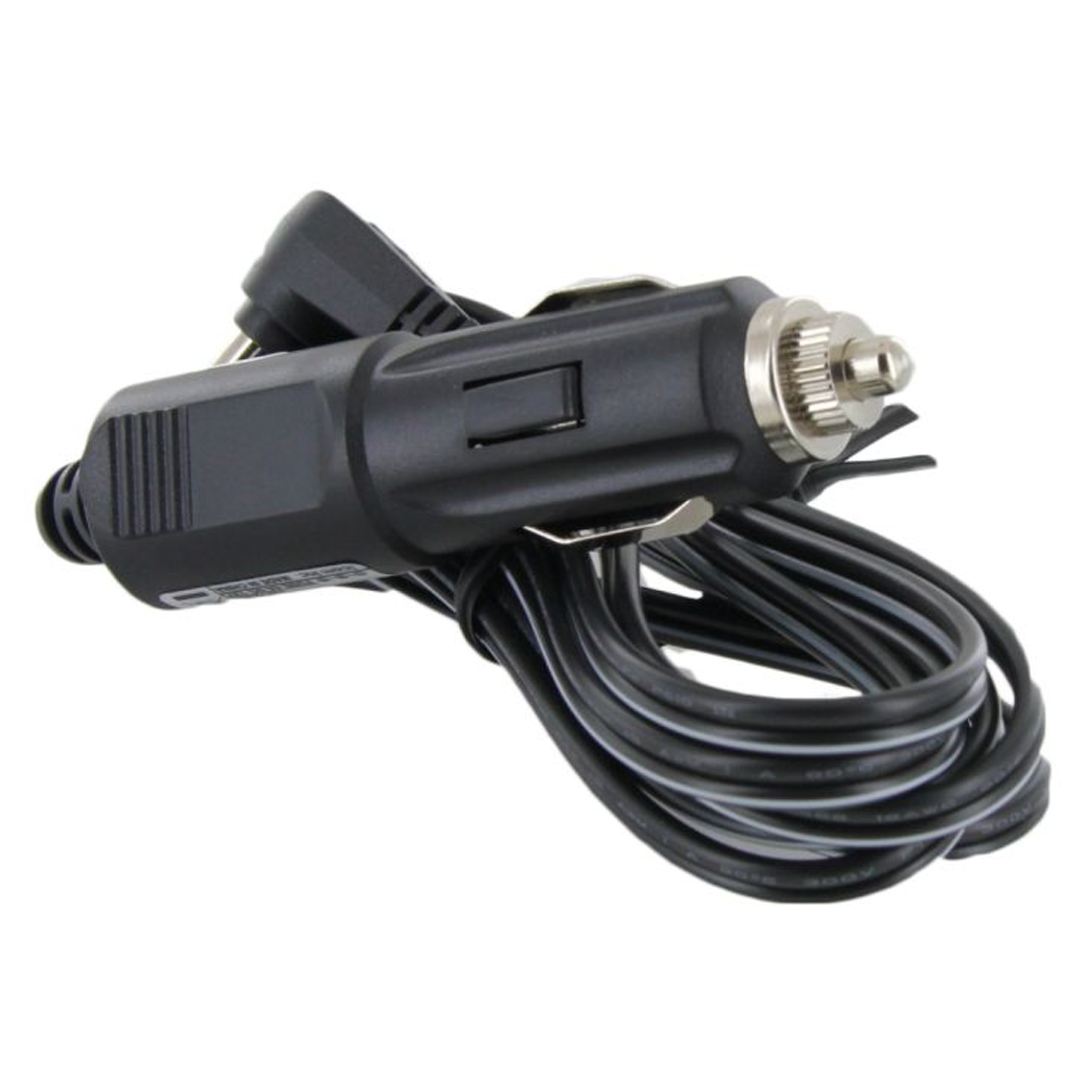

Icom CP23L 12V DC Cigarette Lighter Cable for Rapid Chargers
1.8-meter (6ft) 12V DC fused cigarette lighter cable for Icom rapid charger desktop bases. 12–16V input, 4A internal fuse. EIA “S” connector.
The Icom CP23L is a 12V DC power cable that connects a standard vehicle cigarette lighter socket to compatible Icom rapid charger desktop bases, enabling in-vehicle radio charging without a mains power supply. At 1.8 meters (6 feet), it provides ample reach for routing through vehicle consoles or dashboard mounts. A 4A internal fuse protects both the charger and vehicle electrical system from surges or short circuits. The wide 12–16V input range maintains consistent power delivery during engine starts and varying alternator outputs. Compatible with desktop charging bases including the BC119NS, BC160, BC193, BC210, BC213, and BC220.
Key Features & Benefits
Vehicle Power for Icom Chargers: Powers compatible Icom rapid charger desktop bases directly from any standard 12V vehicle accessory port.
1.8-Meter (6ft) Cable: Ample length for routing through vehicle consoles, glove boxes, or dashboard mounts without pulling tight.
4A Internal Fuse: Protects the charger and vehicle electrical system from overloads and short circuits.
12–16V Wide Input Range: Maintains stable power delivery across varying alternator outputs and during engine starts.
EIA “S” Connector: Heavy-duty 2.1mm / 5.5mm female connector for a secure, vibration-resistant fit with Icom charging cradles.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
CP23L |
| Input Voltage |
12–16V DC |
| Output Current |
4.0A Max |
| Cable Length |
1.8m (6.0ft) |
| Connector Type |
EIA “S” Female (Outer Ø5.5mm / Inner Ø2.1mm) + Cigarette Plug |
| Fuse Protection |
4A Internal Fuse (User-Replaceable) |
| Country of Origin |
Japan |
Charging Base Compatibility
| Charger Base |
Notes |
| BC119NS |
Rapid Charger for F9011 & F9021 |
| BC160 |
Icom Desktop Rapid Charger Base |
| BC193 |
Icom Desktop Rapid Charger Base |
| BC210 |
Icom Desktop Rapid Charger Base |
| BC213 |
Icom Desktop Rapid Charger Base |
| BC220 |
Icom Desktop Rapid Charger Base |
Radio Compatibility
| Model |
Series |
| A16 |
Icom Aviation |
|
F1000, F2000, F1100D, F2100D |
Icom F Series Analog |
| F1000, F1100D, F2000, F2100D
|
Icom F Series Digital |
| F3003, F3033, F3210D, F3230D, F3263D |
Icom F Series Analog/Digital |
|
F3400D, F4003, F4033, F4210D, F4230D, F4263D, F4400D
|
Icom F Series IDAS Digital |
| F52D, F62D |
Icom F Series IDAS Digital |
| F7010, F7020, F7040 |
Icom F7000 Series P25 |
| G86, G88 |
Icom G Series |
| ID-52A |
Icom D-STAR Amateur |
| IP501H, IP503H |
Icom IP Series (PoC) |
|
IP730D, IP740D
|
Icom IP Series (PoC) |
|
M85, M88 |
Icom M Series Marine/Land Mobile |
| T10 |
Icom T Series |
| U86, U88 |
Icom U Series |
| V80, V80E, V86, V88 |
Icom V Series |
What’s Included
- Icom CP23L Cigarette Lighter Cable (1.8m)
Frequently Asked Questions
Can I plug this directly into my radio?
No. The CP23L is designed to power Icom desktop charging bases, not the radio’s side accessory port. Connect it to the appropriate Icom charger base for your radio model.
Is this compatible with 24V truck electrical systems?
No. The CP23L input range is 12–16V DC only. Using it in a 24V system will blow the fuse and may damage the equipment.
Can the fuse be replaced?
Yes. The cigarette lighter plug contains a user-replaceable 4A fuse. Replace only with a fuse of the same rating.
Warranty
1-year manufacturer’s warranty.
