Description
Next-Generation P25 Mobile Transceivers for Public Safety and Mission-Critical Fleets
Deploy high-power interoperable communication platforms built to withstand the harshest field operations.

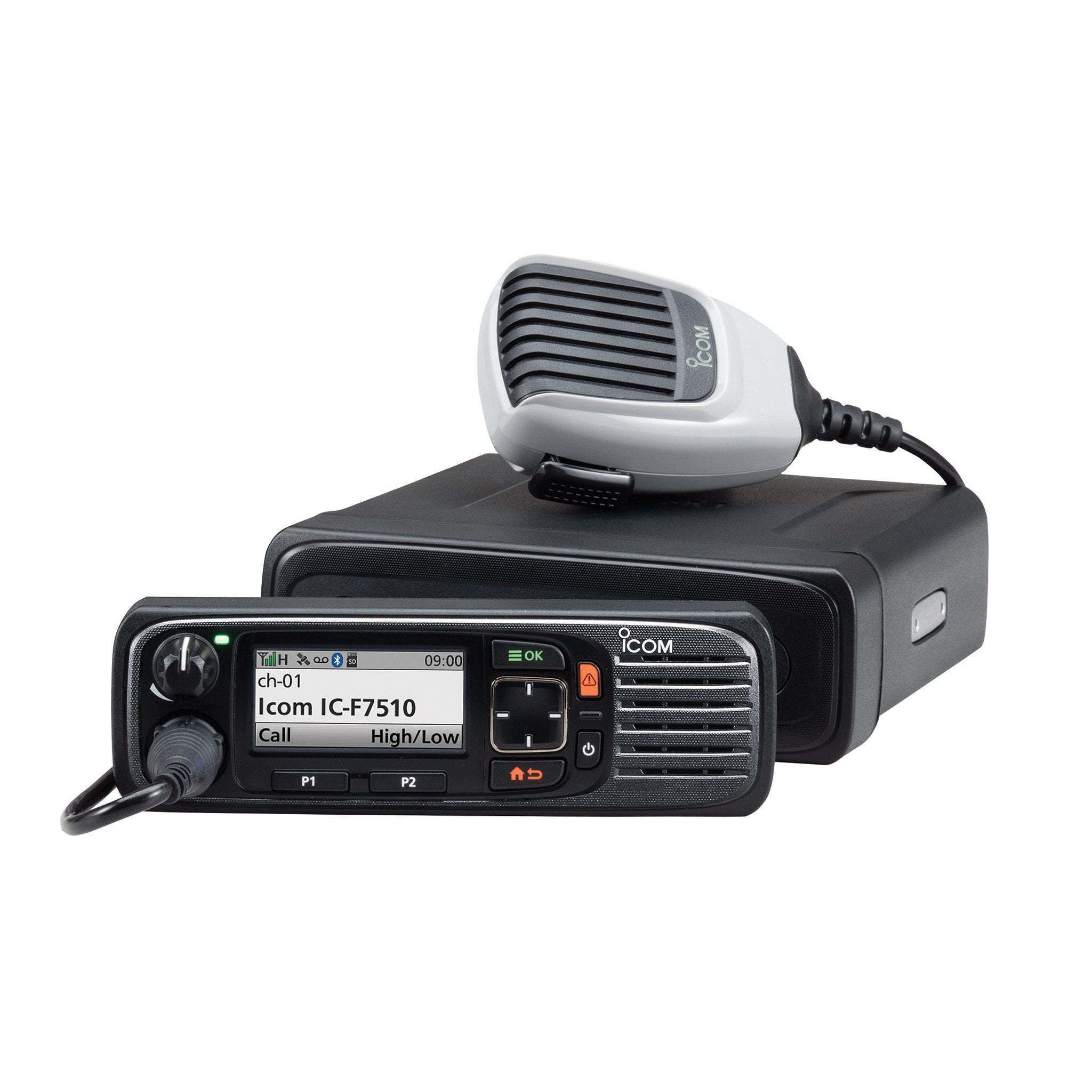

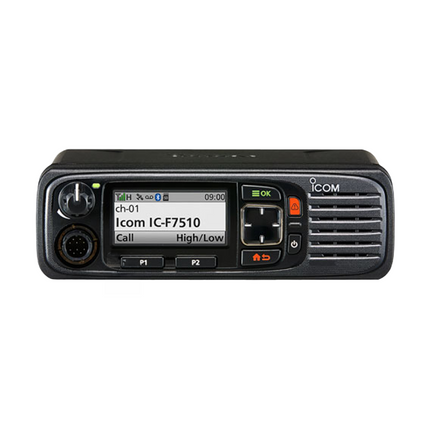

The Icom F7510, Icom F7520, and Icom F7540 series represents a unified tier of professional Project 25 (P25) digital mobile radios engineered for public safety, emergency response, and utility networks. This versatile product group consolidates high-tier communications into a single rugged chassis footprint, allowing tactical administrators to select between VHF, UHF, or 700/800MHz operational configurations to perfectly match local regional infrastructure requirements.
Equipped with a high-resolution color LCD, these platforms maximize visibility across challenging day and night lighting conditions with active scratch-resistant glass armor. The operational core supports standard P25 Phase 1 conventional networks out of the box, with built-in capability to scale up to Phase 1 trunking and Phase 2 trunking systems via digital licensing. Advanced active noise cancellation filters background siren rumble, wind noise, and vehicle engine roar to prioritize clean human speech delivery. Integrated Bluetooth connectivity offers hands-free operation, while onboard GPS logs vehicle coordination paths to optimize fleet dispatch safety.
Key Features & Benefits
-
Multi-Band Deployment Flexibility: Provides unified fleet management by offering separate hardware configurations spanning across the VHF, UHF, or 700/800MHz spectrums.
-
Mission-Critical P25 Protocol: Built to comply with strict public safety guidelines supporting conventional operation with optional expansion paths for Phase 1 and Phase 2 trunking layouts.
-
High-Resolution Color Display: Utilizes a bright color user interface featuring auto-dimming night mode configurations to minimize operator eye strain during night shifts.
-
Active Noise Canceling: Employs advanced hardware processing to scrub ambient cabin sounds and engine roar from both transmitted and received audio paths.
-
Integrated GPS: Features built-in GPS capabilities to transmit real-time vehicle positioning metadata directly to emergency dispatch systems.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Channel Capacity |
1024 Channels / 128 Zones |
| Voice Vocoder |
AMBE+2 Dual-Rate Vocoder |
| Environmental Rating |
IP55 Water and Dust Resistance |
| Structural Rating |
MIL-STD-810 C, D, E, F, G |
| Display Screen |
High-Resolution Color LCD |
| Power Requirement |
13.6V DC Nominal |
Model Variations
| Model |
Key Difference |
Compatibility |
| Icom F7510 |
VHF (136–174 MHz) Band, 50W Power Output |
P25 Conventional and Trunked Networks |
| Icom F7520 UHF Low |
UHF Low Band (380–470 MHz), 45W Power Output |
P25 Conventional and Trunked Networks |
| Icom F7520 UHF High |
UHF High Band (450–520 MHz), 45W Power Output |
P25 Conventional and Trunked Networks |
| Icom F7540 |
700/800 MHz (769–869 MHz) Band, 30W/35W Power Output |
P25 Conventional and Trunked Networks |
What's Included
| Description |
SKU/Model |
Status |
| Icom P25 Digital Mobile Radio Mainframe Transceiver |
F7510 / F7520 / F7540 |
Included |
| Heavy Duty Hand Microphone |
HM-220 |
Included |
| Mobile Vehicle Mounting Bracket Installation Kit |
Bracket-Kit |
Included |
| Standard DC Power Cable with Inline Fuses |
OPC-1132 |
Included |
| Microphone Hanger Component |
Hanger-Clip |
Included |
| Advanced P25 Phase 2 Trunking Software Activation |
ISL-P25P2 |
Sold Separately |
| Mobile Base Station Control Room Power Supply Unit |
IAPS12 |
Sold Separately |
Recommended Accessories
More Resources
Frequently Asked Questions
Does the Icom F7510 / F7520 / F7540 need to be programmed?
Yes, these radios must be programmed with your licensed frequencies and talkgroups before use. You'll be asked at checkout whether you'd like programming, or you can add it in advance via our Atlantic Radio Programming Services page. To program them yourself, you'll need the Icom CS-F7510 programming software and the OPC2363 programming cable, both sold separately.
Do these mobile radios include P25 Phase 2 trunking capabilities automatically?
The standard factory models are delivered with full P25 Phase 1 conventional system support active out of the box. Upgrading your fleet deployment to utilize Phase 1 trunking or Phase 2 trunking architectures requires activating separate, official software licenses.
Can the control panel be mounted separately from the main radio body?
Yes, using an optional remote separation bracket kit such as an RMK-5 and matching interface cables, the front color control head can be detached and mounted directly on your vehicle dashboard while the main radio chassis is hidden under a seat.
What are the primary frequency differences between these model variations?
The Icom F7510 handles VHF channels, the Icom F7520 covers standard commercial and public safety UHF frequencies, and the Icom F7540 operates across dedicated 700MHz and 800MHz regional and state agency public safety bands.
Are these mobile platforms compatible with existing analog radio networks?
Yes, all three variations incorporate mixed-mode capabilities that support analog conventional channels along with digital P25 networks on a per-channel basis, ensuring seamless transition paths for aging fleet infrastructures.
Is a GPS antenna included inside the standard radio box assembly?

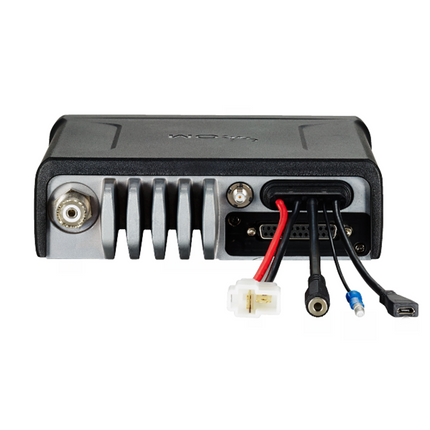

The mobile transceiver features an integrated internal GPS receiver engine, but tracking performance within closed vehicle cabins typically requires connecting an optional external GPS antenna to the dedicated rear chassis port.
Warranty
The Icom F7510, F7520, and F7540 are covered by Icom's standard 3-year manufacturer's warranty against defects in materials and workmanship. Please contact Atlantic Radio Communications for warranty claims, support, or replacement inquiries.
