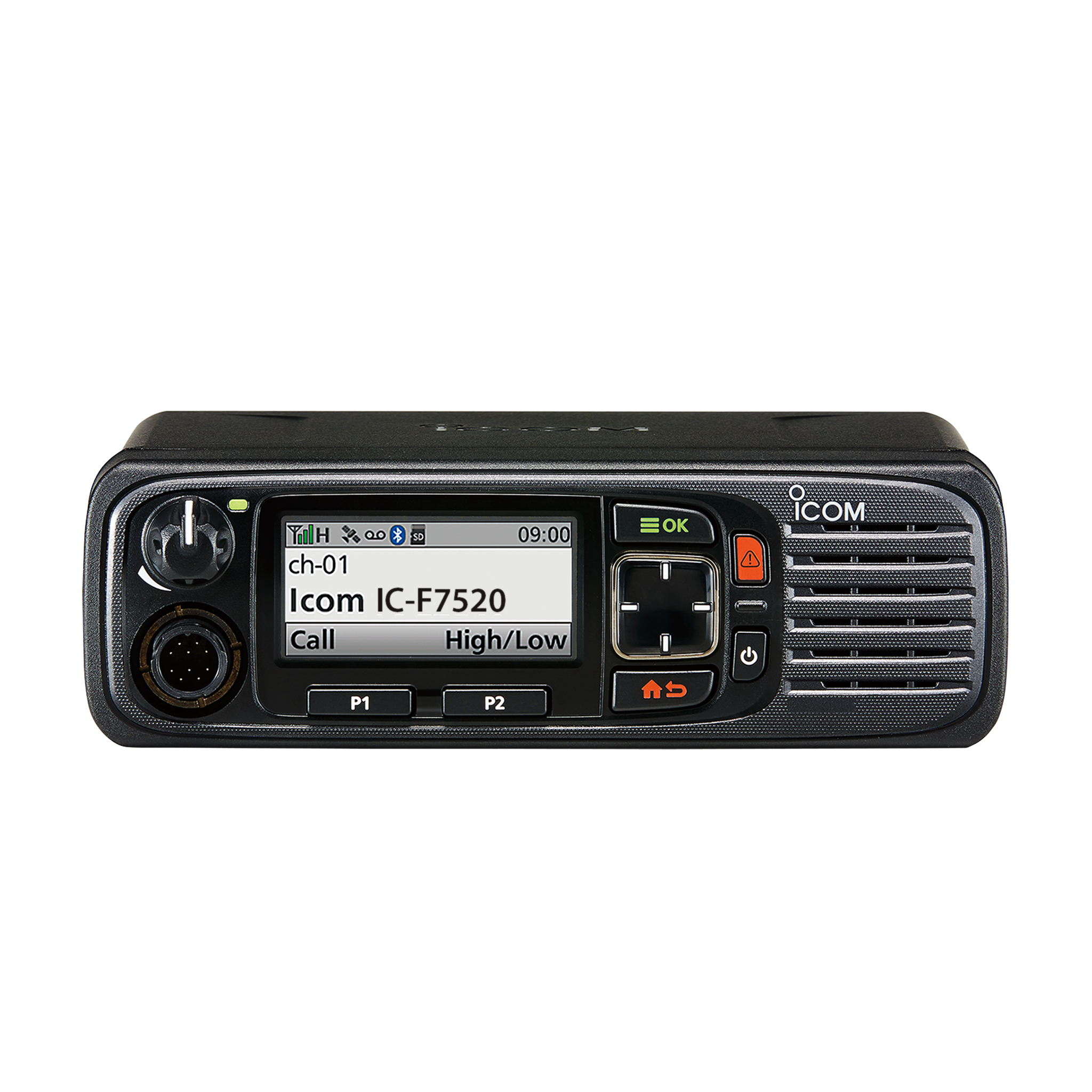

Icom F7520
UHF P25 Mobile Two-Way Radio - Next Generation for Public Safety
The Icom F7520 is a next-generation UHF P25 mobile two-way radio, designed to support the ever-advancing P25 standard for both public service and public safety organizations. This radio comes in two split styles: the F7520 11 with a 380-470MHz range and the F7520 23 with a 450-512MHz range. The F7520 features a high visibility color LCD, improved user interface, and loud, clear audio quality, all within the radio's rugged construction that passes MIL-STD-810 G environmental tests and has an IP55 rating for dust protection and water jet resistance.

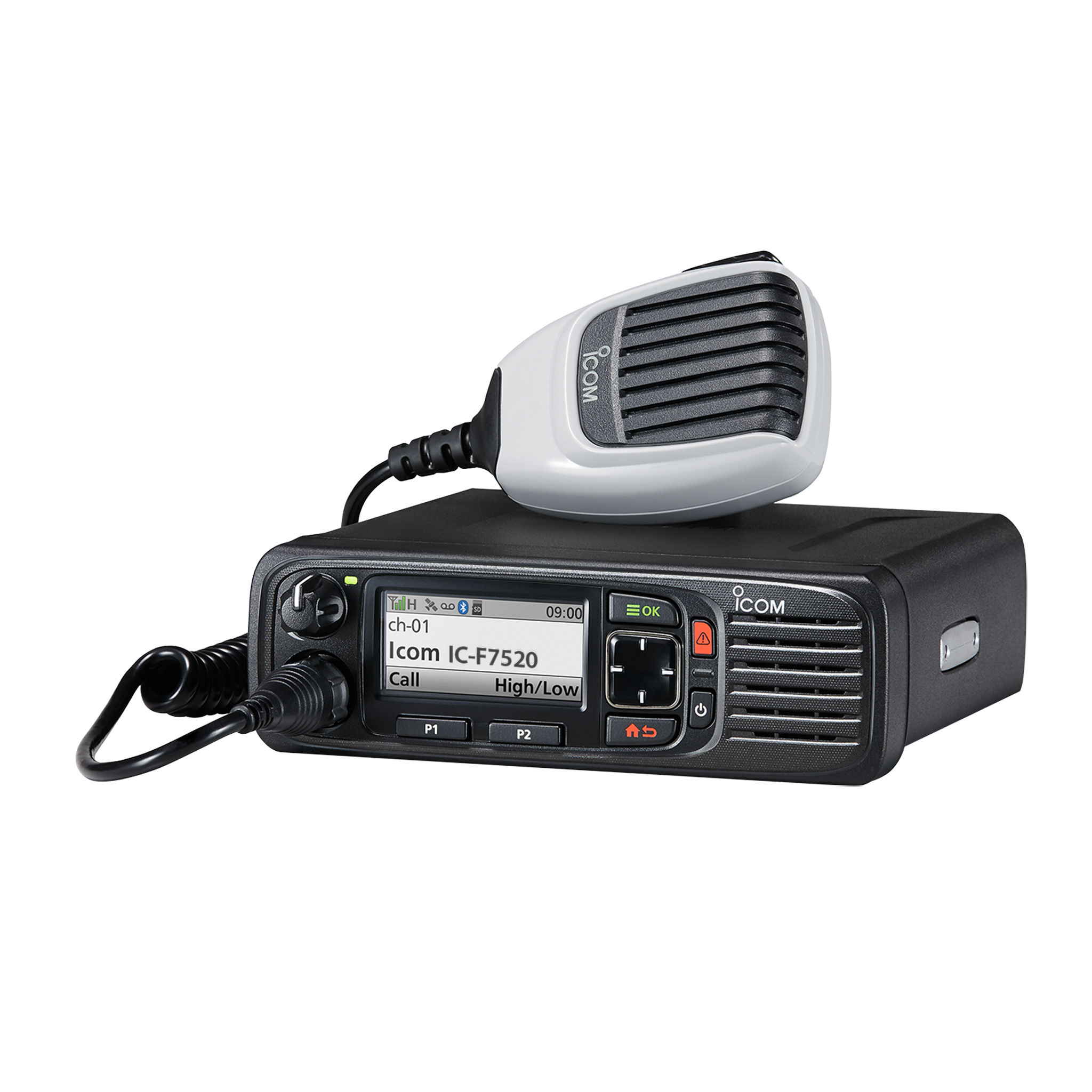

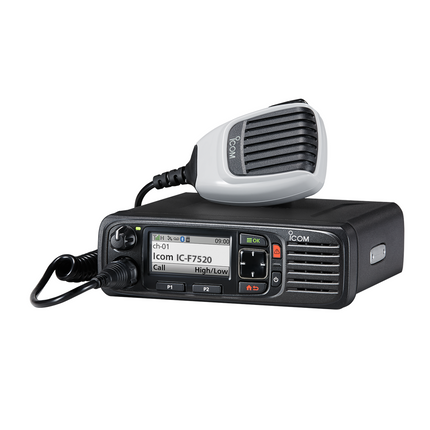

The Icom F7520 series is compatible with both analog and digital functions and can be upgraded to P25 Phase 1 and Phase 2 trunking with a license key. The kit includes the radio, an HM220 hand microphone, a DC power cable, a mounting bracket, and a microphone hanger, making it a great choice for public organizations.
Key Features
-
UHF Frequency (380-470MHz or 450-512MHz): Available in two distinct frequency ranges to suit specific operational needs.
-
1024 Channels / 128 Zones: Offers extensive channel capacity for organizing communication groups.
-
Digital and Analog Functions: Supports both analog FM and P25 digital modes, including mixed mode operation.
-
45 Watts Power Output: Delivers high power for extended communication range.
-
Built-in Bluetooth®: Provides wireless connectivity for audio, data, and radio programming, including third-party headsets.
-
Standard GPS: Includes an integrated GPS for real-time location tracking and enhanced situational awareness.
-
High Visibility Color LCD: Offers an intuitive user interface with Day and Night mode display settings for clear readability in various lighting conditions.
-
Voice Recording/Playback: Records and plays back incoming/outgoing calls to a microSD card (up to 500 hours with a 32 GB card).
-
MIL-STD-810 G and IP55 Ratings: Tested to military environmental standards, water jet resistant, and dust protected for rugged reliability.
-
Voice/Audio Functions: Features TX/RX active noise canceller, TX/RX audio equalizer, and a loud speaker for clear, intelligible audio.
-
Enhanced Safety Functions: Includes Lone Worker, Power OFF emergency, and a dedicated Emergency button for user safety.
-
Security Features: Offers Power ON password, Radio Stun/Kill/Revive, and optional FIPS 140-2 compliant AES encryption unit with a license key.
-
Scan Functions: Features Priority scan, Talkgroup scan, and Voting scan (with license key) for automatically selecting the optimal repeater site.
-
D-SUB Connector: Programmable D-SUB connector for external PTT, channel, and other controls.
-
Kit Includes: HM220 hand microphone, DC power cable, mounting bracket kit, and a microphone hanger.
Benefits
-
Superior Communication Range and Clarity: High power output and advanced audio functions ensure clear, long-distance communication in critical situations.
-
Enhanced Safety and Accountability: Built-in GPS, Lone Worker, and emergency features provide crucial tools for user safety and location tracking.
-
Rugged Reliability: MIL-STD-810 G and IP55 ratings guarantee durable performance in harsh, demanding environments.
-
Flexible System Upgrades: Can be upgraded to P25 trunking modes with license keys, allowing the radio to grow with your communication needs.
-
User-Friendly Experience: High-visibility color LCD and intuitive user interface simplify operation, even in challenging conditions.
-
Versatile Connectivity: Bluetooth, USB, and D-SUB connectors support a wide range of accessories and configurations.
More Resources
Warranty
3-year manufacturer's warranty
