Description
High-Output 9-Pin Remote Speaker Microphones for Professional Fleets
High-Output Audio Infrastructure for Standard and Hazardous Workspaces
Deliver powerful 2.0-watt voice output and robust tactical transmission capabilities across any industrial environment.

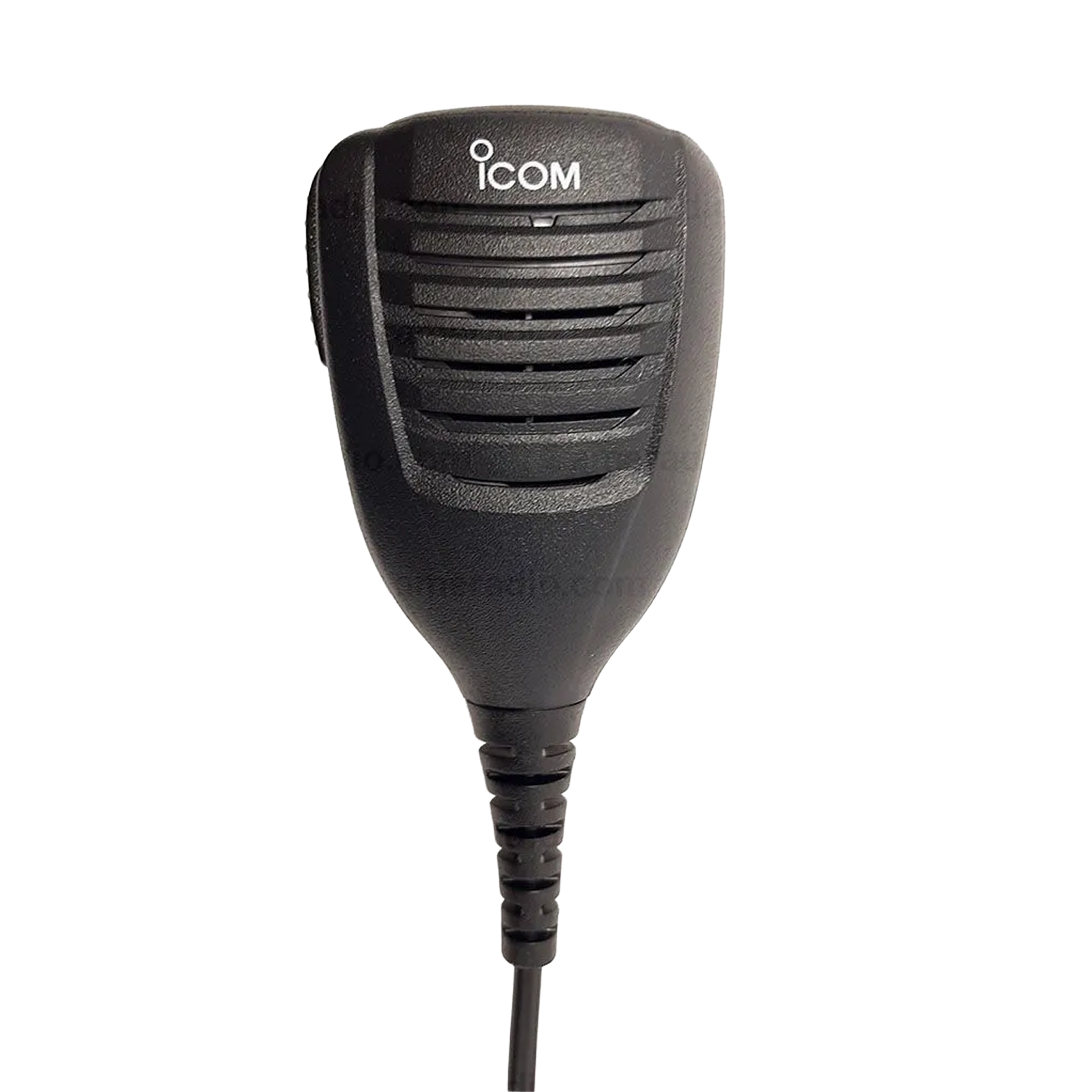

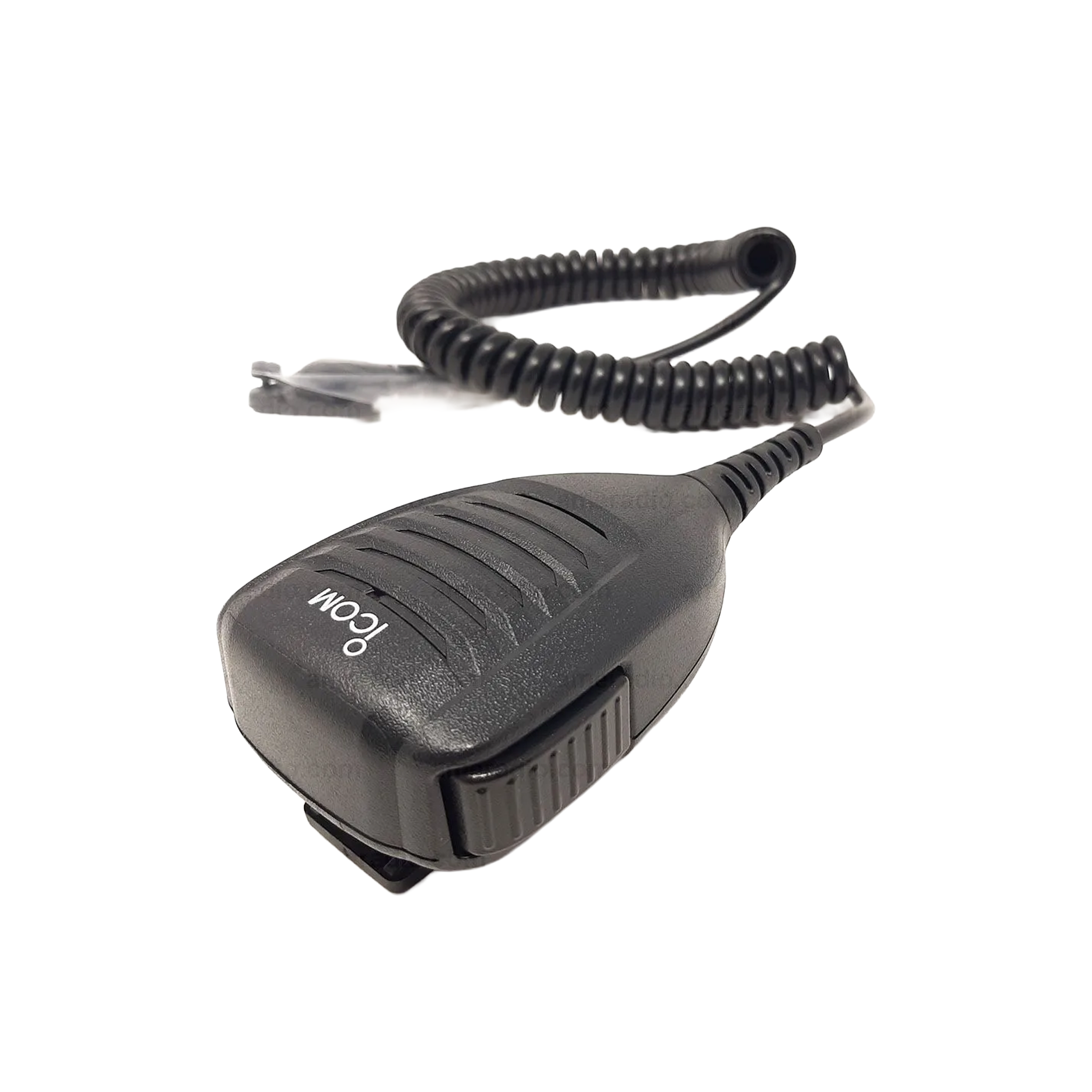

The Icom HM169 and Icom HM169 IS represent a premier series of high-performance remote speaker microphones engineered for demanding land mobile radio communication networks. This listing balances and treats both configurations as an essential product family, giving safety coordinators and procurement officers the ability to choose the specific structural tier required for their field environment. Both variations feature a high-performance, large-diameter internal speaker that delivers a commanding 2.0 watts of typical audio power output, ensuring that critical team dispatches cut through the heaviest background industrial noise.
To fit varying workplace environments and safety regulations, this product line is split equally into two specialized operational models. The standard Icom HM169 is built with an IP67 environmental protection rating, providing a completely dust-tight and waterproof enclosure capable of surviving total water immersion on wet construction sites, marine decks, or utility grid projects. Conversely, the Icom HM169 IS is an Intrinsically Safe (IS) certified variation engineered specifically to prevent internal thermal or electrical sparks, making it an indispensable asset for hazardous workspaces containing volatile chemical vapors, flammable gases, or combustible dust.
Both modules utilize a heavy-duty, 9-pin spring-type connector plug designed to clamp securely to the accessory interface of the host handheld transceiver. This multi-pin alignment guarantees stable signal routing and continuous grounding, eliminating intermittent audio failures or data dropouts when users are moving rapidly. Each speaker microphone body is equipped with an integrated, high-tensile rotary clip that allows 360-degree orientation adjustments, ensuring the microphone stays securely attached to a user's work vest, turn-out gear, or shoulder strap during active shifts.
Key Features & Benefits
-
Commanding 2.0W Audio Output: Uses an advanced large-diameter internal speaker element to produce clear, loud speech intelligibility over heavy machinery or sirens.
-
Two Specialized Safety Ratings: Choose between the IP67 submersible waterproof standard Icom HM169 or the spark-protected Icom HM169 IS Intrinsically Safe module.
-
Rugged 9-Pin Spring Connector: Secures tightly into the host radio chassis connector to prevent loose pins and maintain stable data lane paths under physical strain.
-

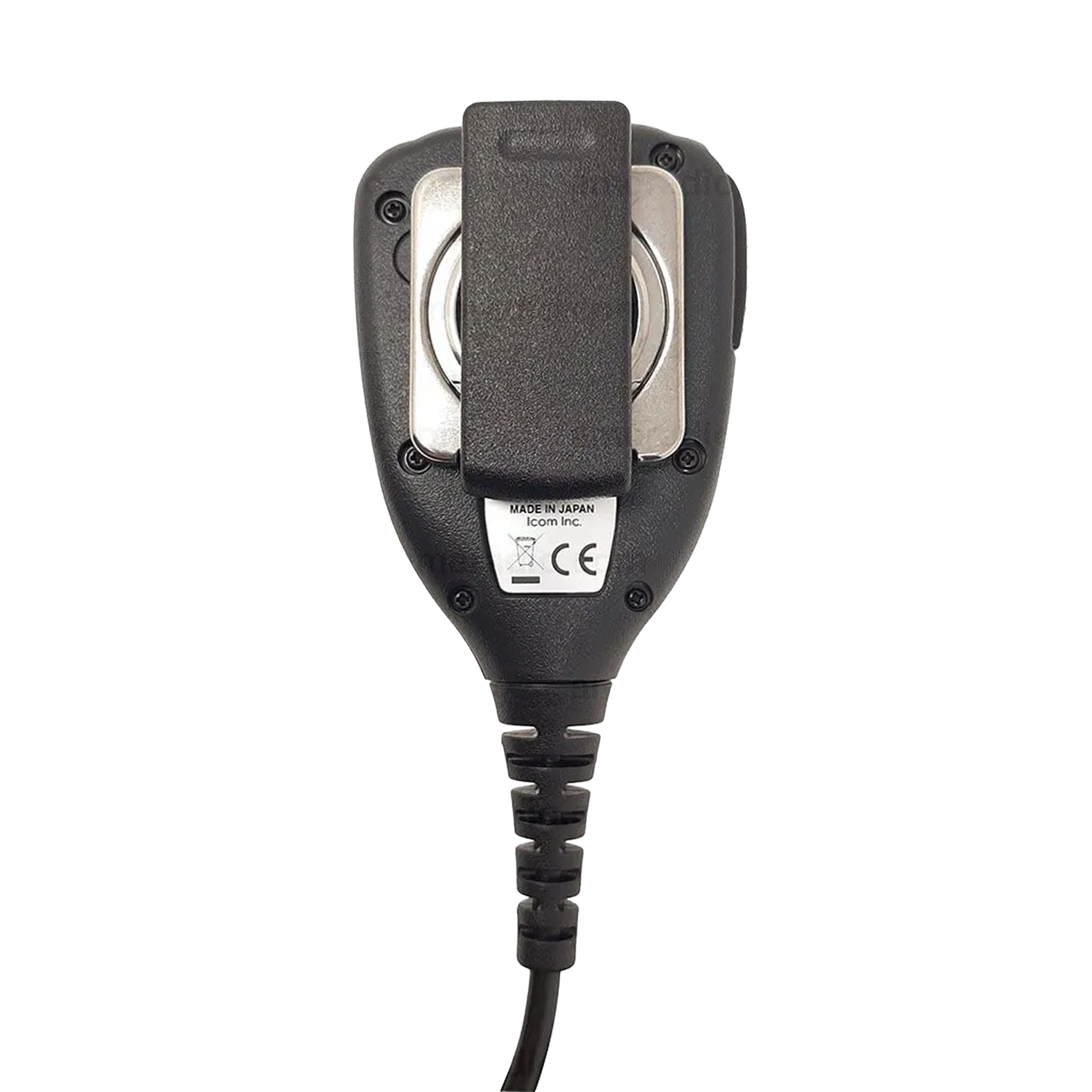

360-Degree Sturdy Rotary Clip: Features a heavy-duty reinforced back clip that anchors firmly to clothing or tactical vests and rotates smoothly for customized placement.
-
Ergonomic Push-to-Talk Interface: Constructed with an oversized side PTT switch that provides a strong tactile click response, even when operators are wearing heavy safety gloves.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model Options |
Icom HM169 (Standard) / Icom HM169 IS (Intrinsically Safe) |
| Product Type |
Remote Speaker Microphone |
| Audio Output Power |
Up to 2.0 Watts (Large-Diameter Speaker) |
| Interface Style |
9-Pin Spring-Type Connector Plug |
| Mounting Attachment |
Heavy-Duty Sturdy Rotary Clip |
| Main Color |
Black |
Model Variations
| Model |
Core Protection Target |
Ideal Environment |
| Icom HM169 |
IP67 Waterproof & Dustproof Submersible |
Construction Sites, Rain-Exposed Utilities, Maritime Decks |
| Icom HM169 IS |
Intrinsically Safe Certified Electrical Protection |
Chemical Plants, Fuel Refineries, Combustible Dust Facilities |
Compatibility
Radio
|
|
|
|
| F3161 |
F4161 |
F70 |
F80 |
| F50V |
F60V |
F3161D |
F4161D |
| F3162D |
F4164D |
|
|
More Resources
Frequently Asked Questions
What is the primary operational difference between the standard and the IS model?
The standard Icom HM169 focuses heavily on environmental weather protection, featuring a certified IP67 dustproof and waterproof design. The Icom HM169 IS is built to strict Intrinsically Safe parameters to prevent internal thermal or electrical energy from creating a spark, which is required for atmospheres containing explosive gases or vapors.
Can I use the standard model in an intrinsically safe hazardous environment?
No. Standard electrical accessories should never be introduced into hazardous or explosive environments. If your facility requires certified spark-protection compliance, you must explicitly deploy the certified Icom HM169 IS model.
Will this microphone work on radios that use a standard 2-pin connector?
No. This speaker microphone is built with a specialized 9-pin spring-type multi-connector block. It will only attach to specific commercial and public safety radios designed with a matching multi-pin side accessory interface panel.
Warranty
1-year manufacturer's warranty.
