Description

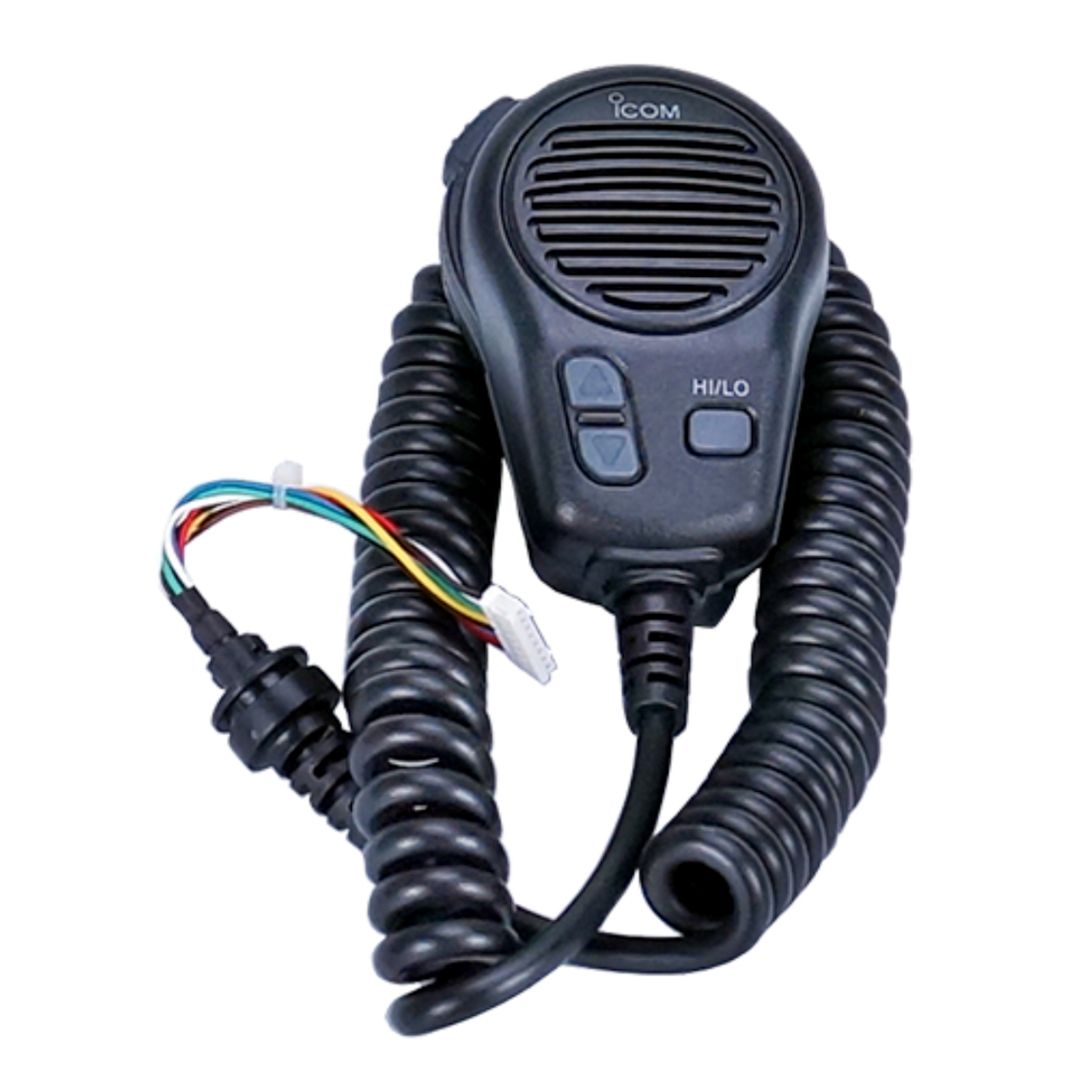

Icom HM196B
Waterproof Standard Hand Microphone (IPX7)
Reliable Communication in Harsh Marine Environments
The Icom HM196B is a rugged, professional-grade hand microphone specifically designed for Icom marine fixed-mount transceivers. In the unpredictable conditions of open-water transit, standard microphones often fail due to salt spray, heavy rain, or accidental submersion. This microphone solves that durability challenge with an IPX7 waterproof rating, allowing it to withstand complete immersion in up to 1 meter of water for 30 minutes without losing functionality.
Beyond its physical resilience, the HM196B is engineered for operational efficiency. It features integrated controls that allow the operator to adjust critical radio settings without reaching for the main transceiver unit. With high-tactility buttons for channel selection and transmission power, it ensures that clear, effective communication is always within hand's reach, even when navigating rough seas.
Key Features
-
IPX7 Waterproof Protection: Fully submersible design ensures the microphone remains operational despite heavy spray or accidental drops.
-

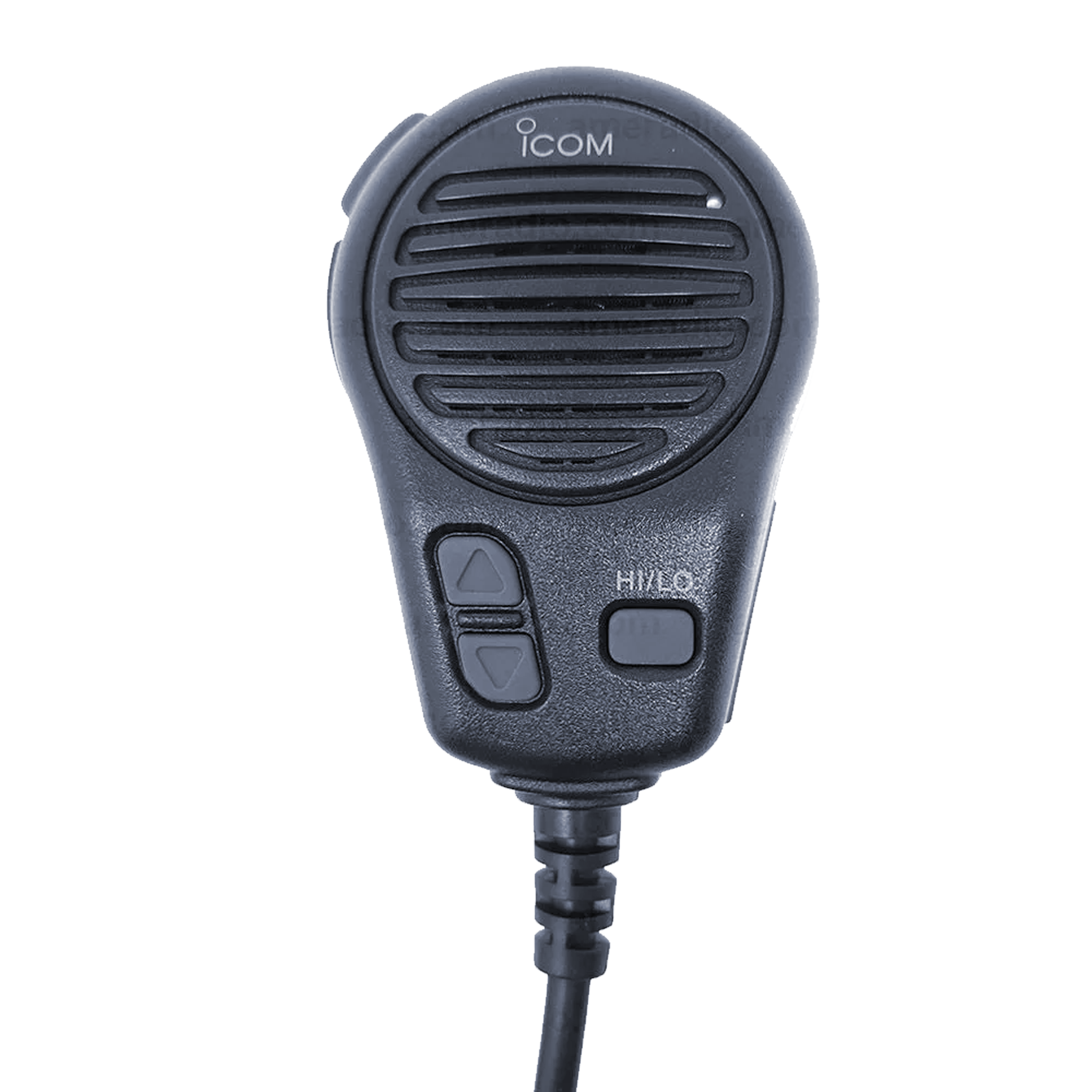

Integrated Radio Controls: Features dedicated Channel Up/Down (UP/DN) buttons and a Power Hi/Lo switch for rapid tactical adjustments.
-
Dynamic Audio Quality: Engineered to deliver crisp, clear voice transmission while minimizing background noise from wind and engines.
-
Ergonomic Hand Grip: The contoured black housing is designed for a secure, comfortable grip during long watch cycles.
-
Heavy-Duty Coiled Cable: The 430mm (curled) cable provides ample reach and is built to resist stretching and UV exposure.
Compatibility
Specifications
-
Part Number: HM196B
-
Connector Type: Molex
-
IP Rating: IPX7 (Waterproof/Submersible)
-
Cable Length: 430 mm (16.9 in) Curled
-
Weight: 280 g
-
Color: Black
Benefits
-
Enhanced Vessel Safety: The IPX7 rating ensures that your primary means of communication remains functional during severe weather conditions.
-
Simplified Operation: Consolidating channel and power controls onto the handset allows the operator to stay focused on navigation.
-
Plug-and-Play Reliability: The Molex connector provides a secure, factory-standard link to the transceiver for immediate use.
Warranty
1-year manufacturer's warranty.
