Description

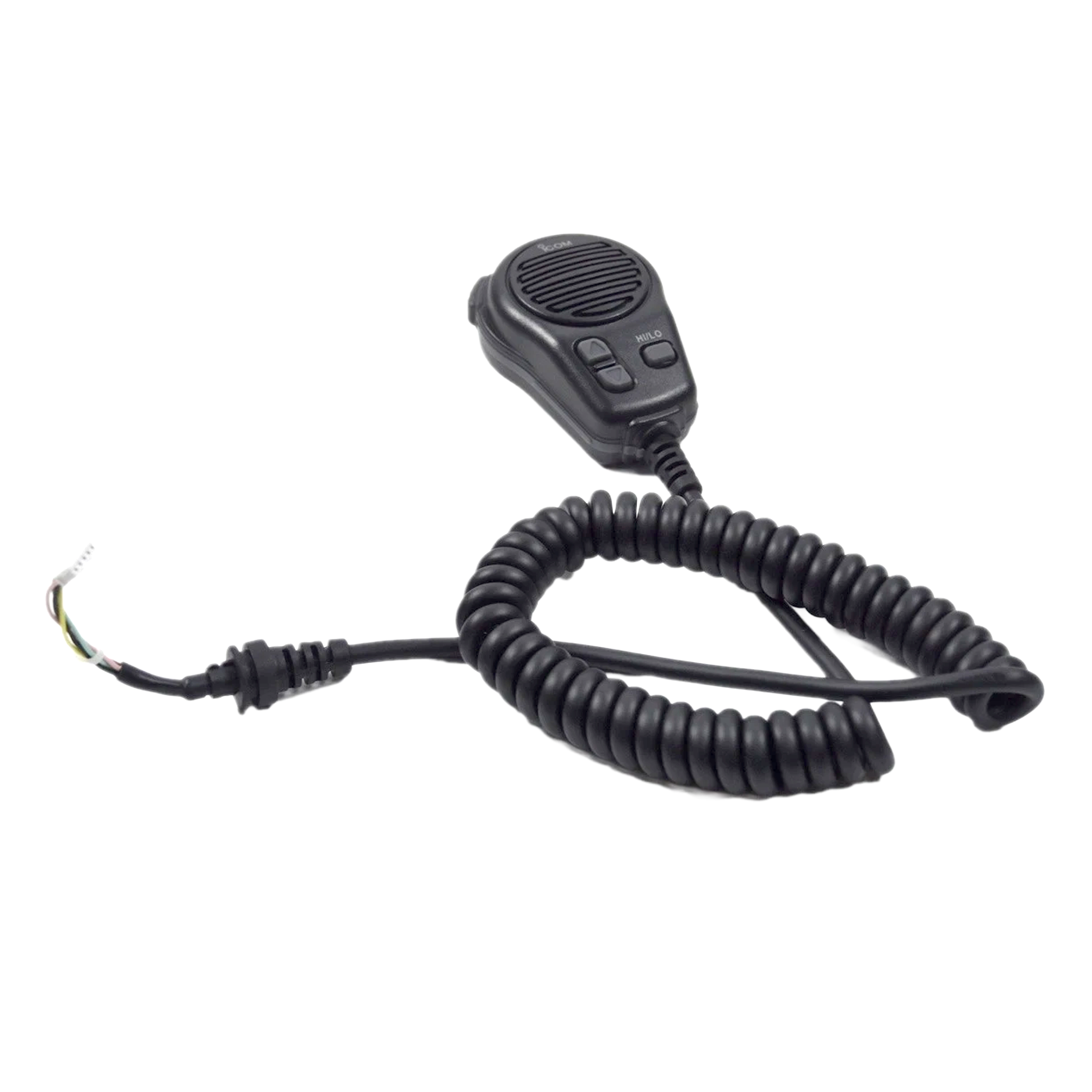

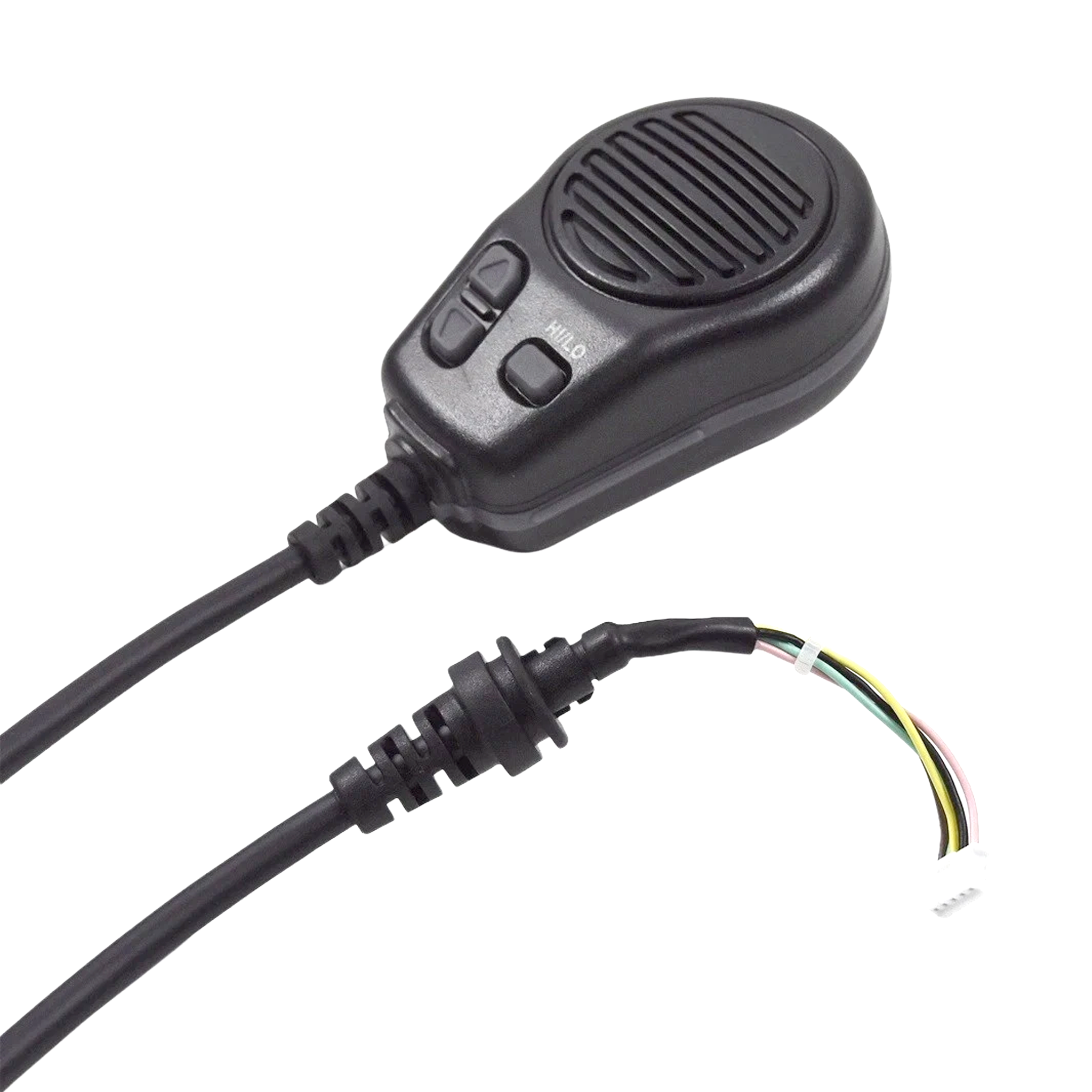

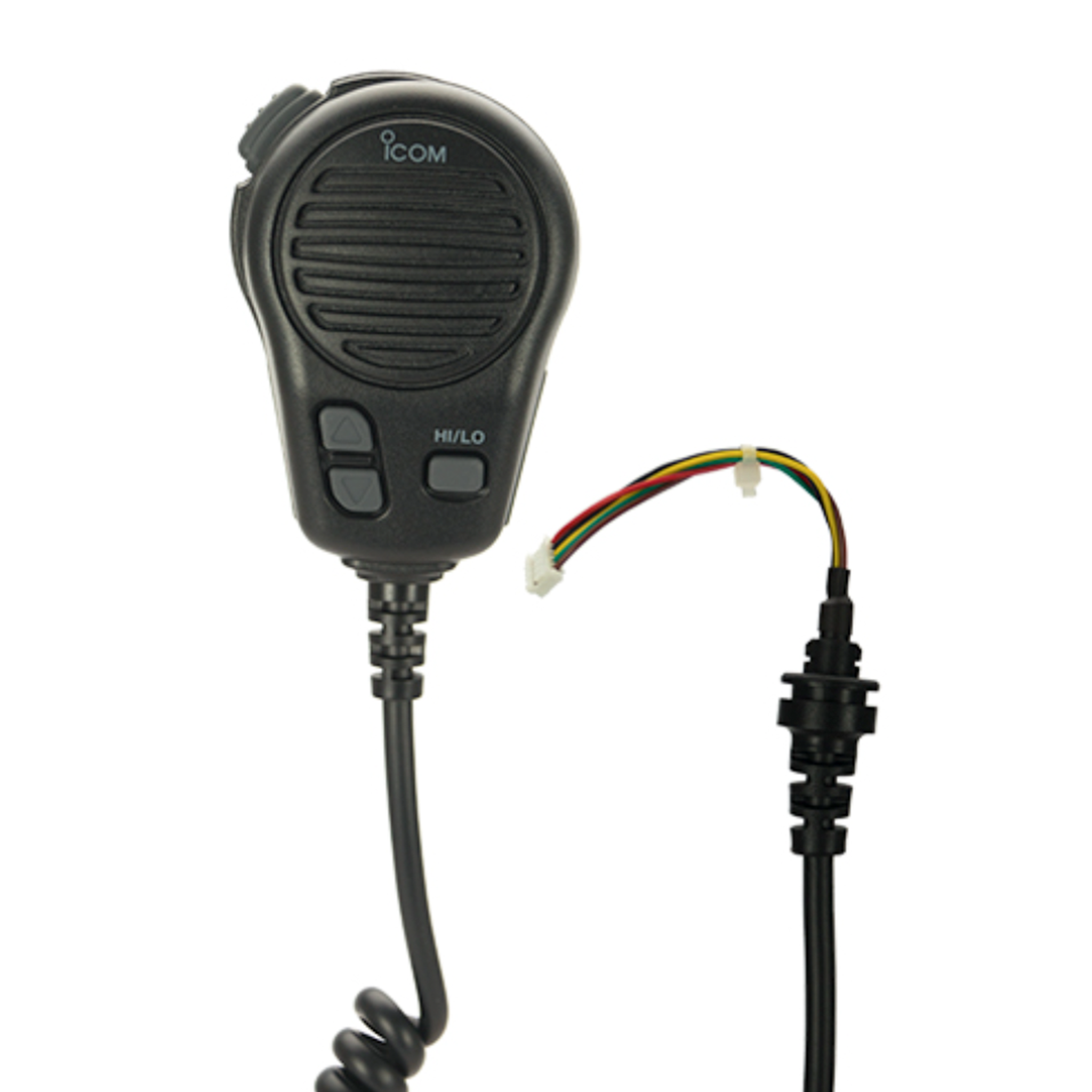

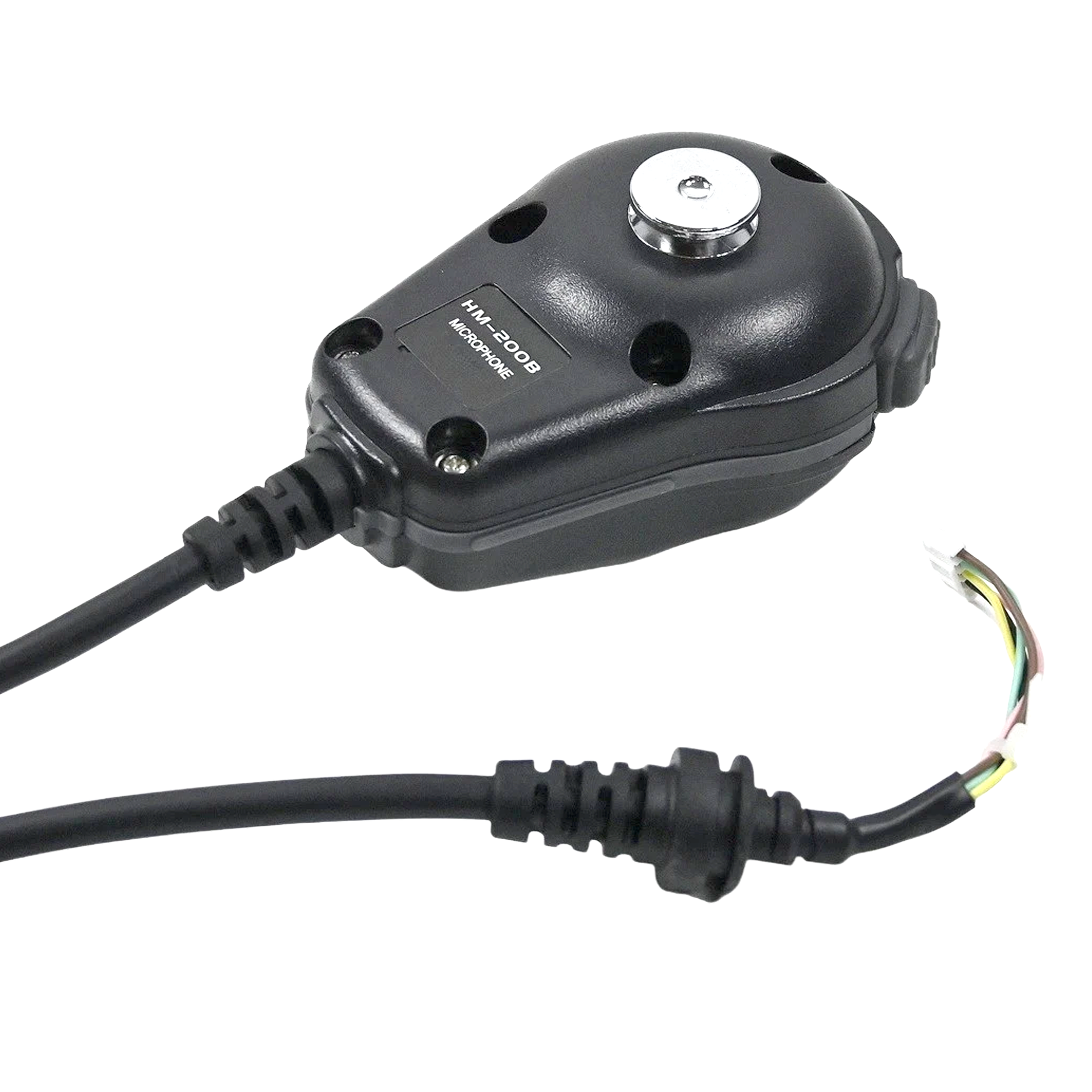

Genuine OEM IPX7 Waterproof Marine Hand Speaker Microphone
Original equipment replacement palm microphone featuring channel controls, durable coiled cable, and Molex connection for Icom IC-M324 fixed-mount VHF transceivers.
The Icom HM-200B (catalog part HM-200B / HM200) is an authentic original equipment manufacturer (OEM) marine hand speaker microphone designed specifically for Icom fixed-mount VHF maritime transceivers. Engineered as the direct factory replacement for the microphone originally supplied with the IC-M324 and IC-M324G radios, this palm mic restores crystal-clear voice modulation and dependable Push-To-Talk (PTT) operation. Whether replacing a unit worn by salt spray, damaged by severe offshore weather, or lost during vessel refits, the HM-200B delivers factory-grade acoustic clarity and instant channel navigation from the helm.
Built to withstand demanding nautical environments, the Icom HM-200B features an IPX7 submersible waterproof rating, capable of surviving temporary submersion in one meter of water for up to 30 minutes without seal failure or audio distortion. The ergonomic housing incorporates tactile channel UP and DOWN buttons alongside high/low transmit power and emergency Channel 16/9 access controls, allowing captains and crew to manage radio functions without reaching for the main radio console. Terminating in a heavy-duty, corrosion-resistant Molex connector with an industrial-grade coiled lead, the HM-200B operates in full compliance with maritime FCC Licensing standards to keep vessel communications dependable offshore.
Key Features & Benefits
-
Authentic Icom OEM Microphone: Direct factory replacement engineered to original manufacturer tolerances for the IC-M324 and IC-M324G maritime transceivers.
-
IPX7 Submersible Waterproofing: Sealed to withstand water immersion up to 1 meter (3.3 feet) for 30 minutes, protecting internal elements from spray, rain, and deck washdowns.
-
Integrated Front/Top Controls: Features tactile Channel UP/DOWN keys and quick-access buttons for immediate toggling of priority marine channels and transmit power.
-
Rugged Heavy-Duty Coiled Cable: Flexible 16.9-inch (430 mm) curled cord extends smoothly to the helm station while resisting UV exposure and salt degradation.
-
Factory Molex Connector: Precision molded multi-pin Molex terminal provides a firm, low-resistance connection directly into the transceiver.
-
High-Clarity Electret Capsule: Delivers high speech intelligibility to cut through background marine diesel rumble, wind roar, and open-cockpit noise.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
HM-200B / HM200 |
| Product Type |
Marine Fixed-Mount Hand Speaker Microphone |
| Ingress Protection |
IPX7 Submersible (1 meter for 30 minutes) |
| Connector Interface |
Icom Multi-Pin Molex Connector |
| Cable Length |
Approx. 16.9 in (430 mm) Coiled |
| Controls |
PTT, Channel UP/DOWN, 16/9 Priority / Hi-Lo Power |
| Housing Material |
Impact-Resistant Marine-Grade Polymer |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Weight |
Approx. 0.44 lbs (200 g) |
| Color Finish |
Black (HM-200B) |
Compatibility
Compatible Icom Fixed-Mount Marine Radios
Recommended Accessories
More Resources
Frequently Asked Questions
What does the "B" suffix in part number HM-200B mean?
The "B" suffix designates the black housing color finish (HM-200B). This distinguishes it from the super white version (HM-200SW). Both color versions share identical internal electronic circuitry, IPX7 submersible waterproofing, and Molex connector interfaces.
Which marine radios are compatible with the HM-200B?
The HM-200B is engineered specifically for the Icom IC-M324 and IC-M324G (GPS-integrated) fixed-mount VHF maritime transceivers.
Is the Icom HM-200B waterproof?
Yes. The HM-200B carries an IPX7 waterproof rating, allowing it to withstand complete submersion in up to one meter of fresh or saltwater for 30 minutes without leaking.
Can I change VHF channels directly from the microphone?
Yes. The HM-200B features integrated Channel UP and Channel DOWN navigation buttons on the housing, allowing you to cycle through operational marine channels without having to touch the radio dial.
What type of connector does this microphone use?
This microphone uses an authentic internal multi-pin Molex plug designed to mate directly with the dedicated wiring harness of the IC-M324 and IC-M324G radio chassis.
Warranty
1-year manufacturer’s replacement warranty.
