Description

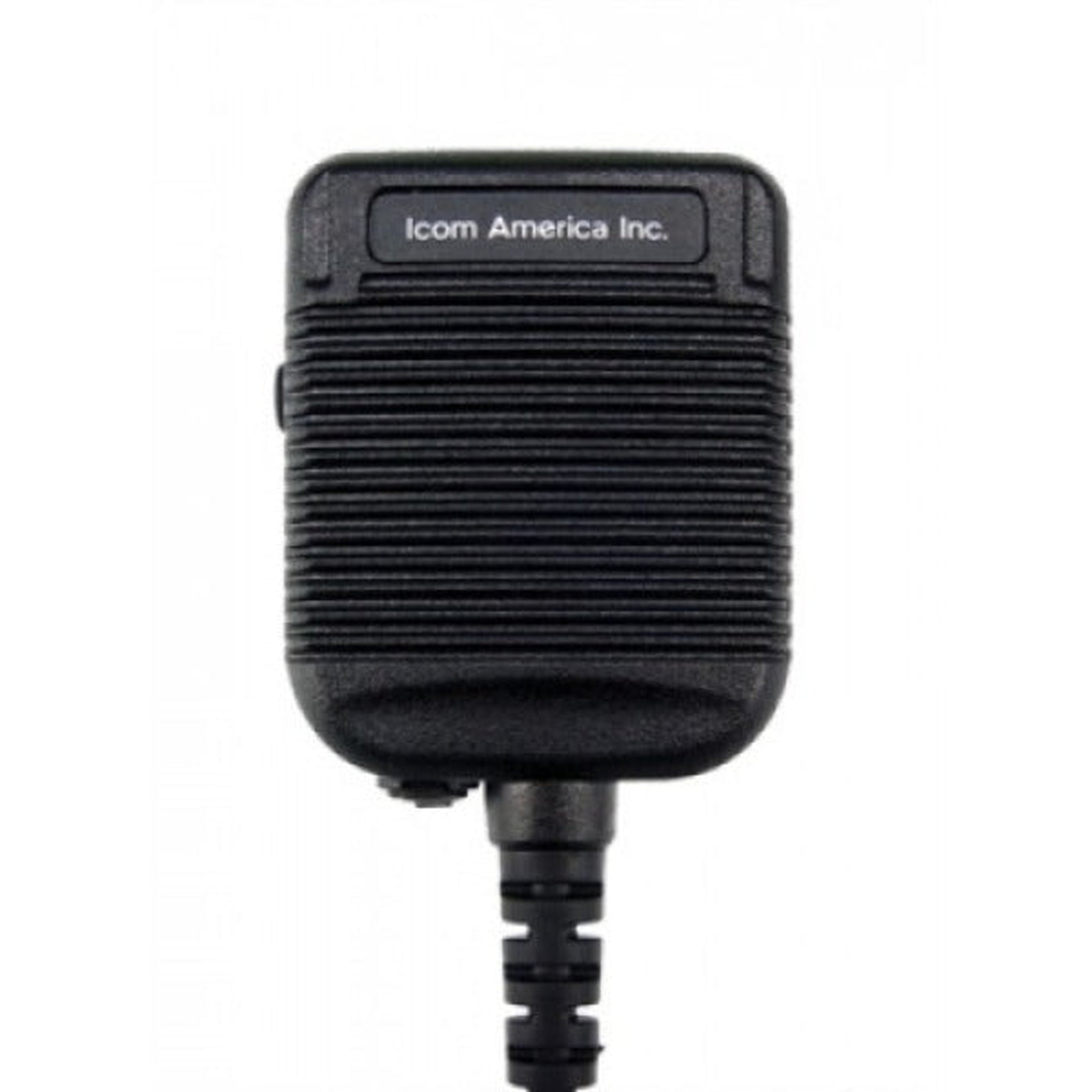

Heavy-Duty Waterproof Speaker Microphone with 3.5mm Jack
Commercial-grade waterproof speaker microphone featuring a right-angle 2-pin screw-down connector and a 3.5mm listen-only audio accessory jack.
The Icom HM-HD7I7WP (also cataloged as HM-HD717WP) is a heavy-duty, waterproof remote speaker microphone engineered for clear, high-volume voice transmission in demanding commercial environments. Built for public safety officers, security teams, construction crews, and industrial personnel, this rugged speaker microphone is equipped with a right-angle 2-pin screw-down connector that bolts securely into compatible Icom portable transceivers to prevent accidental cable disconnects.
Featuring a high-gain internal speaker and an omnidirectional microphone element, the Icom HM-HD7I7WP ensures crisp, intelligible audio reception even in noisy surroundings. The oversized Push-to-Talk (PTT) switch is designed for tactile ease of use, allowing operators to transmit reliably while wearing heavy work gloves. An integrated 3.5mm audio accessory jack located on the microphone body permits simple plug-in attachment of a secondary listen-only earpiece for private communications. Supported by a 360-degree rotating clothing clip and a durable strain-relief coiled cord, the Icom HM-HD7I7WP delivers long-term durability across land mobile radio (LMR) networks operating under FCC Licensing regulations and DMR Association standards.
Key Features & Benefits
-
Right-Angle 2-Pin Screw Connector: Threaded 2-pin interface bolts directly onto radio side accessory ports for a weather-sealed connection.
-
3.5mm Listen-Only Audio Jack: Side accessory port enables fast connection of discreet earpieces for confidential communications.
-
Large Waterproof Enclosure: Submersible construction protects acoustic components from rain, splashing water, and harsh weather.
-
High-Output Loud Speaker: Delivers clear incoming voice transmissions to overcome high ambient job-site noise.
-
Glove-Friendly PTT Button: Prominent Push-to-Talk switch provides instant tactile response during active field shifts.
-
360-Degree Swivel Clip: Stainless steel alligator clip attaches firmly to lapels, tactical vests, or shoulder straps.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
HM-HD7I7WP / HM-HD717WP |
| Product Type |
Large Waterproof Remote Speaker Microphone |
| Connector Type |
Right-Angle 2-Pin Screw-Down Connector |
| Audio Jack |
3.5mm Listen-Only Earpiece Jack |
| Housing Style |
Waterproof Heavy-Duty Polycarbonate |
| Mounting Clip |
360-Degree Rotating Stainless Steel Alligator Clip |
| Cable Type |
Heavy-Duty Coiled Cable with Strain Relief |
Compatibility
Compatible Icom Portable Radios (Verified via Icom Price Book)
What’s Included
| Description |
SKU/Model |
Status |
| Icom Large Waterproof Remote Speaker Microphone |
HM-HD7I7WP |
Included |
| 360-Degree Rotating Clothing Clip |
Pre-Installed |
Included |
| Integrated Coiled Cable with 2-Pin Screw Connector |
Pre-Attached |
Included |
Recommended Accessories
Compatible Listen-Only Earpieces
-
Icom SP-27 3.5mm Acoustic Tube Earpiece – Clear acoustic tube listen-only earpiece for 3.5mm speaker mic ports.
-
Icom SP-13 3.5mm Earbud Earpiece – Compact earbud earpiece for 3.5mm speaker mic jacks.
Compatible Handheld Radios
More Resources
Frequently Asked Questions
Does the Icom HM-HD7I7WP feature an earpiece jack?
Yes, the Icom HM-HD7I7WP includes an integrated 3.5mm auxiliary accessory port located on the side of the housing for plugging in a secondary listen-only earpiece.
What radio connector does the Icom HM-HD7I7WP use?
It uses a right-angle 2-pin screw-down connector that threads securely into the side accessory interface of compatible Icom handheld transceivers.
Is the Icom HM-HD7I7WP waterproof?
Yes, the Icom HM-HD7I7WP features a sealed waterproof enclosure built to handle rain, wet weather, and damp industrial environments.
Which radio series are compatible with the Icom HM-HD7I7WP?
The Icom HM-HD7I7WP is compatible with 2-pin screw connector radio series listed in the official Icom price book, including F1000, F2000, F1100D, F2100D, F3001, F4001, F3011, F4011, F3021, F4021, F3031S, F4031S, F3210D, F4210D, F3230D, F4230D, F14, F24, F33G, F43G, and F43TR.
Can the Push-to-Talk button be pressed while wearing work gloves?
Yes, the microphone is constructed with an oversized, tactile Push-to-Talk button specifically designed for glove-wearing operators.
Is the Icom HM-HD7I7WP an authentic Icom OEM product?
Yes, the Icom HM-HD7I7WP is an authentic original equipment manufacturer accessory produced directly by Icom.
Warranty
1-year manufacturer’s replacement warranty.
