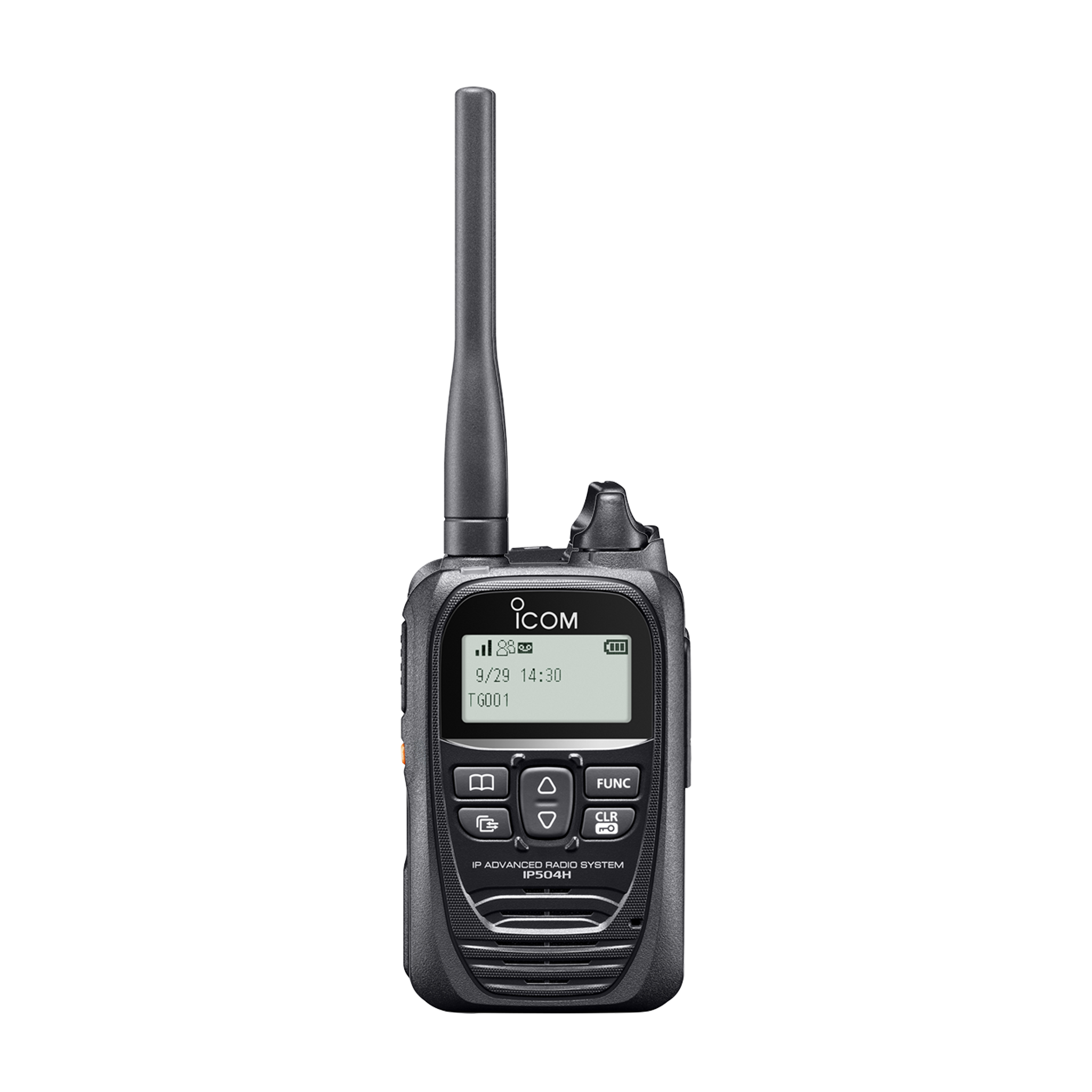

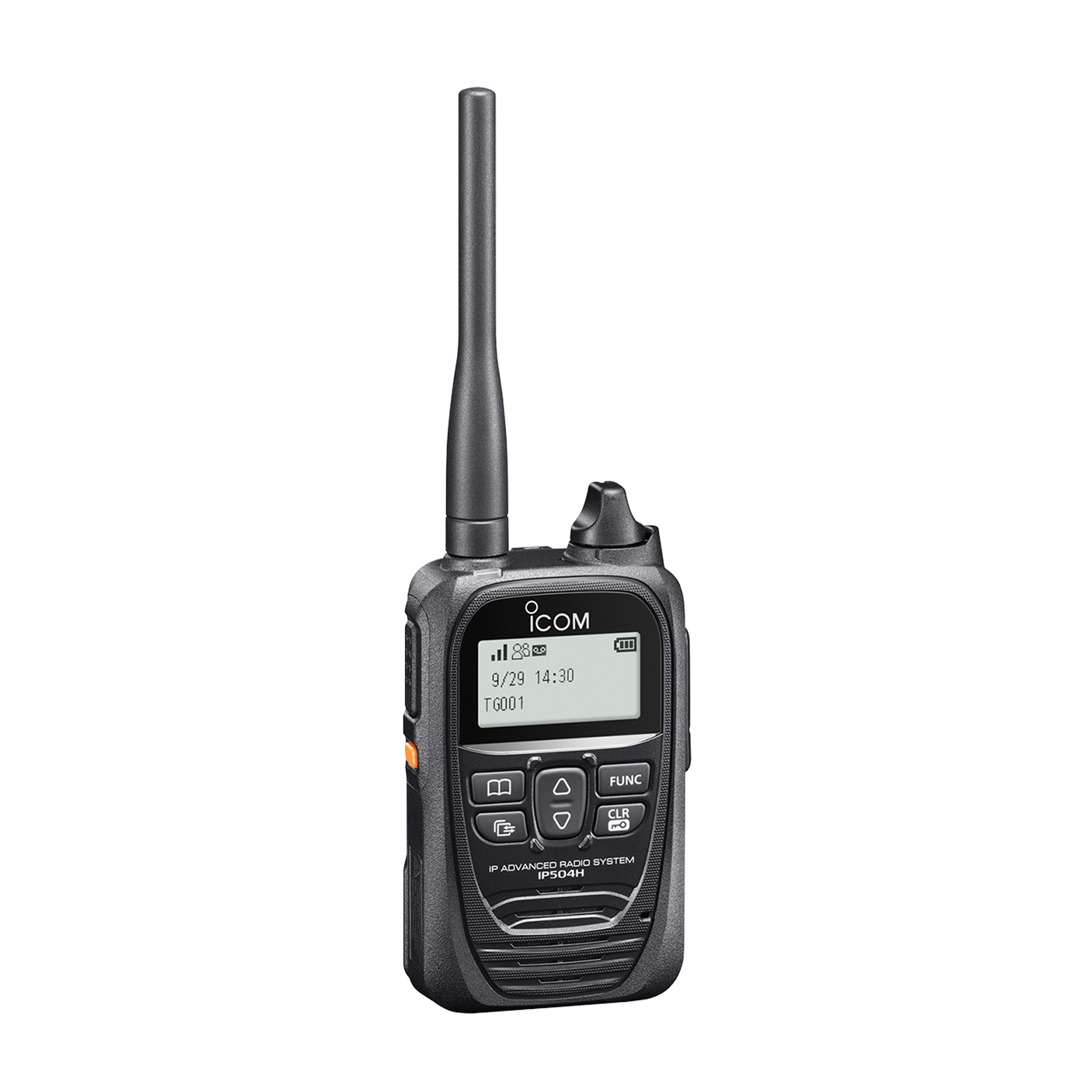

Icom IP504H LTE Portable Radio with Global SIM
Wide-area PTT communication over LTE (4G) across North and Latin America. Full-duplex, IP67, 900mW audio, Bluetooth, GPS, and emergency functions. Global SIM required.
The Icom IP504H (model IP504H-32-USA) is an advanced LTE IP transceiver providing instant push-to-talk communication with voice and data across North and Latin America, including the USA, Canada, Mexico, and select Latin American countries. Operating on Icom’s private, secure server network with a custom Global SIM card, the IP504H eliminates the need for radio licensing. It supports full-duplex communication, 900mW audio output, IP67 waterproofing, built-in GPS, Bluetooth, and advanced safety features including emergency calling, Man Down, and Lone Worker. Comes supplied with antenna, BP272 battery, and MB135 belt clip.
Important: The IP504H supports only the Connect “Global” SIM and cannot communicate with radios using the Connect “US” (AT&T) SIM.
Key Features & Benefits
LTE (4G) Wide-Area Coverage: Instant PTT communication across North and Latin America — no dedicated radio network or licensing required.
Full-Duplex (Simultaneous Talk/Listen): Natural, telephone-style conversations — no waiting for a channel to clear.
900mW Audio Output: Powerful internal speaker — double the output of previous models — for clear audio in noisy environments.
IP67 Dust-Tight & Waterproof: Submersible to 1 meter for up to 30 minutes. AquaQuake water-draining function for speaker clarity after submersion.
Built-in GPS: Integrated location tracking for fleet management and emergency response.
Emergency Button, Man Down & Lone Worker: Automatically sends emergency calls and tracks user location in critical situations.
Bluetooth: Wireless connection to optional Bluetooth headsets for hands-free operation.
Active Noise Cancelling: Reduces background noise from transmitted voice for improved audio clarity.
Dual SIM Capability: Supports two SIM cards simultaneously for expanded connectivity.
Voice Record & Playback: Records up to 4 minutes or 10 conversations for later playback.
Text Messaging: Supports text message reception and preprogrammed message transmission.
Private & Secure Network: Operates on Icom’s closed server network with a custom Global SIM for greater privacy and reliability.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
IP504H-32-USA |
| Product Type |
Portable LTE Network Radio (PTT over Cellular) |
| Network |
LTE (4G) |
| Coverage Area |
North & Latin America (USA, Canada, Mexico, select Latin American countries) |
| SIM Type |
Connect “Global” SIM only (not compatible with Connect “US”/AT&T SIM) |
| Communication Mode |
Full-Duplex (Simultaneous Talk/Listen) |
| Audio Output |
900 mW |
| Ingress Protection |
IP67 (Dust-Tight, 1m submersion for 30 min) |
| Bluetooth |
Yes (Built-in) |
| GPS |
Yes (Built-in) |
| Battery Life |
Over 15 hours |
| Voice Recording |
Up to 4 min / 10 recordings |
What’s Included
Compatible Accessories
| Model |
Description |
| VE-SP1 |
Portable Speakerphone for Icom IP Transceivers |
| HM-215 |
Speaker Microphone |
| BC-218 |
Rapid Desktop Charger Cradle with Bluetooth |
| VE-PG4 |
RoIP Gateway for integration with LTE, IDAS, and legacy radio systems |
Resources
Icom IP504H Brochure (PDF)
Icom IP504H Instruction Manual (PDF)
Frequently Asked Questions
Does the IP504H require a radio license to operate?
No. The IP504H operates over LTE (4G) cellular networks using Icom’s private Global SIM — no FCC radio license is required. A Global SIM service plan is required for operation.
What is the difference between the IP504H and the IP501H?
The IP501H uses a standard carrier SIM (AT&T/US) and operates on public LTE networks. The IP504H uses Icom’s proprietary Connect “Global” SIM on a private, closed server network, providing broader North and Latin America coverage and greater network security. The two models cannot communicate with each other.
Is the IP504H waterproof?
Yes. The IP504H carries an IP67 rating — dust-tight and submersible to 1 meter for up to 30 minutes. It also features AquaQuake, a water-draining function that vibrates the speaker to expel water and restore audio clarity after submersion.
Can the IP504H communicate with traditional two-way radios?
Yes, with additional infrastructure. Using the VE-PG4 RoIP gateway, the IP504H can interconnect with IDAS™ digital transceivers and legacy analog radio systems.
Warranty
2-year manufacturer’s warranty on the radio. 1-year on accessories.
