Description
Black Box Marine VHF Transceiver
High-performance extendable black box marine VHF radio with integrated AIS receiver and multi-station CommandMic support.
The Icom M510BB is a premium black box marine VHF fixed-mount transceiver engineered for boaters, commercial vessels, and yachts with limited helm console space. By separating the main RF unit from the user interface, the Icom M510BB main chassis can be concealed out of sight up to 60 feet away (using optional OPC-1541 extension cables). All radio operations, Class D DSC functions, and AIS monitoring are operated directly through full-function CommandMic handsets.
Built for expanded vessel communication, the Icom M510BB supports up to three CommandMic stations positioned across your boat, offering complete VHF control and station-to-station intercom capability (one-to-one or one-to-all). Available in two factory configuration packages—M510BB 21 USA and M510BB GW 21 USA—this radio features an integrated AIS receiver, NMEA 2000 and NMEA 0183-HS networking, digital Active Noise Cancelling (ANC), and a 15W RX hailer with integrated foghorn patterns.
Product Variants & Packages
| Variant SKU |
Included Handset |
Handset Color |
Key Features & Differences |

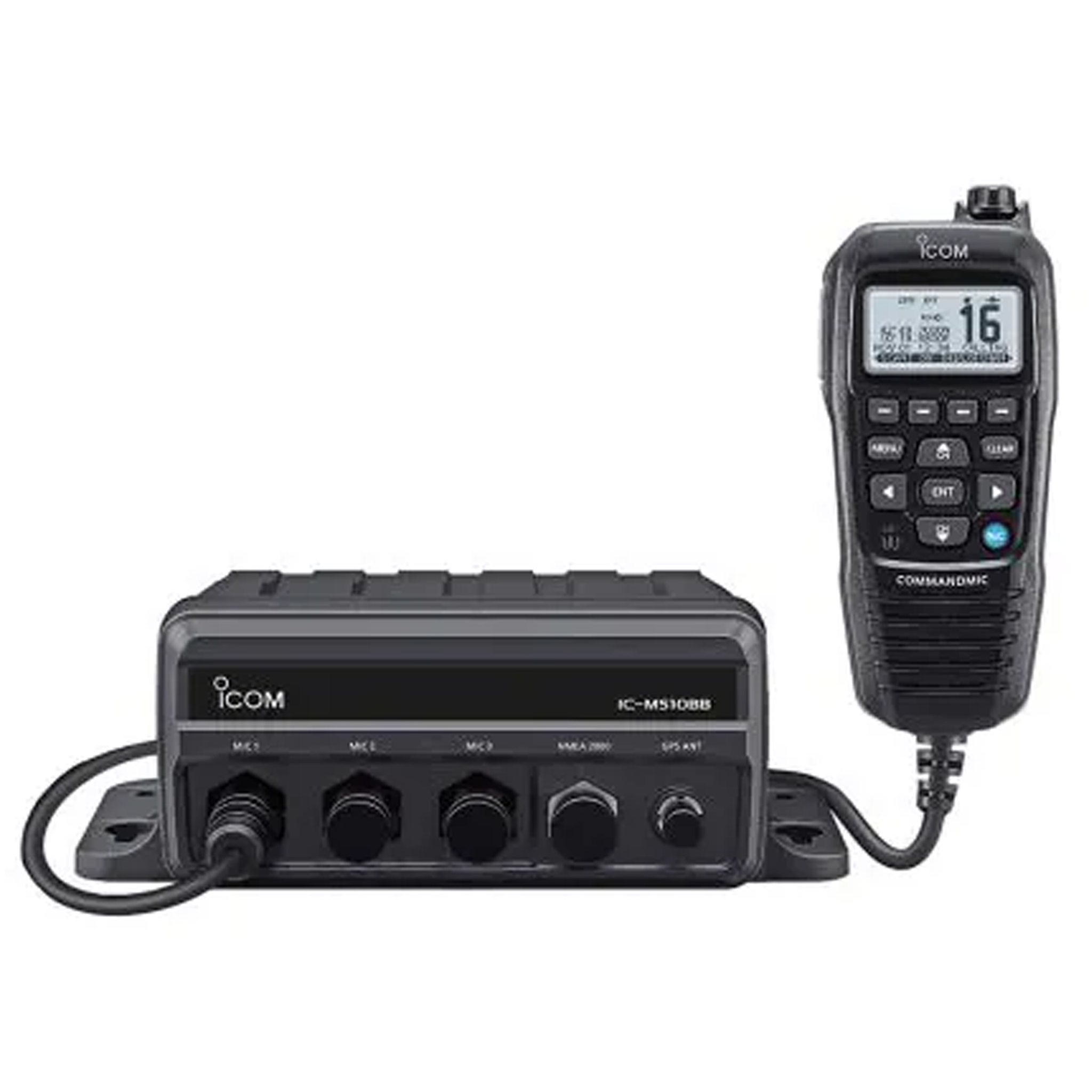

| M510BB 21 USA |
HM-195GB |
Black |
Standard black CommandMic handset package with 3 CommandMic connection ports. |

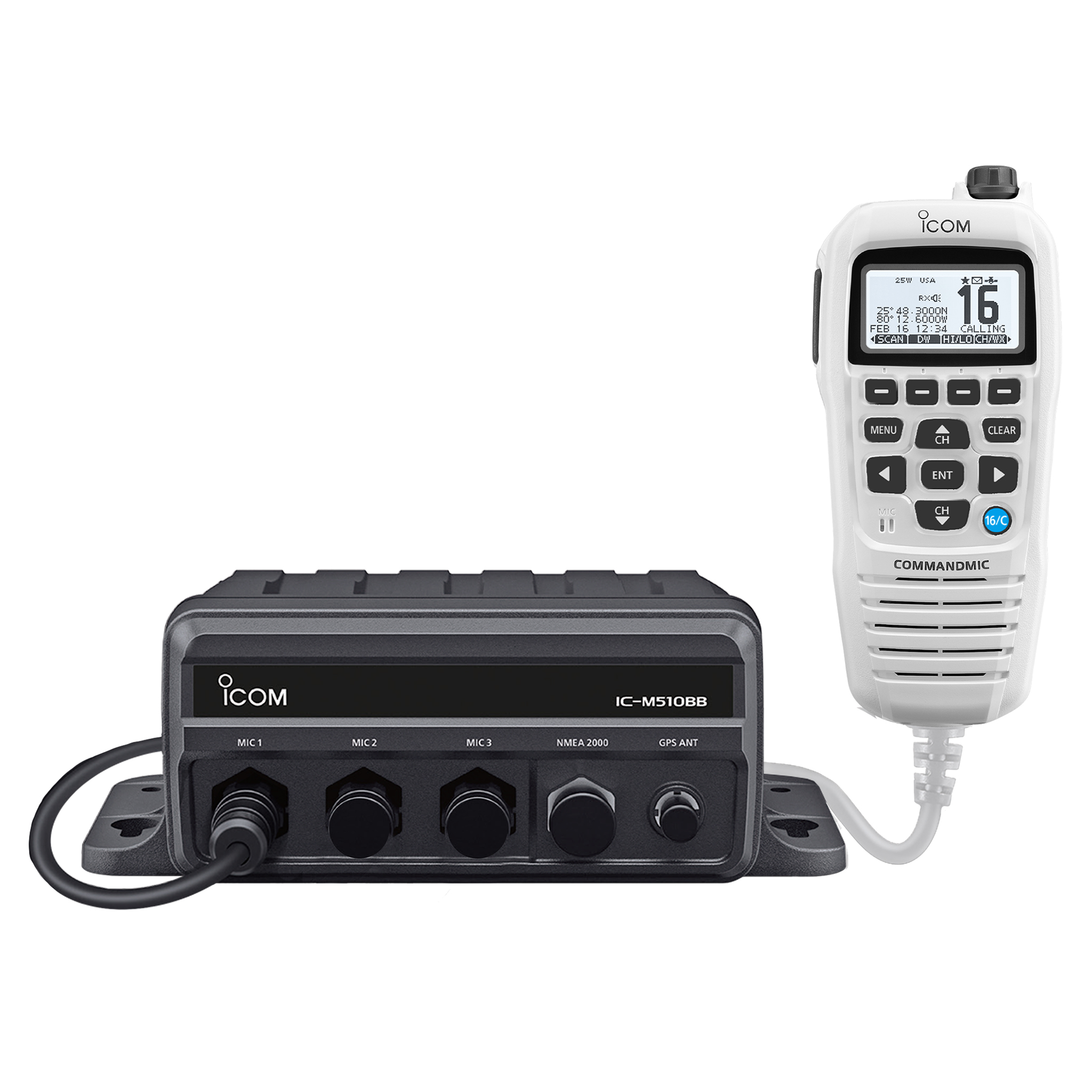

| M510BB GW 21 USA |
HM-195GW |
White |
White CommandMic handset package designed to match light helm aesthetics with 3 CommandMic ports. |
Key Features & Benefits
-
Space-Saving Black Box Installation: RF unit mounts out of sight up to 60 feet from control stations, leaving helm consoles uncluttered.
-
Up to 3 CommandMic Stations: Connect up to three CommandMic remote handsets for complete VHF operation and vessel-wide intercom functionality.
-
Integrated AIS Receiver: Monitors surrounding vessel movements on-screen for collision avoidance and direct-from-target DSC calling.
-
NMEA 2000 & NMEA 0183-HS Integration: Plug-and-play networking shares GPS position, AIS targets, DSC alerts, and channel data with MFD displays.
-
Active Noise Cancelling (ANC): Digitally filters out engine roar and wind noise from both incoming and outgoing voice transmissions.
-
Built-in Class D DSC & Voice Recorder: Dedicated Channel 70 watch receiver, one-touch Distress button, and automatic 2-minute last-call voice recording.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
M510BB (M510BB 21 USA / M510BB GW 21 USA) |
| Product Type |
Black Box Marine VHF Transceiver |
| Max Stations |
Up to 3 CommandMic Stations |
| Waterproof Rating |
IPX7 (1 meter for 30 minutes) |
| Data Networking |
NMEA 2000, NMEA 0183-HS |
| Audio Output |
15W Hailer / Foghorn Amplifier |
| Voice Recorder |
2-Minute Automatic Playback |
| Distress Function |
Class D DSC (Dedicated Ch 70 Receiver) |
Compatibility
CommandMic Remote Control Units
|
|
|
|
| HM-195GB |
HM-195GW |
CommandMic |
|
System Cables & Hailer Speakers
What's Included
| Description |
SKU/Model |
Status |
| Icom Marine VHF Black Box Main RF Chassis |
M510BB |
Included |
| CommandMic Handset (Black or White based on SKU) |
HM-195GB / HM-195GW |
Included |
| GNSS/GPS Antenna & Cable |
— |
Included |
| DC Power Cable & Mounting Hardware |
— |
Included |
Recommended Accessories
CommandMic Handsets & Extension Cables
More Resources
Frequently Asked Questions
What is the primary difference between the M510BB 21 USA and M510BB GW 21 USA variants?
The M510BB 21 USA includes a black HM-195GB CommandMic handset, whereas the M510BB GW 21 USA includes a white HM-195GW CommandMic handset to match different helm aesthetics.
What is the benefit of a black box marine VHF radio?
The Icom M510BB separates the main radio body from the control interface, allowing the main unit to be mounted out of sight while operating all functions through a compact CommandMic handset.
How many CommandMic stations can be connected to the Icom M510BB?
The Icom M510BB supports up to three CommandMic remote control stations (HM-195GB or HM-195GW) for multi-location control and vessel intercom communication.
How far can the CommandMic be installed from the Icom M510BB main unit?
Using optional OPC-1541 extension cables, the CommandMic handset can be installed up to 60 feet (18.3 meters) away from the main RF black box.
Does the Icom M510BB include integrated AIS functionality?
Yes, the Icom M510BB features a built-in AIS receiver that displays surrounding vessel targets on-screen and enables direct DSC calling to selected AIS targets.
Is the Icom M510BB waterproof?
Yes, the Icom M510BB carries an IPX7 waterproof rating, tested to withstand immersion in 1 meter of water for up to 30 minutes.
Warranty
3-year manufacturer's warranty.
