Description

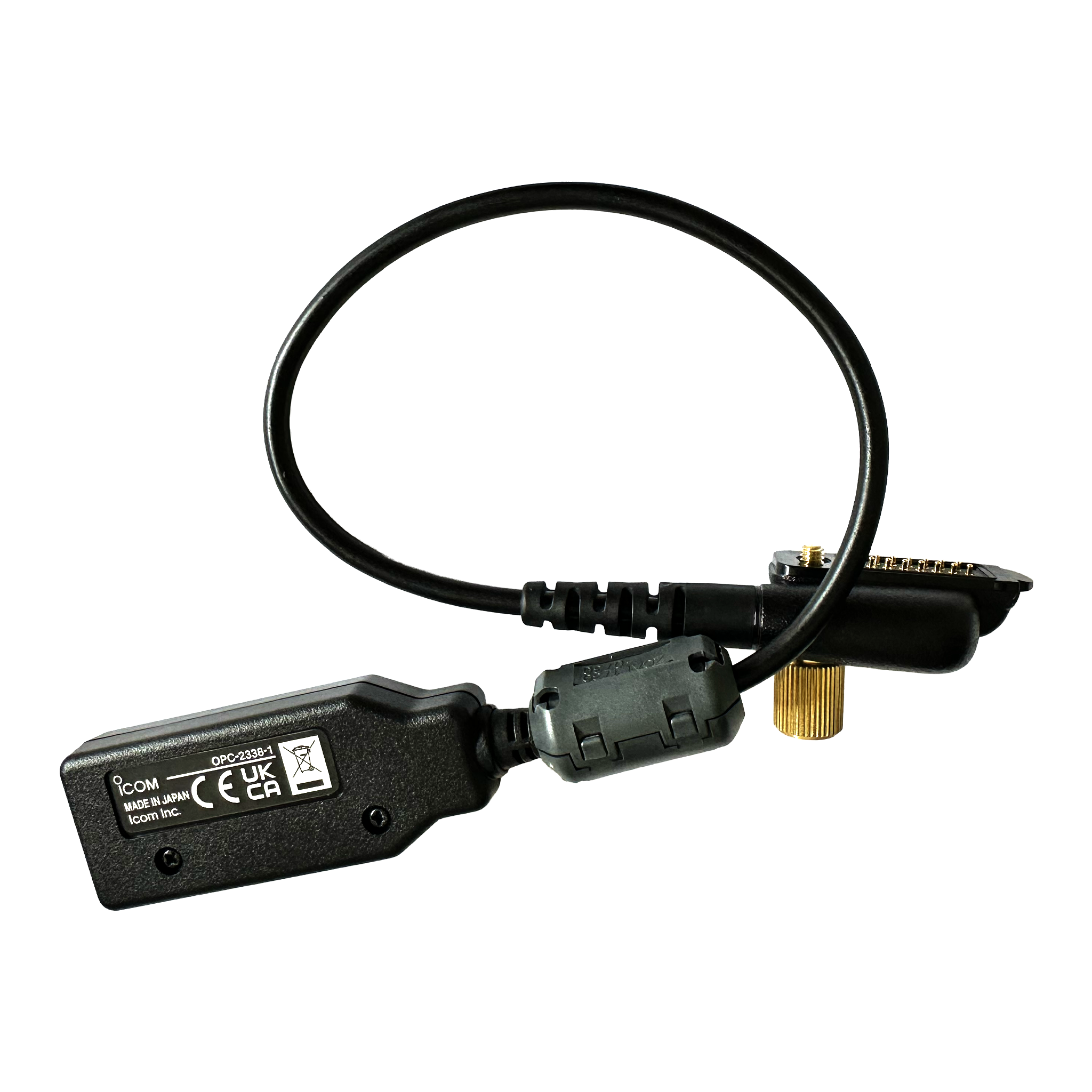

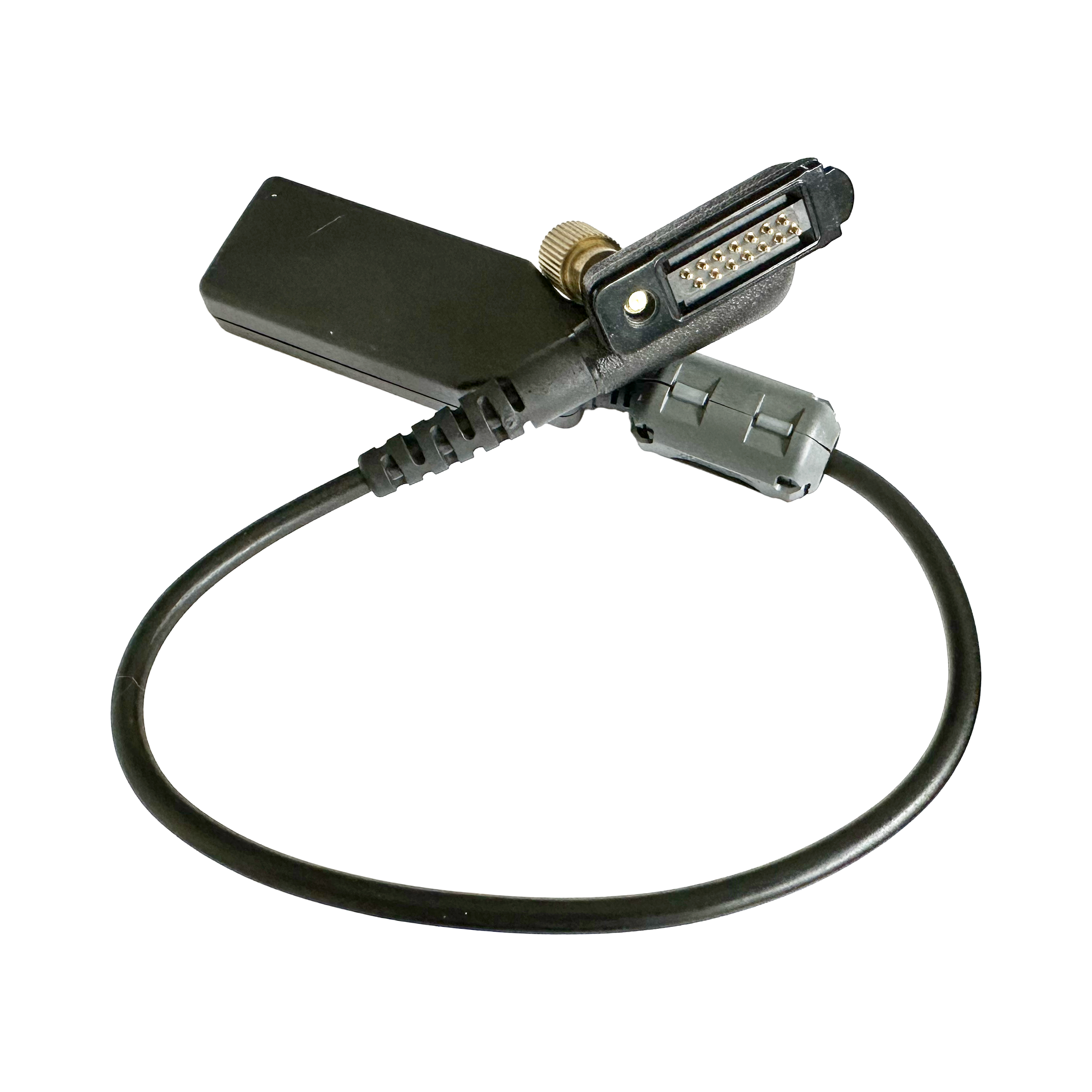

Icom OPC2338
14-Pin USB Programming & Data Cable
High-Speed Interface for Radio Management and Transparent Data Transfer
The Icom OPC2338 is a specialized, multi-function interface cable designed for the professional-tier Icom digital portable radio series. Featuring a robust 14-pin connector, the Icom OPC2338 serves a dual purpose: it acts as a high-speed programming link for radio fleet management and enables transparent data transfer capabilities. This allows technicians to not only configure complex IDAS and NXDN digital networks but also utilize the radio as a data modem for peripheral equipment in the field. The Icom OPC2338 is also named Icom OPC2338-1.
Engineered for the demands of public safety, maritime, and industrial users, the Icom OPC2338 provides a secure, bolt-on connection to the radio’s accessory port, preventing accidental disconnection during critical data syncs. Whether you are updating firmware on an Icom F3400D or managing a fleet of Icom M85 maritime radios, the Icom OPC2338 ensures a stable, low-latency connection between the radio and your PC. This genuine Icom accessory is the essential bridge for maintaining hardware longevity and peak operational performance.
Ensure quick and efficient programming of your Icom two-way radios with the Icom OPC2338 programming cable. Designed for reliability and ease of use, it’s a must-have tool for radio fleet management. For more information, start a chat in the bottom right corner or contact here.
Key Features & Benefits
-
Dual-Function Connectivity: Supports both PC-to-Radio programming and real-time transparent data transfer for integrated field solutions.
-

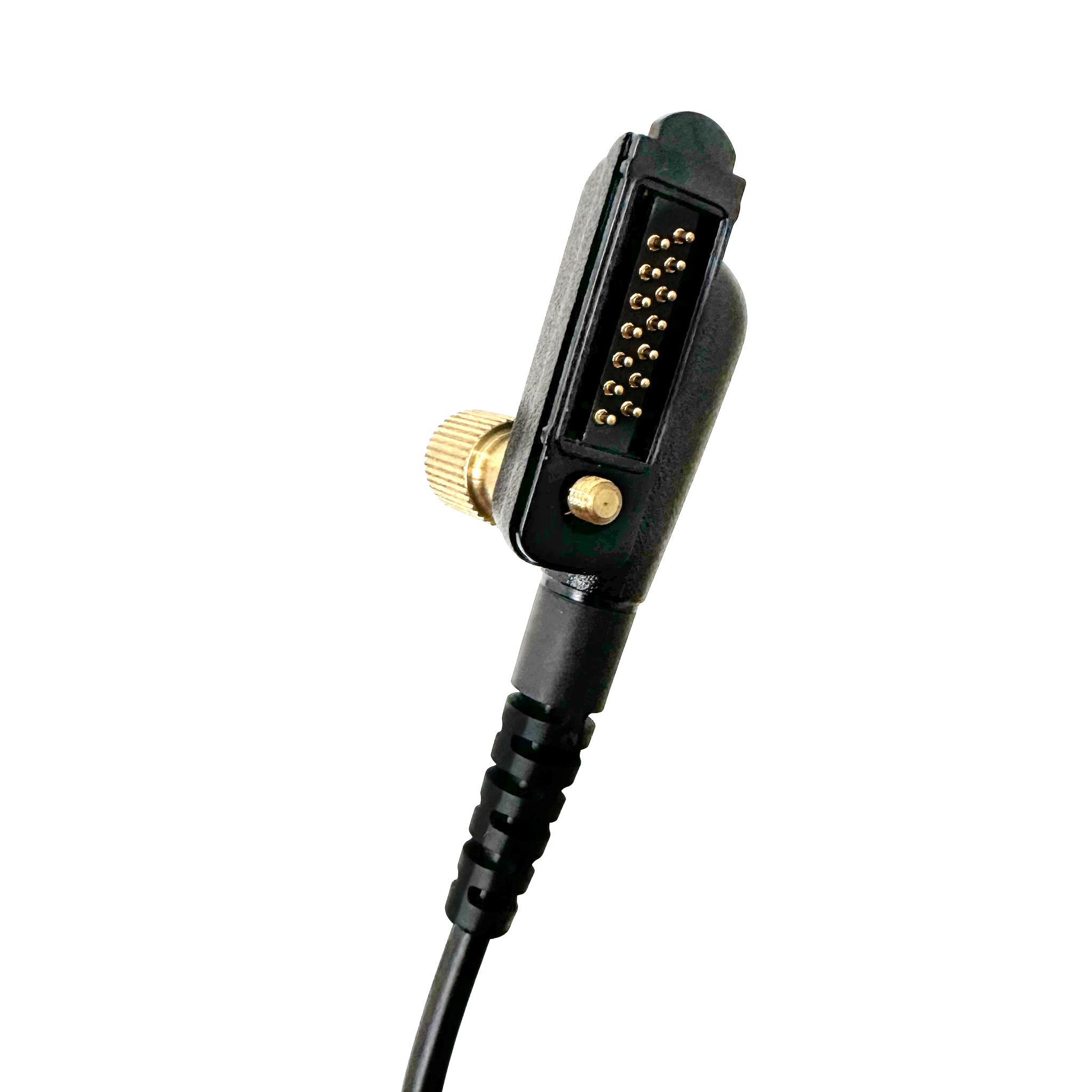

Secure 14-Pin Interface: Precision-machined 14-pin connector with a thumb-screw lock ensures a stable physical connection to the radio's side port.
-
USB-to-Radio Link: Standard USB-A interface provides plug-and-play compatibility with modern laptops and desktop workstations.
-
High-Speed Data Sync: Optimized for large data packets, reducing the time required for firmware updates and complex channel mapping.
-
Industrial Durability: Heavy-duty cable shielding and reinforced strain relief protect against electromagnetic interference and physical wear.
-
Icom OEM Reliability: Specifically engineered to meet the electrical tolerances of the Icom F-series and IP-series digital platforms.
Specifications
-
Brand: Icom
-
Model Number: OPC2338
-
Connector Type: 14-Pin to USB-A
-
Function: Programming / Transparent Data Transfer
-
Cable Length: Standard (approx. 3.2 ft)
-
Status: Genuine Icom Accessory
Compatibility
|
|
|
|
| F3400D |
F4400D |
F52D |
F52DUL |
| F62 |
F62DUL |
F7010 |
F7020 |
| F7040 |
IPM60 |
M85 |
M85UL |
| IP730D |
IP740D |
|
|
What's Included
| Description |
SKU |
Status |
| 14-Pin Programming Cable |
OPC2338 |
✅ Included |
| USB Cable |
OPC1537 |
✅ Included |
| Ferrit EMI Filter |
N/A |
✅ Included |
| Programming Software |
CS-Series |
❌ Sold Separately |
Recommended Accessories
- Icom CRSBC225 Programming Software (RSBC225)
- Icom BP-284 High-Capacity Li-Ion Battery (BP-284)
- Icom BC-225 Smart Rapid Charger (BC225)
Frequently Asked Questions
-
Does this cable include the programming software? No, the Icom OPC2338 is the hardware interface only. The appropriate Icom CS-series software for your specific radio model must be purchased separately.
-
Is this compatible with the standard 2-pin Icom radios? No, the Icom OPC2338-1 is exclusively for high-tier 14-pin accessory ports. For 2-pin radios, the OPC-478UC cable is required.
-
What is "Transparent Data Transfer"? This feature allows the Icom OPC2338 to send raw data through the radio network, enabling the radio to act as a wireless bridge for external devices like sensors or laptops.
Warranty
1-year manufacturer's warranty.
