Description
High-Speed Data Cloning for Professional Fleet Management

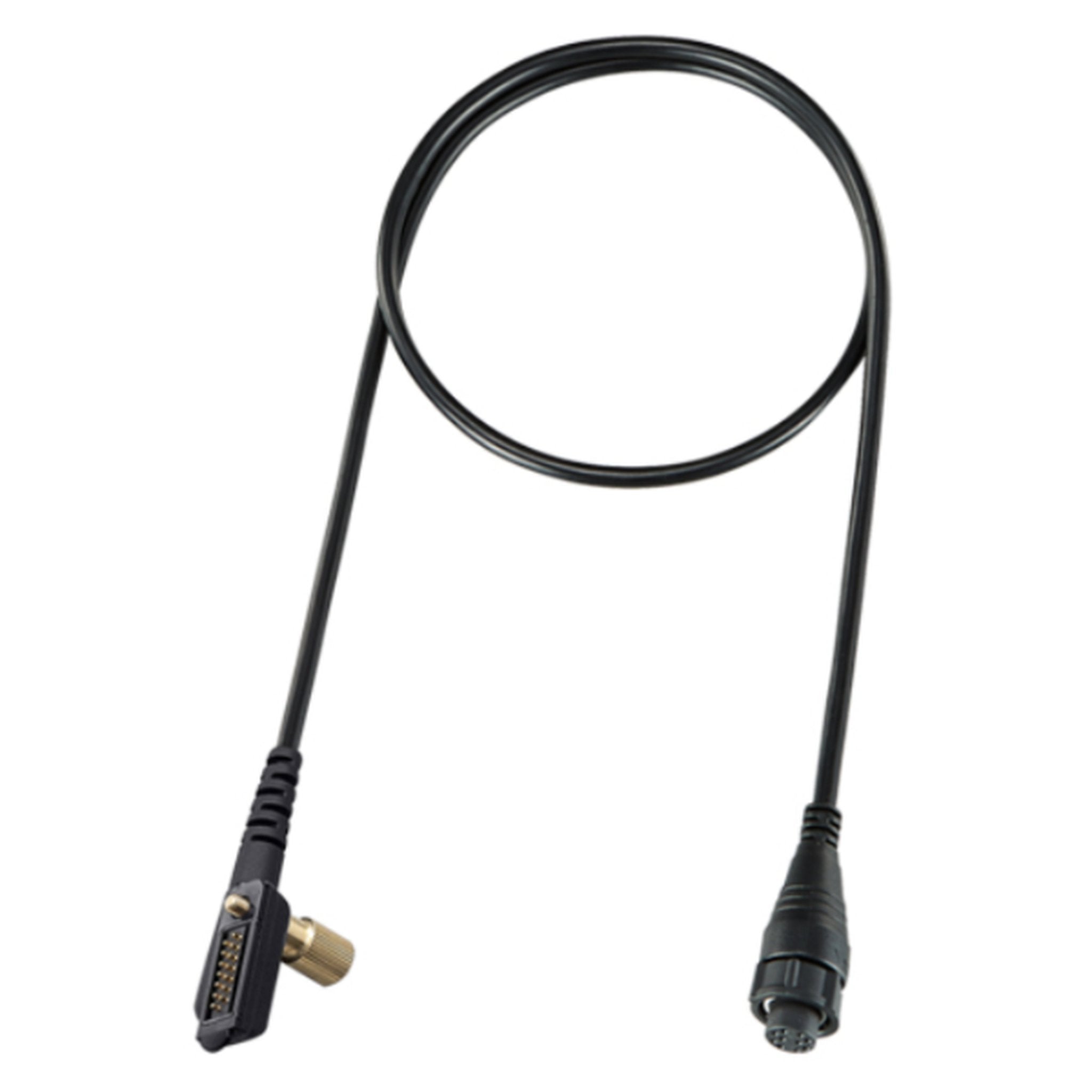

The Icom OPC2362 is a professional-grade zone copy cable engineered for direct cloning between 14-pin Icom handheld portables and 10-pin DIN mobile units. Measuring 800 mm in length, this cable provides a secure and reliable link for technicians to synchronize critical data without the need for a secondary PC interface. By facilitating the instant copying of zone information, the OPC2362 streamlines the programming process, ensuring that mobile units in a vehicle fleet perfectly match the configuration of the handheld portables used in the field.
Constructed with a robust build quality, this cable is specifically tailored for on-site use where speed and reliability are paramount. Whether you are deploying a new P25 digital system or updating existing IDAS™ parameters, the Icom OPC2362 eliminates the manual entry of channel data, reducing the risk of human error and significantly cutting down deployment time. Its heavy-duty shielding ensures that data transfer remains stable and free from interference, even in demanding professional environments.
Key Features & Benefits
-
Direct Zone Copying: Facilitates the seamless transfer of zone information between different radio form factors.
-

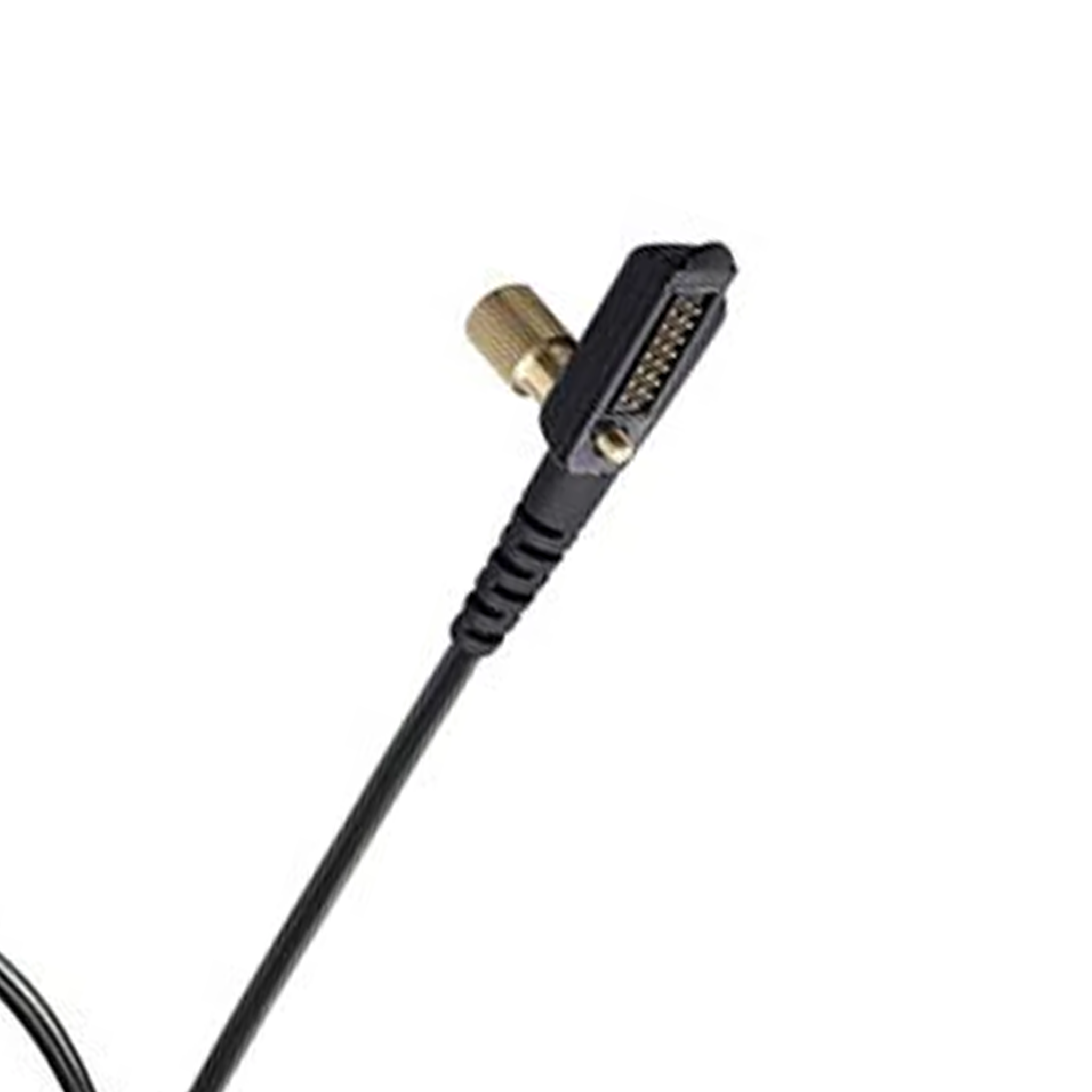

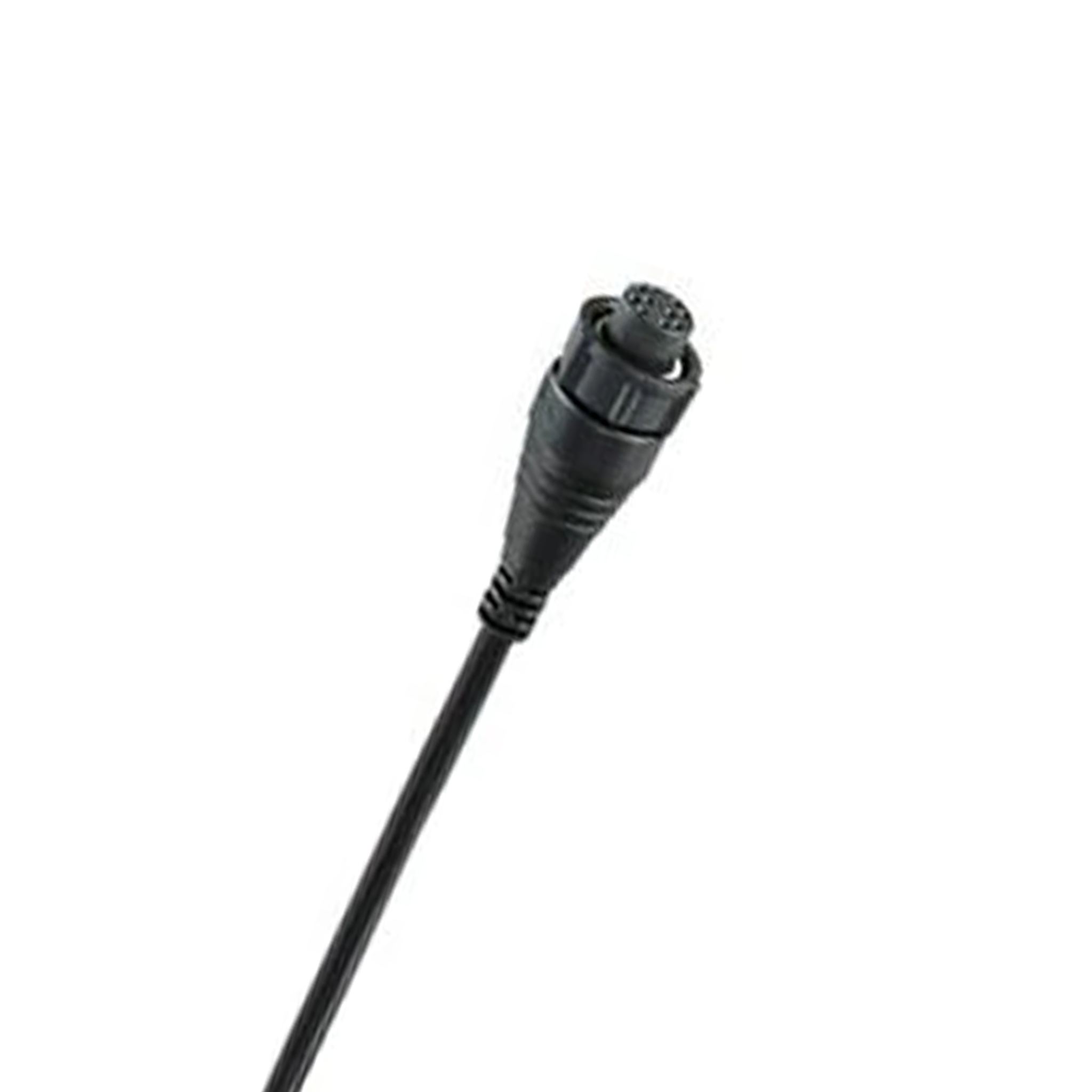

Handheld to Mobile Interface: Specifically designed to bridge 14-pin Icom portables with 10-pin DIN mobile accessory ports.
-
800 mm Cable Length: Provides optimal reach for convenient bench-top or in-vehicle cloning operations.
-
On-Site Reliability: Robust build quality ensures consistent performance for professional technicians during field updates.
-
Efficiency Boost: Streamlines the programming workflow by enabling rapid fleet synchronization without a laptop.
-
Genuine Icom Engineering: Tailored specifically for modern F-series P25 and IDAS™ digital radios to ensure 100% data integrity.
Specifications
| Feature |
Specification |
| Product Type |
Zone Copy / Cloning Cable |
| Interface |
Handheld to Mobile |
| Length |
800 mm |
| Connectors |
14 Pin to 10 Pin DIN |
| Color |
Black |
| Warranty |
1-Year Manufacturer's Warranty |
Compatibility
|
|
|
|
| F7010 |
F7020 |
F7040 |
F5400D |
| F6400D |
F7510 |
F7520 |
F7540 |
Recommended Accessories
- Icom P25 Portable Radio (F7010)
- Icom IDAS Mobile Radio (F5400D)
- Icom PC Programming Cable (OPC2363)
- Icom Mobile Speaker Microphone (HM220)
Frequently Asked Questions
What is the advantage of an 800 mm cable? The 800 mm (approx. 31 inches) length provides enough slack to comfortably connect a portable radio to a vehicle-mounted mobile radio or to perform cloning on a service bench without cable tension.
Does this cable copy firmware versions? No. This cable is for cloning "Zone" and user configuration data. Firmware updates must be performed individually using a PC and the appropriate programming software.
Is this compatible with 9-pin mobile accessory ports? No. This cable is specifically engineered for modern 10-pin DIN mobile accessory connectors found on the F5400D/F7500 series.
Warranty
1-year manufacturer's warranty.
