Description
Wireless Connectivity for Hands-Free Operation

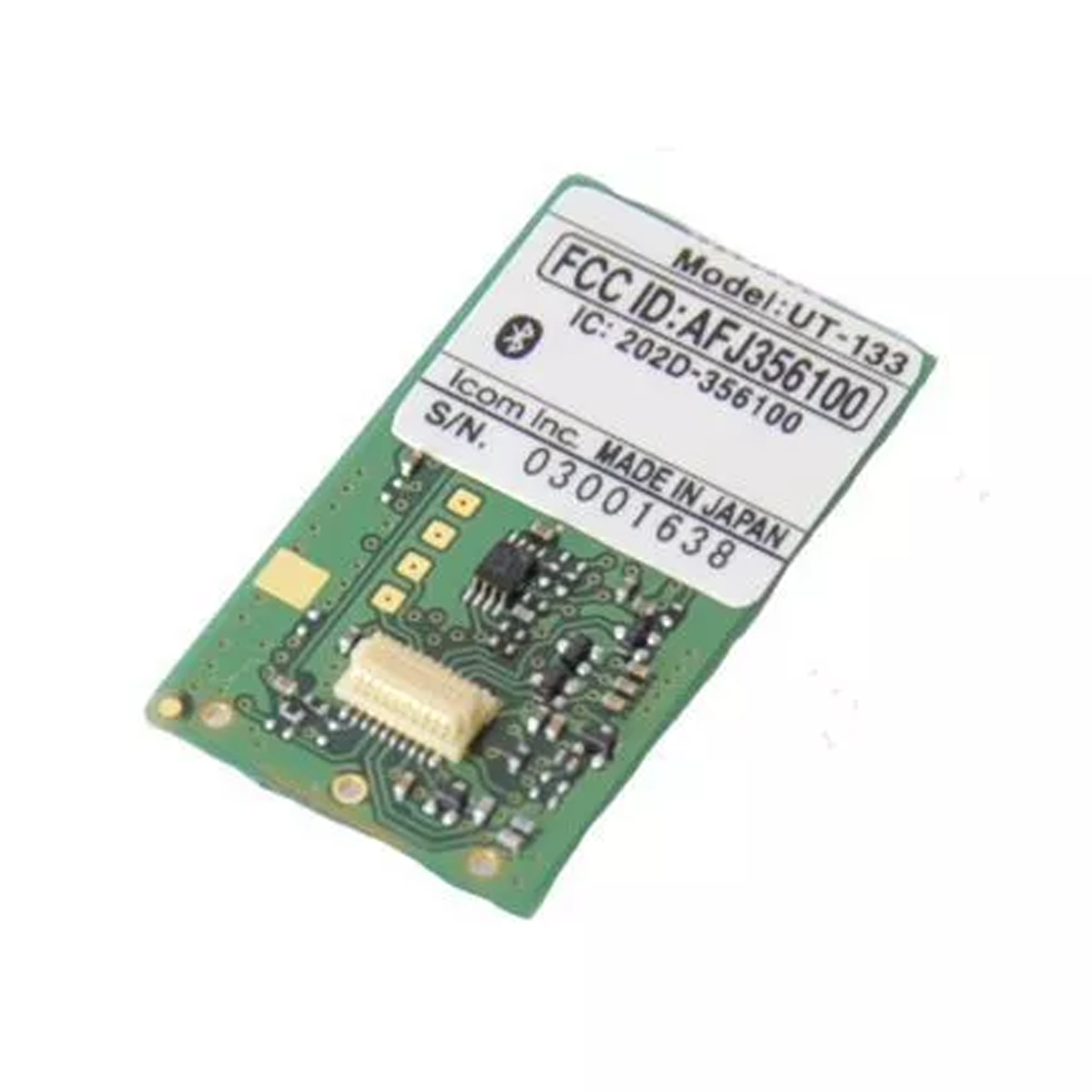

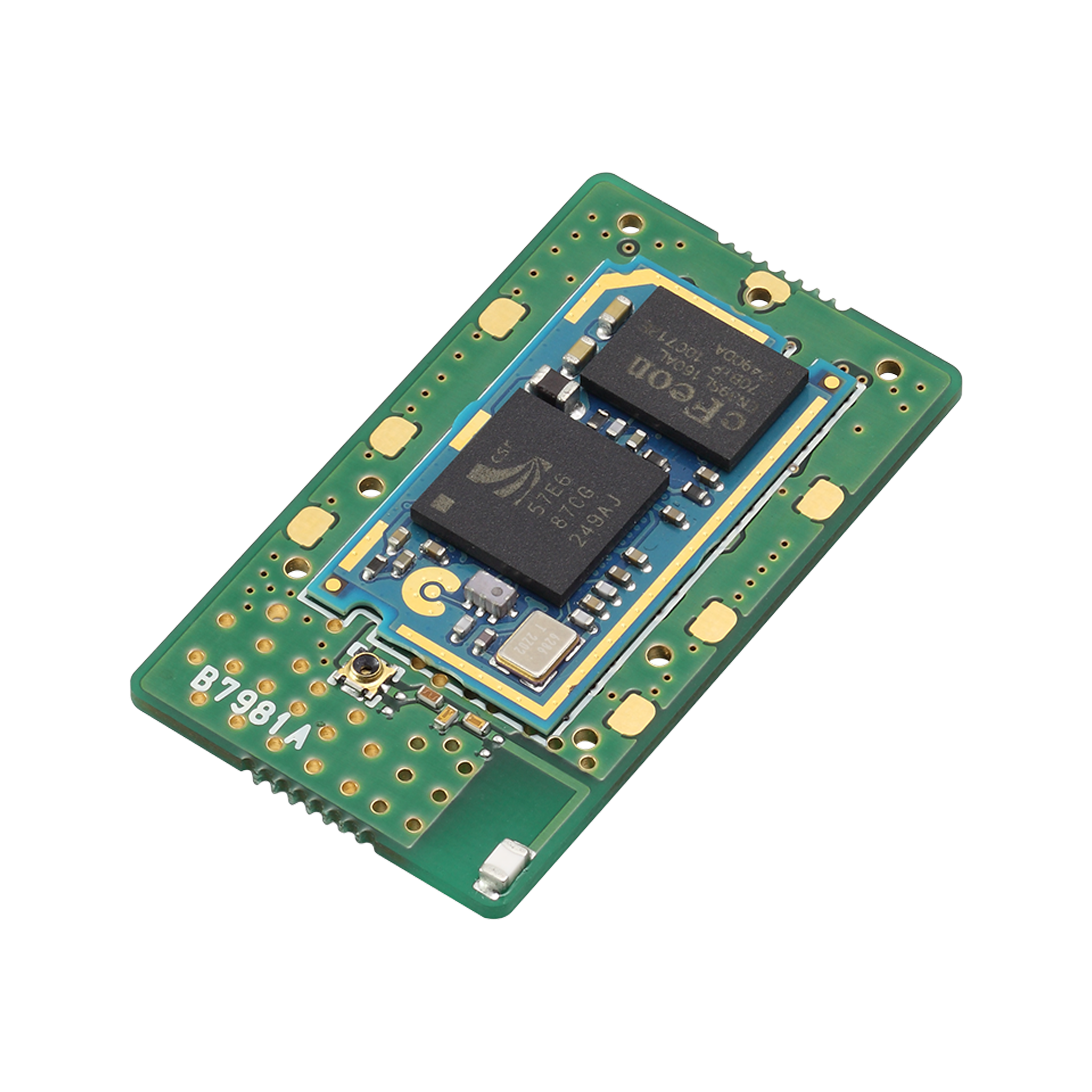

The Icom UT133 is an internal Bluetooth unit designed to integrate wireless communication capabilities directly into your Icom transceiver. Once installed, this board allows for a seamless connection to Bluetooth headsets and accessories, providing operators with a hands-free experience that is essential for both driving safety and operational efficiency. The UT133 is specifically engineered for high-performance mobile units like the 5100A and 2730A, as well as the A120 aviation mobile radio.
By eliminating the need for a physical microphone cable, the UT133 provides greater freedom of movement within the vehicle or cockpit. It supports advanced features such as Push-To-Talk (PTT) operation via compatible wireless headsets and, when used with the 5100A, enables wireless connection to Android devices for D-STAR data applications. As a genuine Icom internal component, the UT133 maintains the radio's electrical integrity and provides a stable, low-latency connection for professional-grade voice transmission.
Key Features & Benefits
-
Hands-Free Communication: Supports wireless headsets (such as the Icom VS-3) to ensure safer operation while driving or flying.
-
Seamless Internal Integration: Mounts directly inside the radio chassis, preserving the clean look and external ports of your transceiver.
-
Bluetooth® Ver. 3.0 Technology: Utilizes a reliable 2.4 GHz connection for stable audio pairing and data transfer.
-
Remote Control App Support: Enables wireless connection between the 5100A and the RS-MS1A Android app for remote radio control and D-STAR messaging.
-
Enhanced Aviation Safety: When installed in the A120, it allows pilots to maintain focus while utilizing wireless audio interfaces.
-
Genuine Icom Accessory: Factory-certified board ensuring perfect synchronization with the radio’s firmware and audio processing.
Specifications
| Feature |
Specification |
| Bluetooth Version |
Bluetooth® Ver. 3.0 |
| Frequency Range |
2402 – 2480 MHz |
| Power Supply |
Internal (Powered by Radio) |
| Interface |
Internal Plug-in Board |
| Supported Profiles |
HFP, HSP, SPP |
| Warranty |
1-Year Manufacturer's Warranty |
Compatibility
Frequently Asked Questions
Can I install this board myself? Yes. The UT133 is designed as a user-installable plug-in board. Detailed instructions are included in the radio's manual, though professional installation is recommended if you are uncomfortable opening the radio chassis.
Can I use any Bluetooth headset with this board? While the UT133 is designed to work with standard Bluetooth profiles, Icom officially recommends the VS-3 headset to ensure full functionality of the Push-To-Talk (PTT) button and audio quality.
Does this board allow me to play music through the radio? No. The UT133 is optimized for two-way radio communication (voice) and data transfer. It is not designed for high-fidelity A2DP music streaming.
Warranty
1-year manufacturer's warranty.
