Description

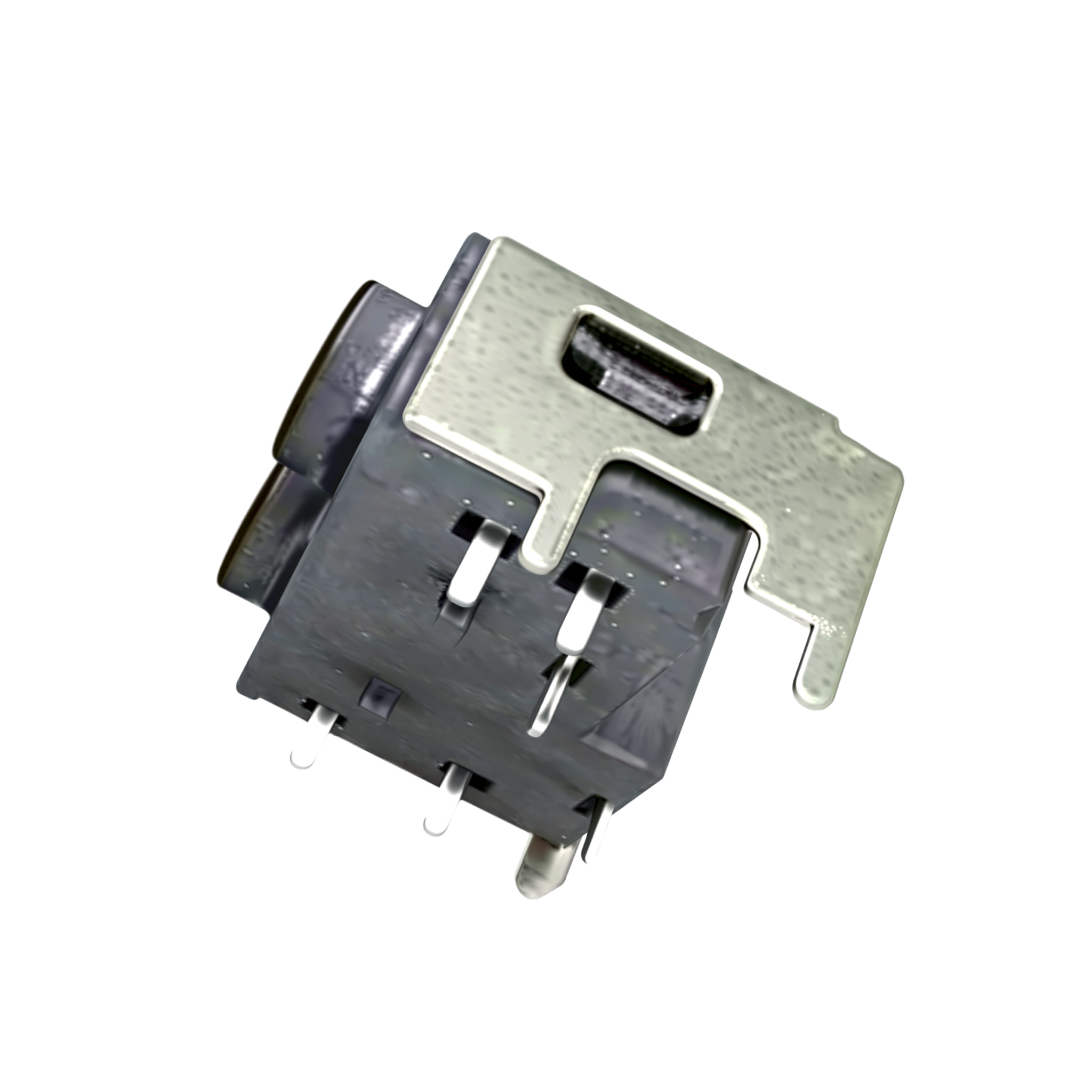

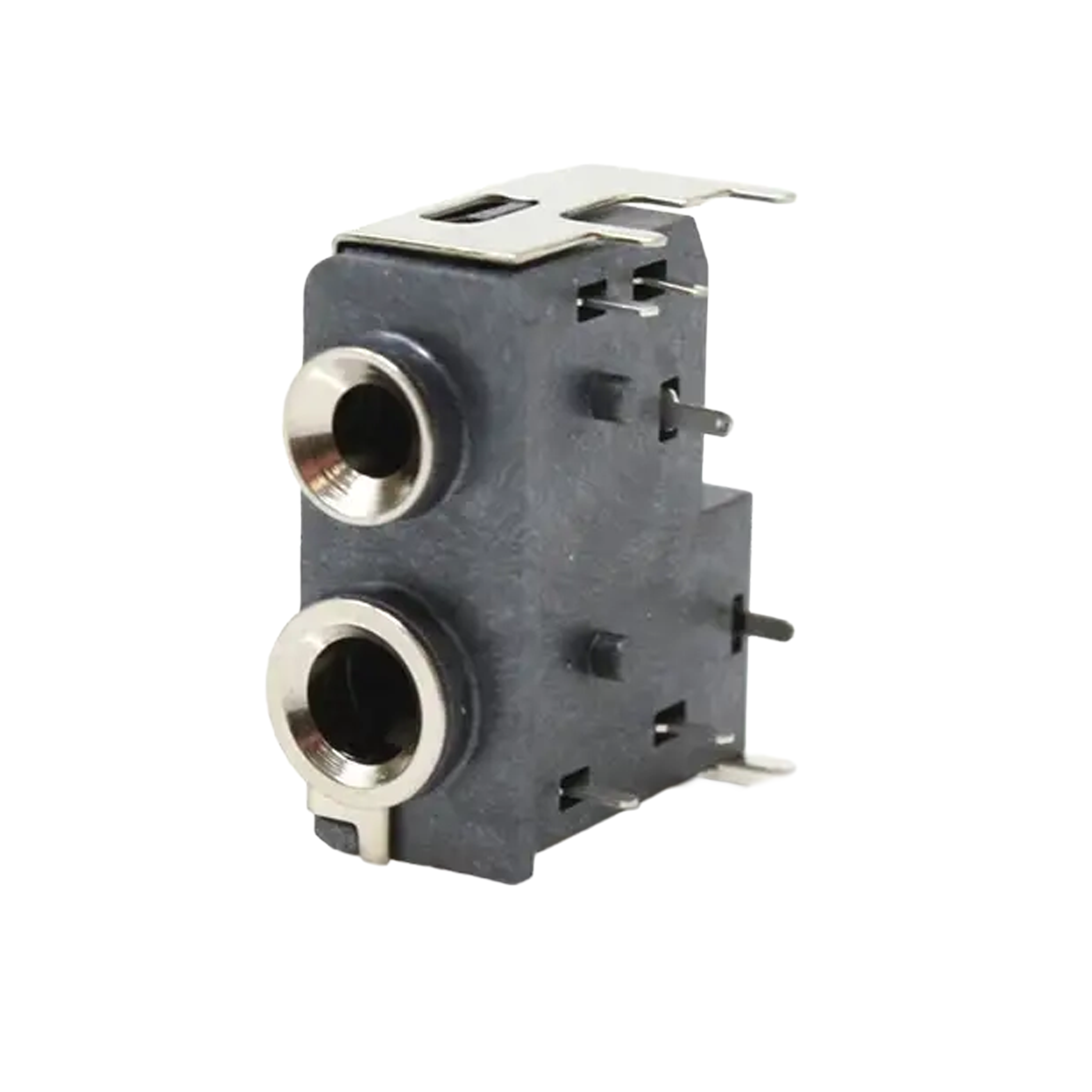

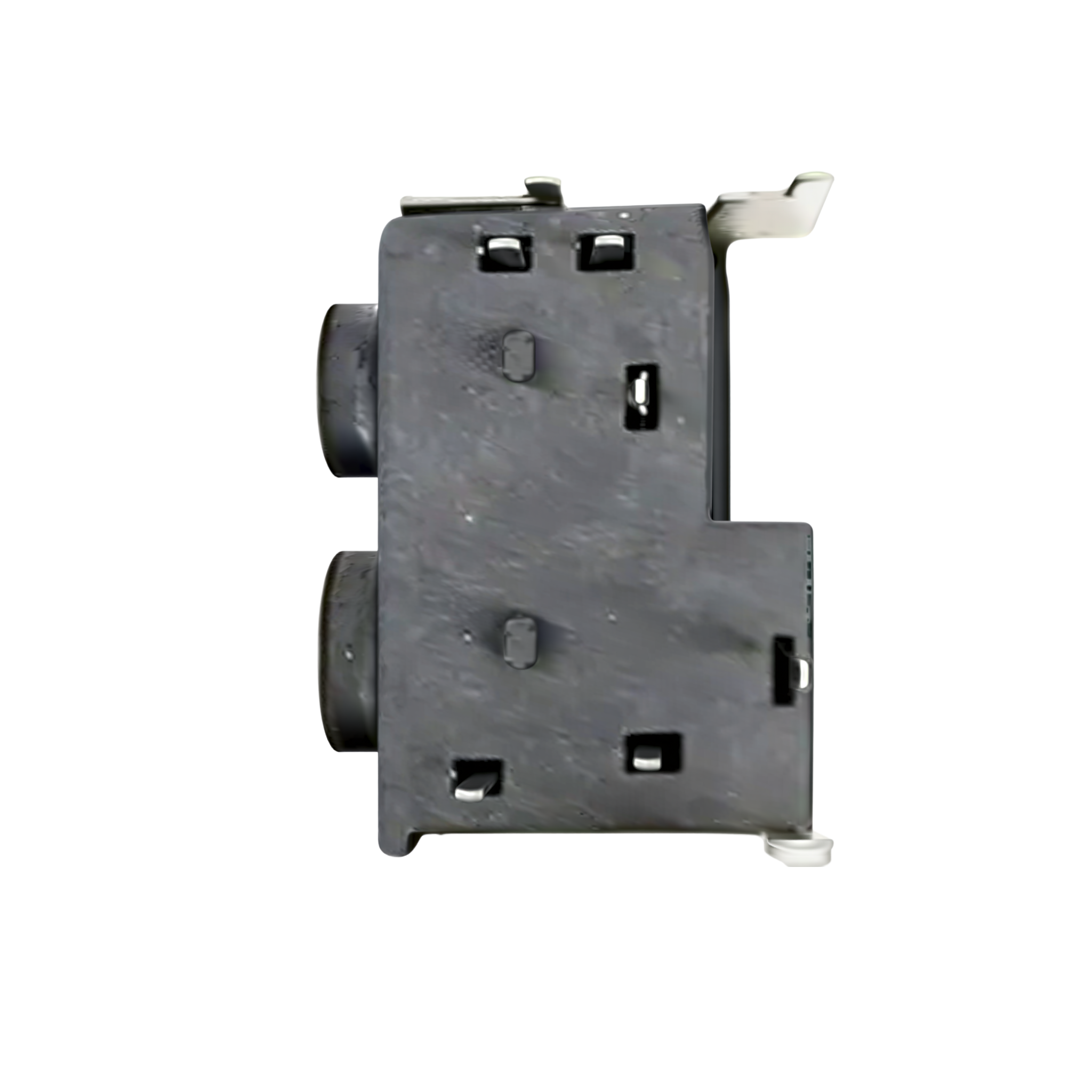

Genuine OEM Audio Accessory Jack Replacement Connector
Original equipment manufacturer 2-pin side accessory jack socket engineered for Motorola CP200d, Daytona, and MTP850 portable radios.
The Motorola 09012141001 (catalog part 09012141001) is an authentic original equipment manufacturer (OEM) replacement audio accessory connector jack designed for Motorola portable two-way transceivers. Engineered to restore factory audio and microphone connectivity, this internal PCB-mount socket component interfaces directly with standard Motorola 2-pin audio accessories—including remote speaker microphones, surveillance kits, earpieces, and programming adapters. It serves as an essential repair component when original side jacks suffer physical trauma, worn contact leaves, broken plastic collars, or intermittent signal transmission from heavy field duty.
Built to exact Motorola Solutions factory tolerances, the Motorola 09012141001 features durable precision-molded thermoplastic housing and heavy-duty, gold-plated internal spring-tension contacts that maintain high electrical conductivity over thousands of insertion cycles. The connector incorporates through-hole mounting solder pins engineered for clean PCB integration during bench-level servicing and fleet maintenance. Operating in compliance with commercial FCC Licensing radio maintenance standards, this authentic OEM jack assembly ensures crystal-clear audio transmission, reliable Push-To-Talk signaling, and a snug mechanical fit for CP200d, Daytona platform, and MTP850 radios.
Key Features & Benefits
-
Authentic OEM Replacement: Genuine Motorola Solutions component ensures factory-spec fit, proper chassis alignment, and exact electrical tolerances.
-
Restores Audio & Mic Functionality: Eliminates intermittent speaker mic connections, audio cutouts, and loose accessory plug retention caused by worn internal spring leaves.
-
Dual-Pin Audio Interface: Accommodates standard Motorola 2-pin (3.5 mm and 2.5 mm spaced) accessory plugs for remote microphones, headsets, and surveillance earpieces.
-
Corrosion-Resistant Gold Contacts: High-conductivity internal spring contacts resist oxidation and ensure consistent audio signal transfer across humid environments.
-
Durable Thermoplastic Body: High-impact housing withstands lateral leverage and insertion stress caused by attached speaker microphone cables.
-
Direct PCB Solder Mounting: Precision terminal pins facilitate clean soldering during depot-level board repair and radio reconditioning.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
09012141001 |
| Part Type |
Audio Accessory Jack Connector / Speaker Mic Jack |
| Interface Compatibility |
Motorola 2-Pin Side Audio Port (3.5 mm / 2.5 mm spacing) |
| Mounting Type |
PCB Solder Mount |
| Housing Material |
High-Temp Engineered Thermoplastic |
| Contact Plating |
Gold-Plated Phosphor Bronze |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
Compatibility
Compatible Motorola Portable Two-Way Radios
Recommended Accessories
Replacement Audio & Maintenance Hardware
More Resources
Frequently Asked Questions
Does the Motorola 09012141001 connector require soldering?
Yes. The Motorola 09012141001 is a component-level internal replacement part that solders directly to the radio's printed circuit board (PCB). Bench-level soldering tools and basic electronics repair expertise are required for installation.
What symptoms indicate that the accessory jack needs replacement?
Common signs include crackling or intermittent audio in external headsets, the radio failing to recognize a connected speaker microphone, failure to transmit via external Push-To-Talk (PTT), or audio plugs slipping out due to damaged internal retention clips.
Is this an authentic Motorola Solutions part?
Yes. The Motorola 09012141001 is an authentic original equipment manufacturer (OEM) component produced directly by Motorola Solutions.
Does this part include the external rubber dust cover?
No. The 09012141001 consists strictly of the internal PCB-mounted jack assembly. External rubber side dust covers and port seals are sold separately.
Warranty
1-year manufacturer’s replacement warranty.
