Description
Genuine OEM Side Audio Accessory Connector Replacement
Authentic Motorola standard 2-pin audio accessory jack socket engineered for CP200d, Timor, and DP1400 portable two-way transceivers.

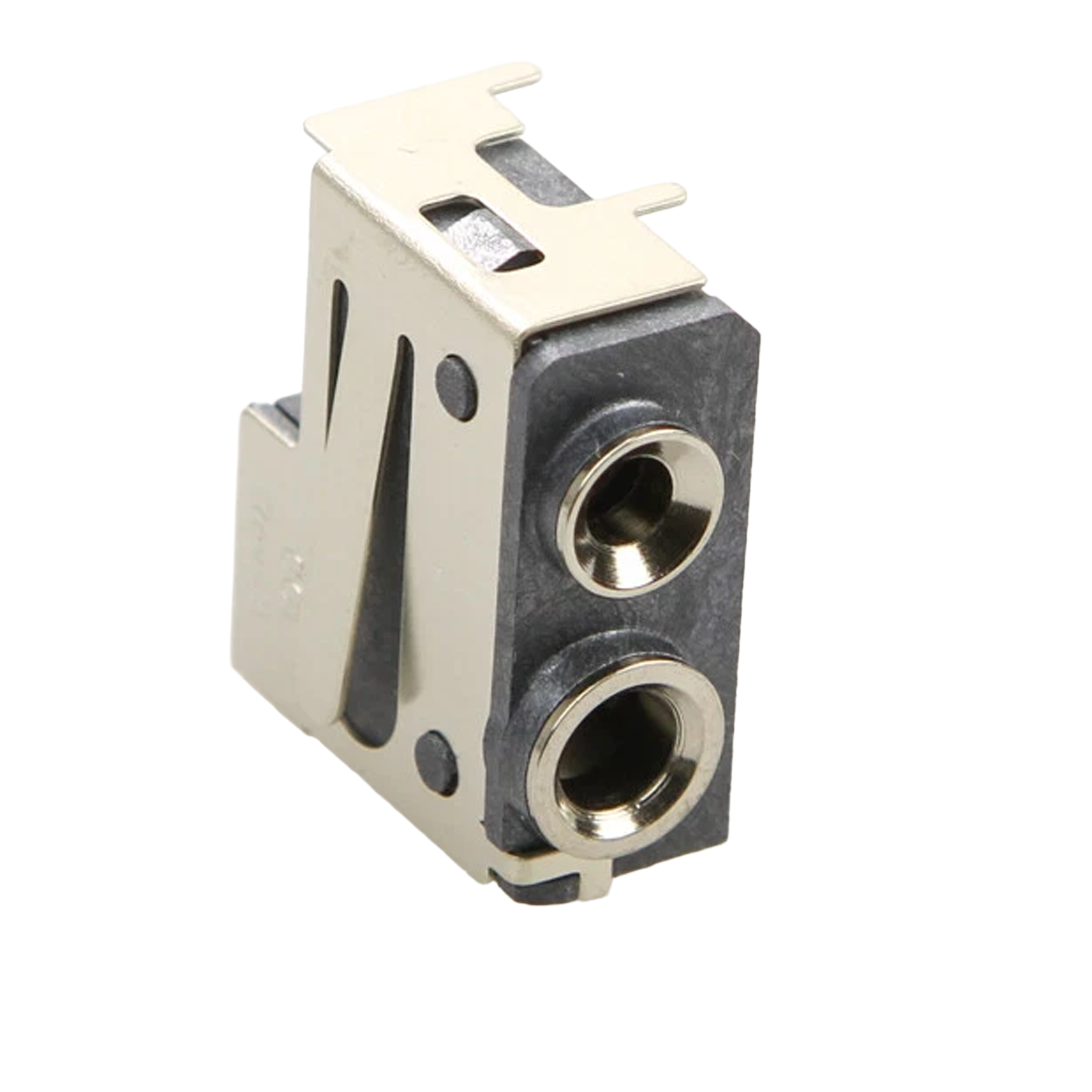

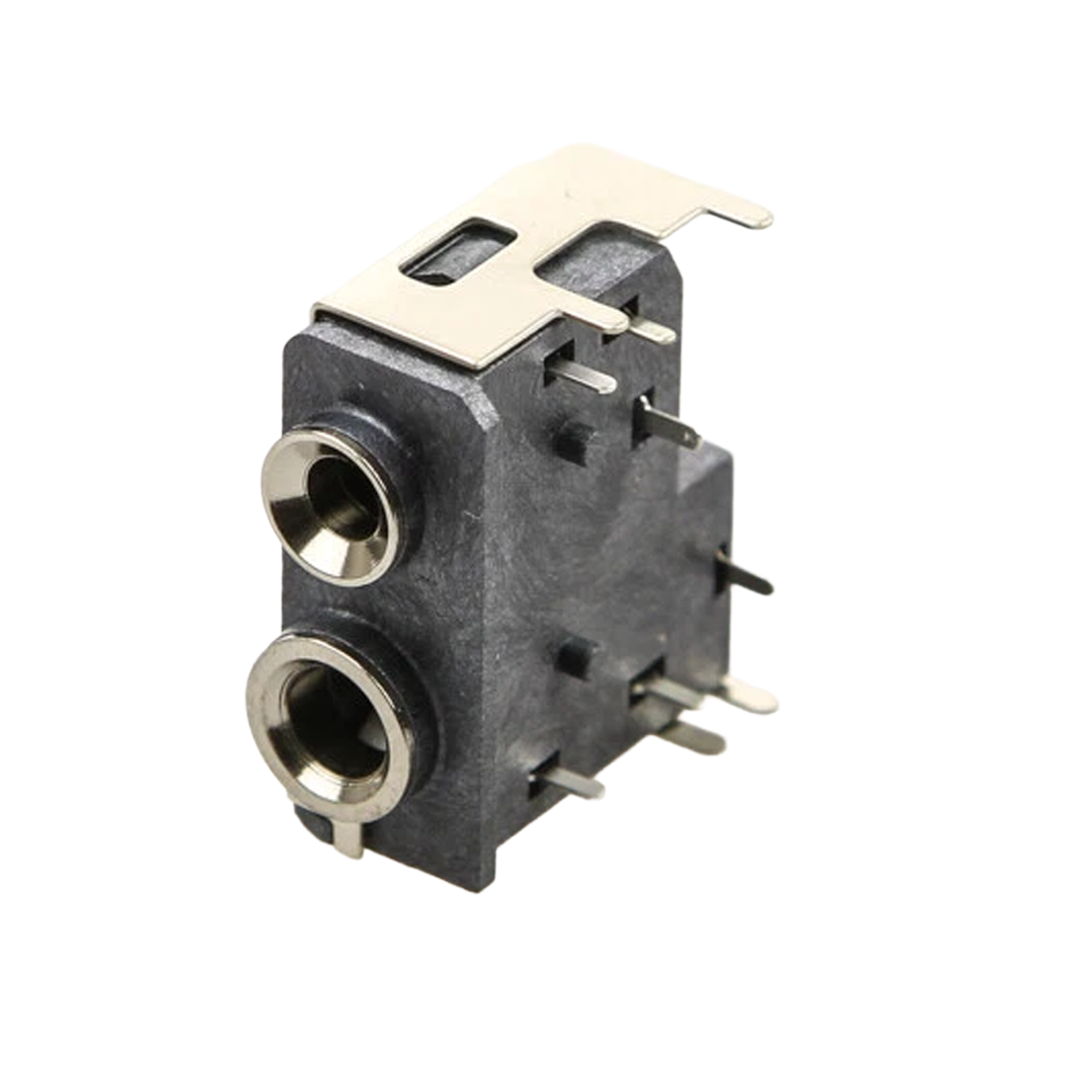

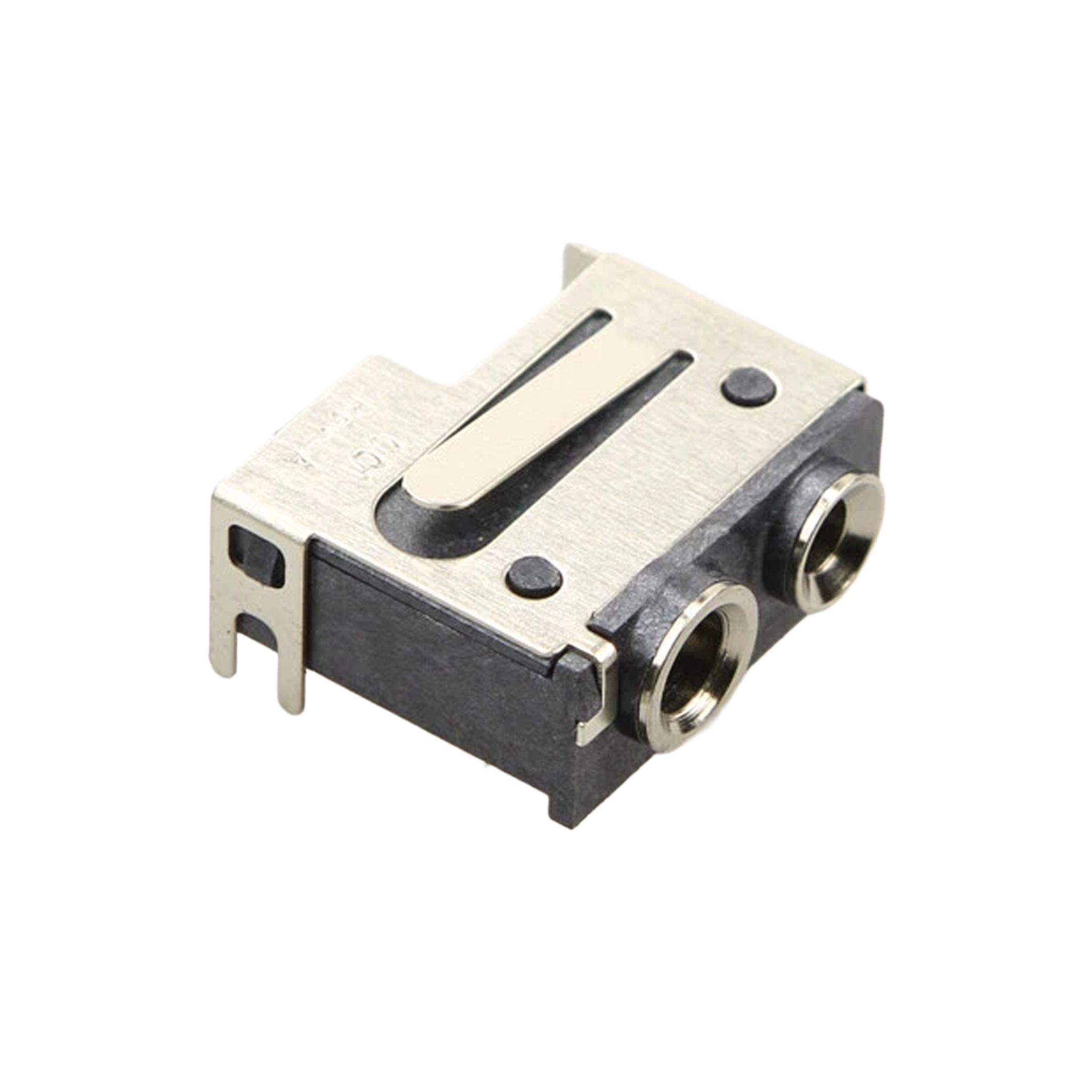

The Motorola CN001016A03 (catalog part CN001016A03) is an authentic original equipment manufacturer (OEM) internal audio accessory connector socket designed for commercial Motorola portable radios. Engineered as a board-level replacement part, this standard side audio interface restores reliable hardware connectivity between the radio's internal transceiver circuitry and external 2-pin audio peripherals—including remote speaker microphones, surveillance kits, headsets, and programming interface cables.
Manufactured to strict Motorola Solutions factory tolerances, the Motorola CN001016A03 features high-durability internal phosphor bronze contact leaves with corrosion-resistant plating to ensure continuous, low-resistance electrical signal transfer over thousands of connection cycles. It provides a direct replacement for damaged, loose, or oxidized factory audio jacks caused by severe cable strain, heavy drop impacts, or physical wear. Operating in accordance with commercial FCC Licensing radio maintenance standards, this authentic OEM connector resolves common audio transmission issues and restores tactile accessory retention across CP200d, Timor platform, and DP1400 portable radios.
Key Features & Benefits
-
Authentic OEM Replacement: Manufactured directly by Motorola Solutions to guarantee precise mechanical alignment, footprint match, and factory electrical specs.
-
Restores Clear Two-Way Audio: Solves intermittent microphone transmissions, crackling speaker audio, and false accessory detection caused by worn internal leaves.
-
Standard 2-Pin Interface: Features standard 3.5mm and 2.5mm jack spacing to support genuine Motorola and commercial aftermarket audio accessories.
-
Corrosion-Resistant Contacts: Plated internal spring contacts maintain maximum electrical conductivity and resist oxidation from humid work environments.
-
Reinforced Housing: High-temperature molded thermoplastic shell resists structural cracking and absorbs physical strain from attached coiled microphone leads.
-
Depot-Level Repair Solution: Standard through-hole solder terminals allow clean printed circuit board (PCB) installation during fleet reconditioning.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
CN001016A03 / CN001016 |
| Part Type |
Standard Audio Accessory Jack Connector |
| Interface Style |
Motorola Standard 2-Pin Side Audio Port (3.5 mm / 2.5 mm spacing) |
| Mounting Architecture |
PCB Solder Mount (Through-Hole) |
| Housing Material |
High-Temp Engineered Thermoplastic |
| Contact Material |
High-Conductivity Phosphor Bronze Alloy |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Color Finish |
Black Housing with Metallic Solder Pins |
Compatibility
Compatible Motorola Portable Two-Way Radios
What’s Included
| Description |
SKU/Model |
Status |
| Motorola Standard Audio Accessory Connector |
CN001016A03 |
Included |
Recommended Accessories
Audio Accessories & Maintenance Hardware
-
Motorola PMMN4013A Remote Speaker Microphone – Compact shoulder microphone with 3.5mm audio earphone port for CP200d transceivers.
-
Motorola NNTN4497CR Li-Ion Rechargeable Battery Pack – High-capacity 2250 mAh replacement battery for CP200d series transceivers.
-
Motorola PMLN6588A 6-Pocket Multi-Unit Rapid Charger – Multi-bay desktop gang charger for commercial fleet charging.
More Resources
Frequently Asked Questions
What does the "A03" suffix in part number CN001016A03 mean?
The "A03" suffix indicates the latest official manufacturing revision from Motorola Solutions. CN001016A03 represents the newest production version of the base part number CN001016 (replacing earlier production revisions like A01 and A02), offering updated internal metallurgy and housing durability while remaining fully backward-compatible with all listed radio models.
Does installing the CN001016A03 require soldering?
Yes. The Motorola CN001016A03 is an internal board-level component that solders directly onto the radio chassis PCB. Installation requires basic electronic soldering equipment, desoldering braid or a vacuum pump to remove the damaged connector, and bench-level technical assembly skills.
How do I know if my radio needs a new audio connector?
If your external speaker microphone disconnects when the cable wiggles, audio repeatedly cuts out, the radio fails to key the transmitter via external PTT, or the accessory plug feels loose in the side port, the internal contact pins in the connector are worn or deformed and need replacement.
Is this an authentic Motorola Solutions factory component?
Yes. The Motorola CN001016A03 is an authentic original equipment manufacturer (OEM) replacement component produced directly by Motorola Solutions.
Does this part come with the external rubber side cover?
No. The CN001016A03 includes only the internal PCB-mount connector jack assembly. The exterior rubber weather dust cover is a separate exterior cosmetic part.
Warranty
1-year manufacturer’s replacement warranty.
