Description
Low PIM 3-Way Wilkinson Power Splitter for DAS Networks
Industrial 138–960 MHz 3-way power splitter with N-Female connectors, IP65 weatherproofing, and 50W power handling.

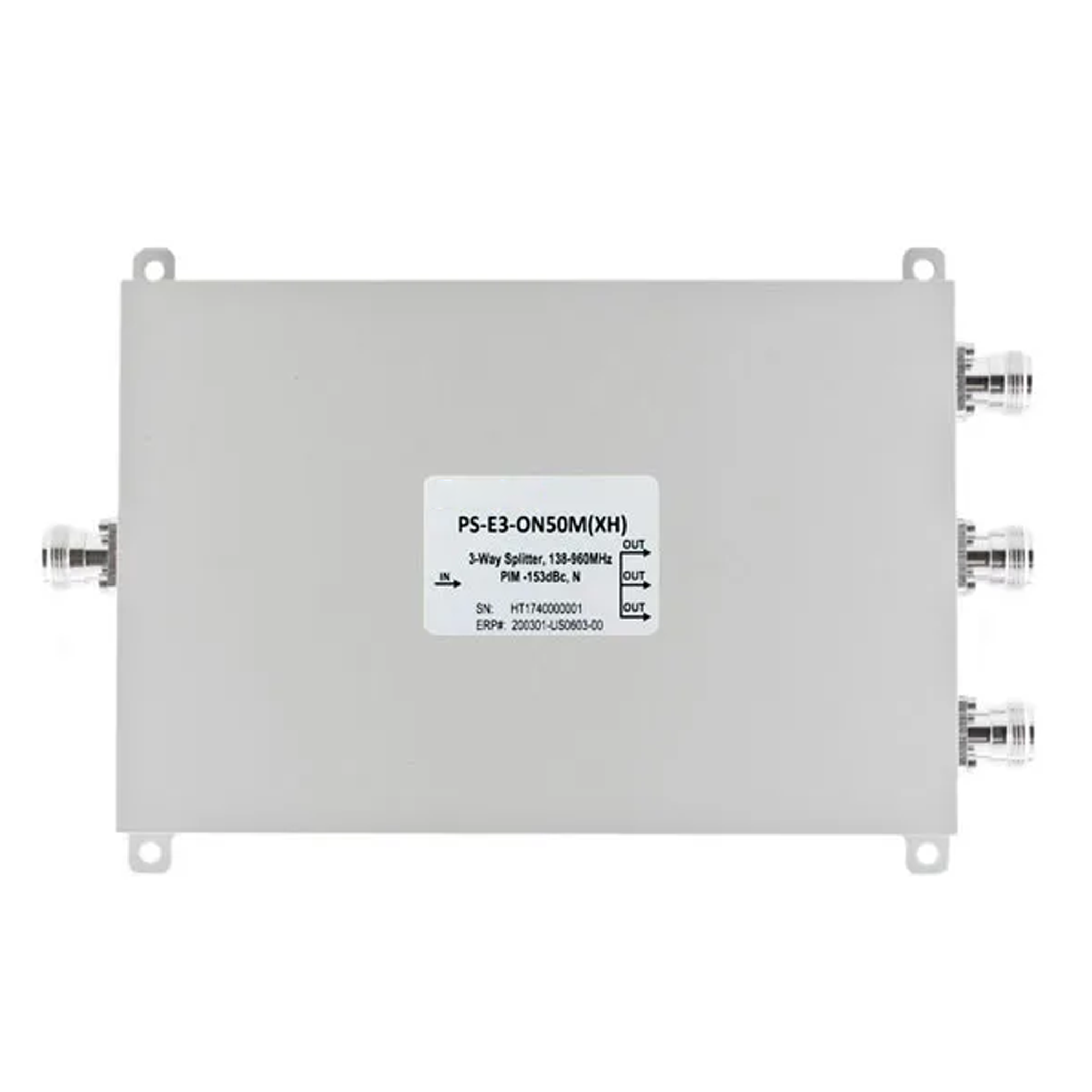

The Motorola DSPSE3ON50MXH is a high-performance 138–960 MHz 3-way Wilkinson power splitter designed for distributed antenna systems (DAS), bi-directional amplifier (BDA) signal booster networks, and multi-band radio base stations. Covering VHF, UHF, and 700/800/900 MHz public safety and commercial frequency bands, this low passive intermodulation (PIM) component distributes RF signals evenly across three output channels with minimal insertion loss.
Built for indoor and outdoor RF signal distribution, the Motorola DSPSE3ON50MXH features an IP65 weather-resistant housing and heavy-duty N-Female connectors to ensure long-term durability in harsh operational environments. With a low PIM rating of ≤ -153 dBc and 50 Watts average power handling, it prevents intermodulation distortion on critical public safety communications operating on Project 25 (P25) and commercial radio channels governed by FCC Licensing regulations. Please note that this product is fulfilled and shipped through a third-party supplier, which may add additional processing time to your order.
Key Features & Benefits
-
Wideband 138–960 MHz Coverage: Broad operating spectrum covers VHF, UHF, and 700/800/900 MHz cellular and public safety frequency bands.
-
Low Passive Intermodulation (PIM): Rated at ≤ -153 dBc to minimize interference and signal degradation in multi-carrier DAS deployments.
-
3-Way Equal Power Splitting: Divides RF power evenly across three output ports with low insertion loss (≤ 0.8 dB) and 50 Watts average power capacity.
-
IP65 Weatherproof Enclosure: Sealed, durable housing operates reliably across extreme temperatures from -13°F to +185°F (-25°C to +85°C).
-
N-Female RF Connectors: Industry-standard N-Female coaxial terminations ensure secure, low-loss connections to RF cables and antennas.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
DSPSE3ON50MXH |
| Product Type |
3-Way Wilkinson Power Splitter |
| Frequency Range |
138 – 960 MHz |
| PIM Rating |
≤ -153 dBc (at 2 x 43 dBm) |
| Power Handling |
50 Watts Average Max |
| Insertion Loss |
≤ 0.8 dB (Split Loss approx 4.8 dB) |
| Connector Type |
N-Female |
| Ingress Protection |
IP65 Weather-Resistant |
| Operating Temperature |
-13°F to +185°F (-25°C to +85°C) |
| Fulfillment Note |
Third-Party Supplier Fulfillment (Additional Processing Time) |
Recommended Accessories
RF Cables & Connectors
-
LMR-400 Low-Loss Coaxial Cable – Premium low-loss 50-ohm coaxial cable for RF power splitter interconnection.
-
N-Male to N-Male Coaxial Jumper Cable – Precision jumper cable for connecting RF splitters to BDAs and repeaters.
Surge & Mounting Accessories
-
PolyPhaser N-Female In-Line Lightning Protector – Heavy-duty surge arrestor to protect connected DAS splitters and amplifiers.
-
Universal Wall-Mount Hardware Bracket – Mounting bracket assembly for securing RF power splitters in equipment closets.
More Resources
Frequently Asked Questions
What frequency range does the Motorola DSPSE3ON50MXH power splitter cover?
The Motorola DSPSE3ON50MXH covers a broad 138–960 MHz frequency spectrum, supporting VHF, UHF, and 700/800/900 MHz public safety and commercial bands.
What is the PIM rating of the Motorola DSPSE3ON50MXH?
The Motorola DSPSE3ON50MXH features a low passive intermodulation rating of ≤ -153 dBc (measured at 2 x 43 dBm) to prevent signal distortion in DAS networks.
What connectors does the Motorola DSPSE3ON50MXH use?
The Motorola DSPSE3ON50MXH utilizes standard N-Female coaxial connectors on its input and output ports.
Can the Motorola DSPSE3ON50MXH be installed outdoors?
Yes, the Motorola DSPSE3ON50MXH features an IP65 weather-resistant rating and an operating temperature range of -13°F to +185°F (-25°C to +85°C) for indoor and outdoor installations.
What is the power handling capacity of the Motorola DSPSE3ON50MXH?
The Motorola DSPSE3ON50MXH is rated for up to 50 Watts average maximum power handling.
Why does fulfilling the Motorola DSPSE3ON50MXH require extra processing time?
This specific component is fulfilled and shipped through a specialized third-party supplier, which may add extra processing business days prior to dispatch.
Warranty
1-year manufacturer's warranty.
