VHF 136–174 MHz Mobile Antenna with a Through-Hole Mount

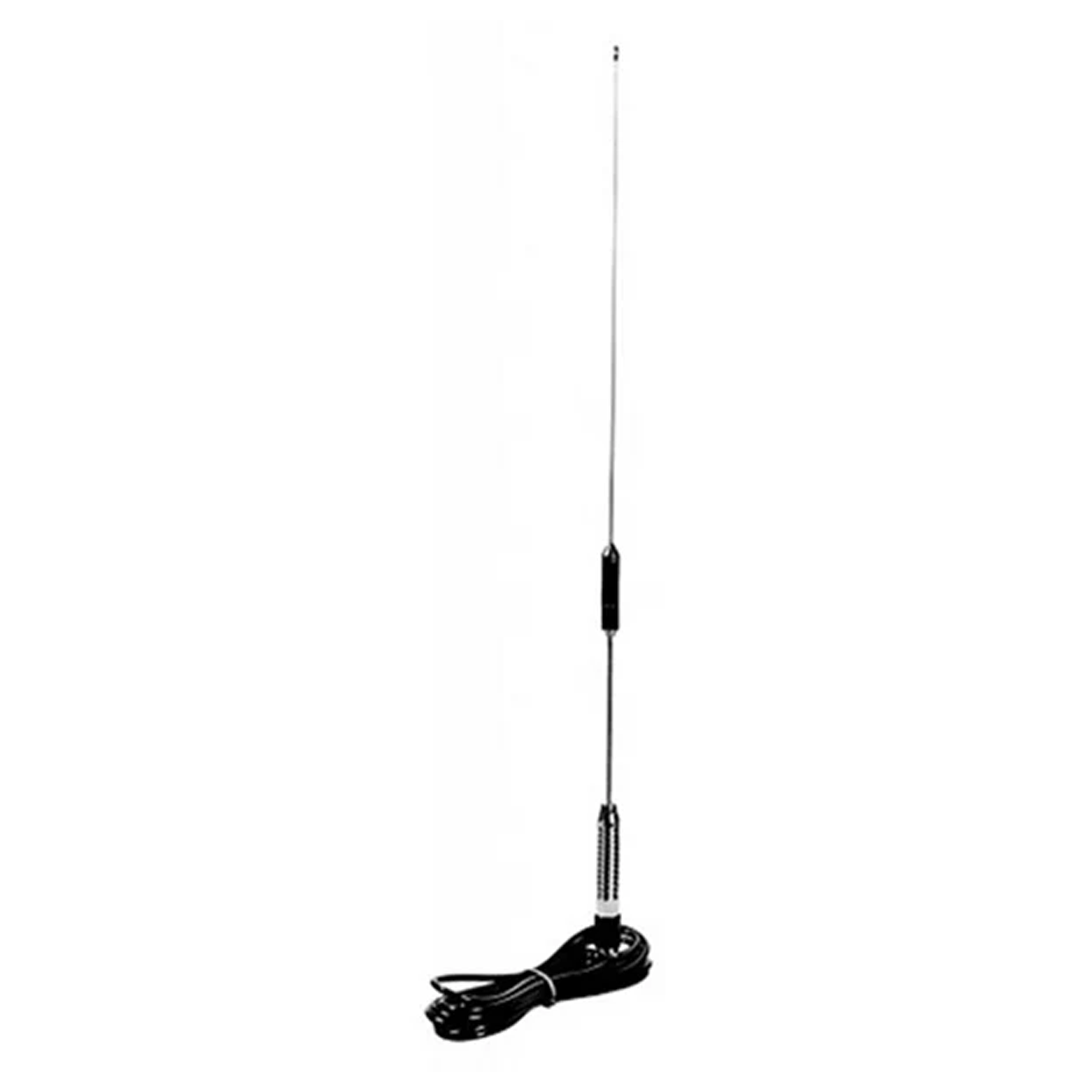

The Motorola HAD4022A is a 5/8-wave VHF mobile antenna for permanent vehicle installations. Its specified frequency range is 136–174 MHz, with a listed gain of 3 dB. The package includes a through-hole mounting assembly, approximately 12 feet of coaxial cable and a loose Mini-UHF male connector for installation.
For a fleet vehicle or work truck, this antenna provides a fixed mounting option rather than a temporary magnetic mount. Match the antenna to the radio's VHF operating frequencies, connector and vehicle mounting requirements before ordering. Installation and tuning affect performance; no fixed communication range is guaranteed.
Key Features & Benefits
-
136–174 MHz VHF range: For compatible VHF mobile-radio installations, not UHF applications.
-
5/8-wave design: Listed 3 dB gain for vehicle-based communication.
-
Permanent mounting: Through-hole installation using a listed 3/4-inch mounting hole.
-
Included feed line: Approximately 12 feet of coaxial cable for routing between the antenna mount and radio.
-
Mini-UHF connection: Loose male connector supplied for termination during installation.
Specifications
| Specification |
Details |
| Manufacturer |
Motorola |
| Part number |
HAD4022A |
| Frequency range |
136–174 MHz VHF |
| Listed gain |
3 dB |
| Antenna design |
5/8 wave |
| Listed height |
56 inches (approximately 142 cm) |
| Mounting style |
Through-hole |
| Listed mounting-hole diameter |
3/4 inch |
| Included coaxial cable |
Approximately 12 feet |
| Included connector |
Loose Mini-UHF male connector |
Compatibility
The following model references are retained from this listing. Compatibility is limited to the appropriate VHF configuration operating within 136–174 MHz, with a suitable antenna connection and installation. A series or model name alone does not establish compatibility with every band or hardware configuration.
| Radio Family |
Listed Models |
| APX Series |
APX1500, APX2500, APX6500, APX7500 |
| XPR Series |
XPR 2500, XPR 5350e, XPR 5550e |
| CDM Series |
CDM750, CDM1250, CDM1550 / LS / LS+ |
| CM / SM Series |
CM200d, CM300d, SM50, SM120 |
| GM Series |
GM300, GM338, GM340, GM350, GM360, GM380, GM398 |
| Additional GM Models |
GM1100, GM1200, GM1280, GM2000, GM600, GM640, GM660 |
| XTL / Spectra |
XTL1500, XTL2500, XTL5000, Astro Digital Spectra |
| MCX / MCS |
MCS2000, MCX1200, MCX2000, MCX600, MCX760, MCX780 |
| Legacy Models |
M1225 / LS, MaxTrac, MC2100, MC900, GM900, GM950 |
| PRO Series |
PRO3100, PRO5100, PRO7100 |
What's Included
| Description |
SKU / Model |
Status |
| VHF mobile antenna |
HAD4022A |
Included |
| Through-hole mounting assembly |
Part number not specified |
Included |
| Approximately 12 feet of coaxial cable |
Part number not specified |
Included |
| Loose Mini-UHF male connector |
Part number not specified |
Included; termination required |
Installation Considerations
Confirm the vehicle mounting location, available clearance, cable route and radio connector before installation. A through-hole installation requires a suitable mounting surface and proper sealing. If using a separate bracket, confirm its mechanical and electrical suitability; a bracket is not listed among the included items.
Follow the antenna manufacturer's installation and tuning instructions for the intended operating frequencies. The stated frequency range does not mean that every installation is automatically optimized across the entire band. Have the completed installation checked before transmitting.
Frequently Asked Questions
What is the correct frequency range for the HAD4022A?
The correct range for this listing is 136–174 MHz VHF.
Can I use this antenna with a UHF mobile radio?
No. This is a VHF antenna. Choose an antenna matched to your UHF radio's operating frequencies instead.
Does this antenna fit every radio in the compatibility table?
No. The table identifies listed model families, but you must confirm the actual radio's VHF band, operating frequencies, connector and installation requirements. A UHF configuration of a listed model is not compatible with this VHF antenna.
Does the package include cable and a connector?
The listed package includes approximately 12 feet of coaxial cable and a loose Mini-UHF male connector. The connector requires termination during installation; do not assume it is supplied preinstalled on the cable.
Is this a magnetic-mount antenna?
No. The HAD4022A uses a through-hole mount with a listed 3/4-inch mounting hole. Confirm the mounting location and installation requirements before making any permanent vehicle modifications.
Does 3 dB gain increase my radio's transmitter power?
No. Antenna gain does not change the radio's transmitter output setting. Actual coverage depends on the complete radio system, installation, terrain, obstructions and other operating conditions.
Does it need tuning for my operating frequency?
Follow the manufacturer's tuning and installation instructions for your intended frequencies. Do not assume that the antenna is ready for every channel throughout 136–174 MHz without checking the completed installation.
Warranty
1-year manufacturer's warranty. Contact Atlantic Radio Communications for warranty assistance.
