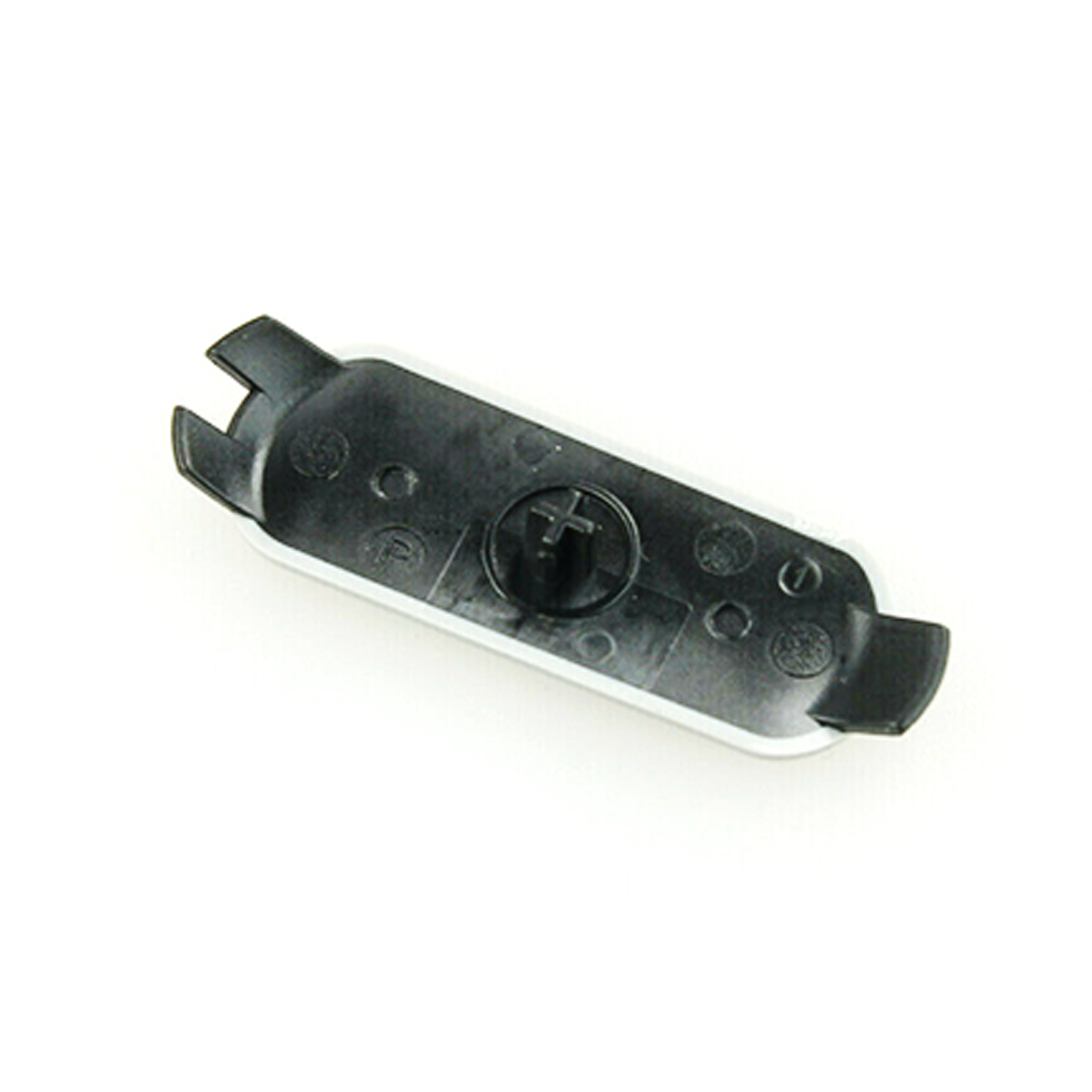

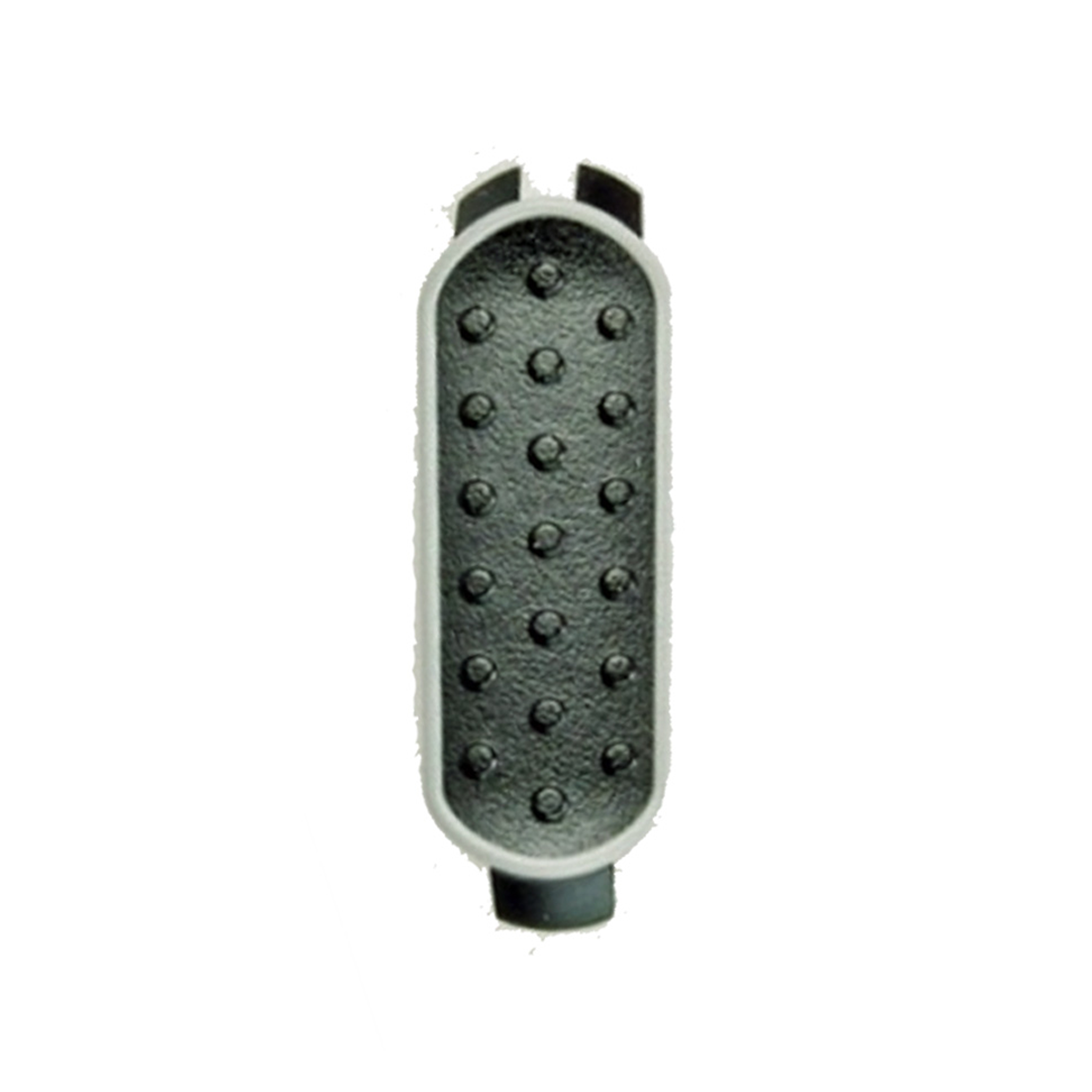

Motorola HN000696A01 PTT Paddle Frame-Cage Replacement
Genuine OEM internal PTT frame-cage for MOTOTRBO XPR 3000e and DP 2000e series portable radios.
The Motorola HN000696A01 is a genuine OEM replacement PTT paddle frame-cage for the MOTOTRBO XPR 3000e and DP 2000e series portable radios. This internal component serves as the structural support that secures the external PTT paddle and provides a protective barrier for the sensitive internal PTT switch.
Replacing a cracked or damaged PTT frame restores the correct alignment and tactile feel of the push-to-talk function, maintains the radio's environmental sealing, and ensures reliable transmission capability for your fleet.
Key Features & Benefits
PTT Frame-Cage Structure: Mounts and stabilizes the external PTT paddle on the radio housing.
Protects Internal Switch: Shields the electronic PTT switch from physical pressure, dust, and moisture ingress.
Restores PTT Functionality: Ensures the external paddle operates smoothly with the intended tactile response and transmit reliability.
Exact OEM Fit: Designed specifically for the XPR3300e, XPR3500e, DP2400e, DP2600e, DEP550E, and DEP570E models.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model / SKU |
HN000696A01 |
| Product Type |
PTT Paddle Frame-Cage (Internal Replacement Part) |
| Country of Origin |
Malaysia |
Compatibility
| Model |
Series |
|
XPR3300e, XPR3500e |
Motorola XPR 3000e Series |
| DP2400e, DP2600e |
Motorola DP 2000e Series |
| DEP550E, DEP570E |
Motorola DEP Series |
What's Included
| Description |
SKU/Model |
Status |
| PTT Paddle Frame-Cage |
HN000696A01 |
Included |
| Compatible Portable Radio (e.g. XPR3300e, DP2400e) |
— |
Sold Separately |
Recommended Accessories
Compatible Radios
Motorola XPR3300e DMR Two-Way Radio — Compatible XPR 3000e series radio for use with the HN000696A01 PTT frame-cage.
Frequently Asked Questions
Is the HN000696A01 a genuine Motorola part?
Yes. The HN000696A01 is a genuine OEM Motorola internal replacement part, factory-authorized for use with the XPR3300e, XPR3500e, DP2400e, DP2600e, DEP550E, and DEP570E portable radios.
What symptoms indicate a damaged PTT frame-cage?
Common symptoms include a loose or wobbly PTT paddle, inconsistent transmit behavior when pressing PTT, reduced tactile feedback, or visible cracking around the PTT button area of the radio housing. Replacing the frame-cage restores proper alignment and switch actuation.
Is this an internal part that requires disassembly to install?
Yes. The HN000696A01 is an internal structural component that requires partial radio disassembly for installation. This part is intended for use by qualified technicians or radio repair facilities. Contact Atlantic Radio if you need assistance with repair or sourcing.
Policy
Due to the nature of small replacement components, this item is a final sale.
Warranty
1-year manufacturer's warranty.
