Description
2500mAh IMPRES Battery with TIA4950 Intrinsically Safe Rating

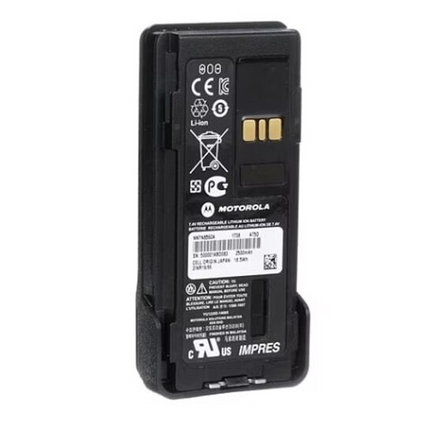

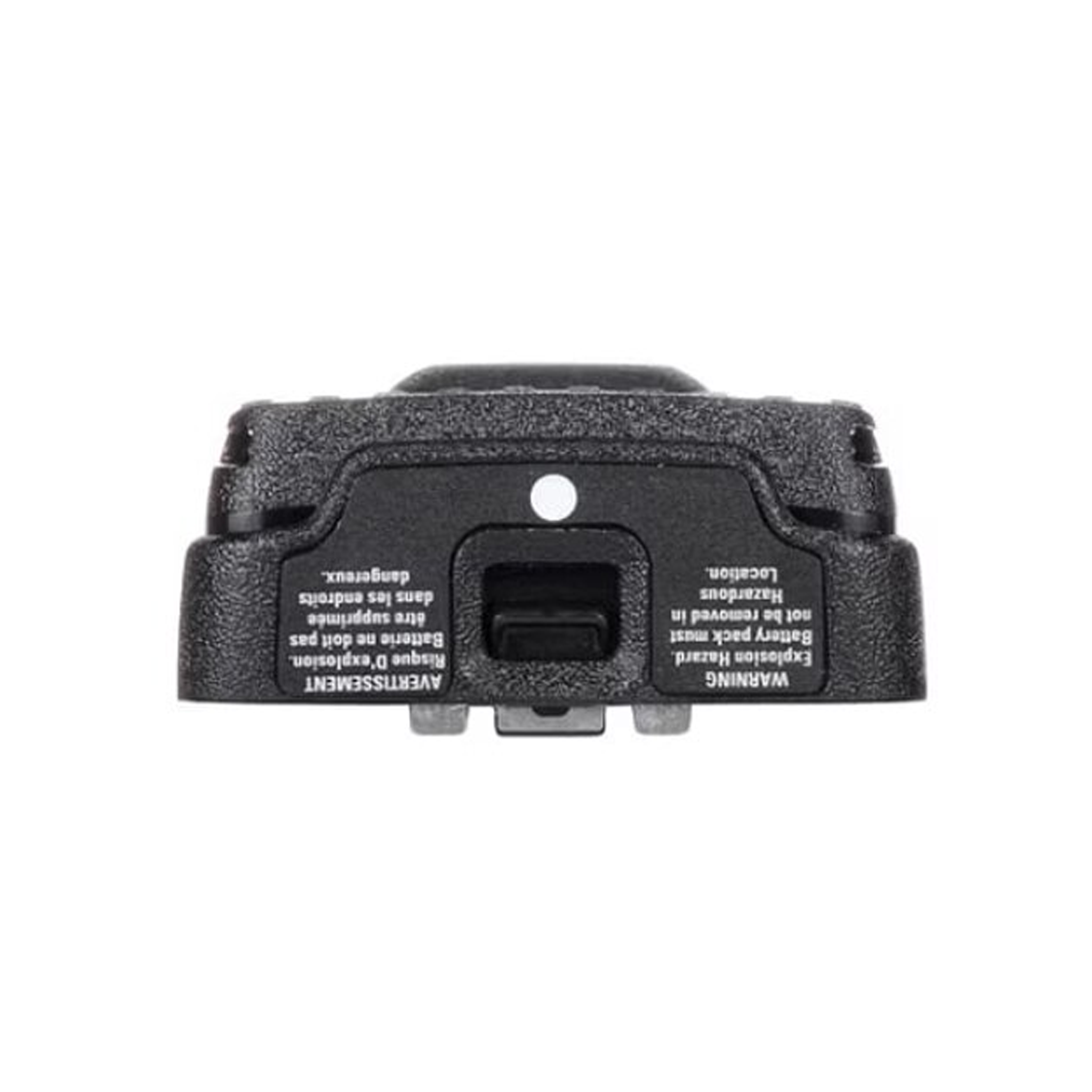

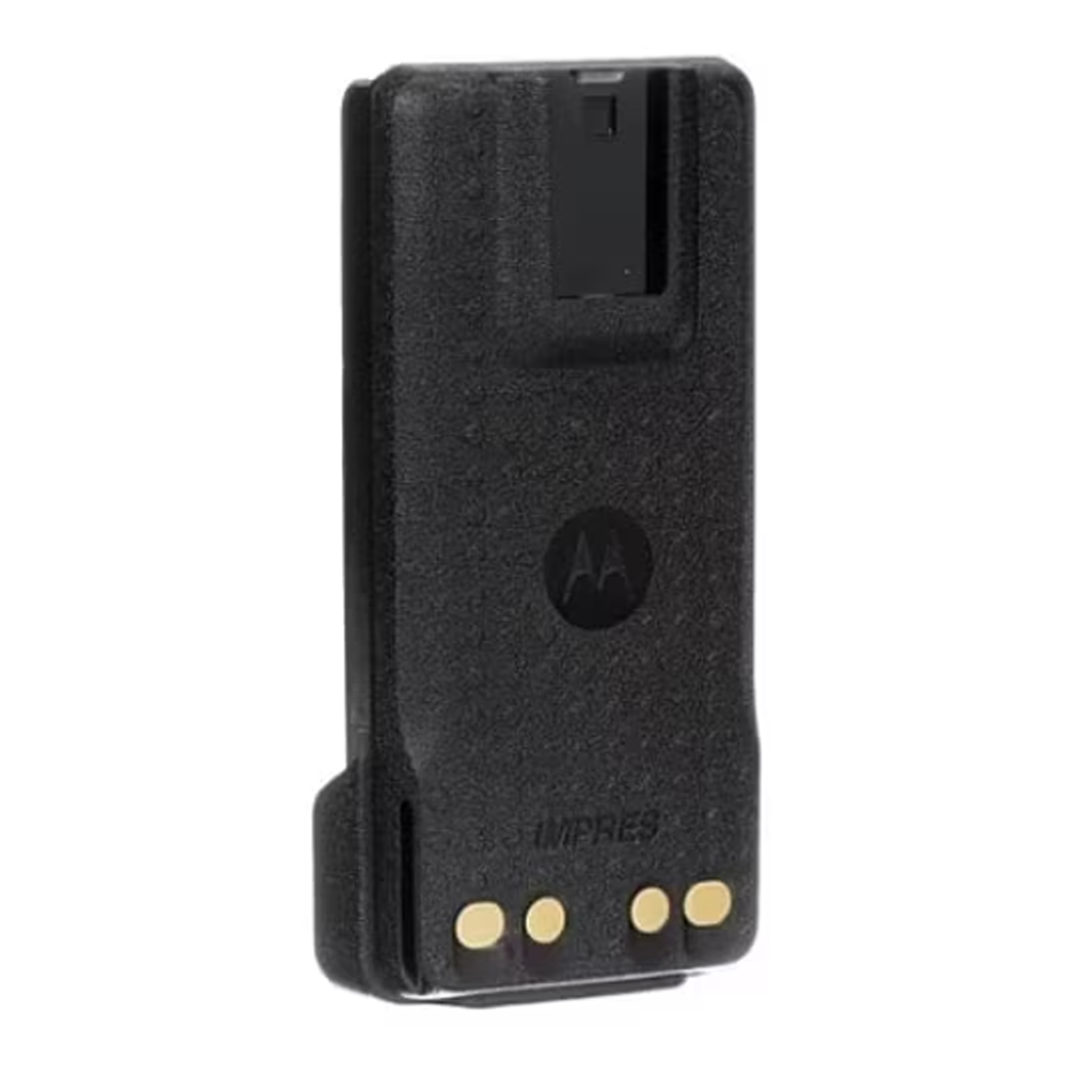

The Motorola NNTN8560C is a 2500mAh lithium-ion replacement battery with IMPRES technology and an IP68 rating for compatible Motorola portable radios. Use it as a replacement or spare when your radio configuration calls for this battery part number.
The NNTN8560C replaces earlier NNTN8560, NNTN8560A and NNTN8560B references. Confirm the approved battery part number for your exact radio before replacing a battery used in a hazardous location. Physical fit alone does not establish intrinsic-safety approval.
Key Features & Benefits
-
2500mAh capacity: Rechargeable lithium-ion power for compatible portable radios. Actual runtime depends on the radio, settings, transmit duty cycle and battery condition.
-
IMPRES technology: Supports battery communication with compatible Motorola IMPRES charging equipment.
-
TIA4950 intrinsically safe rating: Requires an approved radio, battery and accessory combination for the intended hazardous location.
-
IP68 rating: Environmental protection is subject to the manufacturer's specified test conditions and correct installation. It is not a guarantee of unlimited immersion.
-
Replacement reference: Consolidates the earlier NNTN8560, NNTN8560A and NNTN8560B references without promising unverified changes to internal cells or performance.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model / SKU |
NNTN8560C |
| Battery chemistry |
Lithium-ion (Li-Ion) |
| Capacity |
2500mAh |
| Battery technology |
IMPRES |
| Intrinsic-safety rating |
TIA4950, subject to the approved radio-system combination |
| Ingress protection |
IP68, subject to manufacturer conditions |
| Earlier part references |
NNTN8560, NNTN8560A, NNTN8560B |
| Warranty |
1-year manufacturer's warranty |
Compatibility
The following radio references are retained from this listing. Confirm your exact radio version and approved battery configuration before ordering, especially for intrinsically safe applications.
| Radio Series |
Model References |
| APX |
APX1000, APX2000, APX3000, APX4000 |
| XPR |
XPR7350, XPR7350e, XPR7380, XPR7380e, XPR7550, XPR7550e, XPR7580, XPR7580e |
| DGP |
DGP5050e, DGP5550e, DGP8050e, DGP8550e |
Hazardous-location use: Check the radio's approval documentation and the site's requirements for the complete configuration. Do not assume every version of a listed radio is approved with this battery.
What's Included
| Description |
SKU / Model |
Status |
| 2500mAh IMPRES lithium-ion battery |
NNTN8560C |
Included |
| Portable radio |
Compatible model |
Sold separately |
| Charging equipment |
Compatible charger |
Sold separately |
| Spring-action belt clip |
PMLN7008A |
Sold separately |
Recommended Accessories
Chargers
Carry Accessories
-
Motorola PMLN7008A Belt Clip: 2.5-inch spring-action carry option for supported radio configurations. Check the matching attachment before ordering.
Frequently Asked Questions
Which earlier battery references does NNTN8560C replace?
This listing identifies NNTN8560C as the replacement for NNTN8560, NNTN8560A and NNTN8560B. For intrinsically safe radios, also verify the replacement against the radio's approved configuration.
Is NNTN8560C compatible with XPR7550e and XPR7350e radios?
Both models are included in the compatibility references above. Confirm the exact radio version and any intrinsic-safety approval requirements before purchase.
Which single-unit charger should I select?
The recommended single-unit option is PMPN4576A, the PMPN4527A charging base packaged with a US adapter. The base-only option is a different selection on the charger listing. Verify support for your battery configuration.
Can I use any Motorola XPR charger?
Do not assume all XPR chargers are interchangeable. Check the charger's supported battery list and use compatible IMPRES equipment when IMPRES battery communication is required.
Does the battery make any compatible radio intrinsically safe?
No. The complete radio, battery and accessory combination must have the appropriate approval for its intended use. A battery rating or matching connector alone does not establish that approval.
Does IP68 mean unlimited underwater use?
No. Follow the manufacturer's specified immersion limits, installation requirements and care instructions. Do not treat the rating as permission for unrestricted underwater operation.
How long will the 2500mAh battery last per charge?
There is no universal runtime for every compatible radio. Transmit power, usage pattern, enabled features, temperature and battery age all affect operating time.
Are a charger and belt clip included?
This listing is for the NNTN8560C battery. Charging equipment, a radio and the recommended belt clip are separate purchases.
Warranty
1-year manufacturer's warranty.
