Professional Back-End Test Cable for Commercial Mobile Radios
Ensure Precise System Diagnostic Mapping
Maintain optimal alignment and peak RF performance across your fleet infrastructure with a dedicated rear-port diagnostic link.

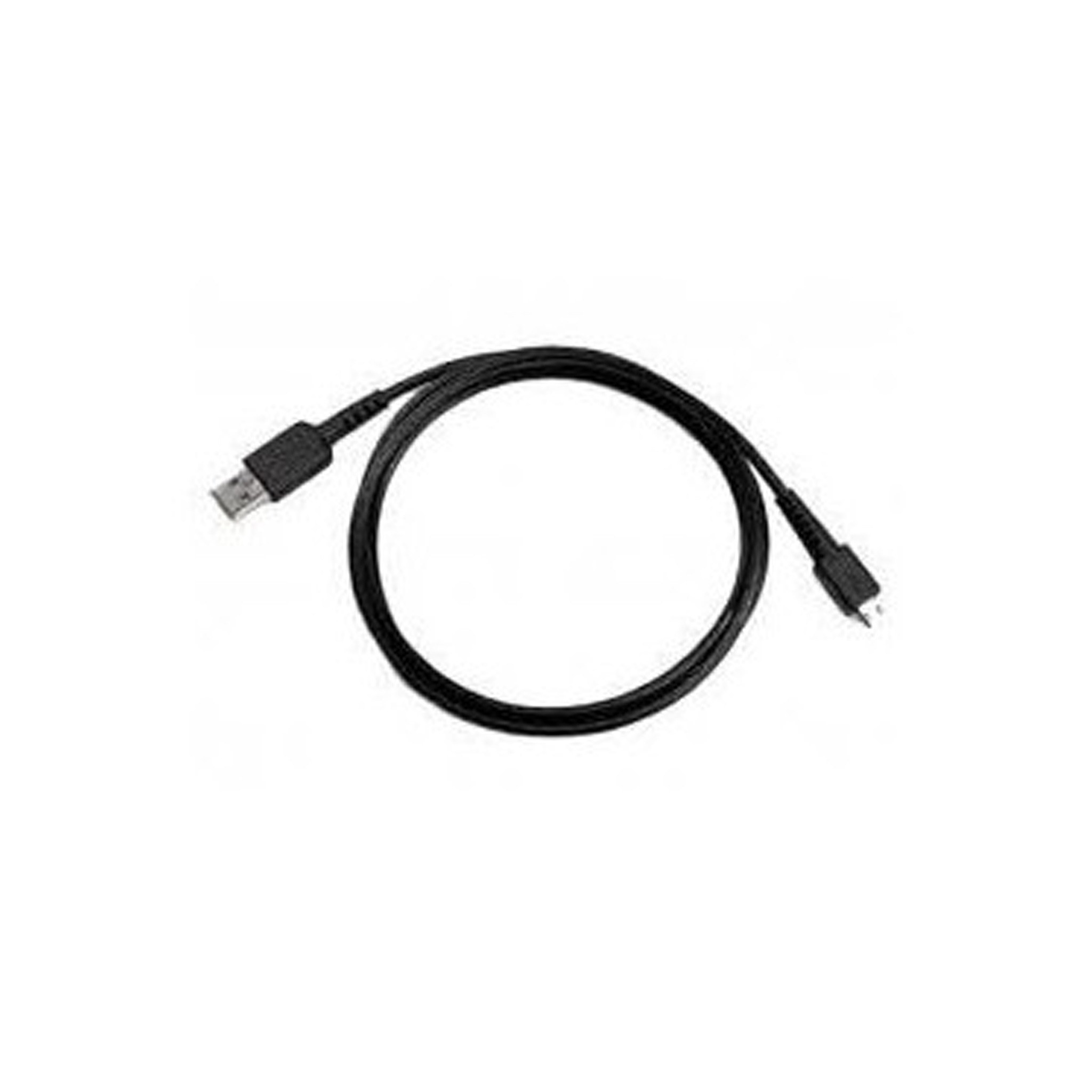

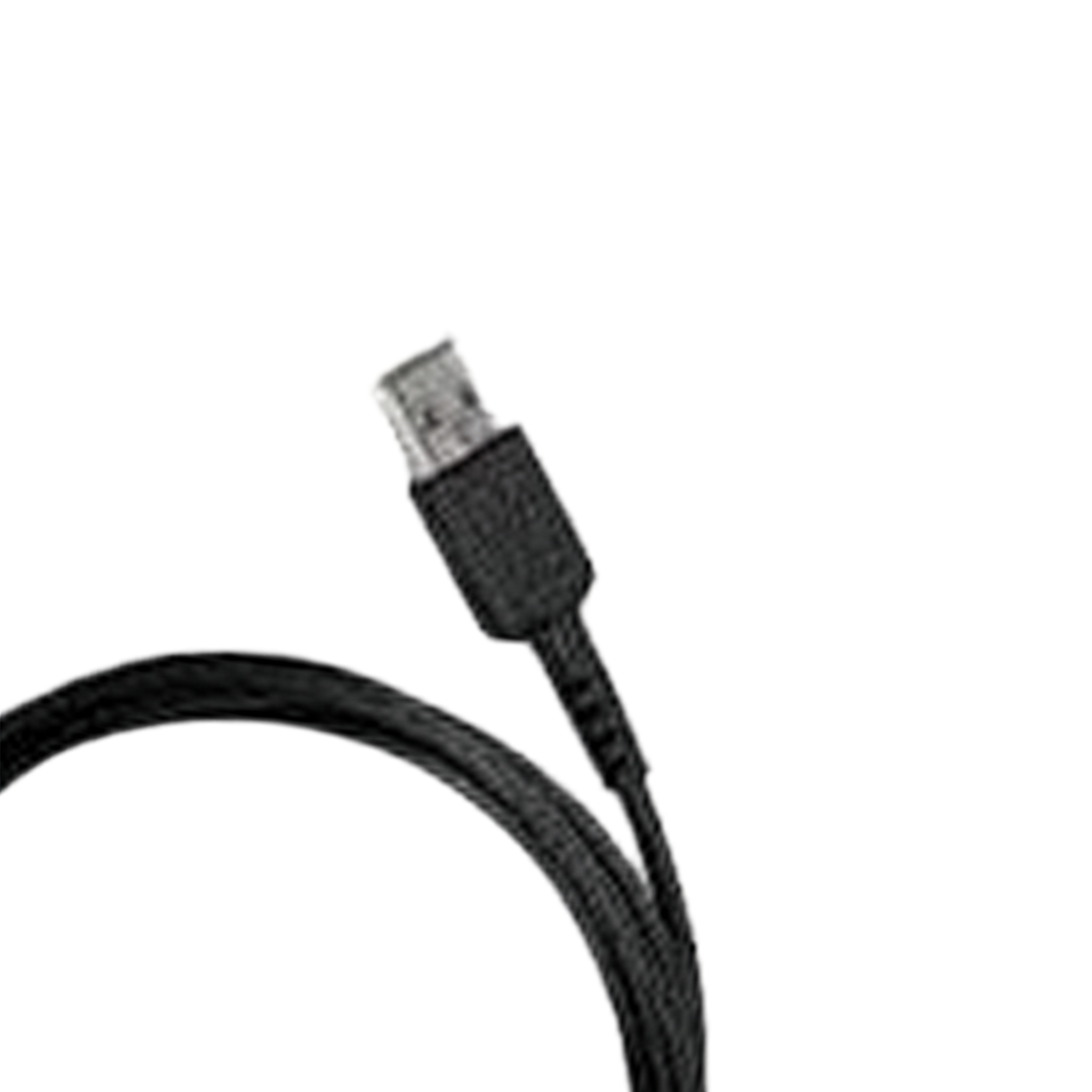

The Motorola PMKN4150A Back-End Application Test Cable is a genuine original equipment manufacturer (OEM) diagnostic component designed for advanced service, alignment, and tuning configurations. Engineered to interface directly with the rear accessory port of professional transceivers, the Motorola PMKN4150A establishes a secure, shielded pathway between the radio chassis and specialized communication service monitors. This high-grade test cable minimizes signal attenuation during comprehensive diagnostic sweeps, ensuring that technicians obtain flawless readings when verifying transmitter frequencies and receiver sensitivity metrics. The Motorola PMKN4150A is the updated version of the Motorola PMKN4150.
Developed for radio service technicians, system engineers, and enterprise fleet maintenance facilities, the Motorola PMKN4150A resolves the complexity of benchmarking infrastructure equipment. Instead of relying on frontline user interfaces, the Motorola PMKN4150A hooks into backend telemetry lanes to allow comprehensive bench testing without dismantling the main radio assembly. Before conducting system diagnostics, technical personnel must ensure their service shop is equipped with compatible automated radio test sets or manual modulation analyzers calibrated for exact manufacturer specifications.
Key Features & Benefits
-
Rear Accessory Port Optimization: Engineered explicitly to hook into the backend multi-pin interface matrix without loose pins or data packet degradation.
-
High-Shielding Cable Design: Fabricated with premium internal insulation to isolate ambient RF noise and provide highly accurate diagnostic measurements.
-
Streamlined Bench Testing: Enables rapid service monitoring and automated alignment procedures without requiring technicians to manipulate frontend control heads.
-
Heavy-Duty Terminal Connectors: Built with industrial-grade interface plugs that resist physical terminal wear across hundreds of insertion cycles.
-
OEM Precision Calibration: The Motorola PMKN4150A satisfies exact factory testing profiles to prevent diagnostic hardware mismatches or electrical shorts during tuning.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model/SKU |
Motorola PMKN4150A |
| Product Type |
Back-End Test Cable |
| Application |
Diagnostic and Alignment Testing |
| Port Interface |
Rear Accessory Connector |
| Cable Type |
Multi-Conductor Shielded |
| Color |
Black |
Compatibility
|
|
|
|
| ArubaMobile |
CM200d |
DM1400 |
DM1600 |
| Tahiti |
XiRM3188 |
|
|
Recommended Accessories
- Motorola CM200d Mobile Two-Way Radio (CM200d) — A primary mobile transceiver platform equipped with a compatible rear pin matrix that hosts this service tool.
Frequently Asked Questions
Does this cable support front-panel microphone port programming?
No. The Motorola PMKN4150A is designed exclusively as a back-end test cable that interfaces with the rear accessory connector block. It cannot be plugged into front-facing microphone ports or standard programming inputs.
Is specialized alignment software required to use this hardware?
Yes. While the Motorola PMKN4150A provides the physical electronic connection between the radio and your bench test instruments, executing actual internal calibration adjustments requires the official factory alignment software application.
Can this test cable be left permanently inside a vehicle setup?
No. This is a specialized service shop tool intended strictly for bench testing, tuning, and system diagnostics. Leaving the Motorola PMKN4150A connected during regular field operations can expose the backend ports to accidental electrical shorts or physical damage.
Warranty
1-year manufacturer's warranty.
