Motorola PMLN5072A
MOTOTRBO Rear Accessory Connector Kit
Essential Interface Kit for Mobile Radios and Repeaters
The Motorola PMLN5072A is a specialized hardware service kit designed for the rear accessory port of MOTOTRBO mobile radios and repeaters. This kit provides the necessary components to build custom cables for external accessories, such as foot switches, external speakers, ignition sense, or data interfaces. The Motorola PMLN5072A is the updated version of the Motorola PMLN5072.
Specifically engineered for the XPR 5000 series and high-tier MOTOTRBO terminals, this kit ensures a secure, professional-grade connection to the radio’s back panel. It includes a comprehensive set of pins and a removal tool, making it an essential item for technicians and fleet managers who need to integrate mobile radios with vehicle systems or base station peripherals.
Key Features
-
Complete Service Kit: Includes everything needed to populate the rear accessory port: connector shell, cable tie, and contact pins.
-
High Pin Count: Comes with 27 solder/crimp pins to support complex wiring configurations and data IO needs.
-
Pin Removal Tool Included: Simplifies maintenance and reconfiguration, allowing pins to be removed safely without damaging the connector shell.
-
Secure Attachment: Includes a dedicated cable tie to provide strain relief, preventing wires from pulling out during vehicle vibration or movement.
-
Genuine Motorola Quality: Designed to match the exact physical specifications of MOTOTRBO mobile housing for a perfect fit and reliable conductivity.
Compatibility
|
|
|
|
| XPR5350e |
XPR5380e |
XPR5550e |
XPR5580e |
| DGM5500e |
DGM8000e |
DGM8500e |
DM4400e |
| DM4401e |
DM4600e |
DM4601e |
CM7668 |
| CM7668i |
MTM5200 |
MTM5400 |
MTM5500 |
| MXM7000 |
XIRM8620i |
XIRM8668i |
DR3000 |
Specifications
-
Part Number: PMLN5072A
-
Type: Rear Accessory Connector Kit
-
Components: Connector Shell, 27x Pins, 1x Cable Tie, 1x Removal Tool
-
Application: Mobile Radios and Repeaters
-
Manufacturer: Motorola

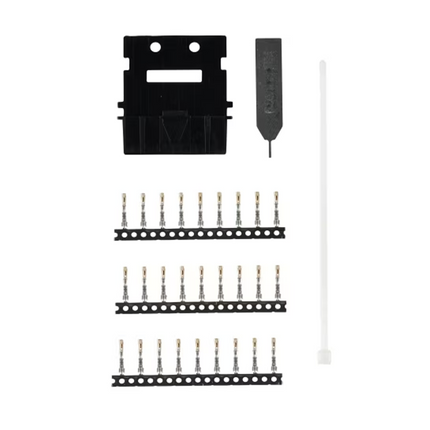

The PMLN5072A Kit Includes:
- 1 x 1516174H01
- 27 x Pins
- 1 x Pin Insert Tool
- 1 x White Zip Tie
Benefits
-
Custom Integration: Enables the creation of bespoke wiring solutions for emergency vehicle sirens, lights, or dispatch consoles.
-
Professional Maintenance: The included removal tool allows for easy repairs or pin swaps without replacing the entire connector.
-
Reliability: Built-in strain relief ensures that critical connections remain active even in rough, off-road vehicle environments.
Warranty
1-year manufacturer's warranty.
