Description

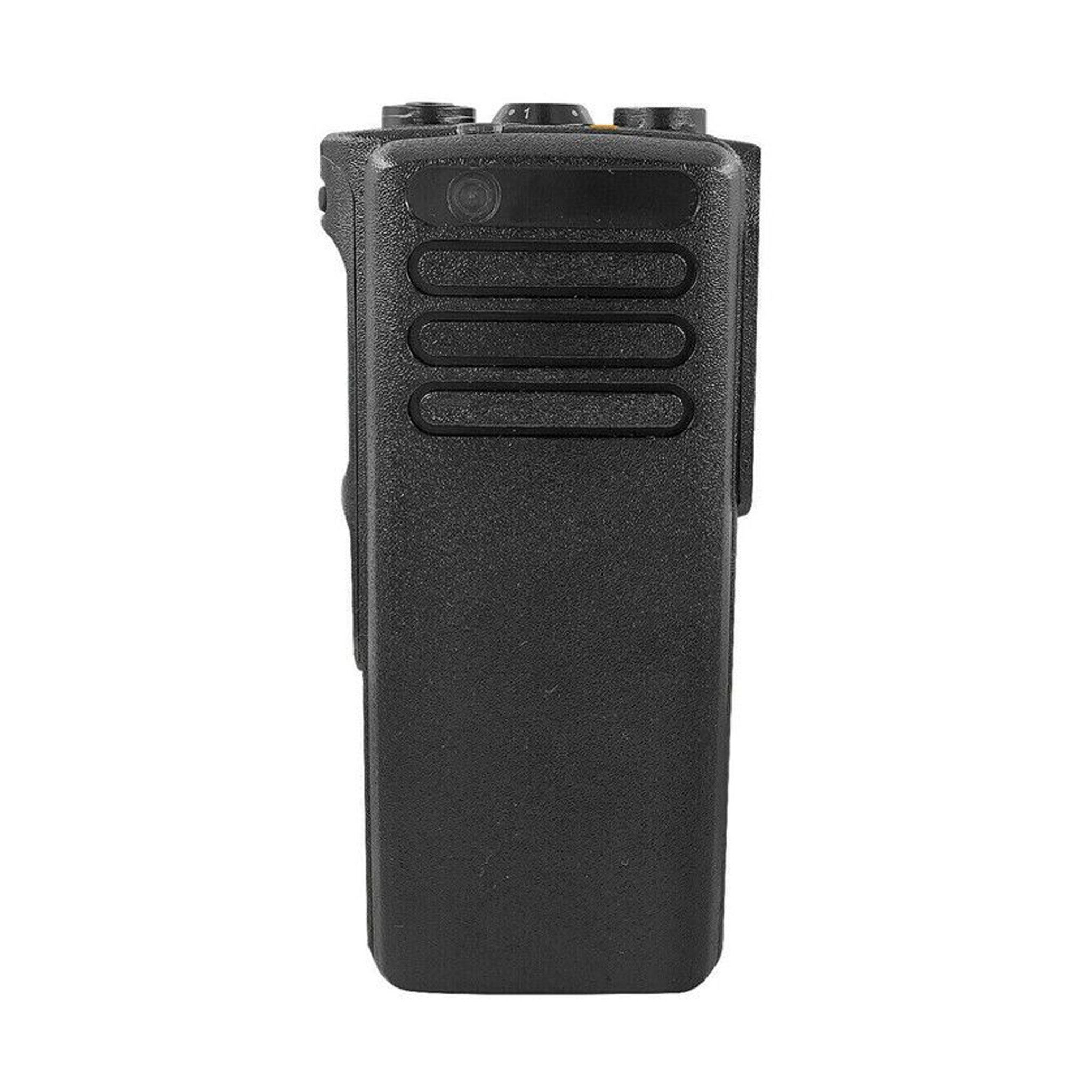

Genuine OEM Bluetooth Non-Keypad Front Cover Housing Kit
Authentic Motorola replacement front housing assembly engineered for non-keypad MOTOTRBO XPR 7000 and DGP series portable radios with integrated Bluetooth compatibility.
The Motorola PMLN6111A (catalog part PMLN6111 / PMLN6111A) is an authentic original equipment manufacturer (OEM) replacement front cover housing kit designed for non-keypad (NKP) commercial portable two-way transceivers. Engineered to restore physical chassis integrity, internal environmental sealing, and front-panel acoustics, this complete housing assembly is essential for reconditioning radios subjected to severe field trauma, cracked casings, worn speaker grilles, or liquid exposure. It preserves the clean, professional appearance and structural protection of your portable communications fleet while operating under commercial FCC Licensing standards.
Manufactured from high-impact polycarbonate polymer to strict Motorola Solutions factory standards, the Motorola PMLN6111A is specifically engineered for transceivers equipped with internal Bluetooth data and audio modules. The front cover incorporates internal RF-transparent shielding that permits full Bluetooth signal propagation without attenuation, alongside an integrated high-output internal loudspeaker, pre-installed acoustic felt, microphone port sealing membranes, and internal flex cabling. The kit also includes precision perimeter gaskets that restore the radio's factory IP submersible ingress protection against water and particulate intrusion during depot-level servicing.
Key Features & Benefits
-
Authentic OEM Housing Assembly: Manufactured directly by Motorola Solutions to deliver exact chassis fit, latch alignment, and factory mechanical tolerances.
-
Integrated Bluetooth Compatibility: Features RF-transparent molding designed specifically for Bluetooth-enabled transceivers, ensuring seamless pairing with wireless headsets and sensors.
-
Pre-Assembled Internal Loudspeaker: Includes factory-installed speaker and internal flex harness to restore loud, clear receive audio without soldering.
-
Factory Environmental Sealing: Integrated silicone perimeter seals, mic dust membranes, and acoustic gaskets maintain the transceiver's submersible ingress protection.
-
High-Impact Polycarbonate Shell: Rugged commercial casing absorbs drops, heavy impacts, chemical exposure, and outdoor weathering.
-
Depot-Level Fleet Reconditioning: Streamlines bench repairs by replacing damaged front shells, scratched emblems, and clogged speaker grilles in a single assembly step.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
PMLN6111A / PMLN6111 |
| Part Type |
Front Cover Kit / Replacement Housing Assembly |
| Keypad Configuration |
Non-Keypad (NKP / No Keypad) |
| Display Configuration |
Non-Display |
| Bluetooth Compatibility |
Integrated (Engineered for Bluetooth-Enabled Models) |
| Included Components |
Front Shell, Loudspeaker, Flex Assembly, Gaskets, Port Seals |
| Material Composition |
High-Impact Engineering Polycarbonate Polymer |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Color Finish |
Matte Black Textured Finish |
Compatibility
Compatible Motorola Portable Two-Way Radios
|
|
|
|
| BELIZE |
XPR7350 |
XPR7380 |
DGP5050 |
| DP4400 |
|
|
|
Recommended Accessories
Antennas & Hardware
Batteries & Audio Accessories
More Resources
Frequently Asked Questions
What does the "A" suffix at the end of part number PMLN6111A mean?
The "A" suffix designates the latest official manufacturing revision from Motorola Solutions. PMLN6111A is the newer, current production version of the base part number PMLN6111, featuring updated internal speaker metallurgy and revised seal compounds while providing identical physical fit and complete backward compatibility across all supported radios.
What components are pre-assembled inside the PMLN6111A front cover kit?

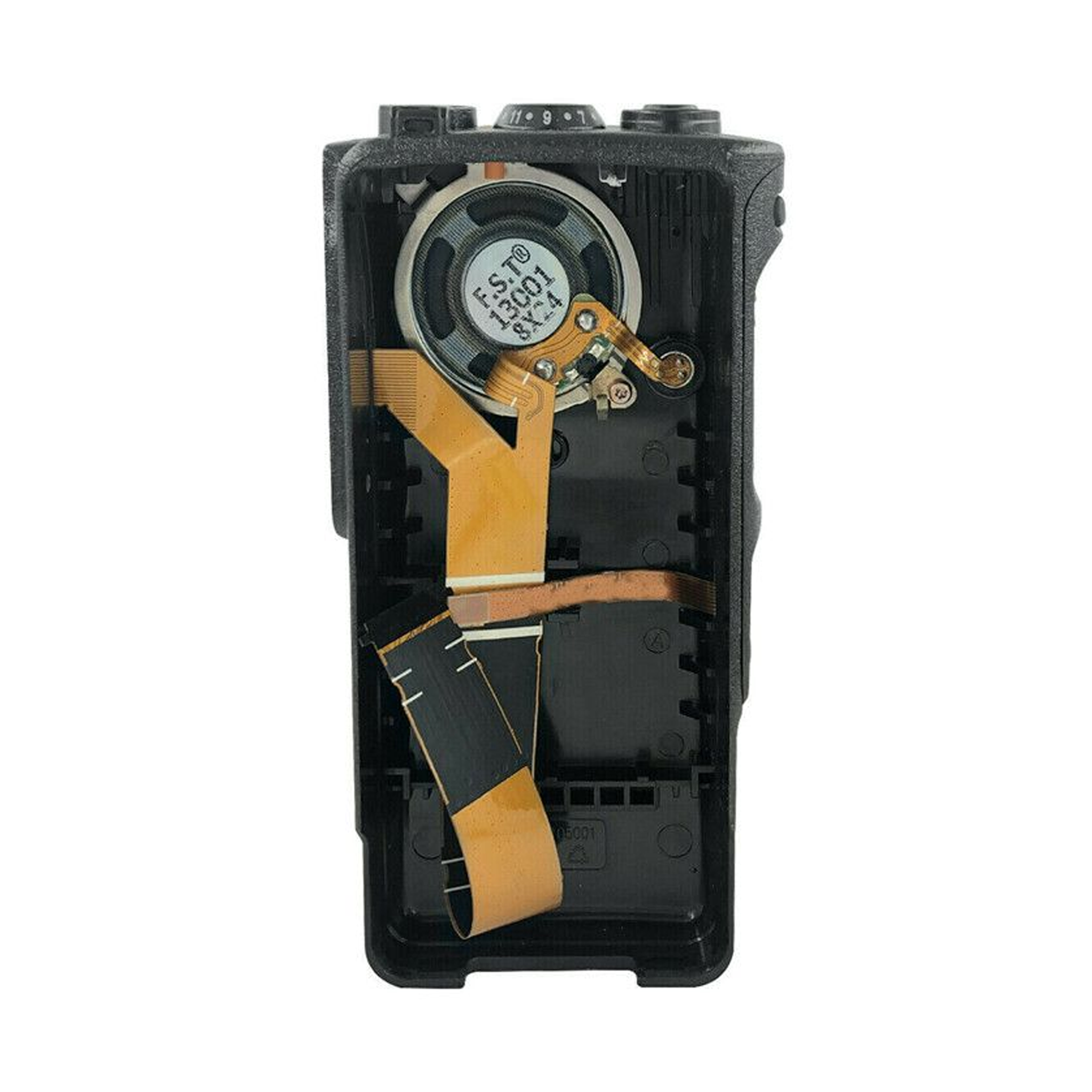

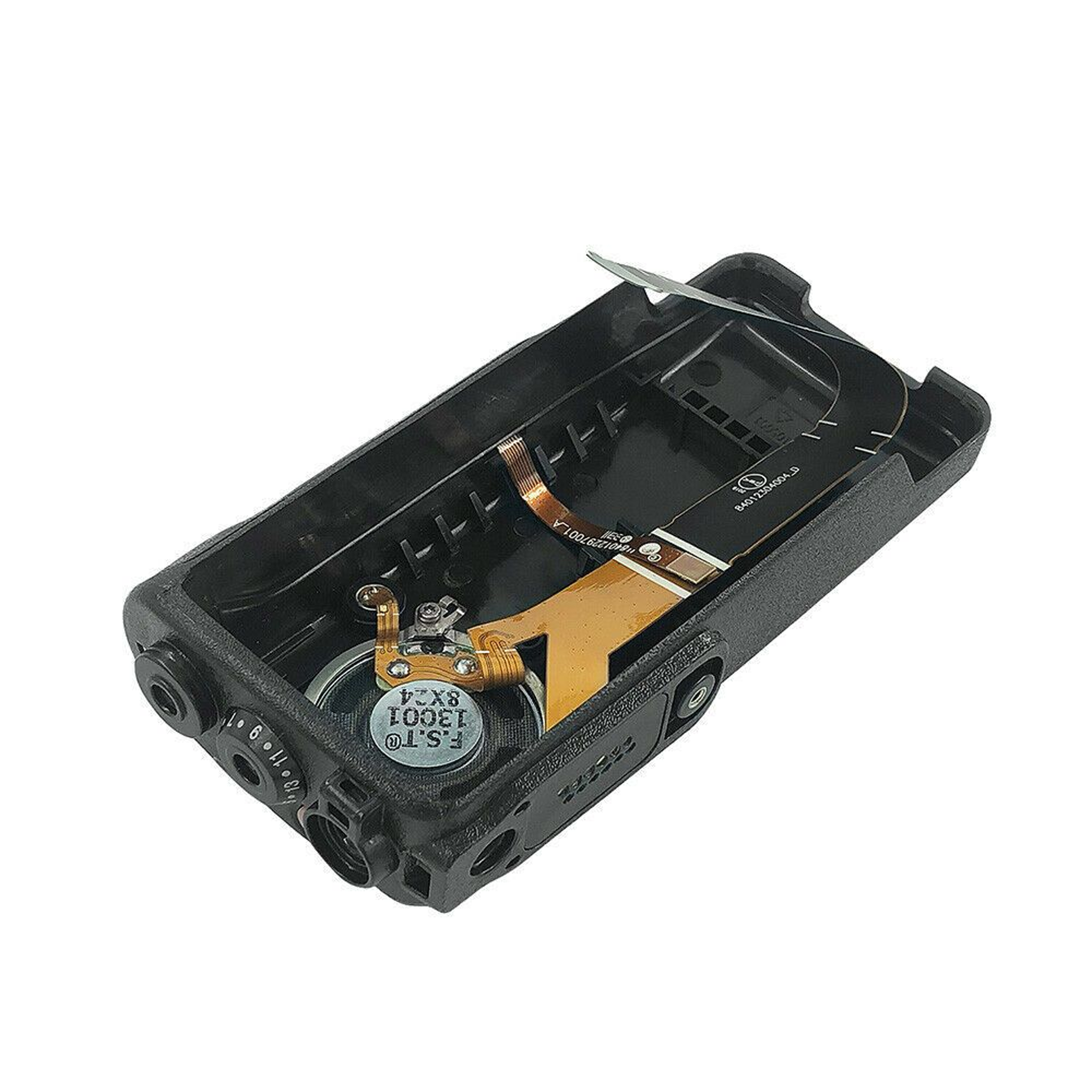

The Motorola PMLN6111A comes as a complete sub-assembly that includes the outer non-keypad plastic housing, internal loudspeaker, microphone acoustic membrane, speaker flex harness, and internal silicone chassis environmental gaskets.
Why is this kit designated as "Bluetooth"?
The PMLN6111A is engineered specifically for radios with built-in Bluetooth circuitry (such as the XPR 7350 and XPR 7380). Its internal structure and materials are optimized to prevent RF interference with the radio’s internal Bluetooth antenna.
Can this cover be used to convert a display/keypad radio into a non-keypad model?
While the outer casing fits the underlying chassis casting, converting a display/keypad radio (such as an XPR 7550) to a non-keypad configuration typically requires internal firmware profile adjustments and appropriate chassis flex mating. It is primarily designed as a direct replacement for non-display/non-keypad models.
Does replacing the front cover maintain the radio's water resistance?
Yes, provided that the replacement is conducted using proper bench assembly techniques. The PMLN6111A includes new factory perimeter gaskets and microphone water seals designed to maintain the transceiver's factory IP ingress rating against dust and moisture.
Warranty
1-year manufacturer’s replacement warranty.
