Description

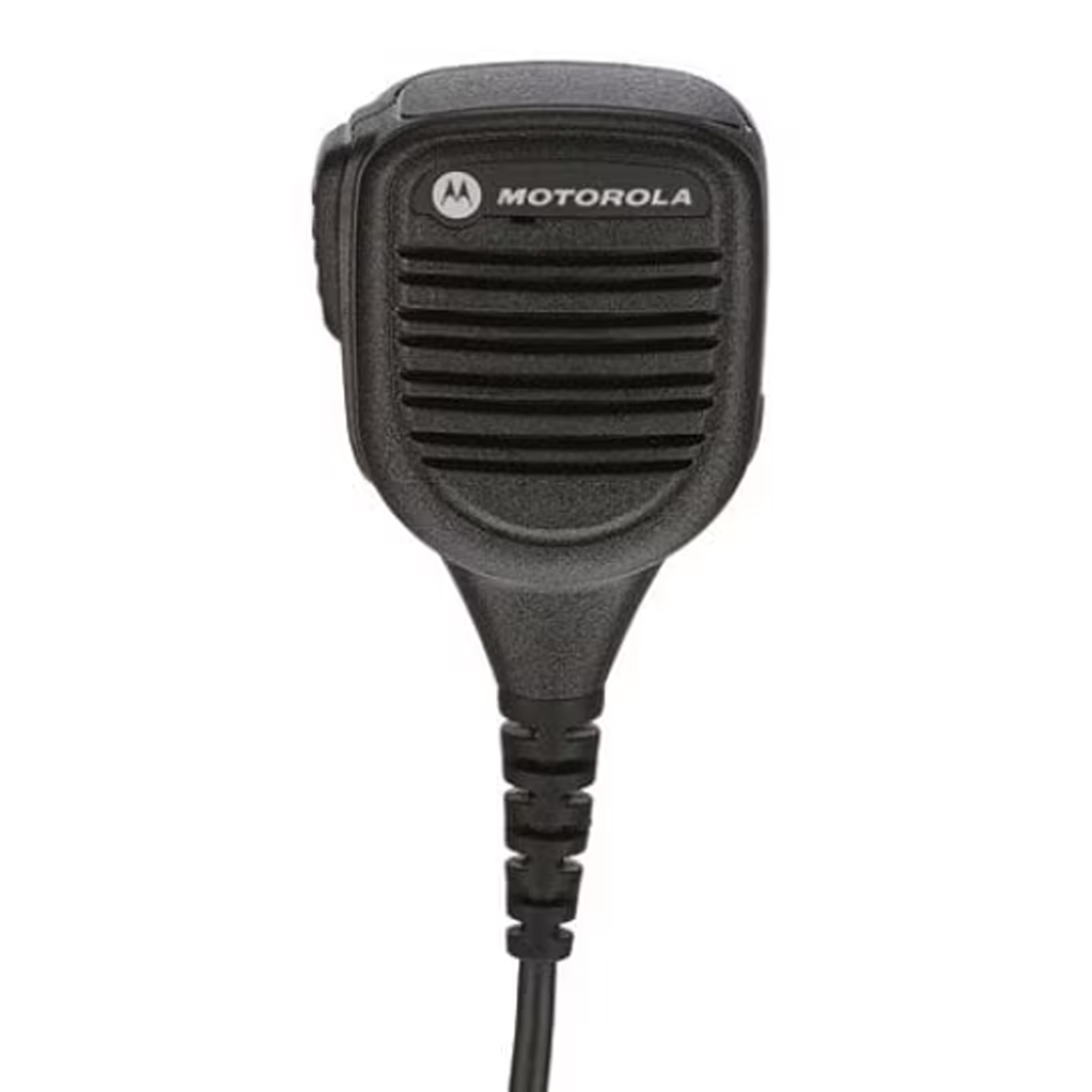

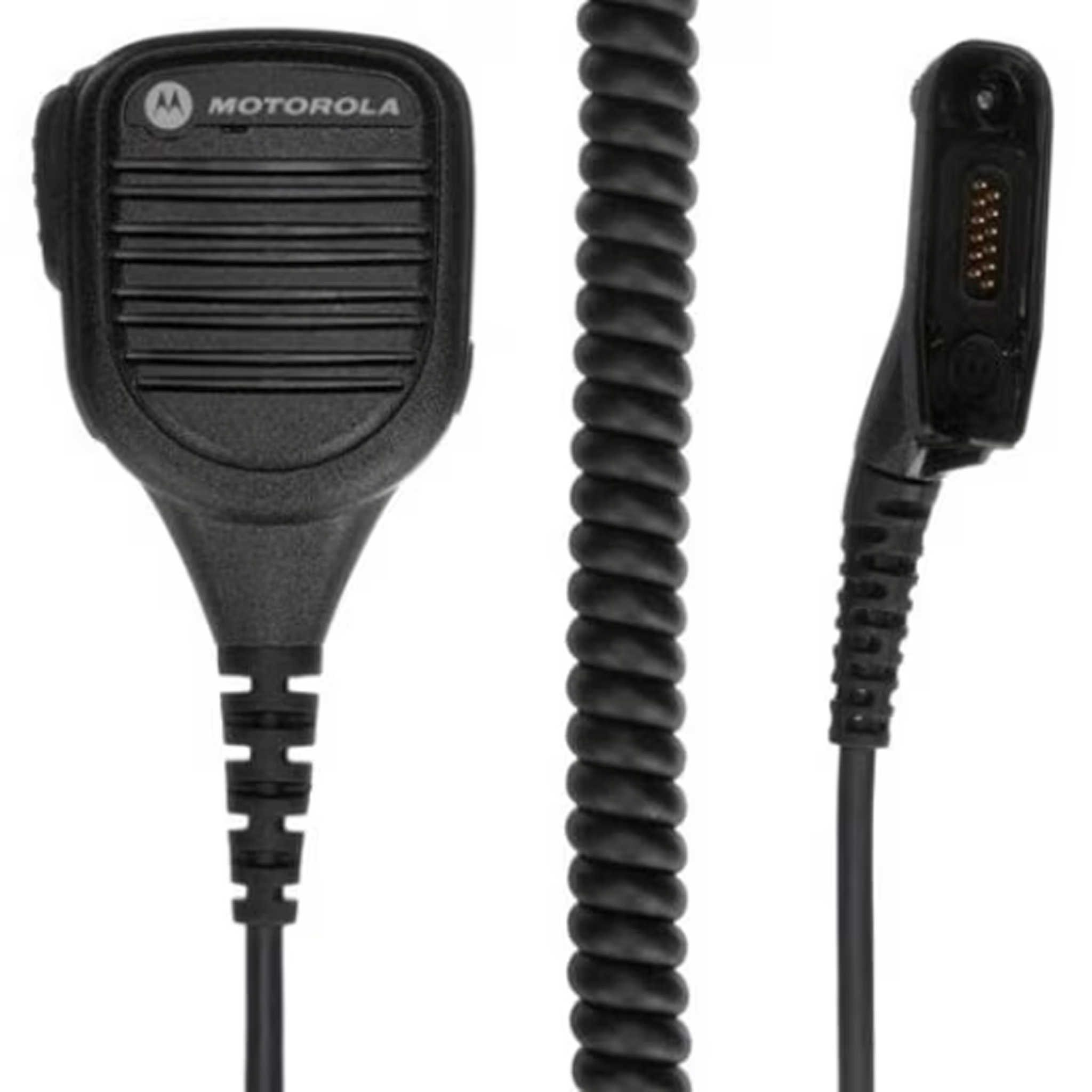

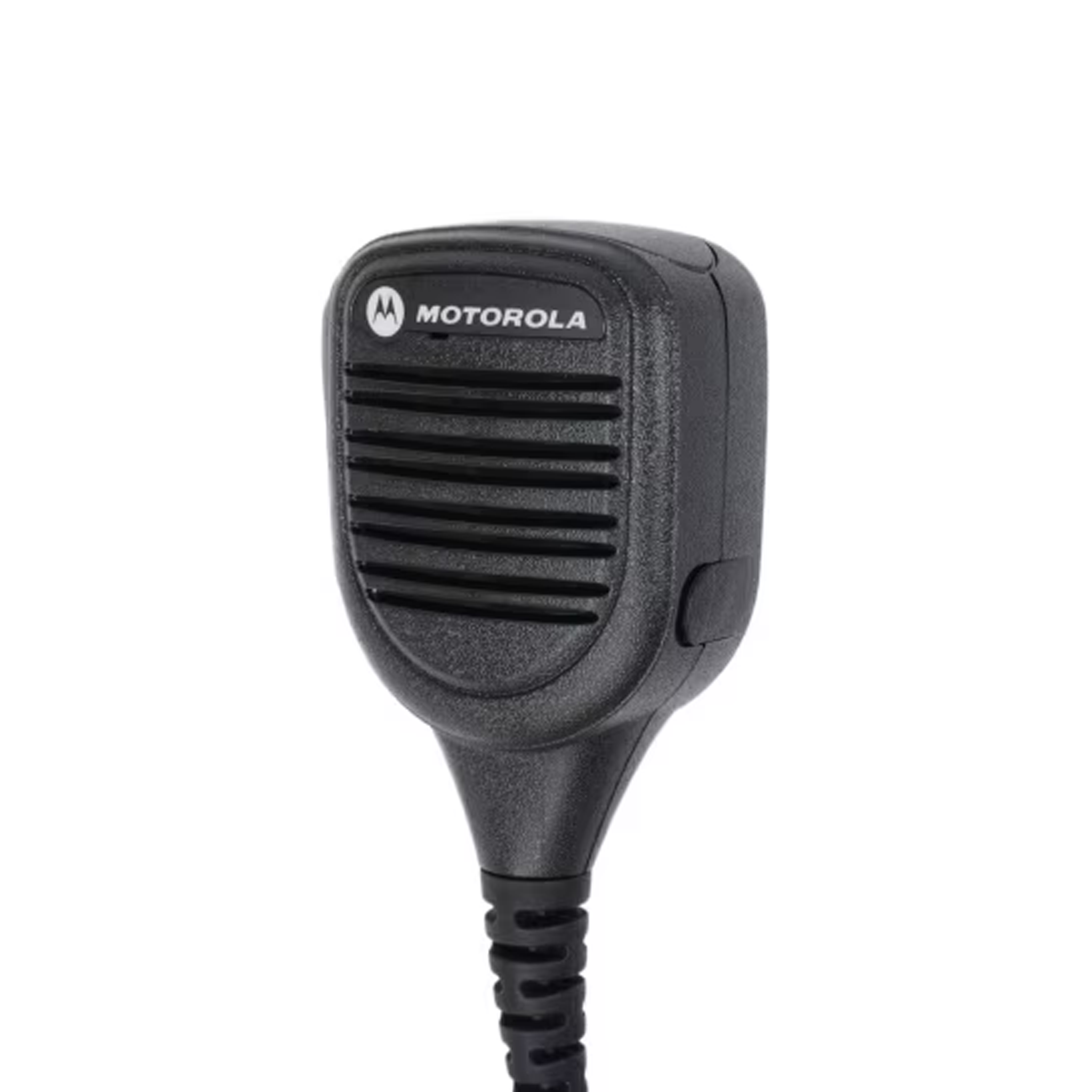

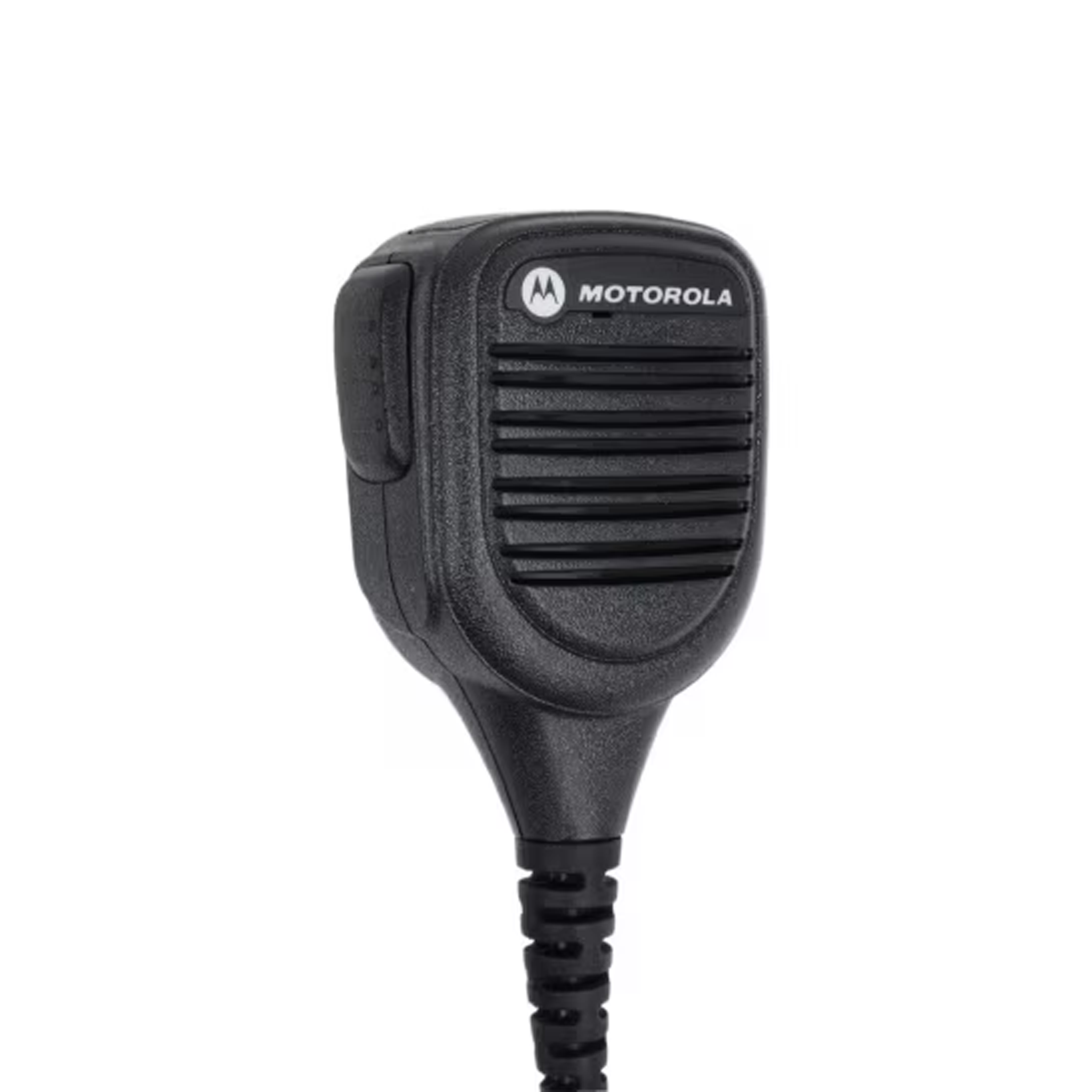

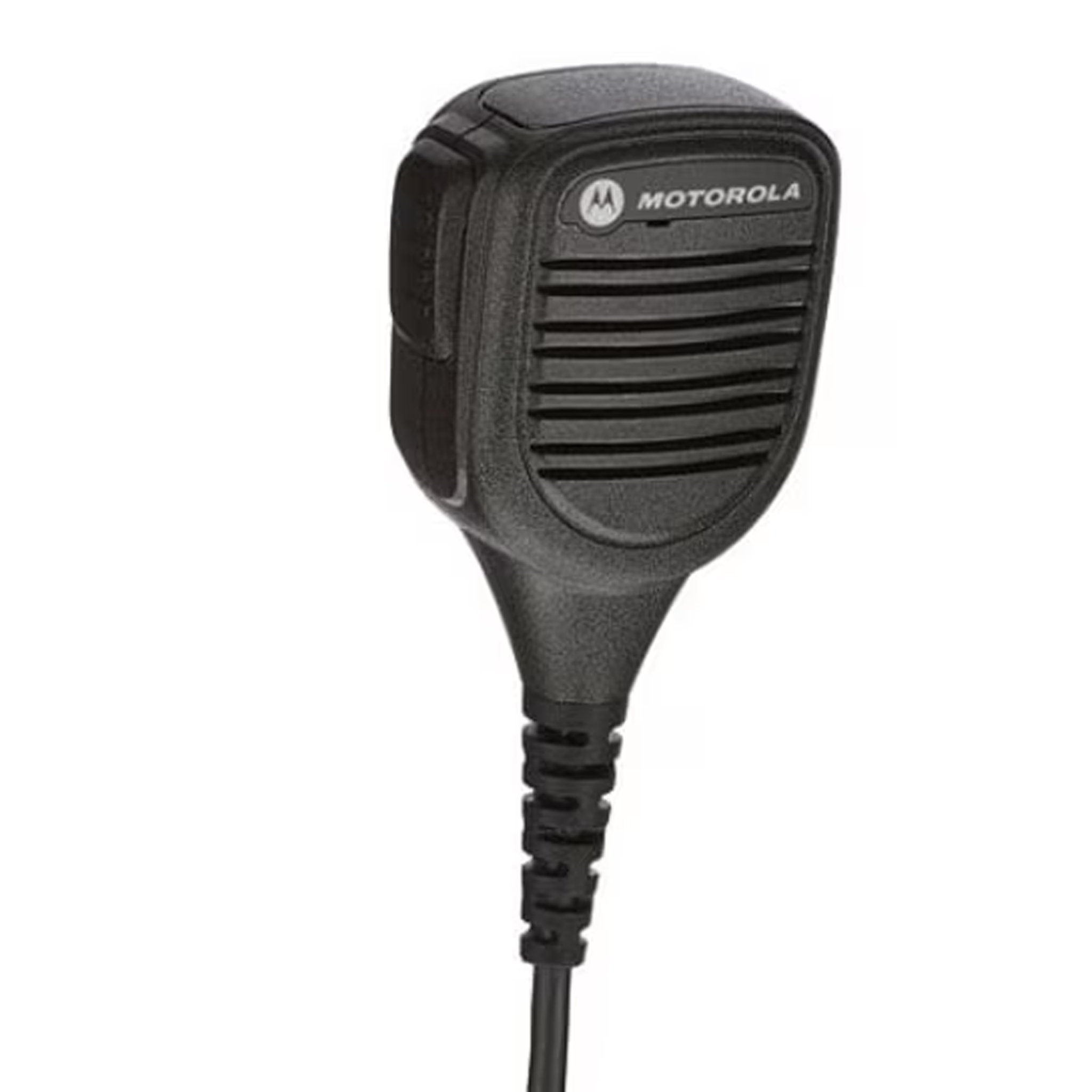

Motorola PMMN4069AL IMPRES Windporting Remote Speaker Microphone (Large)
Superior audio clarity in wind, dust, and hazardous environments for Motorola APX and SRX series radios.
The Motorola PMMN4069AL is a large IMPRES remote speaker microphone designed for professionals who need to communicate clearly in demanding conditions. Featuring Windporting technology, it eliminates the howling and whining sounds of wind for superior audio clarity. The PMMN4069AL is the current revision, replacing the PMMN4069 and PMMN4069A.
With an IP55 rating for protection against dust and water splashes, and TIA4950(UL) intrinsically safe certification for use in hazardous locations, the PMMN4069AL is built for the most demanding field environments. A 3.5mm non-threaded audio jack allows connection of a compatible earpiece for optional private listening. This model does not include an orange emergency button.
Key Features & Benefits
IMPRES Windporting Technology: Eliminates wind noise for superior audio clarity in high-wind and outdoor conditions.
IP55 Rated: Protected against dust ingress and water splashes for reliable performance in challenging environments.
Intrinsically Safe (TIA4950/UL): Certified for safe use in hazardous locations where flammable gases or vapors may be present.
Large Form Factor: Designed for easy handling and robust performance, even when wearing gloves.
3.5mm Audio Jack: Non-threaded port for connecting compatible earpieces for optional private listening.

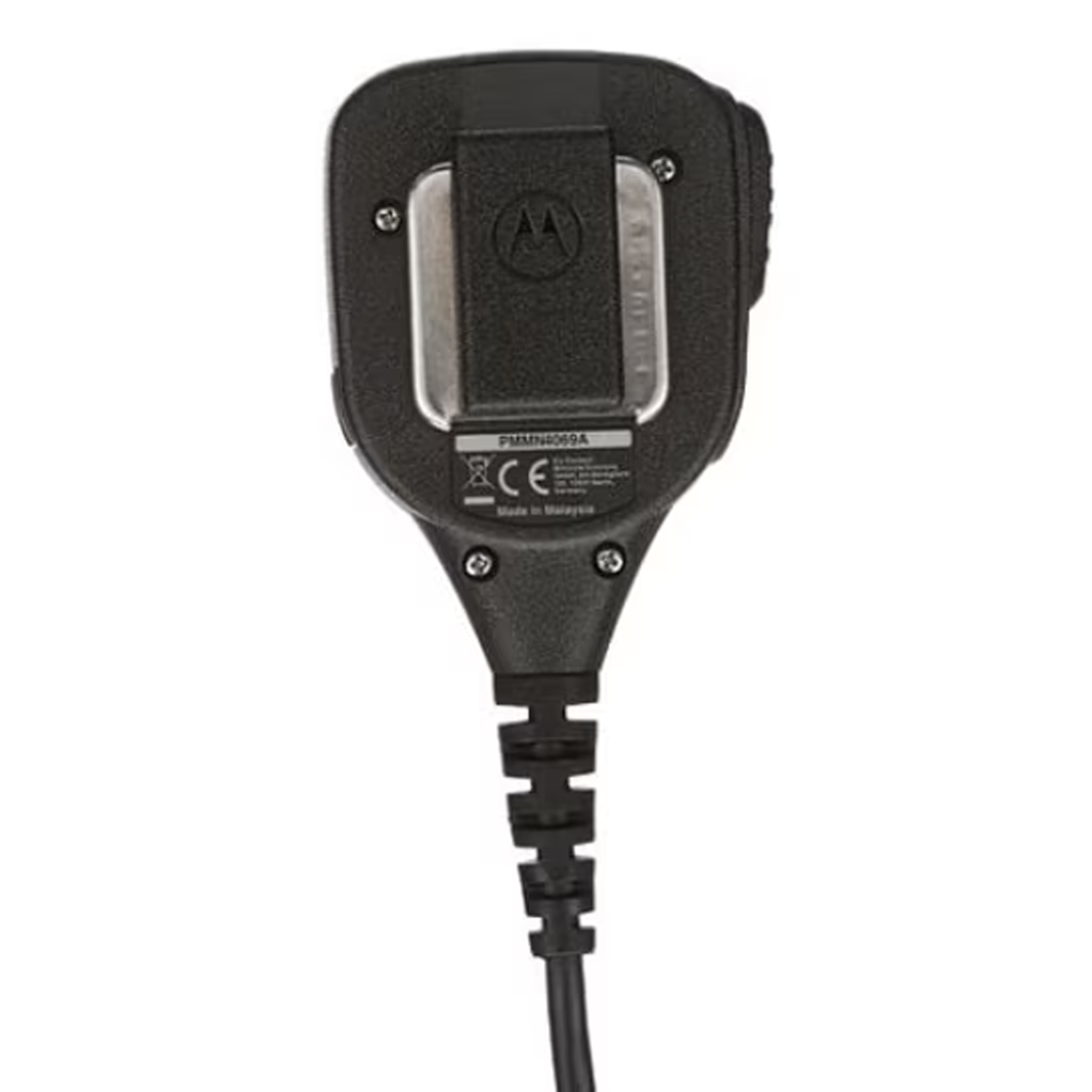

Swivel Clip with Quick Disconnect: Provides a secure and convenient attachment to clothing or gear.
No Emergency Button: This model does not have an orange emergency button on the top.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model / SKU |
PMMN4069AL (replaces PMMN4069, PMMN4069A) |
| Product Type |
Remote Speaker Microphone (RSM) |
| Size |
Large |
| IP Rating |
IP55 (Dust & Splash Protected) |
| Hazardous Location Rating |
Intrinsically Safe — TIA4950(UL) Certified |
| Audio Jack |
3.5mm Non-Threaded |
| Attachment |
Swivel Clip with Quick Disconnect |
| Emergency Button |
Not included on this model |
| Country of Origin |
Malaysia |
Compatibility
| Model |
Series |
| APX900, APX1000, APX1000I, APX2000, APX3000 |
Motorola APX Series |
| APX4000, APX4000XH, APX5000, APX6000, APX6000LI, APX6000XE |
Motorola APX Series |
| APX7000, APX7000XE, APX8000, APX8000H, APX8000HSRX, APX8000HXE |
Motorola APX Series |
| SRX2200 |
Motorola SRX Series |
What's Included
| Description |
SKU/Model |
Status |
| IMPRES Windporting Remote Speaker Microphone (Large) |
PMMN4069AL |
Included |
| Earpiece / Audio Accessory |
— |
Sold Separately |
| Compatible Portable Radio |
— |
Sold Separately |
Recommended Accessories
Related Audio & Charging Accessories
Motorola NNTN8860B IMPRES 2 Single-Unit Battery Charger for APX Series — Compatible IMPRES 2 charger for APX series radio batteries.
Motorola RLN6434B APX Series Vehicular Travel Charger — In-vehicle charging solution for APX series portable radios.
Frequently Asked Questions
What is Windporting technology?
Windporting is Motorola’s proprietary microphone design that uses a specially engineered port to redirect and suppress wind noise before it reaches the microphone element. This eliminates the howling and whining sounds common in high-wind environments, ensuring your voice is transmitted clearly regardless of outdoor conditions.
Does the PMMN4069AL have an emergency button?
No. The PMMN4069AL does not include an orange emergency button on the top of the microphone. If your deployment requires an emergency button, contact Atlantic Radio for the correct RSM model for your application.
Is the PMMN4069AL intrinsically safe?
Yes. The PMMN4069AL is TIA4950(UL) certified as intrinsically safe, making it approved for use in hazardous locations where flammable gases, vapors, or dust may be present.
What is the difference between the PMMN4069AL and earlier revisions?
The PMMN4069AL is the current factory revision, replacing the PMMN4069 and PMMN4069A. It is a direct drop-in replacement with the same physical dimensions and connector compatibility.
Warranty
1-year manufacturer’s warranty.
