Description

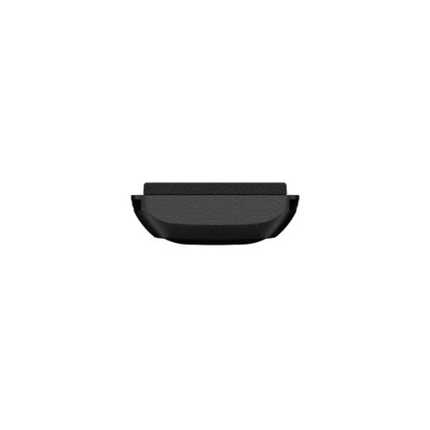

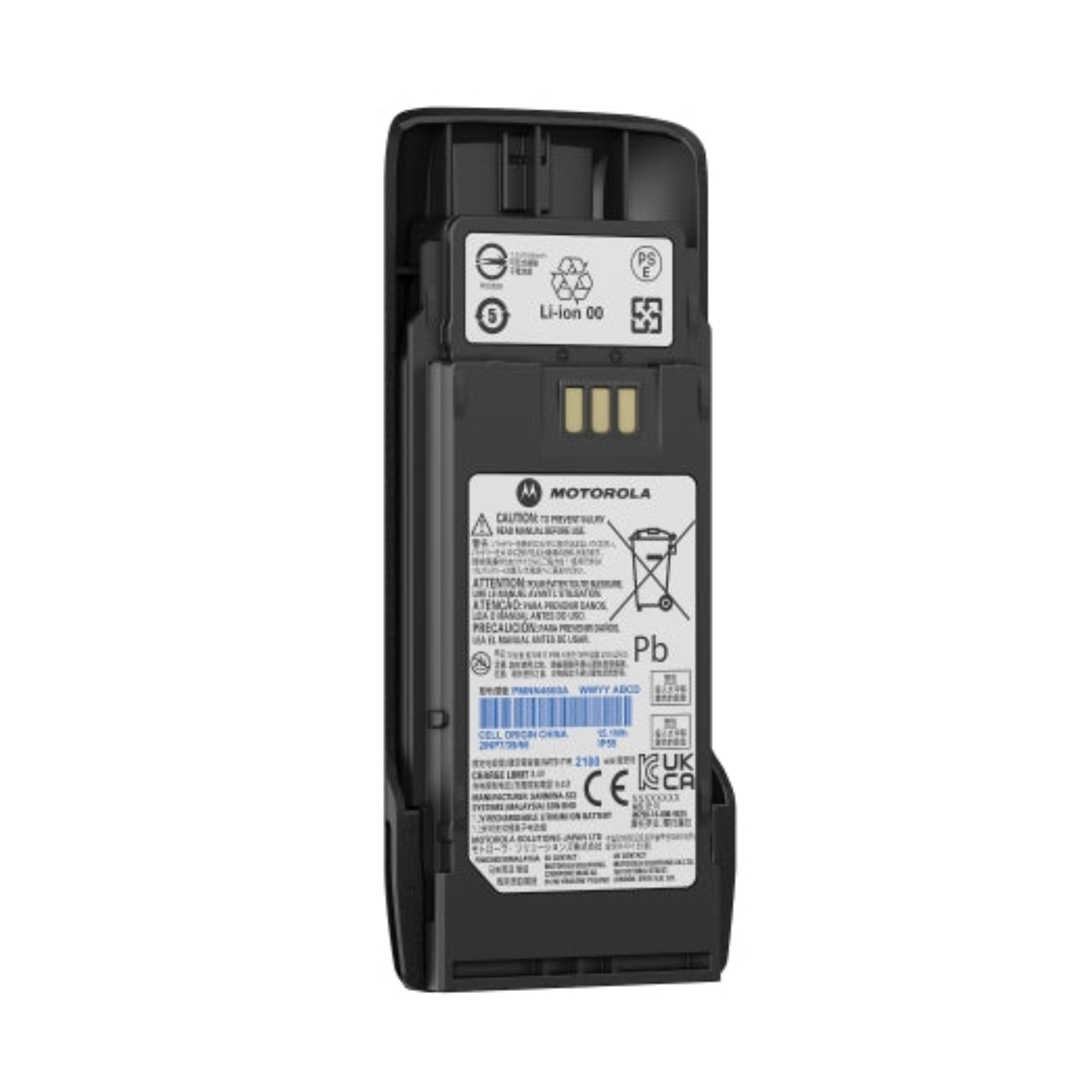

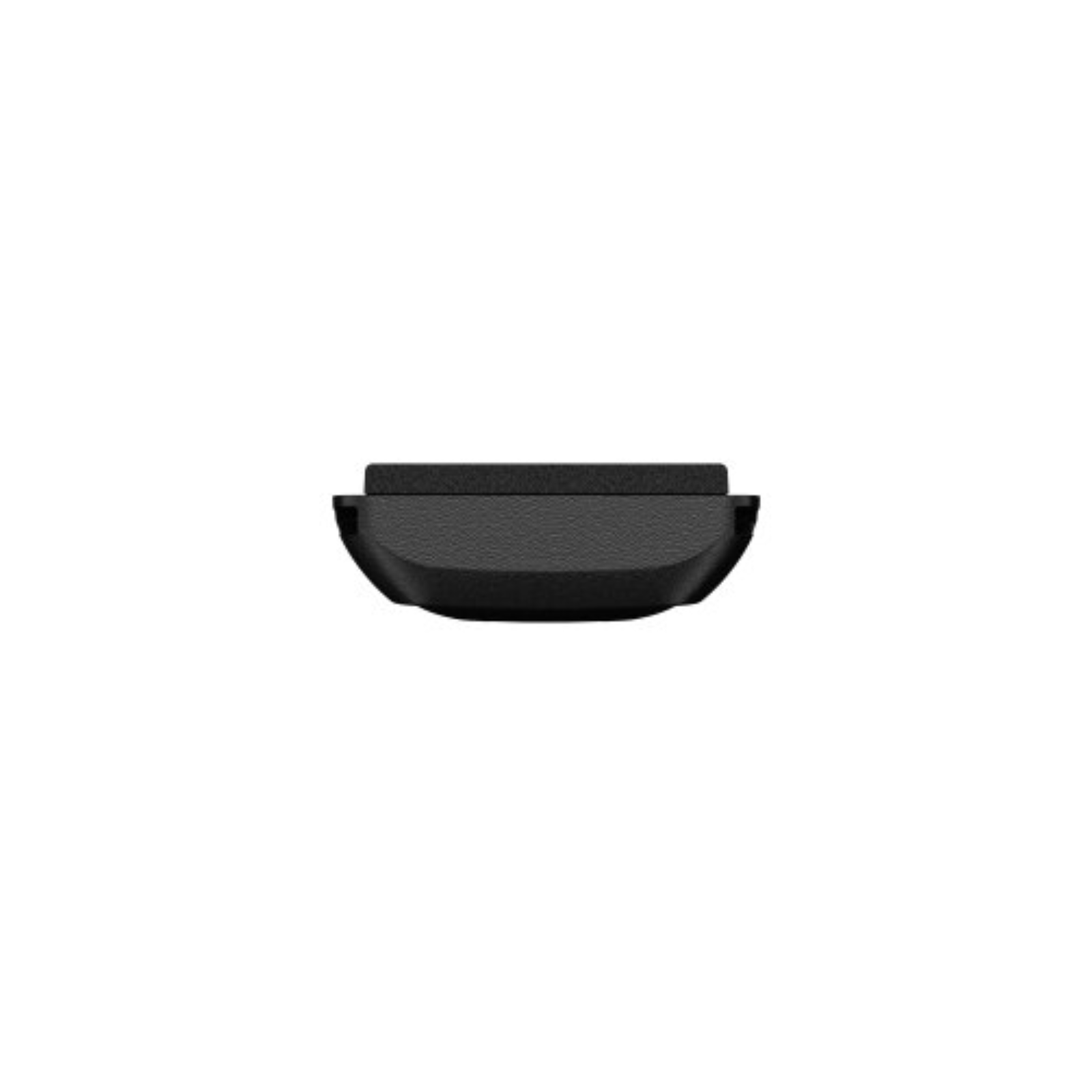

Slim High-Capacity 2100 mAh Li-Ion Battery for MOTOTRBO R2
Genuine Motorola Solutions Original slim-profile rechargeable battery pack providing 2100 mAh capacity and IP55 weather-resistant protection for MOTOTRBO R2 portable radios.
The Motorola PMNN4600A (catalog part PMNN4600 / PMNN4600A) is an authentic original equipment manufacturer (OEM) Lithium-Ion rechargeable power pack engineered specifically for the next-generation MOTOTRBO R2 portable two-way radio series. Designed for commercial operations in hospitality, education, property management, light construction, and warehousing, this lightweight battery delivers dependable energy density across standard 8- to 12-hour duty cycles. Sourced directly from our comprehensive selection of commercial Two-Way Radio Batteries, the PMNN4600A provides factory-calibrated power stability while maintaining an ultra-slim profile that keeps your radio balanced and comfortable on a duty belt.
Engineered to endure daily industrial handling, the Motorola PMNN4600A features an IP55 ingress protection rating certified to IEC Standards (IEC 60529), sealing the internal lithium cells against fine dust penetration and low-pressure water jets from any direction. Weighing just 115 grams (approx. 4.05 oz) with a slim depth of only 18.35 mm, it maximizes portability without compromising structural rigidity or mechanical latch security. To preserve cell chemistry longevity and optimize daily shift performance, operators should follow our operational guide on How To Care for and Maintain Portable Radios, ensuring dependable communication readiness across every shift.
Key Features & Benefits
-
Slim & Lightweight Profile: Measures just 18.35 mm thick and weighs only 115 g, minimizing radio bulk and reducing belt fatigue during long work shifts.
-
2100 mAh Nominal Capacity: High-density lithium chemistry provides reliable, full-shift operating power for MOTOTRBO R2 digital and analog transceivers.
-
IP55 Weather Resistance: Ingress protection prevents dust ingress and safeguards internal circuitry against water jets, rain, and jobsite splashes.
-
Motorola Original Quality: Factory-matched electrical impedance and internal safety circuitry protect the host transceiver from sudden voltage spikes and over-discharge.
-
Rugged Mechanical Latching: Heavy-duty bottom locking latch mechanism secures the battery firmly to the R2 radio chassis even during active physical movement.
-
Broad Temperature Stability: Engineered for consistent electrochemical discharge across harsh seasonal conditions from -10°C to +60°C.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
PMNN4600A / PMNN4600 |
| Product Type |
Rechargeable Portable Two-Way Radio Battery Pack |
| Cell Chemistry |
Lithium-Ion (Li-Ion) |
| Nominal Capacity |
2100 mAh (Typical) |
| Nominal Voltage |
7.4 V DC |
| Ingress Protection |
IP55 (Dust & Water Jet Resistant) |
| Technology |
Motorola Original (Non-IMPRES) |
| Intrinsic Safety Rating |
None (Non-HAZLOC) |
| Operating Temperature |
-10°C to +60°C (14°F to +140°F) |
| Dimensions (W x H x L) |
54.41 x 18.35 x 122.20 mm (2.14 x 0.72 x 4.81 in) |
| Weight |
115 g (approx. 4.05 oz) |
| Housing Material |
Impact-Resistant Textured Polycarbonate |
| Color Finish |
Matte Black |
Compatibility
Compatible Motorola Portable Two-Way Radios
Recommended Accessories
Charging Solutions & Power Adapters
Belt Hardware & Carry Solutions
More Resources
Frequently Asked Questions
Which radio models are compatible with the Motorola PMNN4600A battery?
The PMNN4600A is designed specifically for the Motorola MOTOTRBO R2 series portable two-way radio (both analog-only and digital/analog DMR versions).
Does the PMNN4600A feature IMPRES technology?
No. The PMNN4600A is a standard Motorola Original Li-Ion battery. It does not contain IMPRES microchip diagnostic telemetry, but charges reliably in standard Motorola R2 single-unit (PMPN4572) and multi-unit (PMPN4576) desktop chargers.
What does the IP55 rating mean for this battery?
An IP55 rating indicates that the battery housing is sealed against harmful deposits of dust and is protected against water projected from a nozzle (low-pressure water jets) from any direction, making it suitable for rain and outdoor jobsite conditions.
Should I turn off the MOTOTRBO R2 radio before charging?
Yes. To ensure optimal battery life, prevent thermal buildup, and allow the charging dock to accurately measure cell voltage, always turn the radio OFF before placing it into the charging cradle.
Is the PMNN4600A intrinsically safe for hazardous locations?
No. The PMNN4600A carries no intrinsic safety rating and is not certified for HAZLOC or explosive environments. For classified hazardous environments requiring TIA4950 UL certifications, an approved intrinsically safe battery model must be used.
Warranty
1-year manufacturer’s replacement warranty.
