Description
High-Capacity IMPRES Li-Ion Battery with Self-Calibration
Extended Shift Runtime for High-Demand Digital Fleet Enclosures
Equip your handheld digital transceiver with an intelligent, self-calibrating power pack designed to survive extreme environments.

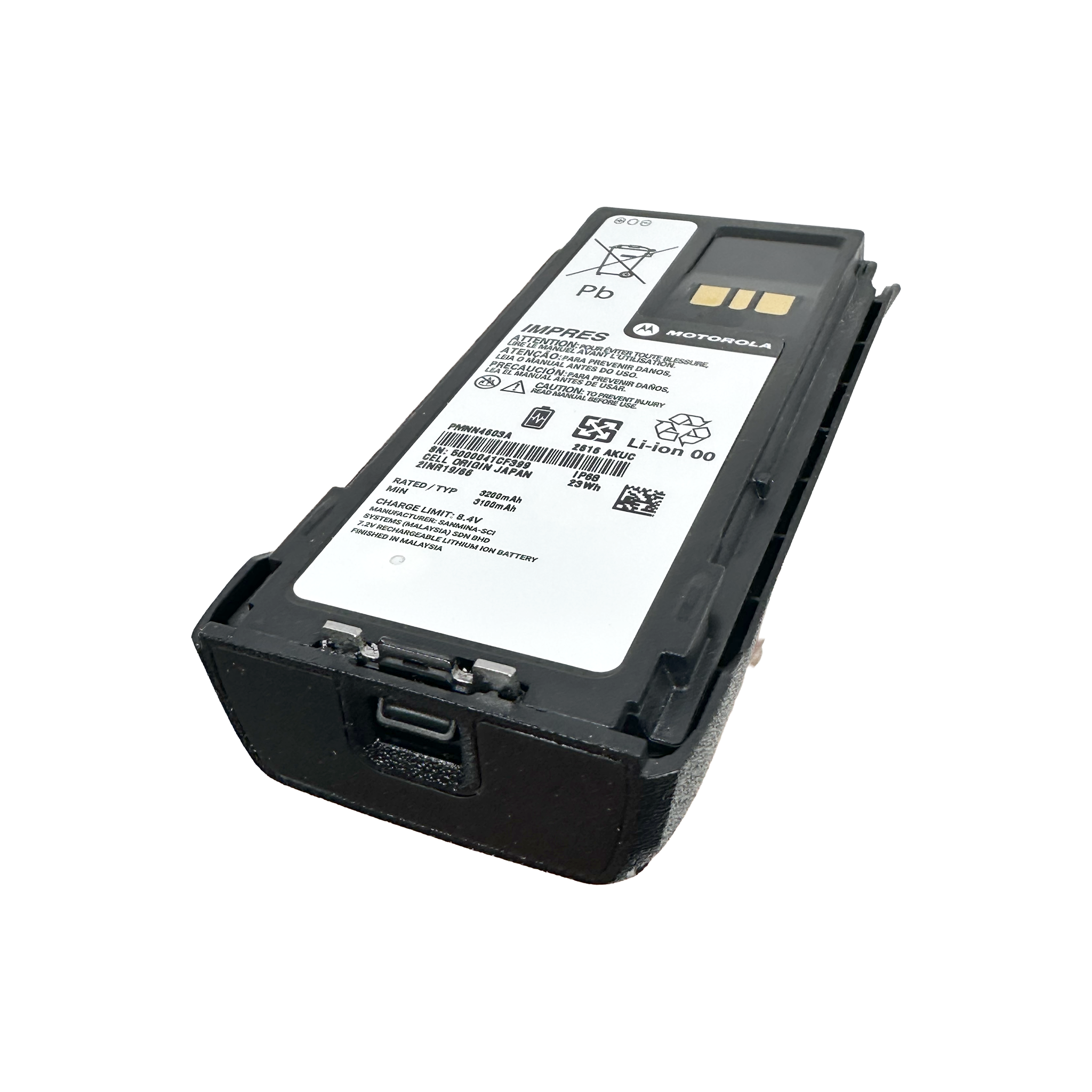

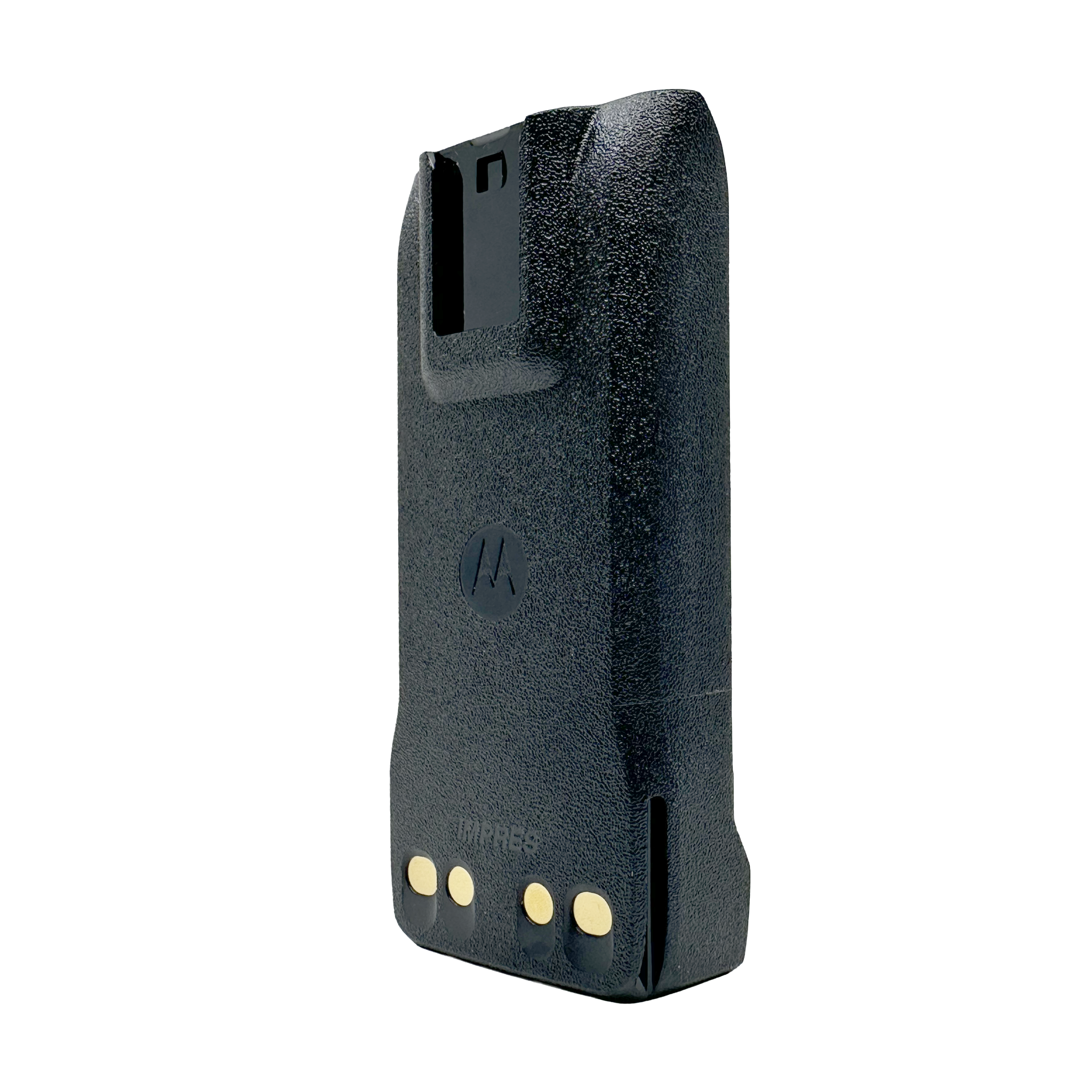

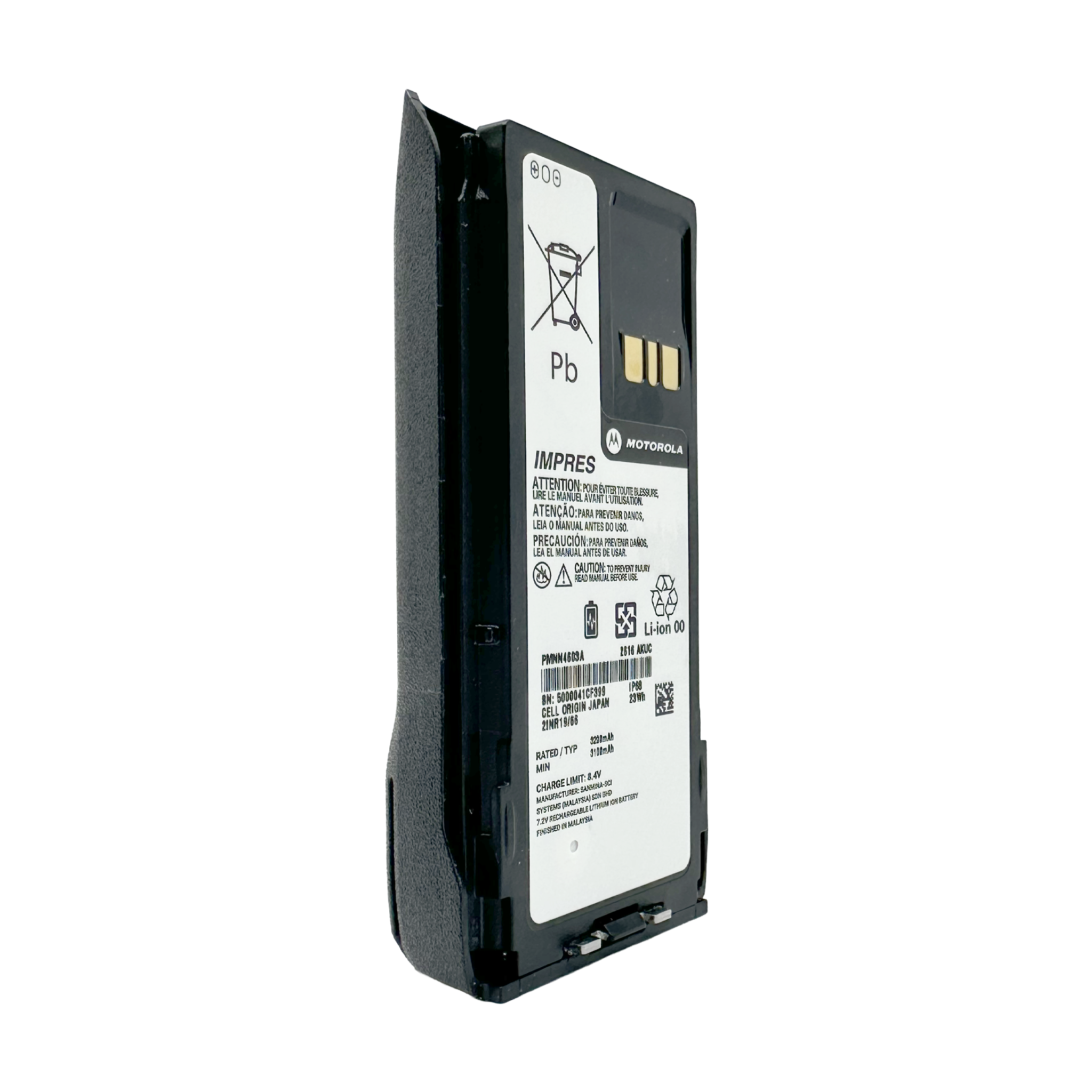

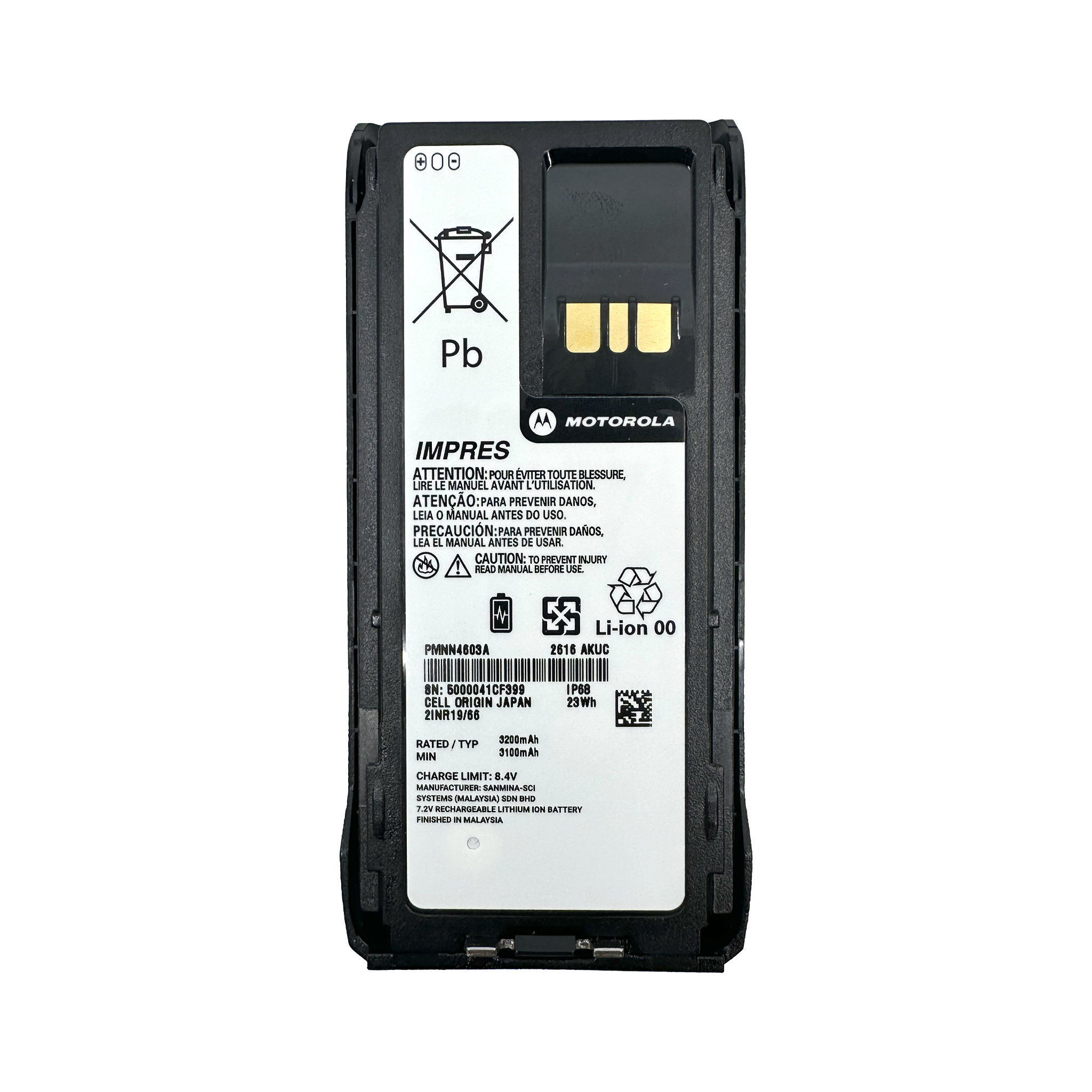

The genuine Motorola PMNN4603A is a heavy-duty Motorola PMNN4603A IMPRES Li-Ion Battery for MOTOTRBO R7 portable trans radios engineered to provide relentless, high-capacity runtime during long-duration operational shifts. Integrating the Motorola PMNN4603A into your fleet deployment ensures your transceivers receive stable operating voltage for optimal RF signal penetration and clear audio performance. This advanced power pack utilizes top-tier lithium cells combined with an integrated telemetry circuit board to actively regulate energy distribution. The Motorola PMNN4603A is the updated version of the Motorola PMNN4603.
Perfect for heavy industrial settings, municipal public works, disaster response groups, and critical security squads, the Motorola PMNN4603A addresses the common operational vulnerability of sudden radio power failure in the field. This model features advanced self-calibration protocols that update battery health metrics natively, completely bypassing the long, unproductive formatting cycles required by older battery generations. The rugged, sealed chassis provides specialized IP68 ingress protection, ensuring the battery-to-radio physical seam remains completely dust-proof and secure against liquid exposure.
To maintain long-term cell lifecycle efficiency, always utilize factory-certified IMPRES or IMPRES 2 single-pocket or multi-unit desktop chargers for power replenishment. Avoid storing lithium packs fully depleted for long intervals, and inspect the rear contact plates periodically to ensure they remain clear of debris or surface oils that could disrupt communication with the radio.
Key Features & Benefits
-
High-Capacity 3200 mAh Chemistry: Provides long-lasting power to support extended shift cycles and continuous high-power transmissions.
-
IMPRES Self-Calibration Technology: Automatically communicates health metrics to the radio and charger without requiring manual reconditioning downtime.
-
Ruggedized IP68 Ingress Protection: Seals tightly to the radio frame to block dust and survive total immersion in deep water.
-
Optimized Lifecycle Performance: Delivers up to a 43 percent longer overall functional service life compared to standard unmanaged battery alternatives.
-
Genuine OEM Integrity: Formulated precisely as a Motorola PMNN4603A IMPRES Li-Ion Battery for MOTOTRBO R7 power asset to avoid software configuration faults.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model/SKU |
Motorola PMNN4603A (PMNN4603) |
| Product Type |
Portable Radio Battery |
| Voltage |
7.4V |
| Battery Chemistry |
Lithium-Ion (Li-Ion) |
| Capacity |
3200 mAh |
| IP Rating |
IP68 |
| Color |
Black |
Compatibility
Radios
Recommended Accessories
- Motorola MOTOTRBO R7 Portable Two-Way Radio (R7) — The primary digital handheld transceiver powered by this high-capacity self-calibrating battery.
- Motorola PMPN4576A Single-Unit Charger (PMPN4576A) — An intelligent IMPRES 2 desktop staging cradle that reads this battery's internal tracking telemetry.
More Resources
Frequently Asked Questions
Do I need to recondition this battery on a monthly basis?
No, the advanced self-calibration software embedded within this power pack allows it to maintain accurate runtime tracking and cell health data natively without requiring manual overnight conditioning cycles.
Is this battery fully waterproof when attached to my transceiver?
Yes, when properly latched onto a matching portable housing, the physical assembly meets strict IP68 ingress benchmarks to prevent dust and water from breaching the electrical contact terminals.
Can I charge this pack using a standard old-generation legacy charger?
While it can interface with some older chargers, it is highly recommended to use an approved IMPRES or IMPRES 2 charging system to fully utilize the self-calibration features and rapid rate profiles.
Warranty
1-year manufacturer's warranty.
