Description

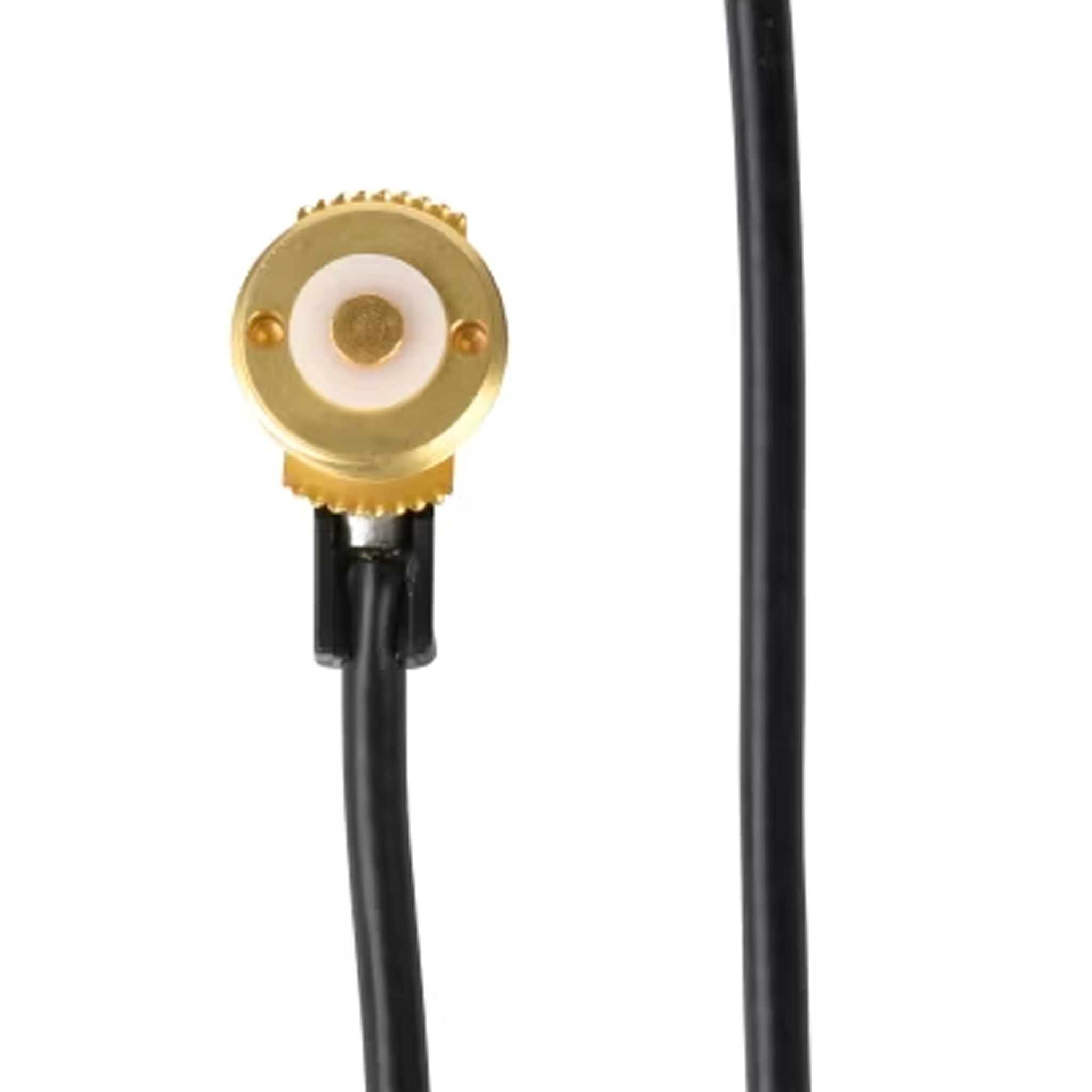

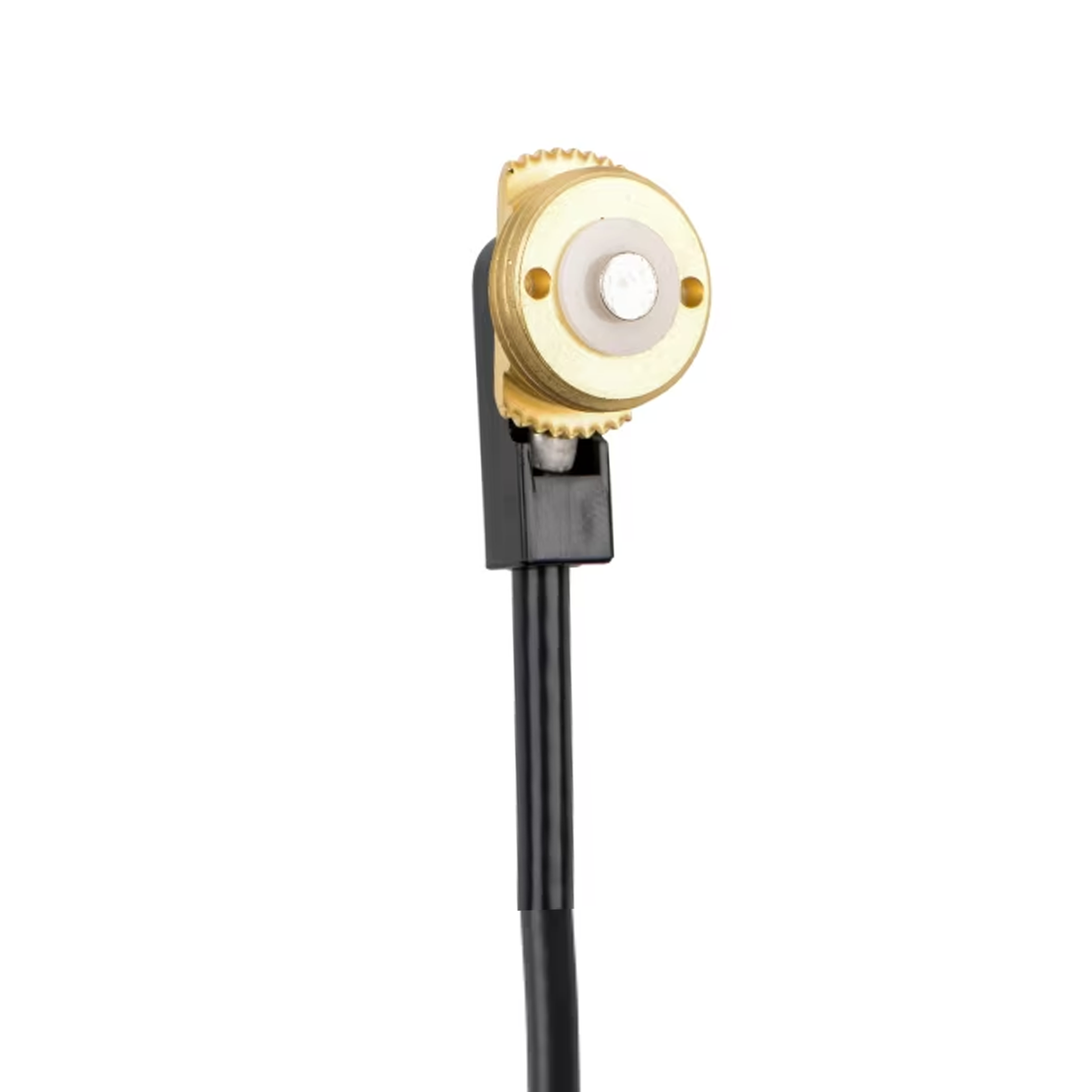

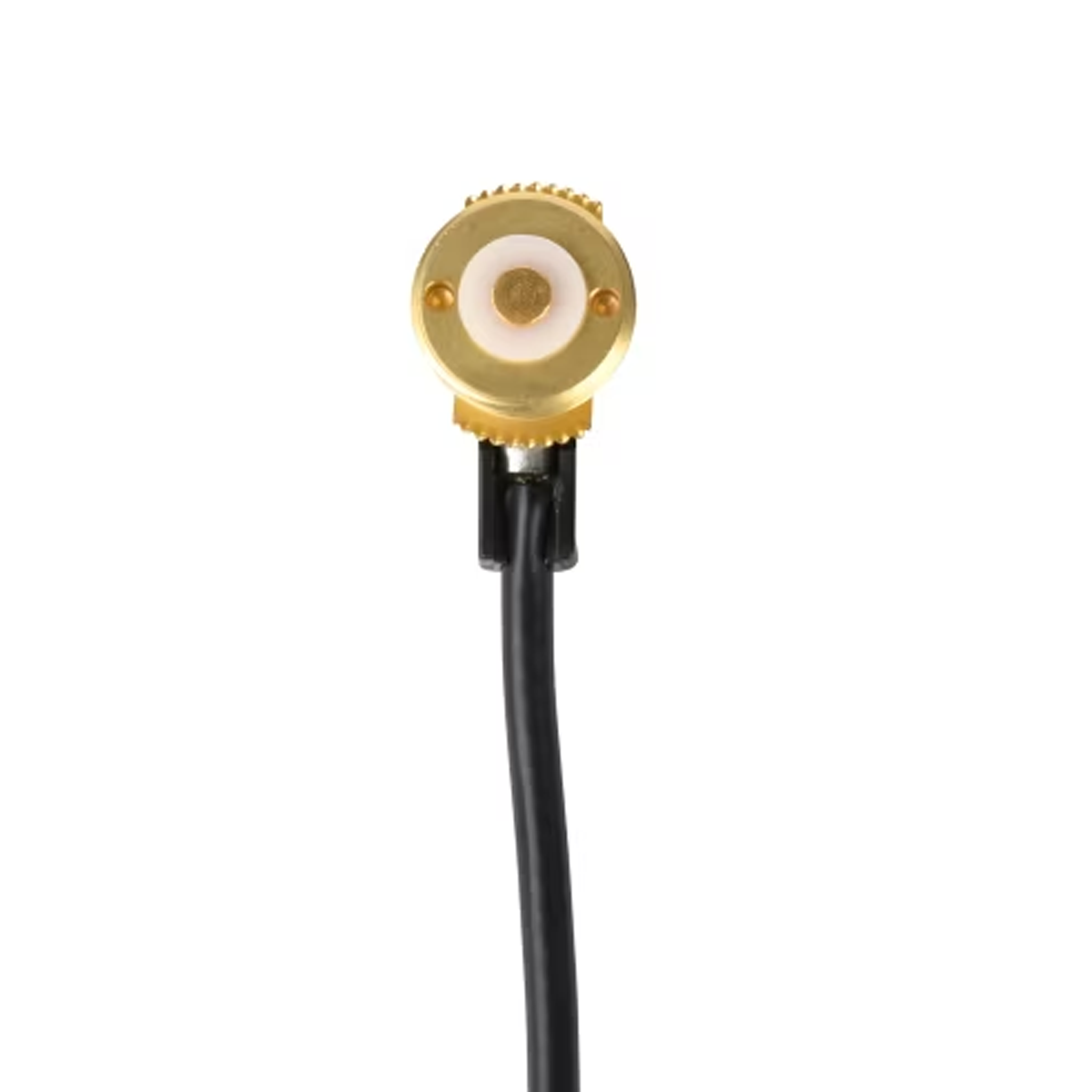

3/4-Inch Brass Vehicle Roof Antenna Mount
Commercial-grade 3/4-inch brass NMO roof mount with integrated 17-foot RG58A/U coaxial cable for mobile radio transceivers.
The Motorola RRDN5461A is a heavy-duty 3/4-inch brass vehicle roof antenna mount engineered for professional mobile radio installations. Designed to attach mobile antennas securely through a standard 3/4-inch hole in a vehicle's metal roof or trunk lid, this permanent mount establishes a solid mechanical hold and low-resistance ground plane connection essential for optimal RF signal performance.
Equipped with a solid brass mounting stud and a factory-attached 17-foot (204-inch) RG58A/U flexible coaxial cable, the Motorola RRDN5461A provides generous cable length to route wiring cleanly beneath vehicle headliners and trim panels to under-dash or trunk-mounted transceivers. Built to withstand extreme road vibration and weather exposure, this genuine OEM antenna mount serves as our primary factory-grade replacement for legacy third-party 3/4" NMO mounts including the TE Connectivity MB8, E/M Wave EM-M11001-058, PCTEL NMO58U-NC, and PCTEL MAXRAD BMA-NC.
The Motorola RRDN5461A is the updated version of the Motorola RRDN5461.
Key Features & Benefits
-
Solid Brass Construction: Heavy-duty 3/4-inch brass mounting body ensures maximum durability and superior electrical ground contact.
-
Integrated 17-Foot Coax Cable: Pre-attached 17-ft (RG58A/U) low-loss coaxial cable simplifies installation and accommodates long routing runs in large vehicles.
-
Standard 3/4-Inch Hole Mounting: Mounts through any standard 3/4-inch diameter hole in sheet metal vehicle roofs or trunk lids.
-
All-Weather Weather Tight Seal: High-grade rubber gasket prevents water and dust ingress into the vehicle cabin.
-
Universal 3/4" NMO Mount Cross-Reference: Ideal OEM upgrade offered in place of TE Connectivity MB8, E/M Wave EM-M11001-058, PCTEL NMO58U-NC, and PCTEL MAXRAD BMA-NC.
-
Motorola RRDN5461A Revision Disclosure: The Motorola RRDN5461A is the updated version of the Motorola RRDN5461.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
RRDN5461A (Replaces RRDN5461) |
| Product Type |
Vehicle Roof Antenna Mount |
| Mounting Hole Size |
3/4 Inch (19 mm) |
| Body Material |
Solid Brass |
| Coaxial Cable Type |
RG58A/U Flexible Coax |
| Cable Length |
17 Feet (5.18 m / 204 in) |
| Mounting Style |
Permanent Hole Mount / Roof Mount |
Recommended Accessories
Mobile Antennas & Power Cables
-
Motorola HKN4137A Mobile Power Cable – Heavy-duty 12V DC power cable for mobile two-way transceivers.
-
Motorola RMN5052A Compact Mobile Palm Microphone – Standard palm microphone with heavy-duty coiled cord.
More Resources
- 12 Reasons To Use Motorola Portable Radios
- How To Care for and Maintain Portable Radios
- Best Practices for Using Two-Way Radio Equipment
- 5 Benefits of Two-Way Radios Over Cellphones
- Browse All Motorola Accessories & Parts
Frequently Asked Questions
Is the Motorola RRDN5461A being offered instead of PCTEL, E/M Wave, or TE Connectivity NMO mounts?
Yes, the Motorola RRDN5461A OEM brass roof mount is now offered as our primary factory-grade replacement for legacy models including the TE Connectivity MB8, E/M Wave EM-M11001-058, PCTEL NMO58U-NC, and PCTEL MAXRAD BMA-NC.
What hole size is required to install the Motorola RRDN5461A?
The Motorola RRDN5461A requires a standard 3/4-inch diameter hole drilled into a metal roof or trunk lid panel.
What coaxial cable is included with the Motorola RRDN5461A mount?
The Motorola RRDN5461A comes with an integrated 17-foot (RG58A/U) flexible coaxial cable.
Is the Motorola RRDN5461A compatible with the PM1500 mobile radio?
Yes, the Motorola RRDN5461A is engineered for use with Motorola PM1500 mobile two-way radios.
Is the Motorola RRDN5461A the same as the RRDN5461?
Yes, the Motorola RRDN5461A is the updated revision version of the Motorola RRDN5461.
Does the Motorola RRDN5461A include weather sealing?
Yes, the mount features integrated rubber sealing rings to prevent water leakage through the mounting hole into the vehicle cabin.
Is the Motorola RRDN5461A an authentic Motorola part?
Yes, the Motorola RRDN5461A is a genuine original equipment manufacturer component produced directly by Motorola Solutions.
Warranty
1-year manufacturer’s warranty.
