Description
Motorola ZMN6038ASP01
2-Wire Surveillance Kit, Extra Loud Earpiece (Hirose 6-Pin)

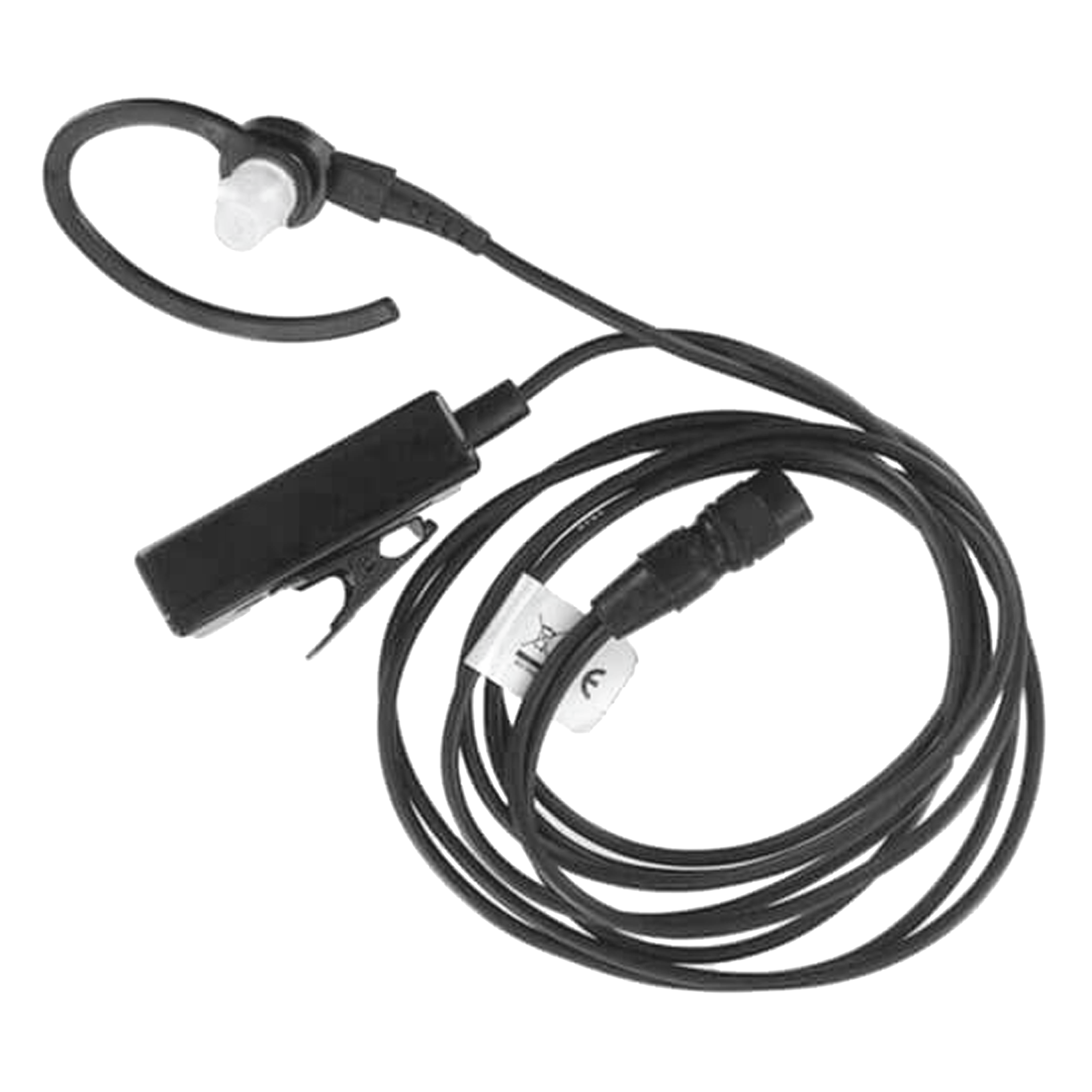

The Motorola ZMN6038ASP01 is a professional 2-wire surveillance kit designed for discrete, mission-critical communication. This black surveillance kit features an extra loud earpiece and a separate Push-to-Talk (PTT) and microphone module, allowing for concealed and comfortable wear.

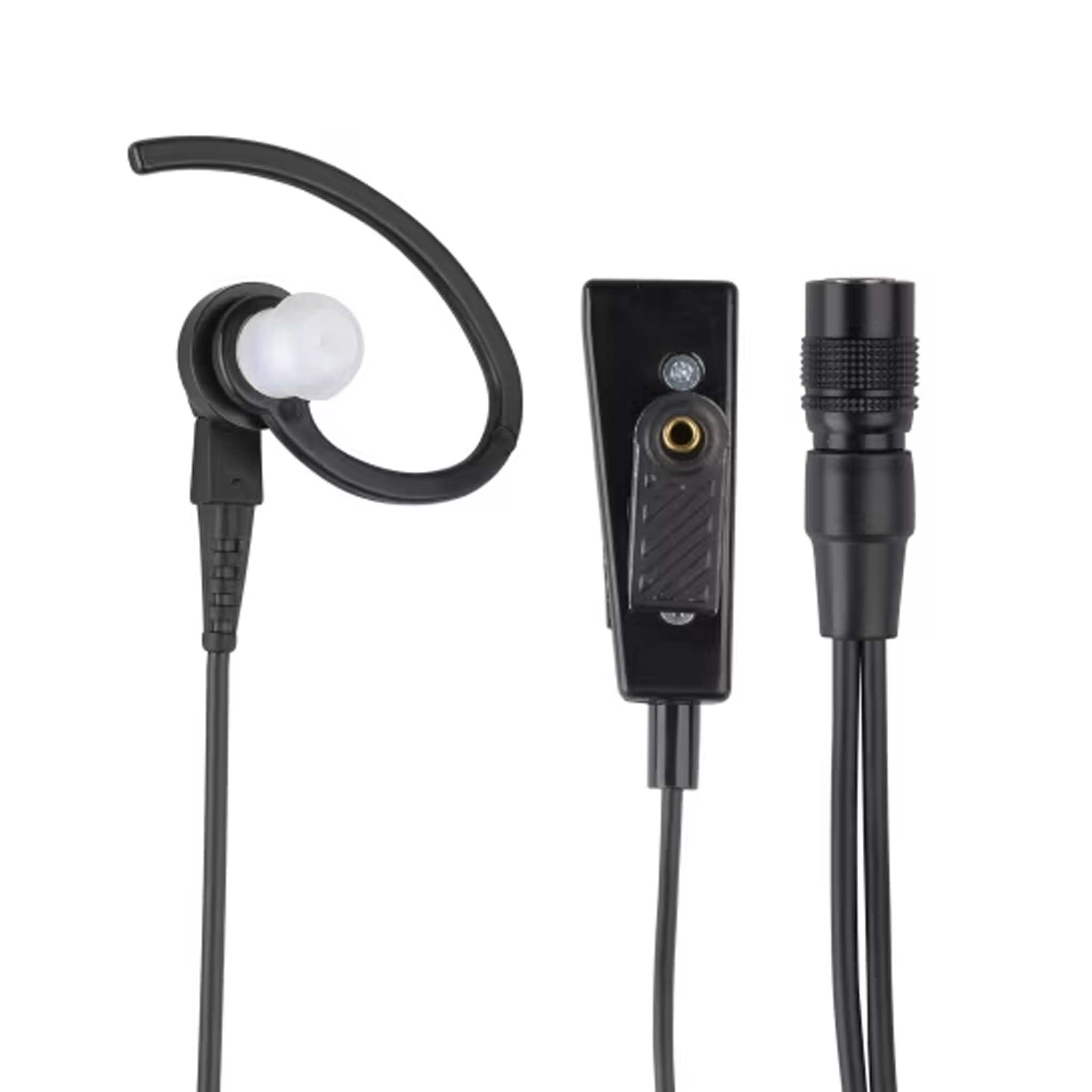

The two-wire design separates the PTT/microphone wire from the earpiece wire, offering flexibility in routing and concealment (e.g., PTT clipped to the chest or worn down a sleeve). It connects via a Hirose 6-Pin connector and is compatible with the APX series when used with the appropriate adapter (NNTN7869) or the XTS/MT/PR series when used with the keyload adapter (NTN8613).
Key Features
-
2-Wire Design: Separate wires for the earpiece and the PTT/microphone module, ideal for highly discreet use and flexible cable routing.
-

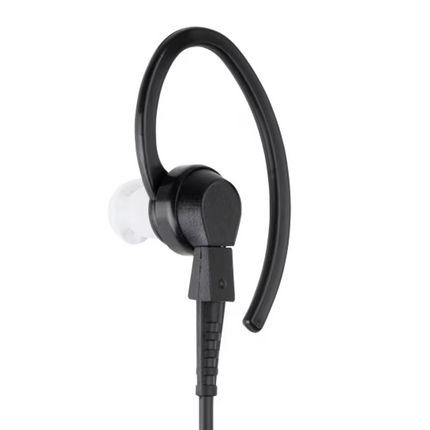

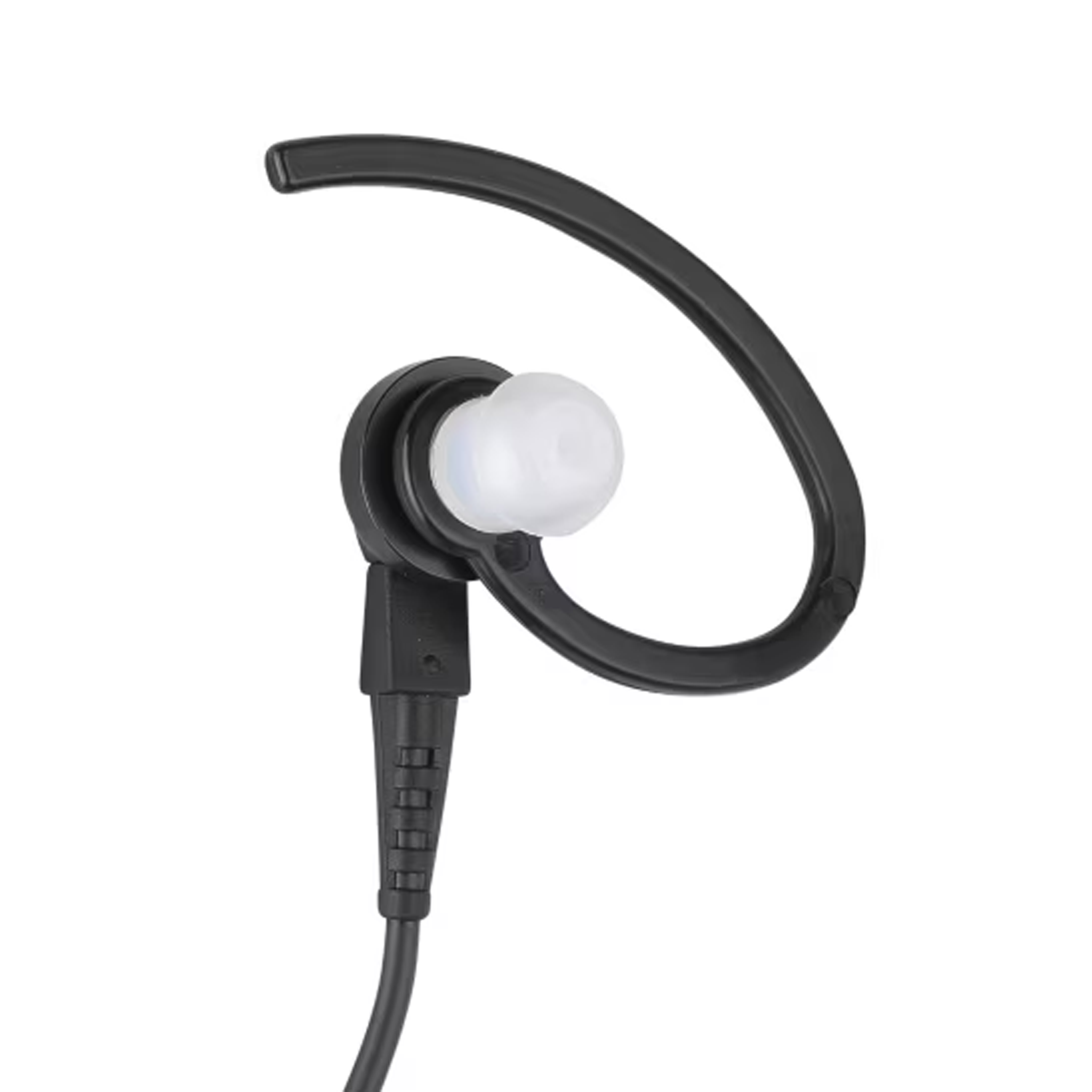

Extra Loud Earpiece: Provides amplified volume, ensuring clear reception even in loud or chaotic environments.
-
Hirose 6-Pin Connector: Utilizes the robust Hirose 6-Pin connector standard for attachment to the required radio adapter.
-
In-line PTT/Microphone: The PTT and microphone are combined in a small, easily concealable in-line module.
-
Optional Acoustic Tube: Can be customized using the optional RLN6232 clear acoustic tube (sold separately).
Compatible Radios
| APX1000 |
APX1000I |
APX3000 |
APX4000 |
| APX6000 |
APX6000 XE |
APX7000 |
APX7000XE |
| APX8000 |
APX8000XE |
APX900 |
SRX2200 |
| XTS 5000* |
XTS 3000* |
XTS 2500* |
XTS 1500* |
| MT1500* |
PR1500* |
MTS2000* |
|
Note: Requires the NTN8613 keyload adapter (sold separately) for XTS/MT/PR/MTS series.
Required Adapters (Sold Separately)
| Radio Series |
Required Adapter |
| APX, SRX 2200 |
NNTN7869 Hirose adapter |
| XTS, MT, PR, MTS |
NTN8613 keyload adapter |
Benefits
-
Maximum Discretion: The 2-wire setup allows the accessory to be fully concealed beneath clothing, perfect for surveillance or security details.
-
Clear Audio: The extra loud earpiece guarantees received messages are intelligible, even in high-noise areas.
-
Flexible Wear: PTT/mic module can be clipped to the lapel or run down a sleeve for convenient, concealed access.
-
Versatile Compatibility: Compatible with both modern APX and legacy XTS/MT/PR radio platforms via specific adapters.
Warranty
1-year manufacturer's warranty
