Description

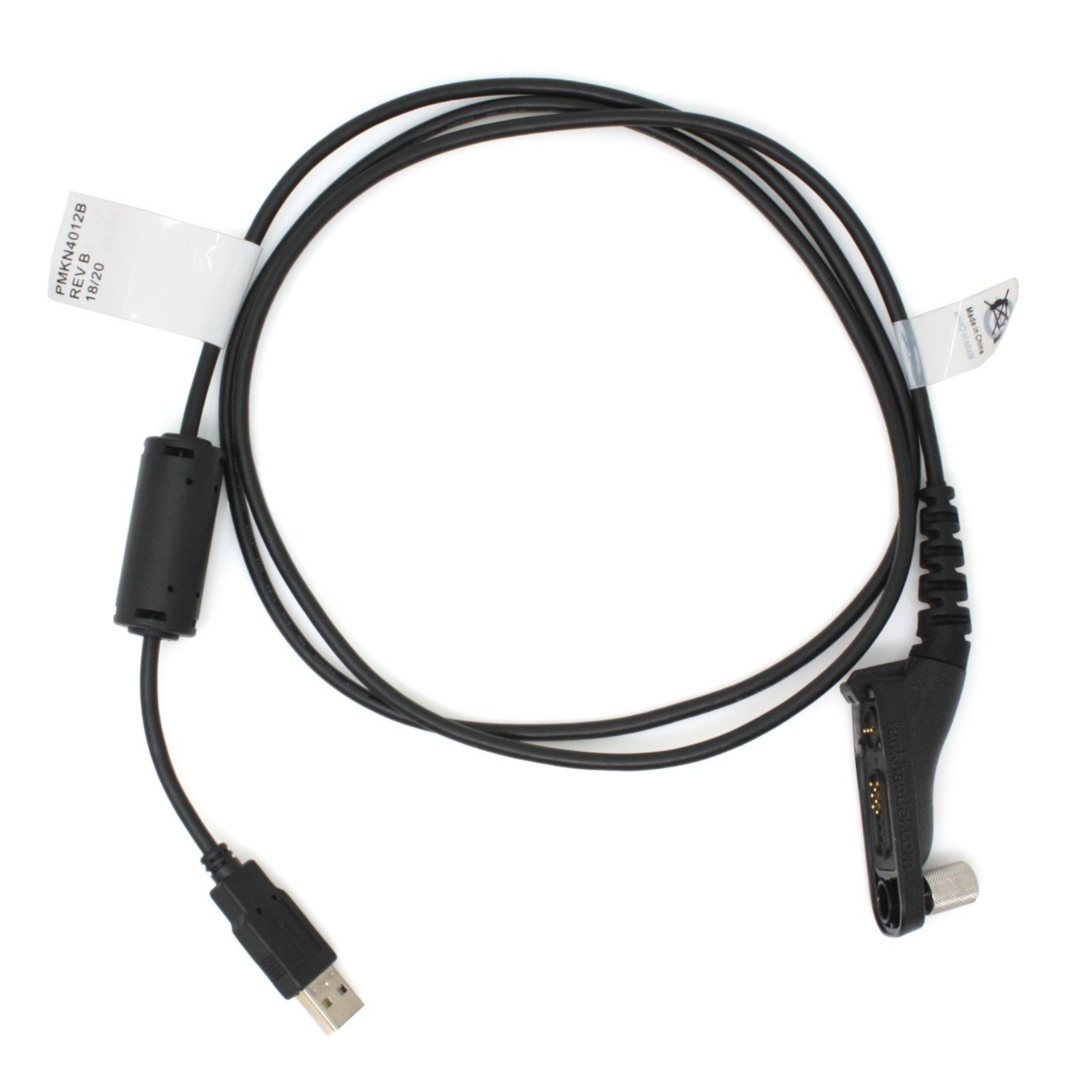

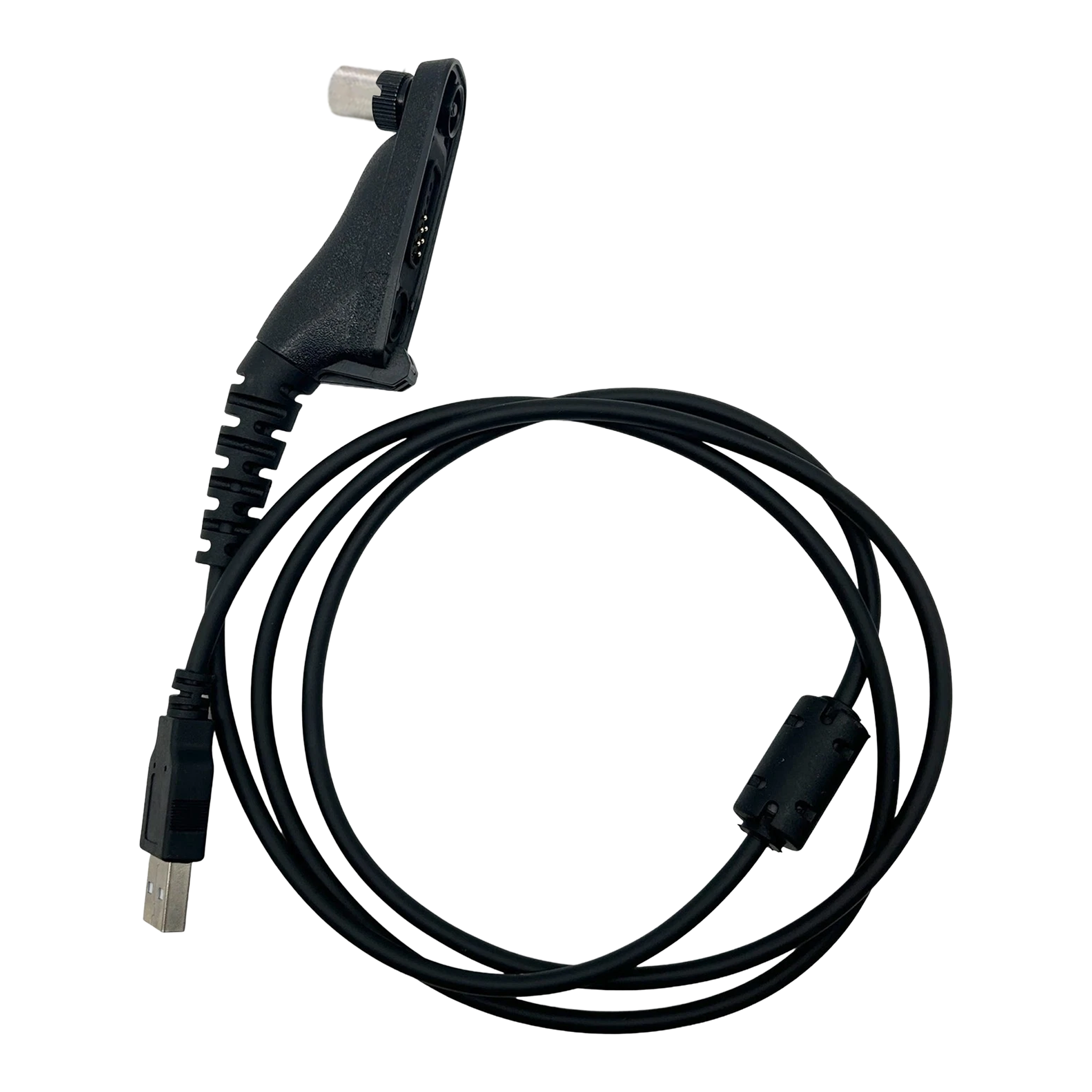

USB Programming Cable for Compatible Motorola Portable Radios
The Motorola PMKN4012B connects a compatible portable two-way radio to a computer for programming with the appropriate Motorola software. Use it as the hardware connection when reading or writing supported radio configurations, including channel and audio settings.
The compatibility table includes the previously listed Motorola models plus XPR7350, XPR7380, XPR7550, XPR7580, XPR7350e, XPR7380e, XPR7550e and XPR7580e. The cable is sold separately from programming software, software licenses and programming services.
Key Features
-
USB computer connection: Connects to a USB Type-A port.
-
Radio-side connection: Attaches to the compatible radio's multi-pin side accessory connector.
-
Programming interface: Provides the physical connection required by supported programming workflows.
-
Fleet maintenance: Suitable for maintaining configurations across compatible models listed below, using the correct software for each radio.
Specifications
| Specification |
Details |
| Brand |
Motorola |
| Part number |
PMKN4012B |
| Product type |
Portable radio USB programming cable |
| Computer connection |
USB Type-A |
| Radio connection |
Multi-pin side accessory connector |
| Software requirements |
Compatible Motorola programming software; version and requirements depend on the radio and firmware |
| Warranty |
1-year manufacturer's replacement warranty |
Compatibility
| Model Family |
Compatible Models |
| APX |
APX1000, APX1000I, APX3000, APX4000, APX5000, APX6000, APX6000XE, APX7000, APX7000XE, APX8000, APX8000XE, APX900, APXNEXT, APXNEXTENHANCED, APXNEXTXE4GLTEPLUS5G, APXNEXTXEMULTI, APXNEXTXNALL |
| DGP |
DGP5050E, DGP5550E, DGP8050E, DGP8550E |
| DP |
DP4400E, DP4401E, DP4401EX, DP4401EXMA, DP4600E, DP4601E, DP4800E, DP4801E, DP4801EX, DP4801EXMA |
| GP |
GP328DPLUS, GP338DPLUS |
| XiR |
XIRP8600, XIRP8600I, XIRP8608EX, XIRP8608I, XIRP8628I, XIRP8660I, XIRP8668EX, XIRP8668I, XIRP8800, XIRP8800T, XIRP8808, XIRP8808R, XIRP8868T |
| Other existing model references |
BELIZ, BELIZE, LTDNEO |
| XPR |
XPR7350, XPR7380, XPR7550, XPR7580, XPR7350e, XPR7380e, XPR7550e, XPR7580e |
Use programming software appropriate to the exact radio family and firmware. MOTOTRBO software is not a universal software option for every model in this table. For a model not listed, contact Atlantic Radio before ordering; a similar-looking connector does not establish programming compatibility.
What's Included
| Description |
SKU / Model |
Status |
| USB programming cable |
PMKN4012B |
Included |
| Motorola programming software and licenses |
Radio-specific |
Not included |
| Radio, battery and charger |
Model-specific |
Not included |
| Programming service or feature-upgrade license |
As required |
Not included |
Recommended Accessories & Related Products
These products support compatible XPR radio setups; they are not accessories that attach to the programming cable. Check each item's model, battery and variant requirements before ordering.
Programming
Earpieces
-
Motorola PMLN6130A: Beige two-wire surveillance kit listed for the eight XPR models above.
-
Motorola PMLN7052A: One-wire surveillance kit with in-line microphone for listed compatible XPR radios.
Speaker Microphones
Batteries
-
Motorola PMNN4544A: Replacement battery listed for the XPR models above. Confirm the battery requirements of your exact radio variant.
Chargers
Carry Accessories & Replacement Parts
-
Motorola PMLN5845A: Nylon carry case with fixed belt loop; confirm the case configuration for your radio.
-
Motorola PMLN5846A: Leather swivel case option for listed XPR 7000-series radios.
-
Motorola PMLN5844A: Nylon case listed for XPR7550, XPR7550e, XPR7580 and XPR7580e display/keypad models.
-
Motorola 36012004001: Replacement channel knob listed for compatible XPR radios.
-
Motorola PMLN7323B: Front housing kit for XPR7350e and other specifically listed models, not a universal XPR housing.
Related Radios
Programming Resources
Frequently Asked Questions
Does PMKN4012B work with XPR7350, XPR7380, XPR7550 and XPR7580?
Yes. These four models and their corresponding e models, XPR7350e, XPR7380e, XPR7550e and XPR7580e, are included in this listing's compatibility table in addition to the previously listed models.
Does this cable include CPS software?
No. This listing is for the hardware cable only. Obtain the programming software and any required license separately, and confirm that its version supports your radio and firmware.
Can this cable charge the radio?
This is a programming cable, not a replacement for the radio's compatible battery charger. Use the correct charging equipment for your radio and battery.
Can I use it for firmware updates?
Follow the official update instructions for your exact radio and firmware. Cable compatibility alone does not establish firmware eligibility, software entitlement or support for a particular update procedure.
Are Windows drivers installed automatically?
Do not assume automatic installation. Follow the driver and operating-system requirements supplied with the compatible Motorola programming software.
Does the B suffix guarantee a newer USB chipset?
No chipset improvement or automatic operating-system compatibility is promised here. Order using the PMKN4012B part number and verify your radio and software requirements.
Will it work with any Motorola radio that has a side connector?
No universal compatibility is implied. Check the exact model against the compatibility table or contact Atlantic Radio before ordering for another model.
Does buying the cable activate encryption or other licensed features?
No. The cable is a hardware interface. Any feature eligibility, license, authorization and supported configuration procedure must be checked separately for the radio.
Warranty
1-year manufacturer's replacement warranty.
