Description
High-Performance 50-Ohm Low-Loss Flexible Coaxial Cable
Premium 0.195-inch low-loss coaxial cable sold by the foot, engineered as a drop-in replacement for RG-58 and RG-142 in LMR, GPS, SCADA, and antenna jumper assemblies.

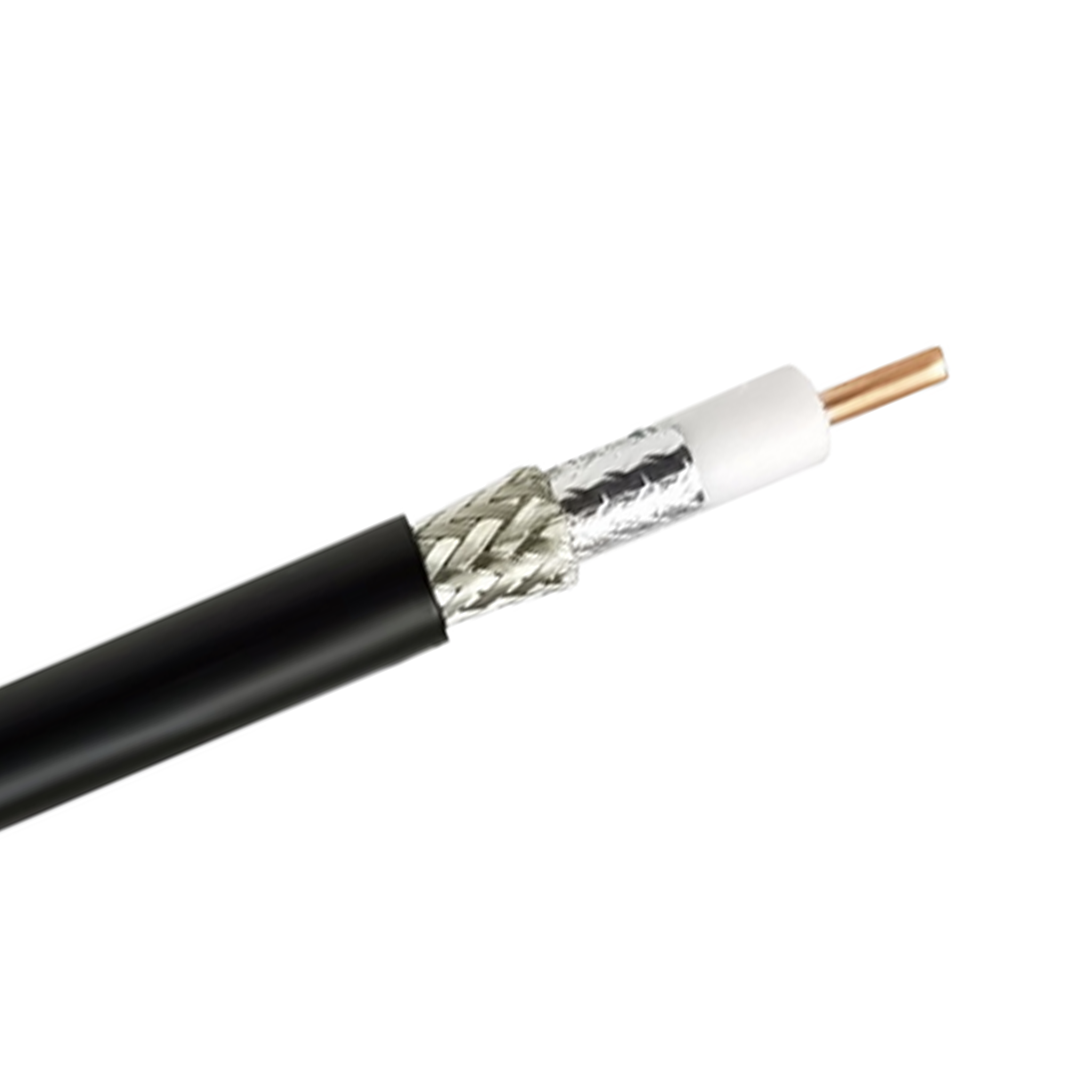

The Purchase Radios PR195 (RFC-195) is a commercial-grade 50-Ohm low-loss coaxial communication cable engineered for high-frequency signal integrity, low attenuation, and long-term outdoor durability. Built around a high-conductivity 0.94 mm solid bare copper center conductor, foamed polyethylene dielectric, and a dual-shielding structure consisting of 115% overlapping bonded aluminum foil alongside a 90% coverage tinned copper braid, PR195 achieves superior RF shielding efficiency (>90 dB) from 1 to 1000 MHz.
Designed as an upgraded, low-loss drop-in alternative to standard RG-58 and RG-142 cabling, the Purchase Radios PR195 features a flexible, UV-resistant black PVC outer jacket rated for 20 years of continuous outdoor service across temperature extremes from -40°C to +85°C. With a tight 12.70 mm minimum bend radius and a 4.95 mm outer diameter, PR195 provides easier handling and routing than rigid corrugated hard-line cables. Sold conveniently per foot, it serves as an ideal solution for short antenna feeder runs, mobile antenna installs, SCADA systems, WiMax/WLAN infrastructure, and custom RF jumper assemblies operating under FCC Licensing standards.
Key Features & Benefits
-
Drop-In RG-58 & RG-142 Replacement: Standard 0.195-inch outer diameter designed to upgrade existing RG-58 and RG-142 cable runs with lower signal attenuation.
-
Dual-Shielded RF Protection: Combines 115% overlapping bonded aluminum foil and a 90% tinned copper braid to provide >90 dB shielding efficiency.
-
20-Year Outdoor Life: Weatherproof, UV-resistant black PVC jacket withstands harsh environmental conditions and ambient temperatures from -40°C to +85°C.
-
High-Conductivity Solid Copper Core: 0.94 mm solid bare copper conductor with foam PE insulation ensures maximum velocity of propagation (>80%).
-
Superior Bending Flexibility: 12.70 mm minimum bend radius allows tight cable routing in vehicle cabins, enclosures, and antenna mounts.
-
Sold Per Foot: Custom order exact lengths required for jumper cables, base station connections, or vehicle antenna installations.
Specifications
| Attribute |
Details |
| Brand |
Purchase Radios |
| Model / SKU |
PR195 / RFC195 |
| Product Type |
50-Ohm Low Loss Coaxial Cable (Per Foot) |
| Equivalent Standards |
RG-58, RG-142, LMR-195 Class |
| Center Conductor |
Solid Bare Copper (0.94 mm / 0.037 in) |
| Dielectric Insulation |
Foamed Polyethylene (2.80 mm) |
| 1st Shield |
Bonded Aluminum Foil (>=115% Overlap) |
| 2nd Shield |
Tinned Copper Braid (90% Coverage) |
| Outer Jacket Material |
UV-Resistant Black PVC |
| Cable Outer Diameter |
4.95 mm (0.195 in) |
| Characteristic Impedance |
50 ± 3 Ohms |
| Velocity of Propagation |
> 80% |
| Shielding Effectiveness |
> 90 dB (1–1000 MHz) |
| Peak Power Rating |
2.50 kW |
| Cut-Off Frequency |
41.00 GHz |
| Minimum Bend Radius |
12.70 mm (0.50 in) |
| Operating Temperature |
-40°C to +85°C |
Attenuation & Power Rating Chart
| Frequency (MHz) |
Attenuation (dB / 100 ft) |
Average Power Rating (kW) |
| 30 MHz |
1.98 dB |
0.89 kW |
| 150 MHz |
4.45 dB |
0.39 kW |
| 450 MHz |
7.77 dB |
0.22 kW |
| 900 MHz |
11.12 dB |
0.16 kW |
| 1500 MHz |
14.54 dB |
0.12 kW |
| 2500 MHz |
19.02 dB |
0.09 kW |
| 5800 MHz |
29.90 dB |
0.06 kW |
Compatibility
Compatible Cable Standards, Connectors & Hardware
Recommended Accessories
Connectors & Mounting Hardware
More Resources
Frequently Asked Questions
How is the Purchase Radios PR195 cable sold?
The Purchase Radios PR195 coaxial cable is sold per foot, allowing you to specify the exact length required for custom jumper assemblies or feeder runs.
Is PR195 compatible with RG-58 connectors?
Yes. The PR195 has an outer jacket diameter of 4.95 mm (0.195 inches), making it mechanically compatible with standard crimp and clamp connectors engineered for RG-58, RG-142, and LMR-195 series cables.
Can PR195 cable be used outdoors?
Yes. PR195 features a UV-resistant black PVC outer jacket designed for 20 years of outdoor service across operating temperatures ranging from -40°C to +85°C.
What is the difference between PR195 and RG-58 coax?
While sharing similar dimensions (0.195-inch diameter), PR195 utilizes a solid copper core, foam polyethylene dielectric, and double-shielded construction to deliver significantly lower signal attenuation and superior RF shielding (>90 dB) compared to basic RG-58 braid cables.
Is PR195 an authentic Purchase Radios product?
Yes, PR195 (RFC-195) is an authentic original coaxial cable product manufactured for Purchase Radios / Atlantic Radio Corp.
Warranty
1-year manufacturer’s replacement warranty.
