Description
TE Connectivity QWRC / QWRCB
Quarter-Wave Chrome and Black Rain Caps
Industrial Protection for NMO Mounts

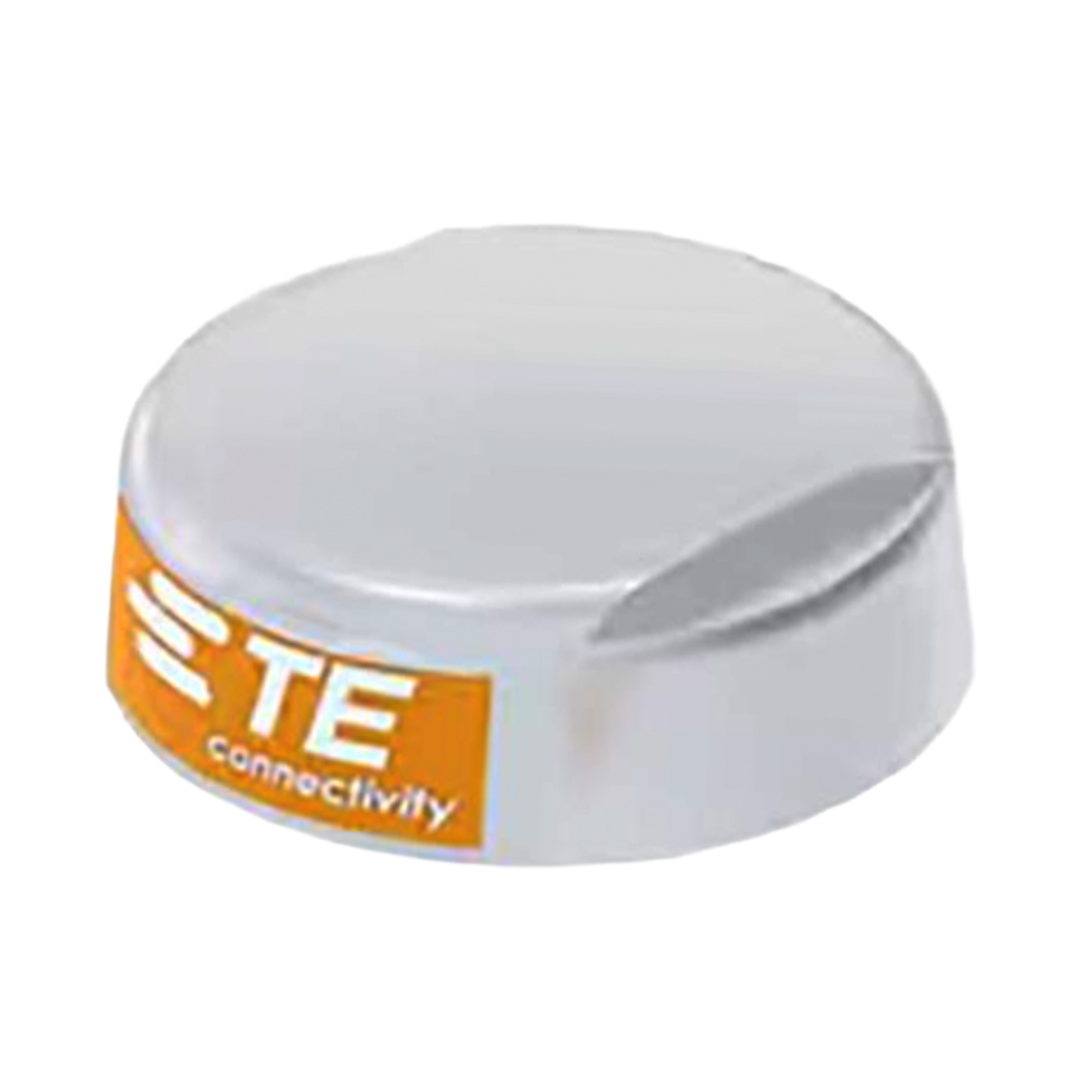

The TE Connectivity QWRC/QWRCB series offers a heavy-duty weatherproofing solution for NMO (New Motorola) style antenna mounts. These quarter-wave rain caps are designed to protect the critical contact points of your mobile mount when the antenna is removed. Engineered with a rugged brass body and finished in either bright or black chrome, these caps provide a superior seal against environmental hazards.
When properly installed, these rain caps achieve an IP66 rating, ensuring that your mounting hardware is fully protected against high-pressure water jets and dust. Whether you are managing a fleet of public safety vehicles or commercial trucks, these caps prevent corrosion and maintain signal integrity for your communication system.
Key Features
-
IP66 Rated Protection: Provides a laboratory-certified seal against dust and water intrusion when properly seated on the mount.
-
Dual Finish Options: Available in Bright Chrome (QWRC) or Black Chrome (QWRCB) to match your vehicle's aesthetic.
-
Premium Brass Construction: Manufactured from high-quality brass for long-term durability and resistance to mechanical stress.
-
Wide Temperature Range: Reliable performance in extreme climates, rated for operation from -40°C to +85°C.
-
Universal NMO Compatibility: Designed to fit all standard 1-1/8" - 18 thread NMO mobile mounts.
Compatibility
|
|
|
|
| QWRC-L |
QWRCB-L |
QWRC-6 |
QWRCB-6 |
| QWRC-BP |
Standard NMO Mounts |
Motorola Style Mounts |
Maxrad Style Mounts |
Specifications
-
Part Numbers: QWRC (Bright Chrome) / QWRCB (Black Chrome)
-
Mount Type: NMO
-
Material: Brass
-
IP Rating: IP66
-
Height: 12.10 mm
-
Weight: 35.5 g
-
Outdoor Rated: Yes
-
Operating Temp: -40°C to +85°C
Benefits
-
Prevents Costly Repairs: Safeguards the gold-plated pins and threads of your NMO mount from road salt, rain, and debris.
-
Versatile Bulk Options: Available in single units, 6-packs, or 100-piece bulk packs to suit fleet-wide maintenance needs.
-
Tactical and Professional Looks: The black chrome option is ideal for stealth or specialized vehicle deployments.
Warranty
1-year manufacturer's warranty.
