Description

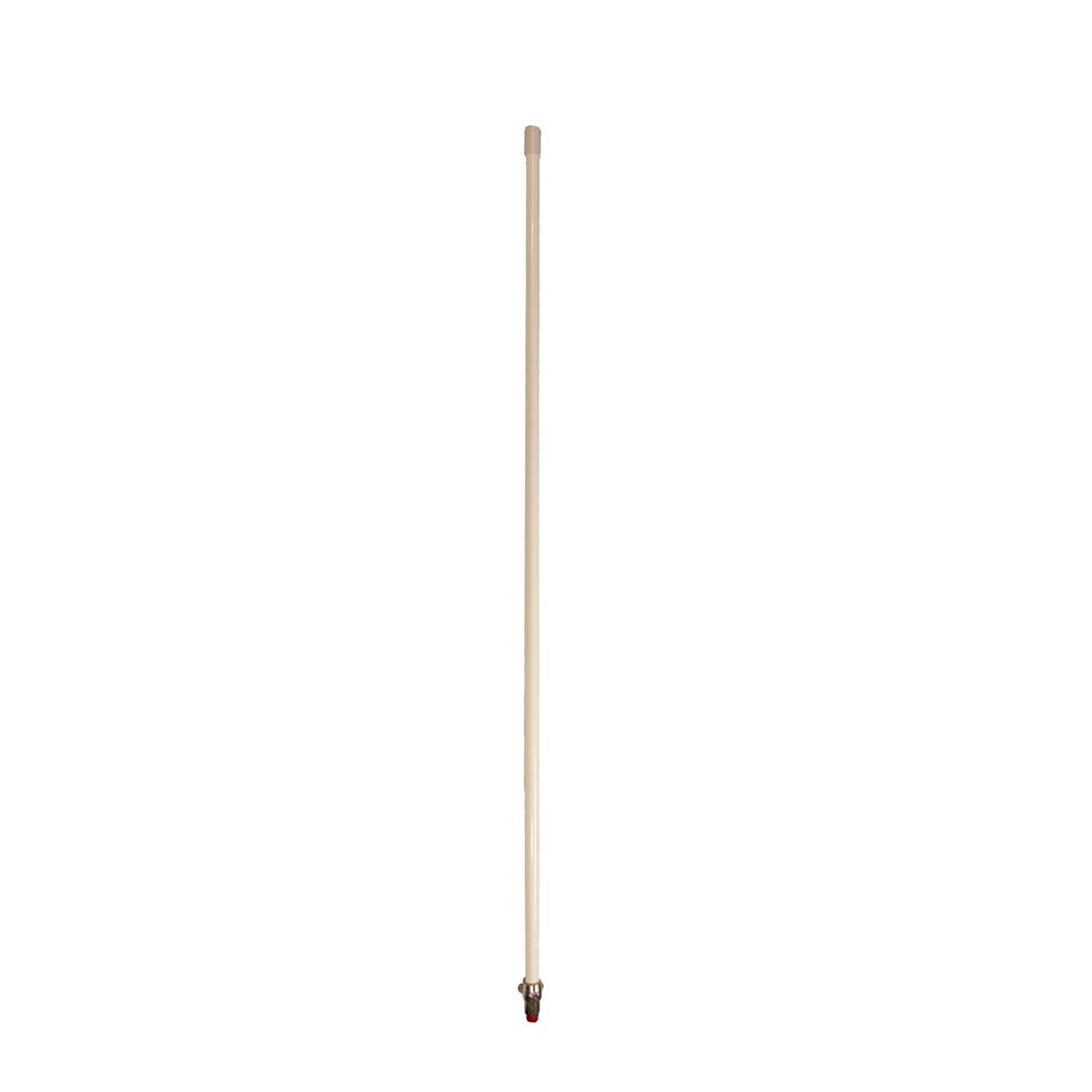

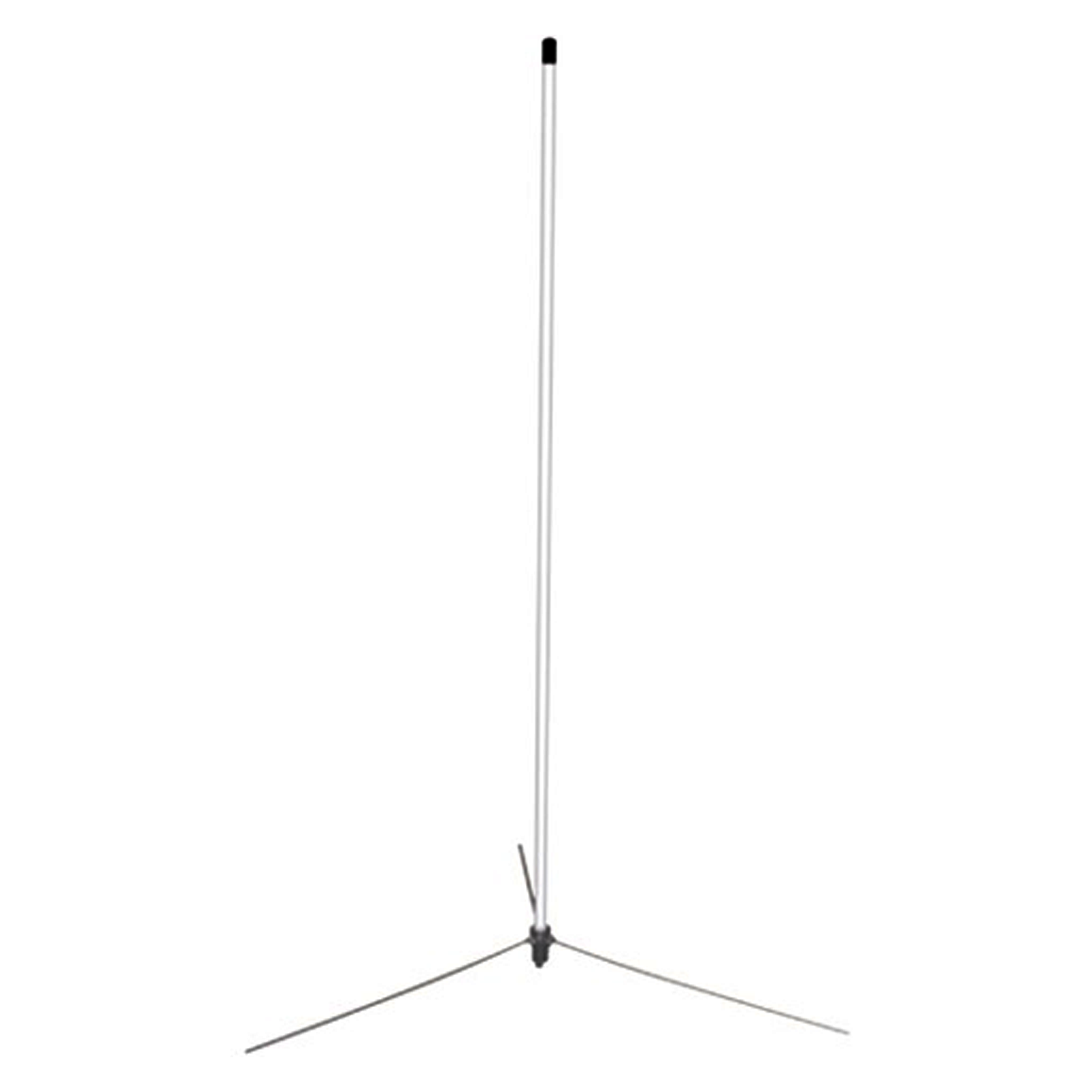

Tram Browning 1487
High Performance VHF Fiberglass Base/Repeater Antenna - Tunable
The Tram Browning 1487 is a high-performance VHF fiberglass base station and repeater antenna operating in the 134-184MHz frequency range. This tunable, single-section antenna stands 4' 10" tall and has a power rating of 200 Watts. It is designed to withstand maximum winds of 135 MPH.
Key Features
-
Wide VHF Range (134-184MHz): Tunable across the VHF band for flexible frequency operation.
-
High Gain (4.5 dBd): Provides enhanced signal strength for extended communication range.
-
Durable Fiberglass Construction: Single-section, 5/8 wave design with hermetically sealed radiator and coil for all-weather performance.
-
Lightning Protection: DC ground construction allows static dissipation for low noise ratio and maximum lightning protection.
-
Direct Termination: UHF (SO-239) connector for easy and secure connection.
-
Includes Cutting Chart: Facilitates user-defined frequency tuning.
Compatibility

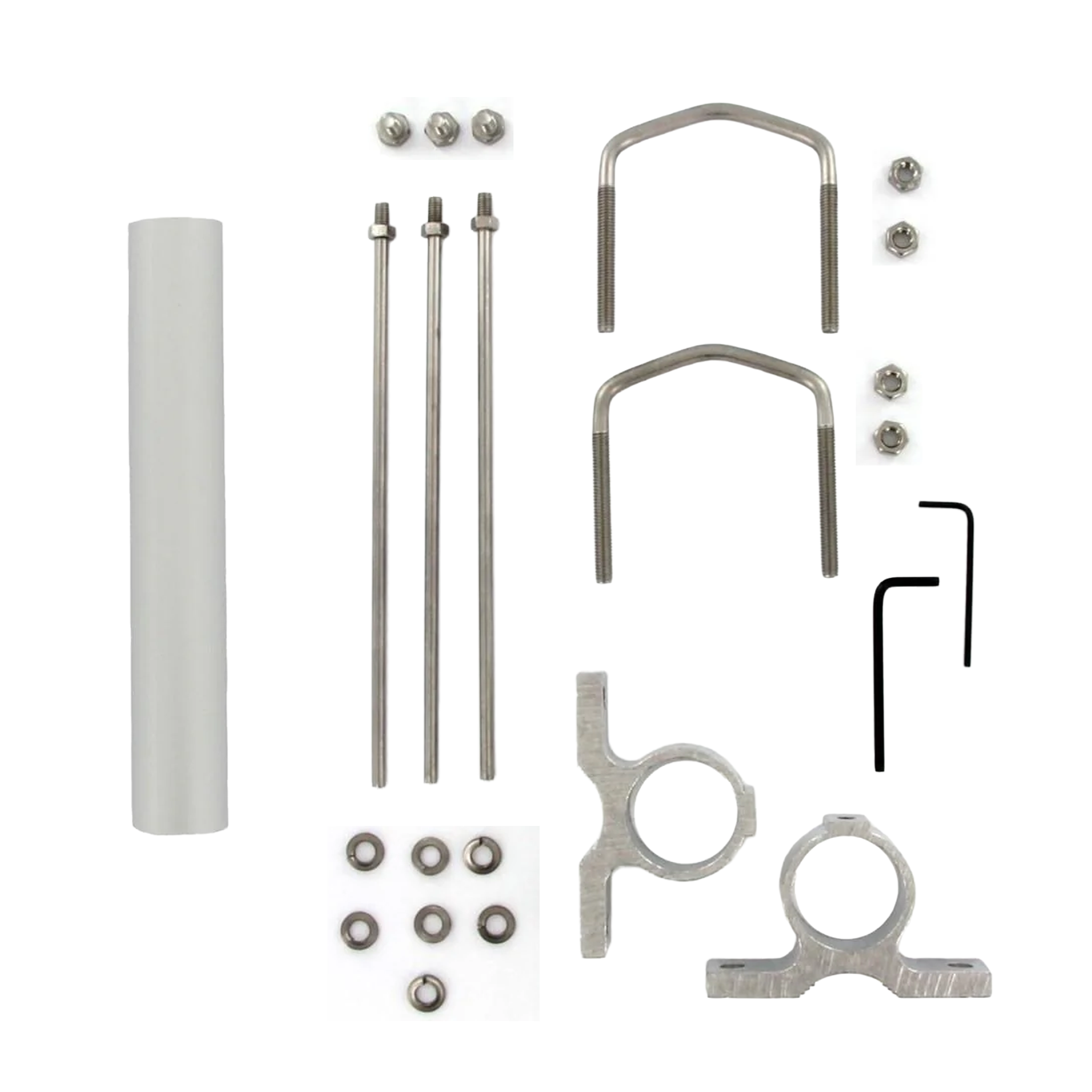

Designed for base station and repeater applications. Requires a mast diameter of 1 3/16" to 2 7/16" (30-62mm).
Benefits
-
Optimized Performance: Can be custom-tuned to your specific operating frequency.
-
Extended Range: High gain ensures greater communication coverage.
-
Durable and Weatherproof: Fiberglass construction protects against the elements for long-lasting use.
-
Reliable Signal: DC ground design minimizes static and enhances signal clarity.
Warranty
1-year manufacturer's warranty
