Description
Premium RF Coaxial Interconnect Adapter
Heavy-Duty Signal Transfer Link Between Commercial N-Type and BNC Terminations

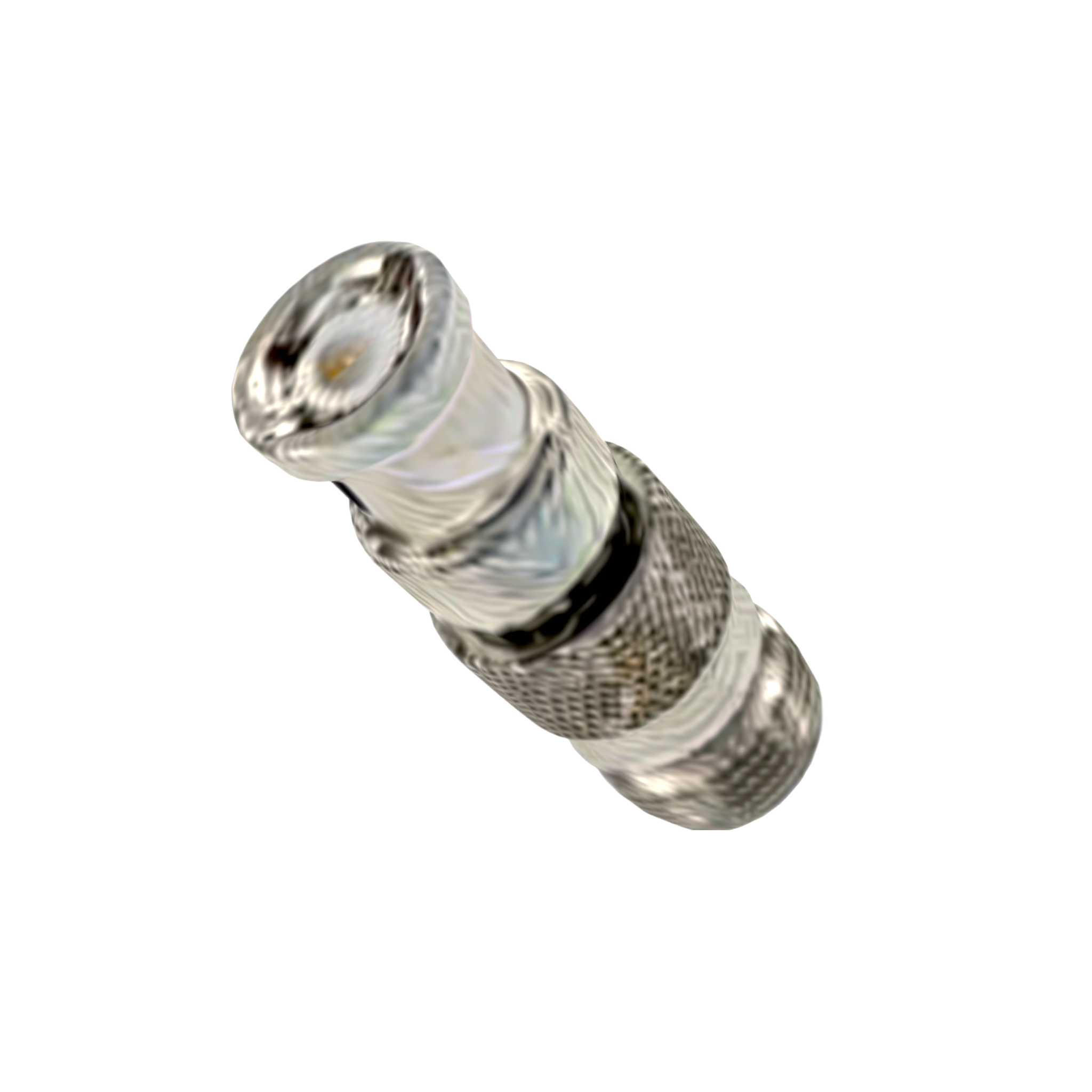

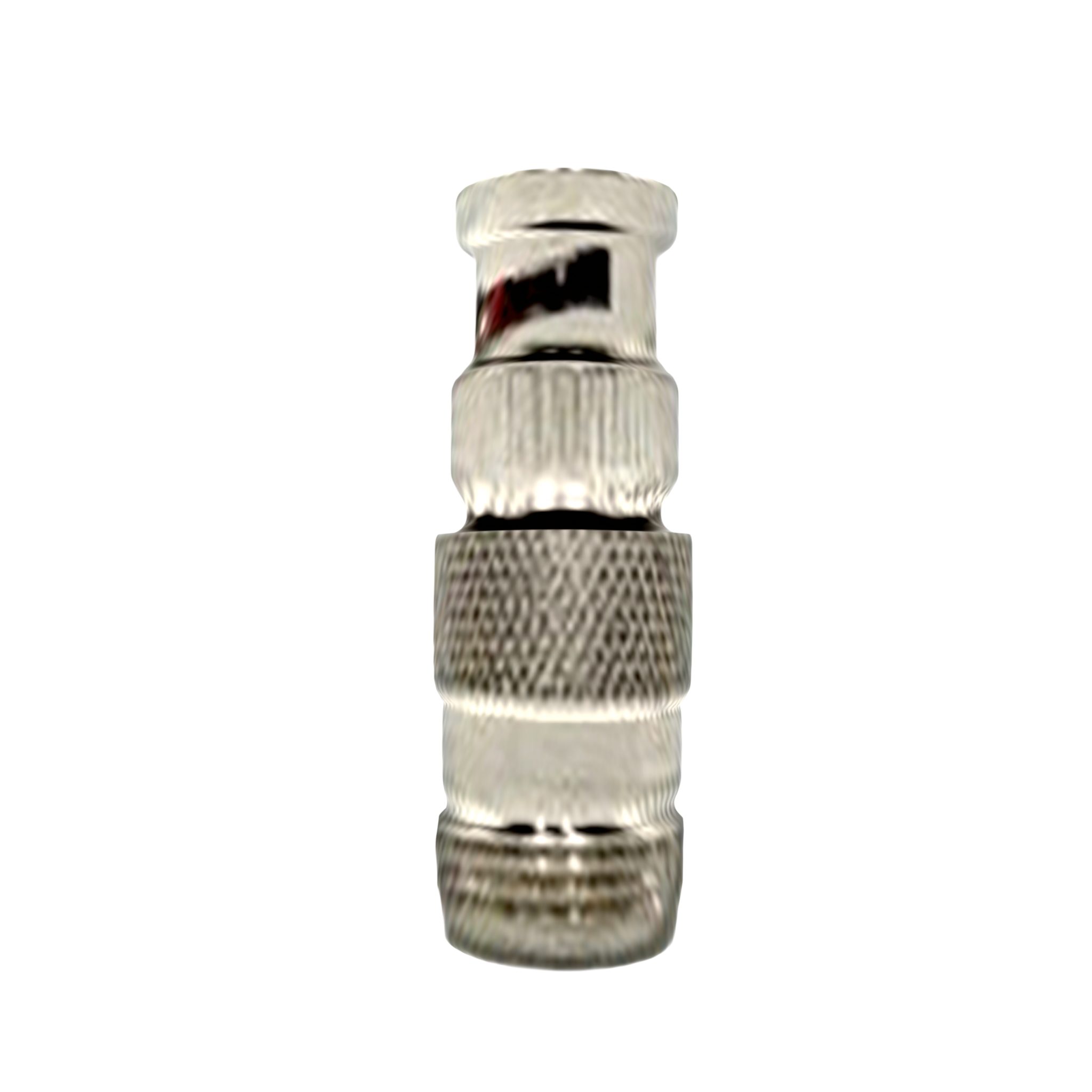

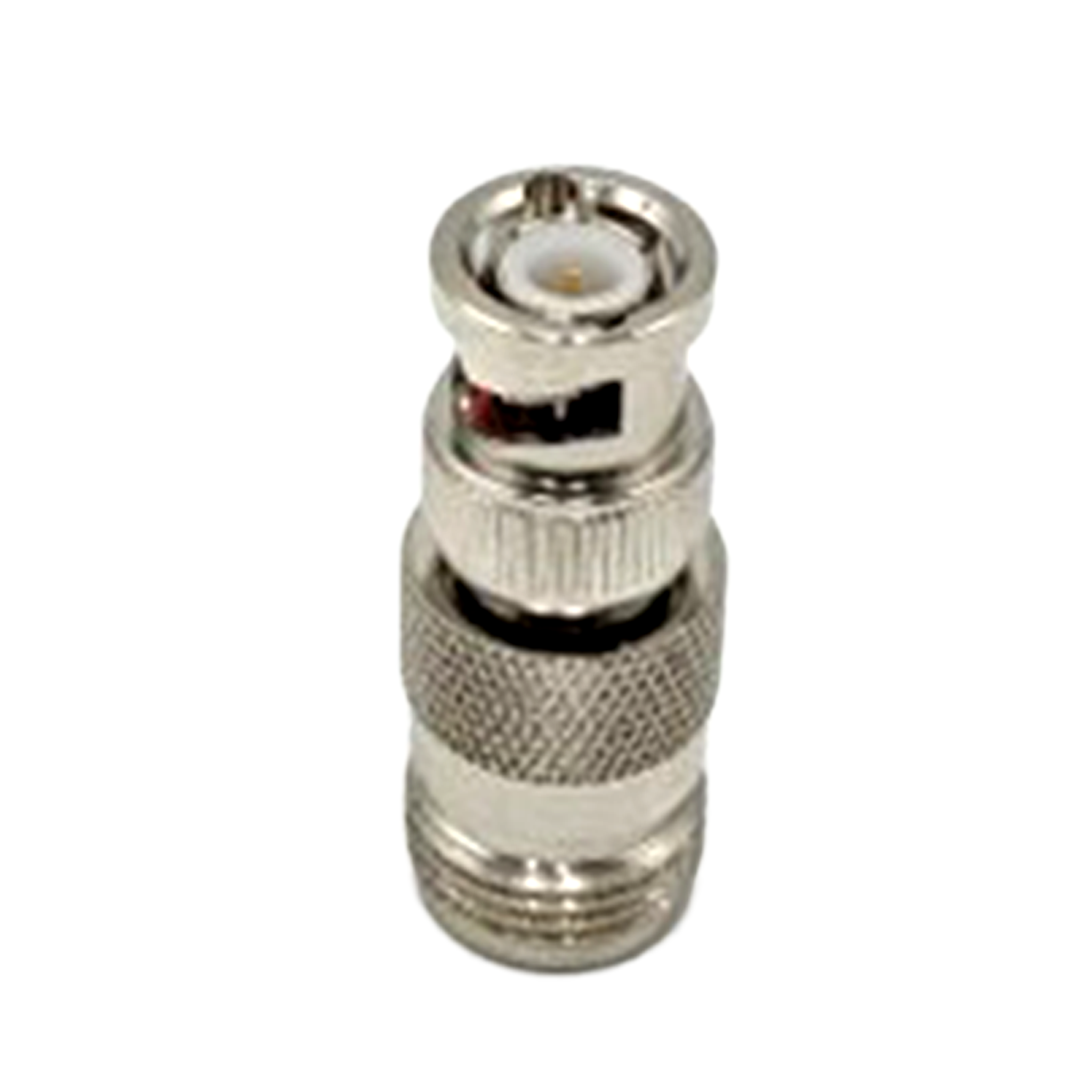

The Atlantic Radio N Female to BNC Male Adapter is a professional-grade RF coaxial component engineered to deliver a seamless, high-integrity mechanical and electrical transition between two completely distinct connector types. This heavy-duty adapter resolves immediate deployment mismatches by instantly converting an N-Type male termination into a standard BNC male interface. Engineered to maintain a constant 50-ohm characteristic impedance, this precision component is vital for maintaining low signal attenuation across critical communications links.
Built to handle demanding field operations, this coaxial adapter is ideal for radio test benches, marine antenna systems, base station distributions, and industrial wireless networking platforms. Incorporating this component into your RF setup eliminates the costly and time-consuming need to re-terminate existing feedlines or purchase completely new cable assemblies. The robust internal connection architecture guarantees uninterrupted energy transfer, shielding your sensitive receiver systems from signal drops and phase distortions.
The exterior shell features premium nickel-plated brass components that resist oxidation, environmental weathering, and mechanical wear over high-mating lifecycles. On the interior, precision-machined contact elements ensure a rock-solid physical link with your existing cable connectors, minimizing insertion loss. Whether deployed in a climate-controlled engineering lab or mounted inside an outdoor weatherized enclosure, this hardware adapter provides a dependable link for your critical fleet equipment.
Key Features & Benefits
-
Seamless Interface Bridging: Allows immediate connection between standard commercial N-Type cables and BNC-equipped radio or testing gear.
-
50-Ohm Impedance Matching: Formulated to preserve exact electrical continuity, minimizing voltage standing wave ratios (VSWR) and signal reflections.
-
Industrial-Grade Shell Protection: Fabricated with a heavy-duty nickel-plated brass body designed to survive continuous outdoor exposure and heavy handling.
-
Low Transmission Loss: High-grade internal metal structures ensure clean, crisp high-frequency energy transfer without degrading overall system sensitivity.
-
Knurled External Grip: Features an ergonomic textured outer ring to facilitate quick, hand-tightened installations without requiring specialized technician wrenches.
Specifications
| Attribute |
Details |
| Brand |
Atlantic Radio |
| Product Type |
RF Coaxial Adapter |
| Connector End A |
N-Type Female (Jack) |
| Connector End B |
BNC Male (Plug) |
| Characteristic Impedance |
50 Ohm |
| Body Plating |
Corrosion-Resistant Nickel |
| Thread Structure |
Standard Commercial Pitch |
Recommended Accessories
Frequently Asked Questions
What is the primary purpose of this RF coaxial adapter?
This hardware component allows you to bridge a physical connection mismatch between two different RF cable terminations. It takes an incoming cable terminating in an N-Type Male plug and converts the interface directly into a BNC Male plug to fit corresponding equipment chassis jacks.
Will using this adapter cause a noticeable drop in my radio signal?
No, this adapter is precision-machined to strict industrial tolerances using high-conductivity internal paths. It maintains a consistent 50-ohm impedance match across standard operating bands, ensuring insertion loss remains negligible and performance is uncompromised.
Is this connector assembly safe to use in outdoor weather environments?
Yes, the exterior chassis is manufactured from high-durability nickel-plated brass that inherently resists rust and continuous environmental oxidation. For permanent outdoor mast installations, we always recommend sealing the final connection points with weatherproofing tape.
Do I need specialized crimping or soldering tools to install this part?
No tools are required. This adapter features a fully integrated, standalone design. You simply screw your existing N-Type Male cable end directly into the threaded female side of the adapter, and then lock the BNC Male twist-lock collar onto your host transceiver or test set.
Can this unit handle high-wattage base station radio transmissions?
Yes, the industrial-grade internal insulation and solid brass physical body allow this component to safely manage the RF power levels typically output by standard commercial two-way mobile radios, base station systems, and signal repeaters.
Warranty
1-year manufacturer's warranty.
