Description

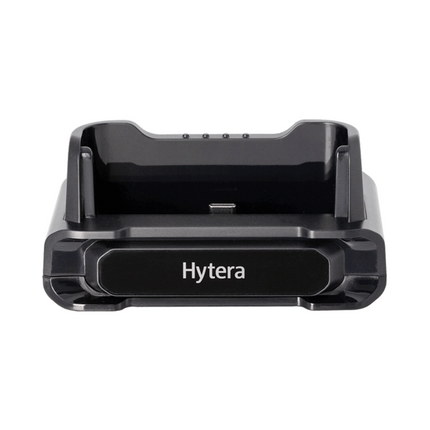

Dual-Pocket Rapid Desktop Charger for Hytera PNC560 PoC Series
Genuine Hytera original dual-slot desktop rapid charging cradle delivering up to 3000 mA charging current to power a PNC560 PoC handheld and spare battery simultaneously.
The Hytera CH20L19 is an authentic original equipment manufacturer (OEM) commercial desktop charging dock engineered specifically for the Hytera PNC560 and PNC560S 5G Push-to-Talk over Cellular (PoC) smart mobile computers. Designed for logistics management, port operations, security details, emergency response teams, and field service fleets, this compact desktop dock ensures uninterrupted communication across demanding multi-shift schedules. Sourced directly from our verified inventory of Hytera Two-Way Radio Chargers, the CH20L19 eliminates mid-shift downtime by charging your active device and a spare backup battery pack side-by-side.
Featuring an ultra-compact desktop footprint of just 3.9 x 3.0 x 1.9 inches, the Hytera CH20L19 fits cleanly on crowded dispatch desks, workstation counters, and equipment lockers. The smart dual-pocket design features a front terminal bay capable of supplying up to 3000 mA (3A) fast charging to the docked PNC560 mobile computer, while the dedicated rear slot charges a standalone BP4901 battery at up to 2000 mA (2A). Certified to international safety and electromagnetic protocols under IEC Standards and FCC Standards, the cradle incorporates intelligent internal microprocessing to regulate voltage curves, prevent cell overcharging, and safeguard against thermal runaway.
Key Features & Benefits
-
Simultaneous Dual-Pocket Charging: Charges one PNC560 PoC handheld and one standalone BP4901 spare battery at the same time from a single power source.
-
High-Speed 3000 mA Output: Supplies up to 3000 mA rapid charging current to the primary terminal slot, dramatically reducing recharge cycle downtime.
-
Dedicated Rear Battery Slot: Replenishes an extra battery at up to 2000 mA, maintaining a ready-to-deploy rotation pool for continuous 24/7 fleet duty.
-
Ultra-Compact Desktop Footprint: Measures only 3.9 x 3.0 x 1.9 inches, keeping office desks, staging tables, and retail stations clutter-free.
-
Smart Thermal & Voltage Protection: Intelligent internal circuitry actively monitors battery temperature, preventing overcharging, short-circuits, and cell degradation.
-
High-Efficiency USB-C Power Input: Features variable input voltage negotiation (5V/3A, 9V/2A, 12V/1.5A) via modern USB Type-C interface.
-
Weighted Anti-Slip Base: Heavy-duty molded casing with rubberized friction feet prevents sliding or tipping during rapid docking and undocking.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
CH20L19 |
| Product Type |
Dual-Pocket Desktop Rapid Charging Cradle |
| Compatible Devices |
Hytera PNC560 / PNC560S PoC Mobile Computers |
| Compatible Standalone Battery |
Hytera BP4901 Lithium Polymer Battery (5040 mAh) |
| Front Terminal Max Charging Current |
3000 mA (3.0 A) |
| Rear Battery Max Charging Current |
2000 mA (2.0 A) |
| Input Power Ratings |
5V DC / 3.0A, 9V DC / 2.0A, 12V DC / 1.5A |
| Power Connection |
USB Type-C Female Port |
| Dimensions (L x W x H) |
3.9 x 3.0 x 1.9 in (100.0 x 76.0 x 47.0 mm) |
| Weight |
Approx. 0.20 lbs (90 g) |
| Operating Temperature |
0°C to +45°C (32°F to 113°F) |
| Certifications |
FCC Part 15 Class B, CE, RoHS |
| Housing Material |
Impact-Resistant Textured ABS Polymer |
| Color Finish |
Matte Black Commercial Finish |
Compatibility
Compatible Hytera PoC Handheld Devices
Compatible Hytera Standalone Batteries
Recommended Accessories & Power Hardware
Power Supplies & Cabling
Batteries & Audio Peripherals
More Resources
Frequently Asked Questions
Does the Hytera CH20L19 charge the radio and a spare battery at the same time?
Yes. The CH20L19 features an intelligent dual-pocket architecture. The front cradle charges the PNC560 handheld computer (with its battery installed), while the rear pocket independently charges a standalone BP4901 spare battery simultaneously.
Does this charging dock include the AC power adapter?
No. The CH20L19 is sold as the standalone dual-pocket desktop dock. It requires a USB Type-C high-output power adapter, such as the genuine Hytera PS3007 power supply paired with the PC158 USB-C cable, which comes standard in PNC560 device kits or can be purchased separately.
What is the maximum charging speed of the CH20L19?
The primary terminal charging pocket provides a high-speed charging current of up to 3000 mA (3A), while the secondary standalone battery pocket supplies up to 2000 mA (2A), delivering rapid replenishment to high-capacity 5040 mAh lithium polymer cells.
Which devices fit into the CH20L19 desktop cradle?
The dock is contoured exclusively for Hytera’s flagship PoC series: the Hytera PNC560 and PNC560S 5G rugged smart devices, as well as the BP4901 battery pack. It does not fit standard DMR radios such as the BD, PD, or HP series.
Can I charge the battery while it is detached from the radio?
Yes. The rear slot is specifically molded with dedicated battery guide rails and direct electrical contact pins to charge loose BP4901 batteries without requiring the radio terminal.
Warranty
1-year manufacturer’s replacement warranty.
