Description

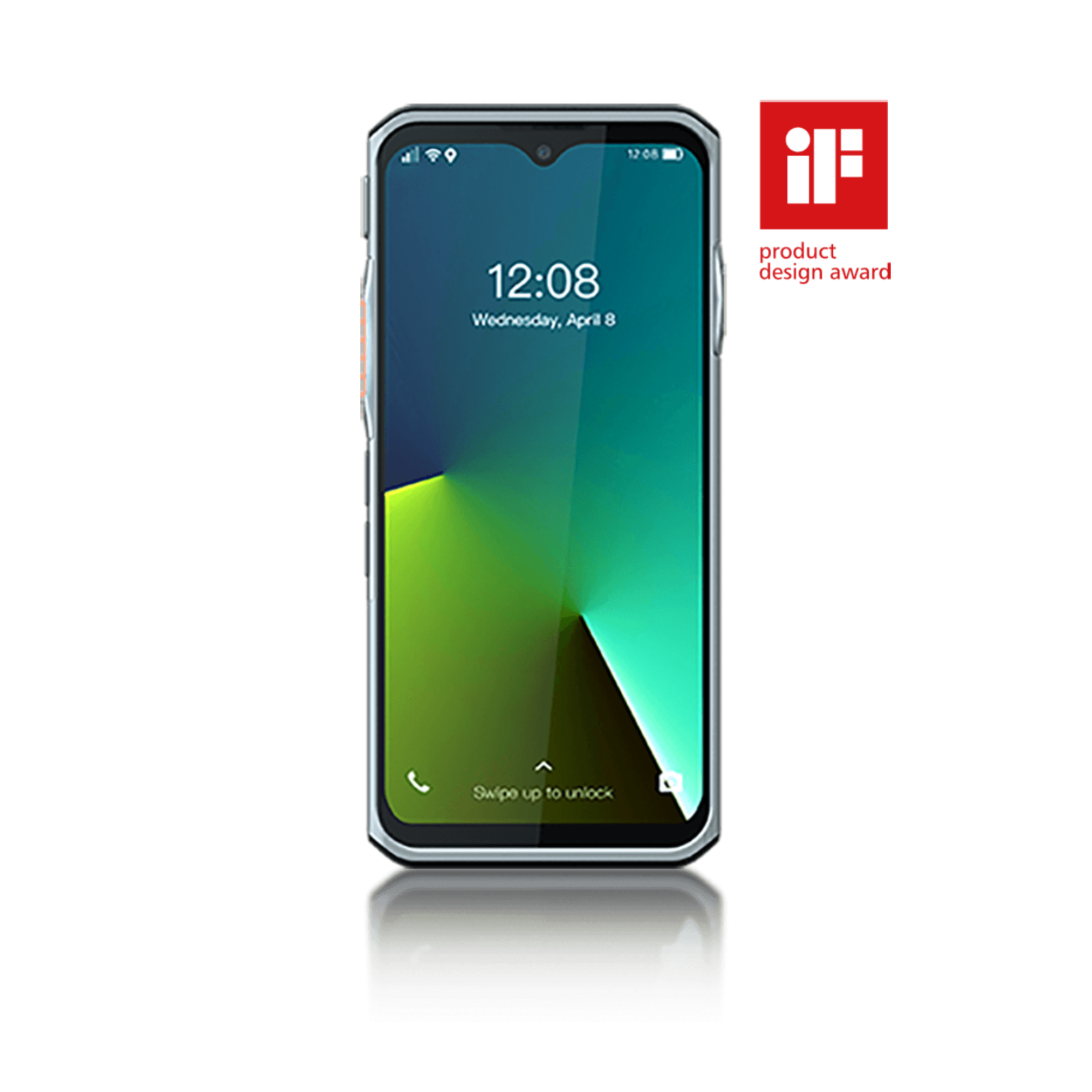

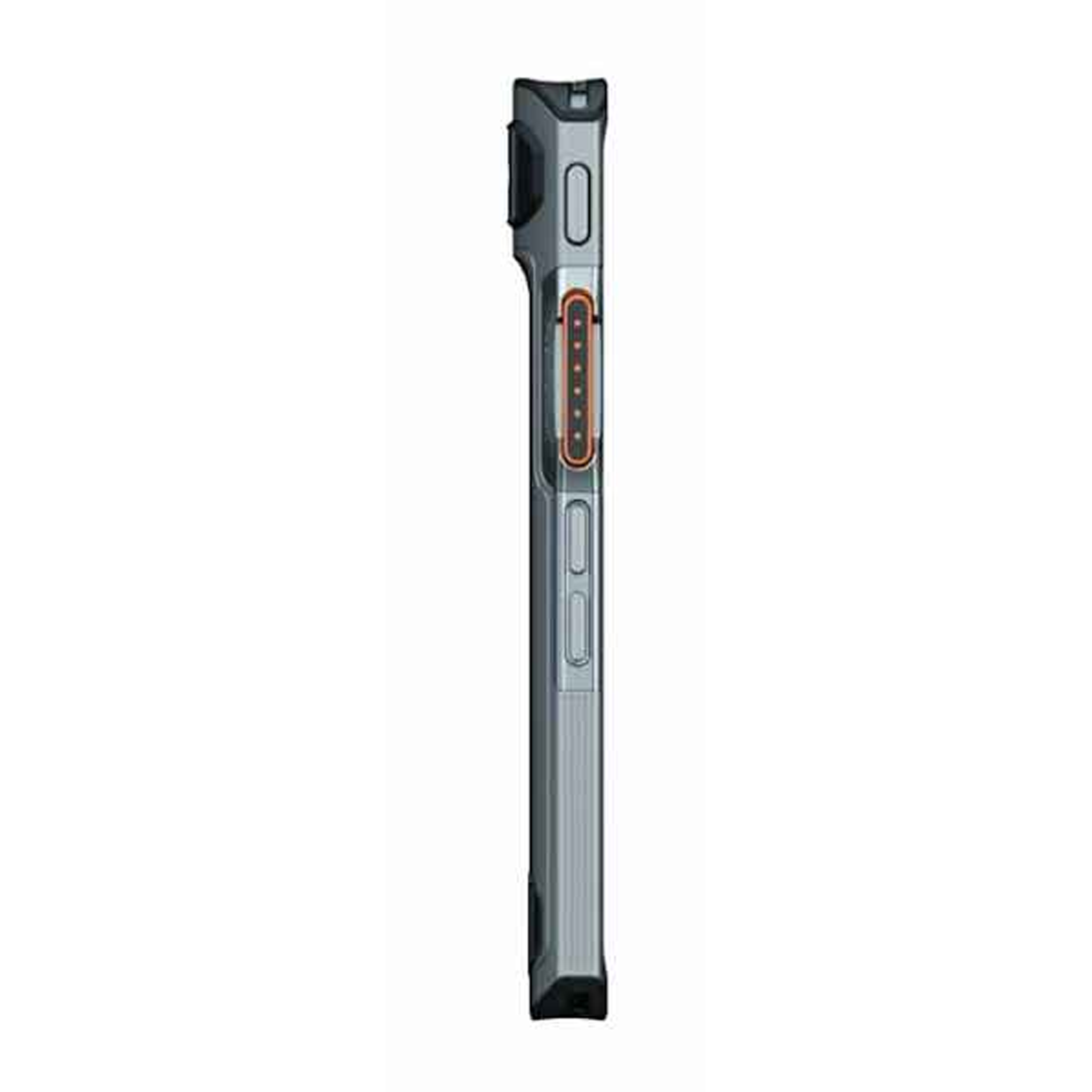

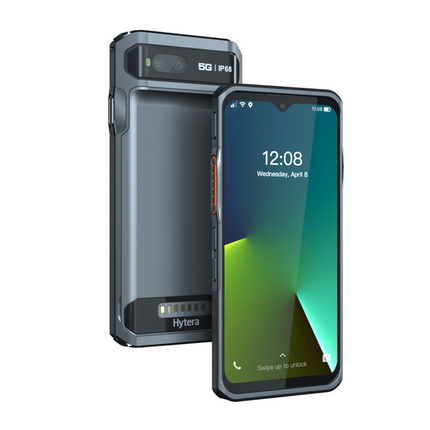

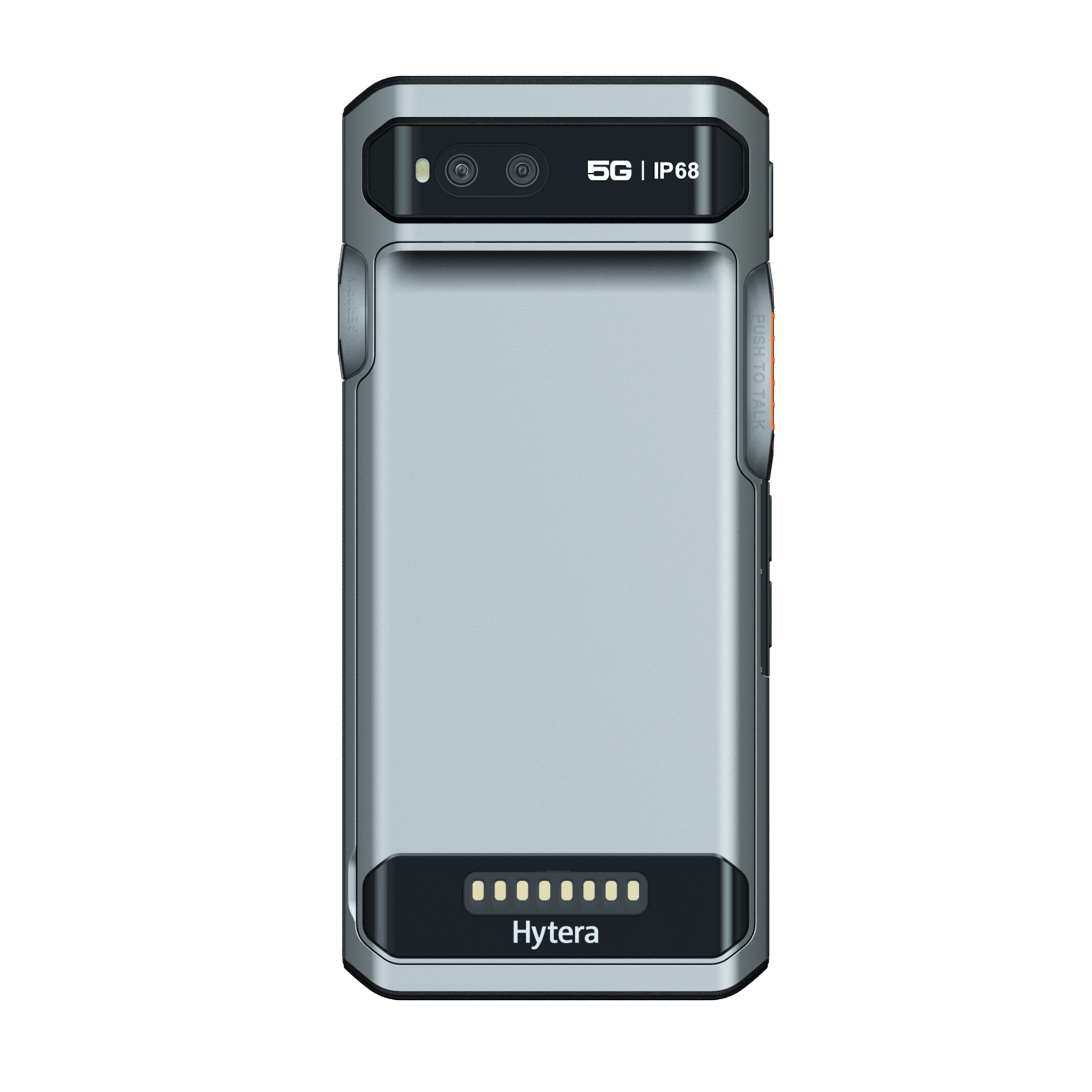

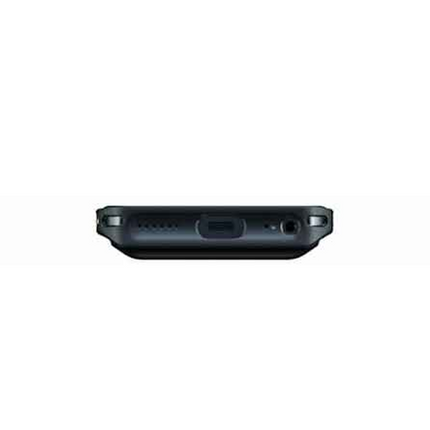

Hytera PNC560 Series
5G XSecure Rugged PoC Smart Device
The Ultimate Fusion of Smartphone and Mission-Critical Radio
The Hytera PNC560 Series represents the next generation of professional communication, merging the high-speed data capabilities of a 5G smartphone with the rugged reliability of a Push-to-Talk over Cellular (PoC) radio. Designed for mission-critical operations, these devices provide lightning-fast 5G connectivity and ultra-low latency via MCPTT (Mission-Critical Push-to-Talk) services. Whether managing a large-scale logistics fleet or coordinating emergency response, the PNC560 series ensures your team stays connected with high-definition voice, video, and data—all within a single, hardened device.
The series is available in two distinct variants to meet different operational needs. The PNC560 is the fully-featured flagship, equipped with an integrated high-speed infrared barcode scanner for intensive data collection in warehouses and medical facilities. The PNC560S is the economical alternative, offering the same 5G power and rugged durability but without the hardware scanner, providing a cost-effective solution for teams focused primarily on voice and video communication.
Model Variants
| Feature |
PNC560 (Flagship) |
PNC560S (Economical) |
| Infrared Scanner |
Integrated 1D/2D Scanner |
Not Included |
| Best For |
Inventory, Logistics, Healthcare |
Field Service, Security, Transit |
| Connectivity |
5G / LTE / Wi-Fi |
5G / LTE / Wi-Fi |
Key Features
-
Dual-Platform Functionality: Operates as both a dedicated PoC radio and a full-featured Android 12 smartphone with a massive 6.3-inch FHD+ display.
-
XSecure Data Protection: Features multi-layer hardware and software encryption, secure boot, and tamper-proof mechanisms to safeguard sensitive professional data.
-
Loud and Clear Audio: Dual 3W speakers combined with AI-based noise suppression ensure crystal-clear communication in noisy industrial environments.
-
High-Resolution Triple Cameras: Includes a 48MP main lens with stabilization, telephoto, and front-facing cameras for high-quality field documentation.
-
Extreme Durability: IP68-rated and MIL-STD-810H compliant, designed to survive 1.5-meter drops and full submersion in water.
-
Glove and Wet-Touch Screen: The Corning Gorilla Glass display is fully operational even with work gloves or in heavy rain.
Specifications
-
Operating System: Android 12
-
Display: 6.3-inch FHD+ (2340 x 1080)
-
Battery: 5,040 mAh Li-Ion (Detachable)
-
Memory: 4GB RAM + 64GB ROM (Expandable via MicroSD)
-
SIM Slots: Dual Nano-SIM
-
Bluetooth/NFC: Bluetooth 5.0 and NFC supported
-
Operating Temp: -20°C to +60°C
Benefits
-
Reduced Hardware Costs: Consolidates a scanner, camera, smartphone, and radio into one device, reducing the number of assets a worker needs to carry.
-
Uninterrupted Connectivity: Seamlessly switches between 5G cellular and Wi-Fi networks to prevent communication gaps.
-
Mission-Critical Priority: Supports 3GPP MCX services, ensuring public safety and first responders receive priority network access.
Package Includes
- PNC560 or PNC560S Handset
- BP4901 Li-Ion Polymer Battery
- PS3007 Power Adapter
- PC158 USB-C Charging Cable
- POA200 Tempered Glass Screen Protector
More Resources
Hytera PNC560 Specs and Accessories
Warranty
2-year manufacturer's warranty.
