Description
Mission-Critical P25 Handheld Transceivers for Public Safety and Enterprise Fleets
Smallest and lightest of its class — P25 Conventional and Phase 1/2 Trunking with IP68 protection, GPS, Bluetooth, and 1300mW audio.

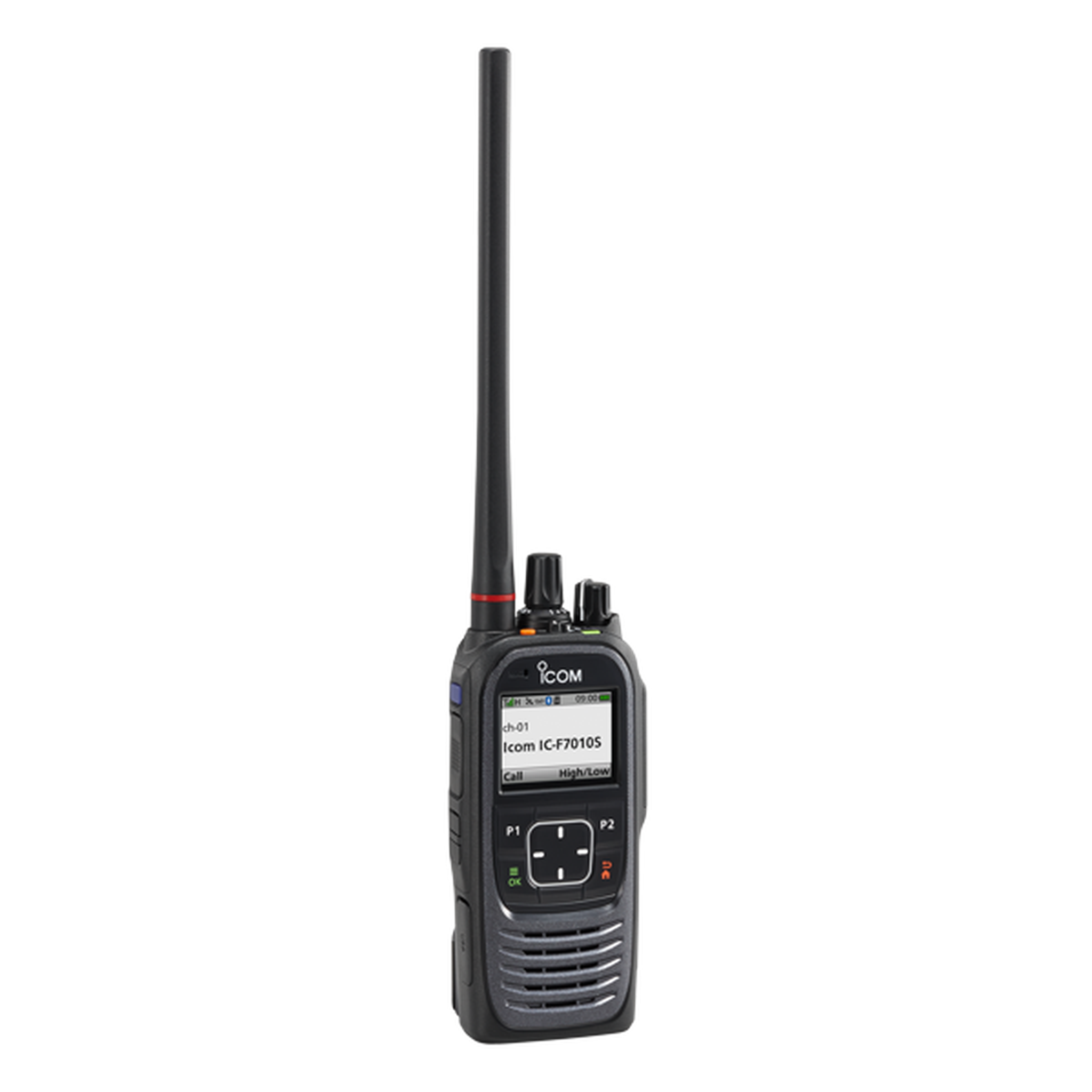

The Icom F7010 / F7020 / F7040 Series are small, lightweight, DHS P25 CAP certified (TIA-102) compliant portables engineered for law enforcement, fire departments, emergency medical services, and government utilities. Operating natively on P25 Phase 1 conventional networks, each radio can be upgraded to Phase 1 trunking and Phase 2 trunking via license key — no hardware swap required. Built to a remarkably slim 38.2mm (1.5") profile with the BP-284 battery, the F7000 series delivers uncompromising durability and multi-agency interoperability in the smallest possible package.
Every transceiver features a high-resolution color LCD with Day and Night display modes, Icom's custom high-power-handling speaker delivering 1300mW of intelligible audio, an integrated GPS receiver, built-in Bluetooth, and a microSD card slot for up to 500 hours of voice recording. Optional FIPS 140-3 compliant AES encryption (UT-125FIPS) and Over-the-Air Rekeying (OTAR) are available for agencies requiring the highest levels of communications security.
Key Features & Benefits
P25 Phase 1 & Phase 2 Trunking Upgradeable: Ships P25 Phase 1 conventional-ready; Phase 1 trunking (ISL-P25TR) and Phase 2 trunking (ISL-P25P2 + ISL-P25TR) unlocked via license key.
DHS P25 CAP Certified (TIA-102): Compliant for multi-vendor interoperability across federal, state, and local public safety networks.
IP68 Waterproof & MIL-STD-810G: Rated for 1 meter depth for 1 hour; tested for shock, vibration, and temperature extremes.
1300mW High-Power Speaker: Icom's custom speaker chamber with TX/RX active noise canceller and audio equalizer for clear, intelligible audio in high-noise environments.
Integrated GPS, Bluetooth & microSD: Built-in GPS for P25 packet data position reporting, Bluetooth for wireless audio and OTA programming, and microSD for up to 500 hours of voice recording (32GB card, user supplied).
Optional FIPS 140-3 AES Encryption: UT-125FIPS encryption unit with OTAR support; stores up to 64 AES/DES keys and 32 Common Key References (CKR).
Flat Sheet Keypad: Large-button, dust-resistant keypad available in Full DTMF (T models) or Simple (S models) configurations for gloved-hand operation.
1024 Channels / 128 Zones: High channel capacity with 16-position rotary selector, Quick A/B switch, and front panel programming option (ISL-P25FP license key required).
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Core Product Line |
F7010 / F7020 / F7040 Series |
| Frequency Versions |
VHF (136–174 MHz), UHF (380–470 MHz), UHF (450–512 MHz), UHF (450–520 MHz), 700/800 MHz |
| Channel Capacity |
1024 Channels / 128 Zones |
| Audio Speaker Output |
1300mW |
| Display |
High-Resolution Color LCD (Day & Night Mode) |
| Dimensions (Slim Profile) |
38.2mm (1.5") with BP-284 battery |
| Environmental Rating |
MIL-STD-810G (Shock, Vibration, Temperature) |
| IP Rating |
IP68 (1m depth / 1 hour) |
| Operating Modes |
P25 Phase 1 Conventional, P25 Phase 1 Trunking*, P25 Phase 2 Trunking*, Analog, Analog/Digital Mixed |
| Connectivity |
Built-In Bluetooth, Integrated GPS, 14-Pin Accessory Connector, USB |
| Storage |
MicroSD Card Slot (Up to 32GB, user supplied) |
| Encryption |
Optional UT-125FIPS (FIPS 140-3 AES/DES) or UT-134 (Non-FIPS AES/DES); ARC4 40-bit software encryption |
| Certifications |
DHS P25 CAP Certified (TIA-102) |
* License key required. See Operating Modes section below.
Operating Modes & License Keys
| Mode / Feature |
License Key Required |
| P25 Phase 1 Conventional |
Standard (no key required) |
| P25 Phase 1 Trunking |
ISL-P25TR |
| P25 Phase 2 Trunking |
ISL-P25P2 + ISL-P25TR |
| AES Encryption |
ISL-P25AES (+ UT-134 or UT-125FIPS hardware) |
| ARC4 Encryption |
ISL-P25ARC4 + ISL-P25AES (+ UT-134 or UT-125FIPS hardware) |
| GPS / P25 Packet Data |
ISL-P25DS |
| P25 Voting Scan |
ISL-P25VS |
| Front Panel Programming |
ISL-P25FP |
| 25 kHz Operation |
ISL-P25W |
Feature Details
Digital Functions (Voice & Data)
Individual and group calls with Unit ID and talkgroup display on receive
Short data messaging (up to 100 characters)
GPS position and transparent data transmission (ISL-P25DS required)
Over-the-Air Programming (OTAP) — conventional mode (CS-OTPM2 software required)
Status update, status query, call alert, phone number list, call log
Analog Functions
Security & Safety
Optional UT-125FIPS (FIPS 140-3) or UT-134 (non-FIPS) AES/DES encryption unit — stores 64 AES/DES keys and 32 CKR
ARC4 40-bit software encryption (8 keys)
Over-the-Air Rekeying (OTAR)
LLA (P25 Radio Authentication) — Unit and Mutual Authentication
Radio stun / kill / revive, remote monitor, radio check
Emergency key, man down, lone worker, motion/stationary detection
Tactical group regroup, power-on password
Advanced System Key (ASK) — protects against unauthorized programming
Analog inversion voice scrambler (16 codes)
Scan Functions
Priority scan, talkgroup scan
P25 voting scan for optimal repeater site selection (ISL-P25VS required)
Voice & Audio Functions
Voice announcement (channel number and zone)
VOX for hands-free operation
Voice recording/playback to microSD (up to 500 hours with 32GB card)
TX/RX active noise canceller and audio equalizer (flat, high/mid/low boost, low cut)
AF volume equalizing with high-pass filter for intelligible audio at high volume
Adjustable analog and digital volume levels
Hardware Features
Built-in Bluetooth for wireless audio, data, and OTA radio programming
Third-party Bluetooth headset support (e.g., 3M Peltor WS 5)
14-pin accessory connector and USB connector (data transfer / card reader mode)
Built-in GPS with position screen and internal clock with auto time adjustment
Programmable vibration alert and ringer beep
Optional BC-225 intelligent charger with RS-BC225 reader software for battery life cycle management
Multi-language menu support (French, Spanish, Russian, Traditional Chinese, and more)
DTMF autodial, fast resume from power save mode
Model Variants & SKU Configurations
| Model |
SKU |
Band |
Frequency |
Keypad |
| F7010T |
F7010T-23-USA |
VHF |
136–174 MHz |
Full DTMF Keypad |
| F7010S |
F7010S-13-USA |
VHF |
136–174 MHz |
Simple Keypad |
| F7020T |
F7020T-41-USA |
UHF |
450–512 MHz |
Full DTMF Keypad |
| F7020S |
F7020S-51-USA |
UHF |
380–470 MHz |
Simple Keypad |
| F7020S |
F7020S-71-USA |
UHF |
450–512 MHz |
Simple Keypad |
| F7040S |
F7040S-31-USA |
700/800 MHz |
769–869 MHz |
Simple Keypad |
| F7040T |
F7040T-31-USA |
700/800 MHz |
769–869 MHz |
Full DTMF Keypad |
What's Included
Optional Accessories
Battery Packs
Icom BP-284 Li-Ion Battery (3210mAh, IP68) - High-capacity rechargeable lithium-ion battery. Charges in approx. 4.5 hours.
Icom BP-283 Li-Ion Battery (2010mAh, IP68) - Standard-capacity battery. Charges in approx. 2.5 hours. (Contact us for availability.)
Battery Chargers
Icom BC-219N Desktop Charger - Single-unit desktop charger. Charges BP-283 in 2.8 hrs / BP-284 in 4.5 hrs (approx.).
Icom BC-227 Compact Desktop Charger - Compact desktop charger. Charges BP-283 in 2.7 hrs / BP-284 in 4.3 hrs.
Icom BC-225 Intelligent Charger - Shows charging information via LED. Charges BP-283 in 2.5 hrs / BP-284 in 4.5 hrs. Compatible with RS-BC225 reader software for battery life cycle management.
Icom BC-214 Six-Unit Multi-Charger - Charges up to 6 BP-283/BP-284 batteries simultaneously. Charges BP-283 in 2.8 hrs / BP-284 in 4.5 hrs (approx.).
Icom SS BC62 Mobile Rapid Rate Charger - Vehicle-mounted rapid charger for F3400 and F7010 series radios.
Speaker Microphones
Icom HM-222H Waterproof Speaker Microphone (IP68) - Speaker microphone with emergency button and 3.5mm earphone jack. 2.5W high-capacity speaker. IP68 rated.
Headsets & PTT
Icom VS-3 Bluetooth Headset - Wireless Bluetooth headset for hands-free operation.
Icom HS-94 Earphone Headset (VS-4MC PTT cable required)
Icom HS-95 Behind-the-Head Headset (VS-4MC PTT cable required)
Icom HS-97 Throat Microphone (VS-4MC PTT cable required)
Icom VS-4MC PTT Switch Cable (required for HS-94, HS-95, HS-97)
Belt Clips & Carrying
Icom MB-133 Alligator Belt Clip - Standard alligator-style belt clip (same as supplied).
Icom MB-136 Swivel Belt Clip - Swivel-style belt clip for flexible carry positioning.
Icom MB-96N Swivel Belt Hanger
Icom MB-96F Fixed Belt Hanger (for use with MB-133)
Icom MB-96FL Long Fixed Belt Hanger (for use with MB-133)
Icom LC-184 Carrying Case
Encryption Units
Icom UT-125FIPS AES/DES Encryption Unit (FIPS 140-3 pending approval)
Icom UT-134 AES/DES Encryption Unit (non-FIPS)
Cables & Adapters
Icom OPC-2338 14-Pin USB Programming Cable - USB to 14-pin programming and data cable.
Icom OPC-2362 Zone Copy Cable (Handheld to Mobile) - Zone copy cable for cloning between handheld and mobile radios.
Icom OPC-1870 Zone Copy Cable (Handheld to Handheld)
Icom CP-23L Vehicle Charger Cable (for use with BC-219N or BC-227)
Icom OPC-515L DC Power Cable (for use with BC-219N, BC-225, or BC-227)
Icom OPC-656 DC Power Cable (for use with BC-214)
Icom KVL125 DES/AES Keyloader + OPC-IAKVL14 Keyloading Cable
Icom OPC-1871 DES/AES Keyloader
Icom AD-118 ACC Adapter (for Hirose plug accessories)
Software & Activation Keys
Icom CS-F7500 Programming Software
Icom CS-F7500ASK P25 Advanced System Key Manager Software (trunking system owners only)
Icom CS-OTPM2 OTAP Manager Software
Icom CS-KLD250P Encryption Key Loader Software for F7010
ISL-P25VS — P25 Conventional Voting Scan Upgrade Key
ISL-P25TR — P25 Phase 1 Trunking Upgrade Key
ISL-P25P2 — P25 Phase 2 Trunking Upgrade Key
ISL-P25DS — P25 Packet Data Service (GPS & Transparent Data) Upgrade Key
ISL-P25AES — AES Encryption Upgrade Key (UT-134 or UT-125FIPS required)
ISL-P25ARC4 — ARC4 Encryption Upgrade Key (ISL-P25AES + UT-134 or UT-125FIPS also required)
ISL-P25FP — Front Panel Programming Key
ISL-P25W — 25 kHz Activation Key
IASKF7P — P25 Advanced System Owner Master Key (trunking system owners only)
IASKF7S — P25 Accessory Advanced System Key (required for trunking programming)
Antennas
FA-S81V — VHF 136–150 MHz | FA-S82V — VHF 148–162 MHz | FA-S83V — VHF 160–174 MHz
FA-S81U — UHF 380–430 MHz | FA-S82U — UHF 430–480 MHz | FA-S83U — UHF 470–520 MHz
FA-S100U — 700/800 MHz
FA-S67VC — Cut-Type VHF 136–174 MHz | FA-S76UC — Cut-Type UHF 380–520 MHz
FA-S81VS — Stubby VHF 136–150 MHz | FA-S82VS — Stubby VHF 148–162 MHz | FA-S83VS — Stubby VHF 160–174 MHz
FA-S81US — Stubby UHF 400–450 MHz | FA-S82US — Stubby UHF 450–490 MHz
Icom FA-SC61UC UHF (380–520 MHz) Flexible Antenna
Recommended Accessories
Charging
Icom BC219N Desktop Rapid Charger - Single-pocket battery dock engineered to quickly replenish high-capacity lithium-ion power cells safely.
Audio Accessories
Icom HM222H IP68 Waterproof Speaker Microphone - Heavy-duty public safety remote lapel mic equipped with a secure multi-pin connector and emergency control toggle.
Programming
Icom CS-F7000 Customer Programming Software - Required software for codeplug programming and configuration of the F7010, F7020, and F7040 series.
Icom OPC2338 14-Pin USB Programming & Data Cable - Required programming cable for connecting the F7000 series to a PC for codeplug editing.
Atlantic Radio Programming Services - Professional radio programming for analog and digital configurations, including P25.
More Resources
Icom F7510 / F7520 / F7540 P25 Public Safety Mobile Radios - The companion mobile radio platform to the F7000 series portables.
F7010 / F7020 / F7040 Data Sheet (PDF)
F7010 / F7020 / F7040 Manual (PDF)
Frequently Asked Questions
Does the Icom F7010 / F7020 / F7040 need to be programmed?
Yes, these radios must be programmed with your licensed frequencies and talkgroups before use. You'll be asked at checkout whether you'd like programming, or you can add it in advance via our Atlantic Radio Programming Services page. To program them yourself, you'll need the Icom CS-F7000 programming software and the OPC2338 programming cable, both sold separately.
What is the difference between the T and S suffix models?
The T designation indicates a Full DTMF Keypad layout for front-panel programming, manual frequency entry, and selective calling. The S designation is a Simple Keypad with streamlined directional controls that prevent accidental setting changes during field operations.
Can the radio be upgraded to Phase 1 or Phase 2 trunking?
Yes. The F7000 series ships P25 Phase 1 conventional-ready. Phase 1 trunking requires the ISL-P25TR license key. Phase 2 trunking requires both ISL-P25P2 and ISL-P25TR. No hardware changes are needed — upgrades are applied via license key.
Can this radio series track field locations or team coordinates?
Yes. Every variant includes an integrated GPS receiver capable of displaying location coordinates on the color LCD and transmitting automated GPS position packets over the air. P25 packet data transmission requires the ISL-P25DS license key.
Do these portables arrive with standard desktop chargers included?
No. The radio ships with the BP-284 battery pack, MB-133 belt clip, and band-specific antenna. The BC219N Desktop Rapid Charger must be purchased separately.
Is the audio logging software capable of saving call data to a PC?
Yes. Voice recordings stored on the microSD card are saved as WAV files. You can extract the card or connect the radio via USB (data transfer mode) to archive recordings on a PC.
Can I use standard consumer Bluetooth earbuds with these radios?
The integrated Bluetooth is optimized for professional mission-critical audio accessories with dedicated PTT buttons, such as the 3M Peltor WS 5 or the Icom VS-3 Bluetooth Headset. Standard consumer earbuds are not recommended for public safety use.
Warranty
The Icom F7010, F7020, and F7040 series are covered by Icom's standard 3-year manufacturer's warranty on the radio and a 1-year warranty on accessories. Please contact Atlantic Radio Communications for warranty claims, support, or replacement inquiries.
