Description
Hytera ESW01-N1 Wireless Earset Kit | Bluetooth Earpiece & ADN-01 Adapter
Complete cord-free audio solution for Hytera PD7 series portable radios.

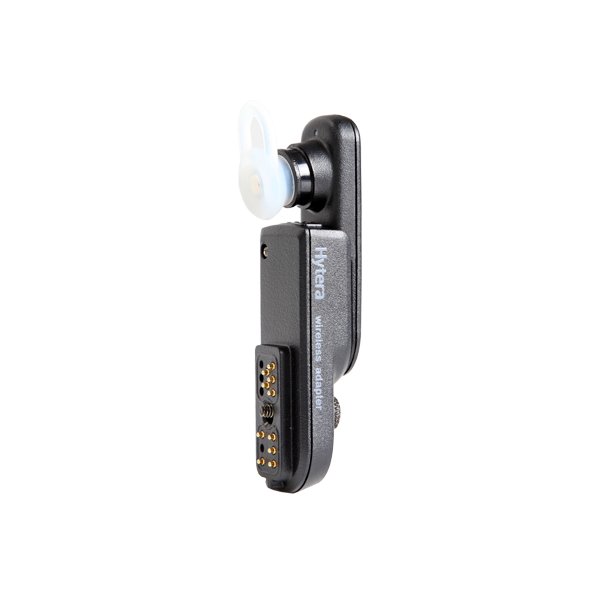

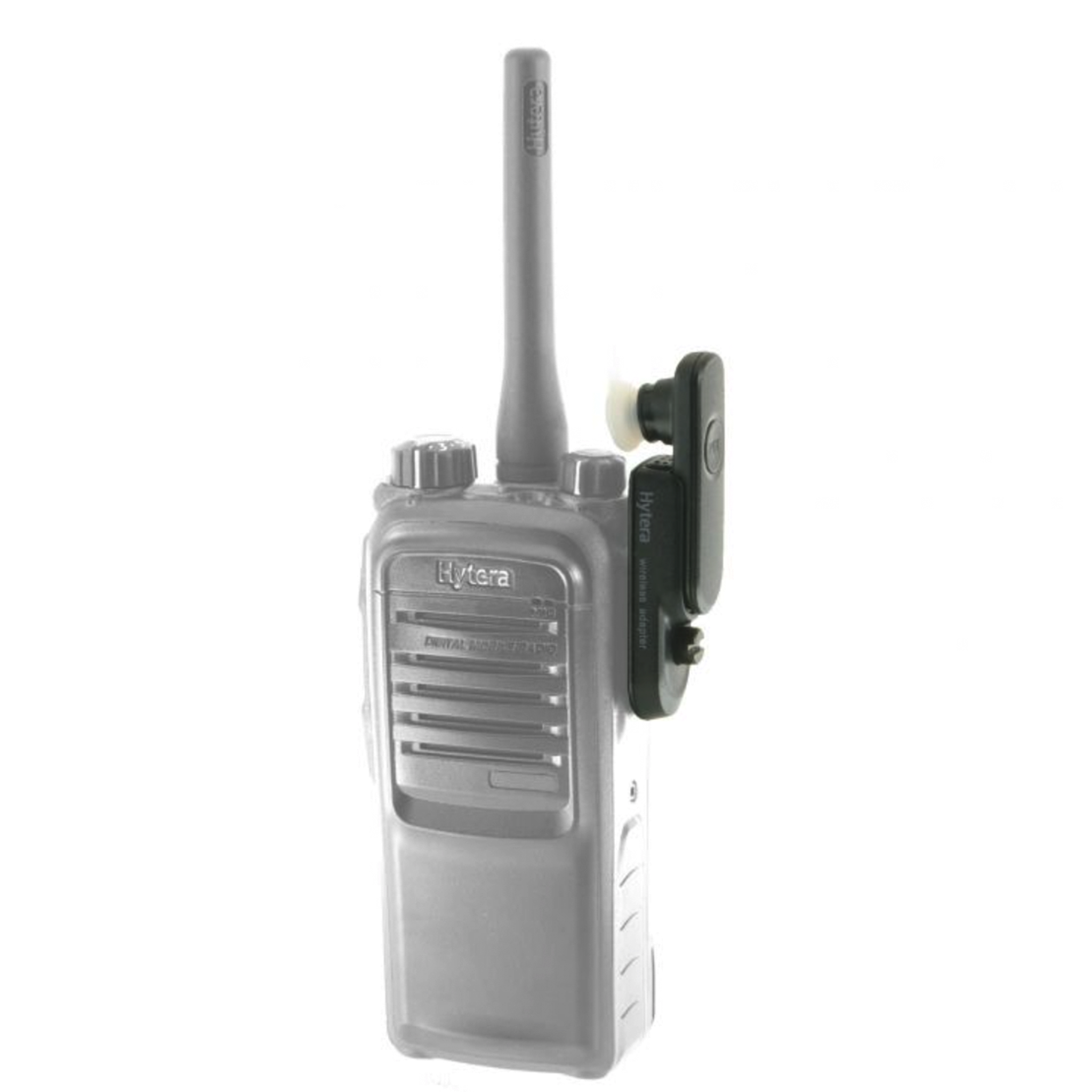

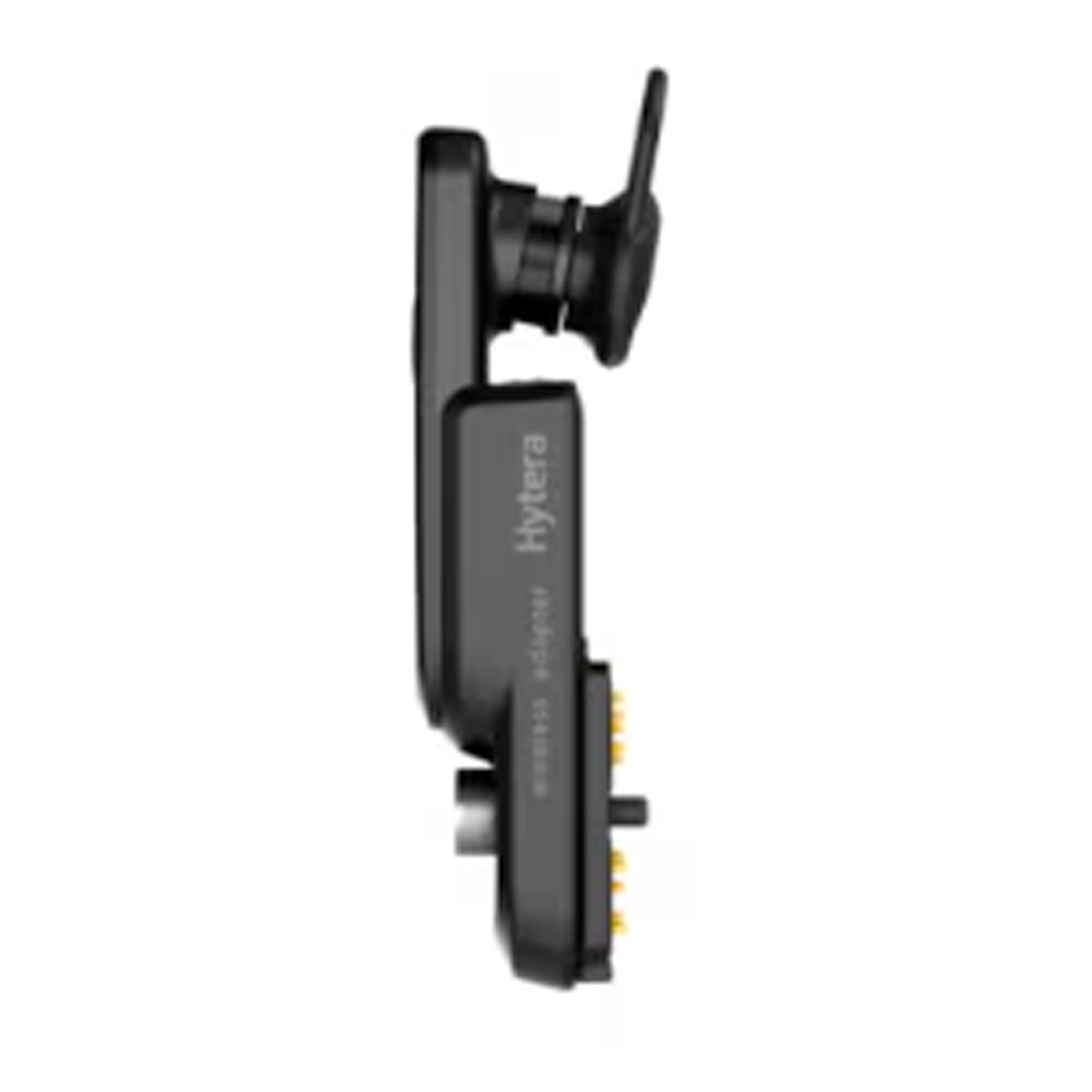

The Hytera ESW01-N1 is a professional-grade wireless audio kit that includes both the ESW01 Bluetooth earpiece and the ADN-01 16-pin wireless adapter, providing a complete cord-free communication solution for compatible Hytera PD7 series portable radios. By eliminating the physical cable between the radio and the headset, the ESW01-N1 reduces snag hazards and improves tactical mobility.
The earpiece features an integrated PTT button for instant transmission without reaching for the radio. Lightweight at 22g and IP54-rated, this kit is ideal for security, surveillance, and industrial professionals who require a discreet and comfortable audio interface throughout their shift.
Key Features & Benefits
Complete Wireless Solution: Includes the ADN-01 16-pin wireless adapter and ESW01 Bluetooth earpiece for out-of-the-box functionality.
Integrated PTT: Built-in Push-to-Talk button on the earpiece for convenient, low-profile communication control.
Lightweight Comfort: Weighing only 22g, designed for long-term wear without user fatigue.
IP54 Rated: Protected against dust and splashing water for reliable performance in outdoor and industrial environments.
Quick Charging: Full charge in under 2 hours, providing at least 4 hours of continuous talk time.
High Microphone Sensitivity: -45 dB sensitivity ensures clear voice transmission in challenging acoustic conditions.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
ESW01-N1 |
| Kit Contents |
ESW01 Bluetooth Earpiece + ADN-01 Wireless Adapter |
| Connector |
16-pin (via ADN-01 adapter) |
| Weight |
~22 g |
| Battery Life |
≥ 4 hours |
| Charging Time |
≤ 2 hours |
| IP Rating |
IP54 |
| Operating Temperature |
-20°C to +60°C |
| Speaker Power |
3 mW (rated) / 5 mW (max) |
| Microphone Sensitivity |
-45 dB |
| Country of Origin |
China |
Compatibility
| Model |
Series |
| PD702i |
Hytera PD7 Series |
| PD752i |
Hytera PD7 Series |
| PD782i |
Hytera PD7 Series |
What's Included
| Description |
SKU/Model |
Status |
| Bluetooth Earpiece |
ESW01 |
Included |
| 16-Pin Wireless Adapter |
ADN-01 |
Included |
| Compatible PD7 Series Radio |
— |
Sold Separately |
Recommended Accessories
Compatible Radios
Hytera PD702i Portable Two-Way Radio — Compatible PD7 series radio for use with the ESW01-N1 kit.
Hytera PD782i Portable Two-Way Radio — Compatible PD7 series radio for use with the ESW01-N1 kit.
Frequently Asked Questions
What is included in the ESW01-N1 kit?
The ESW01-N1 includes the ESW01 Bluetooth earpiece and the ADN-01 16-pin wireless adapter. Together they provide a complete, out-of-the-box wireless audio solution for compatible Hytera PD7 series radios.
How long does the battery last on the ESW01 earpiece?
The ESW01 provides at least 4 hours of continuous talk time on a full charge. A full charge takes 2 hours or less.
Is the ESW01-N1 compatible with all Hytera radios?
No. The ESW01-N1 is specifically designed for Hytera PD7 series radios with a 16-pin connector, including the PD702i, PD752i, and PD782i. Compatibility with other Hytera models is not confirmed.
Can the ESW01 earpiece be used without the ADN-01 adapter?
No. The ADN-01 wireless adapter is required to connect the ESW01 Bluetooth earpiece to the radio. Both components are included in the ESW01-N1 kit.
What is the IP rating of the ESW01-N1?
The ESW01-N1 is rated IP54, meaning it is protected against dust ingress and splashing water from any direction. It is suitable for outdoor and industrial use but is not rated for submersion.
Warranty
1-year manufacturer's warranty.
