Description
Hytera RCC34 Single Remote Control Head Kit (40m)
40-meter remote control head separation kit for the Hytera HM782 digital mobile radio. Includes PC153 cable and dual-socket front cover. Reuses existing control head. RoHS and REACH compliant.
The Hytera RCC34 is a professional-grade single remote control head mounting kit for the Hytera HM782 digital mobile radio. It allows the main radio chassis to be installed in a remote location — under a seat, in a trunk, or within an equipment rack — while keeping the control interface within reach of the operator. The kit includes a 40-meter (131-foot) PC153 separation cable, providing the reach required for large vehicles, maritime vessels, command trailers, and complex fixed-station dispatch setups. It reuses the standard control head already supplied with the HM782, avoiding the cost of a secondary head.
Note: The HM782 must be updated to firmware version V2.5.08.013 or higher to support remote control head operation.
Key Features & Benefits

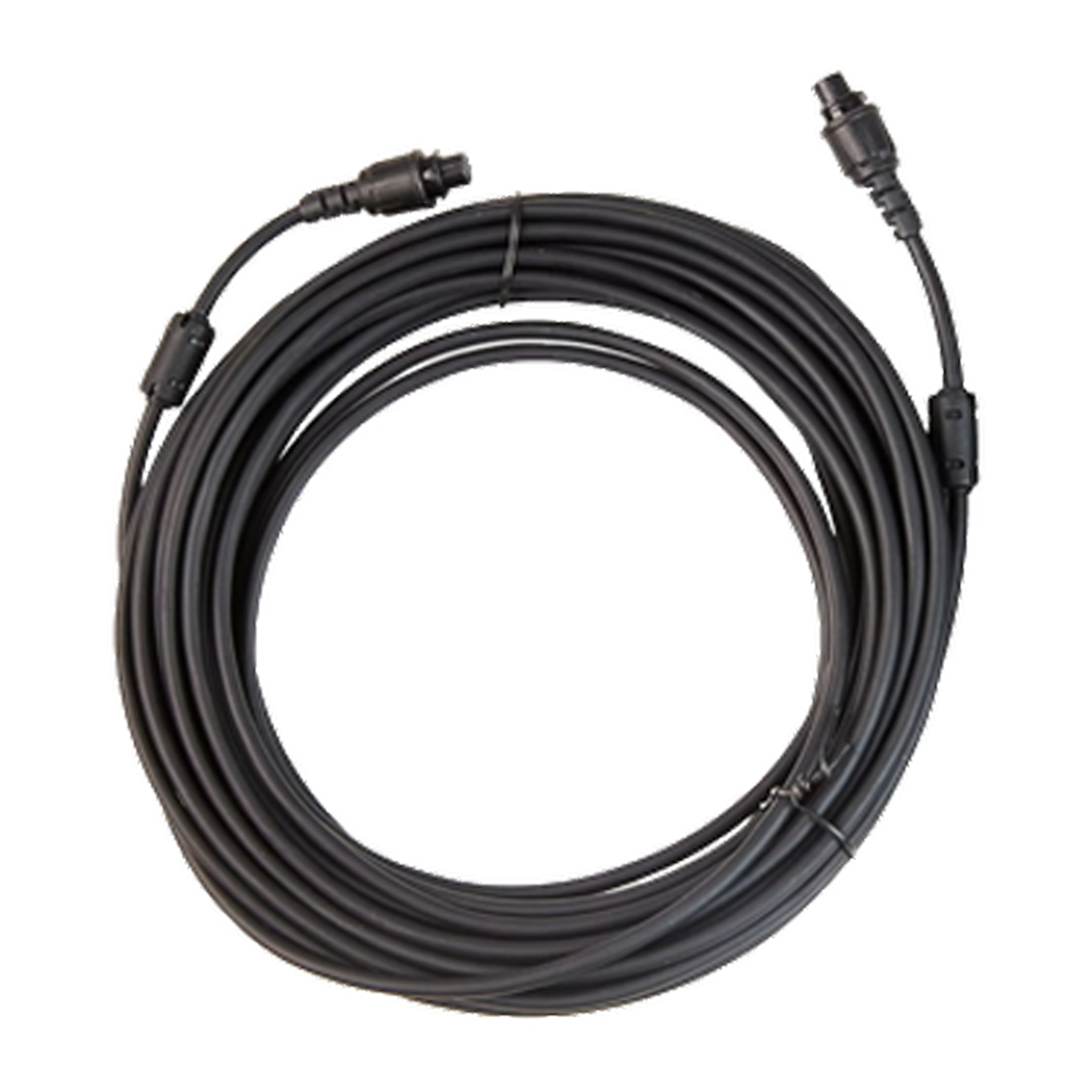

40-Meter PC153 Separation Cable: Extended reach for large vehicle cabins, buses, maritime vessels, and industrial environments.
Reuses Existing Control Head: No secondary control head purchase required — reduces deployment costs across your fleet.

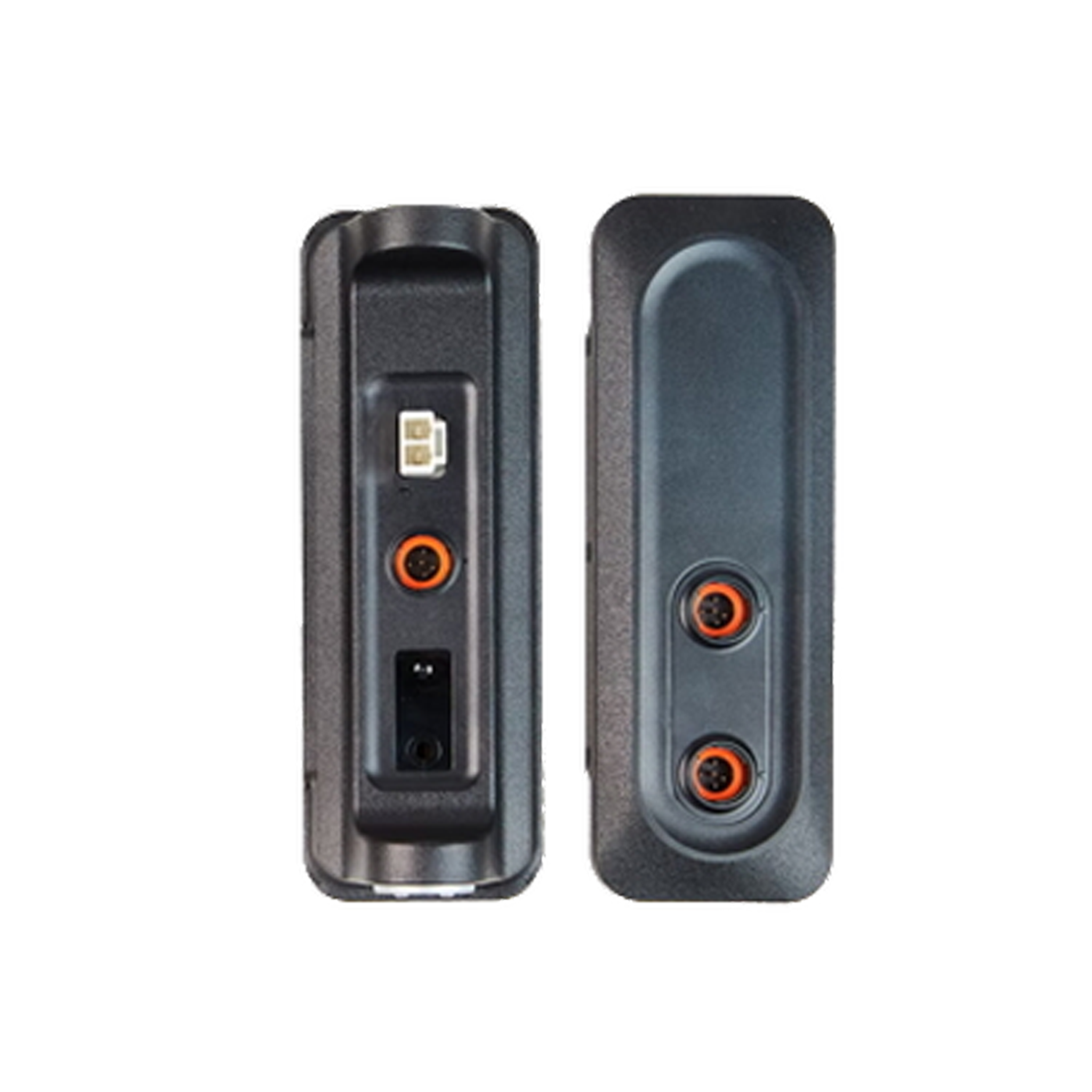

Dual-Socket Front Cover: Replacement radio faceplate with two connection sockets for versatile interface routing configurations.
Full Functionality Preserved: Maintains all display feedback, volume/channel knob operation, and programmable key paths without signal attenuation.
RoHS & REACH Compliant: Built using environmentally compliant materials meeting strict international industrial standards.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model / SKU |
RCC34 |
| Product Type |
Single Remote Control Head Kit |
| Cable Model |
PC153 |
| Cable Length |
40 meters (131 feet) |
| Firmware Requirement |
HM782 firmware V2.5.08.013 or higher |
| Compliance |
RoHS, REACH |
| Color |
Black |
| Country of Origin |
China |
Compatibility
| Model |
Description |
| HM782 |
Hytera H-Series Professional DMR Mobile Two-Way Radio |
Recommended Accessories
More Resources
Frequently Asked Questions
Does the RCC34 kit include a secondary control head?
No. The RCC34 is a hardware separation kit that reuses the existing control head already attached to your Hytera HM782 mobile radio.
Are mounting brackets included with this separation kit?
No. Brackets are sold separately. The recommended mounting bracket for securing the separated control head is the Hytera BRK08.
Is there a firmware requirement to use the remote head kit?
Yes. The Hytera HM782 must be updated to firmware version V2.5.08.013 or higher to support remote control head operation.
Warranty
1-year manufacturer’s warranty.
