Description

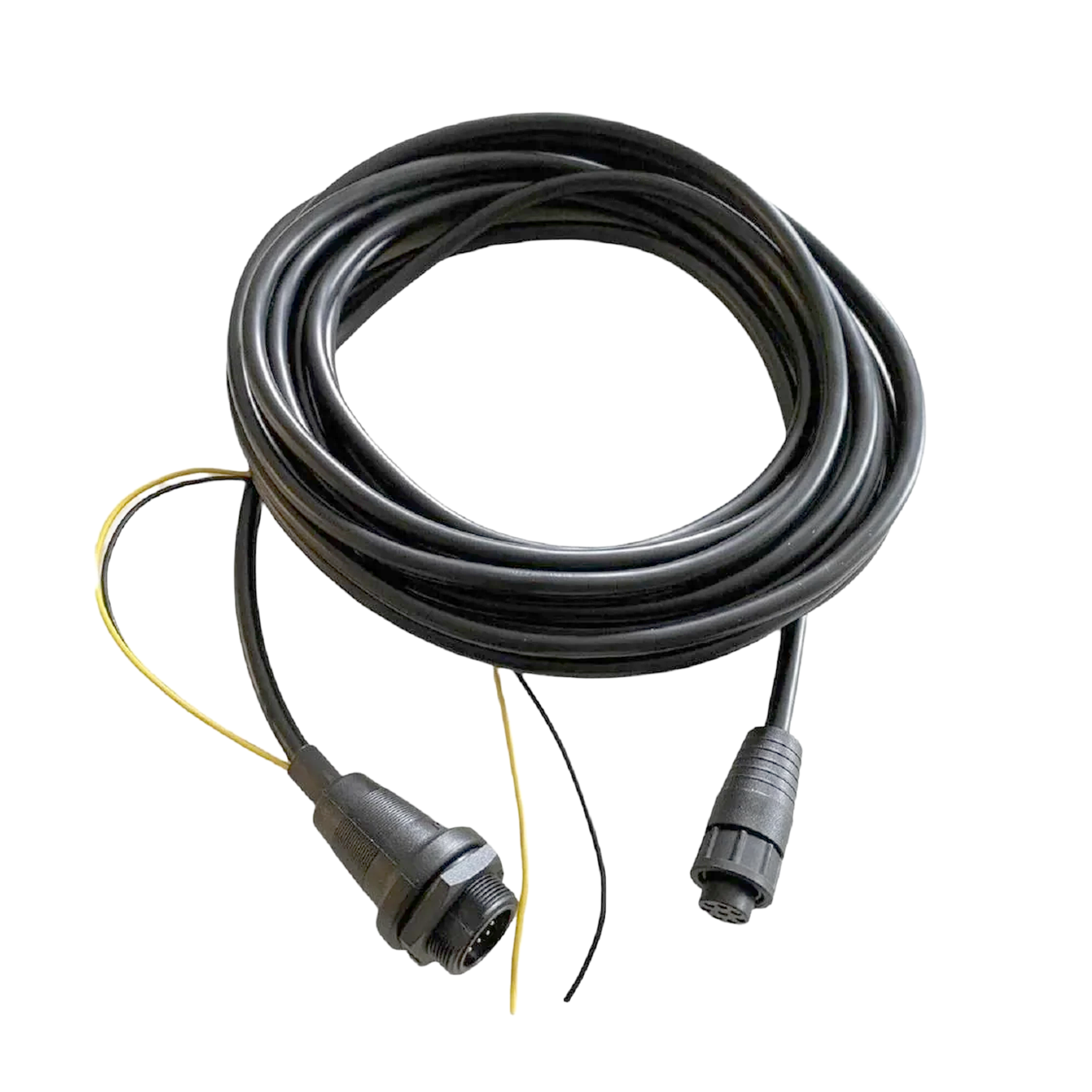

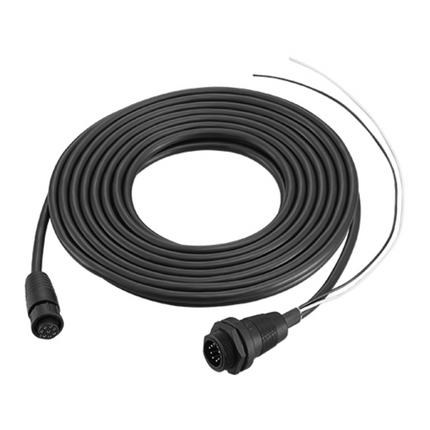

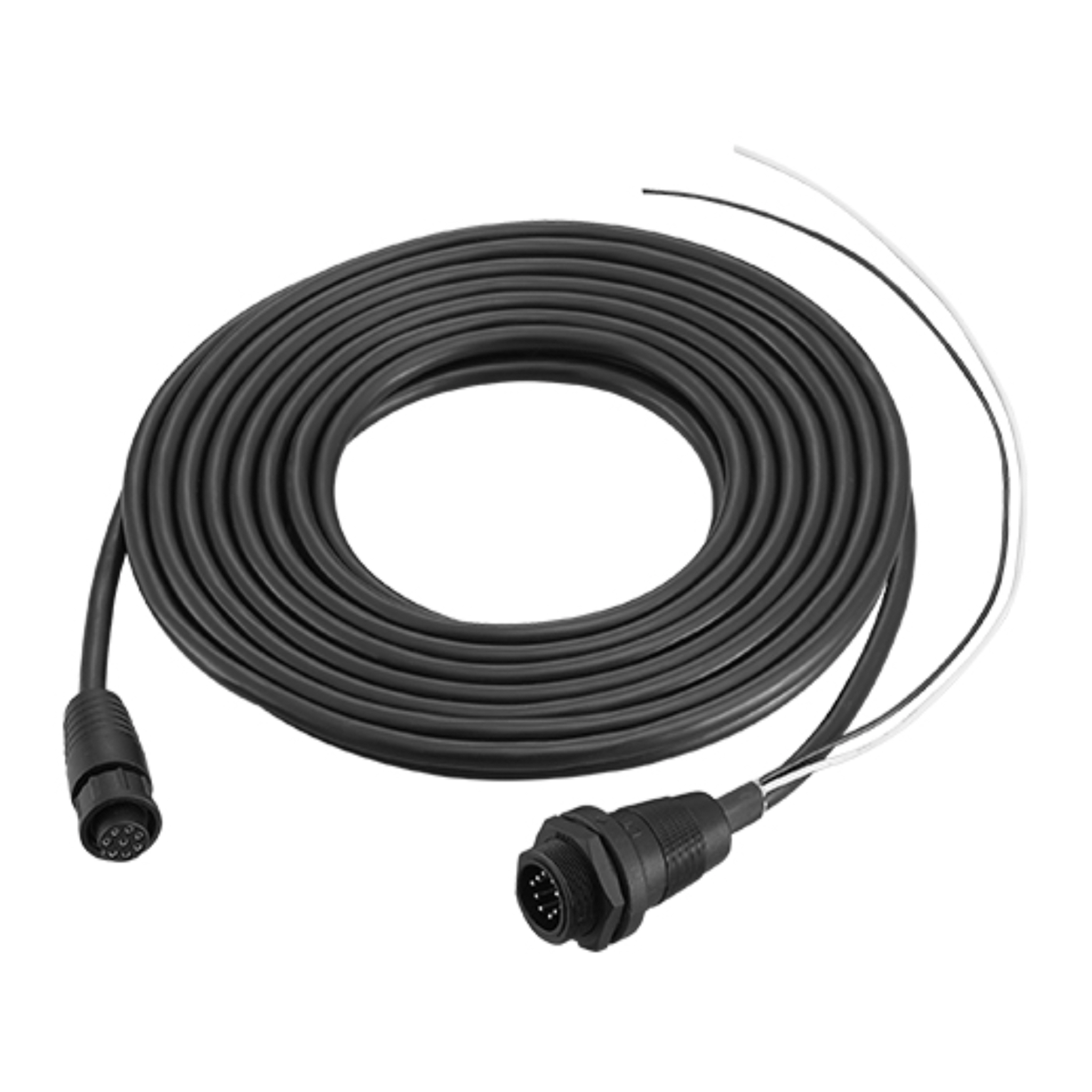

20-Foot CommandMic Connection Cable
Genuine Icom 6.1-meter (20 ft) replacement cable with waterproof mounting plug for CommandMic remote microphone stations.
The Icom 8900014900 (also designated as model OPC-1540 / OPC1540) is a factory-original 6.1-meter (20-foot) remote connection cable designed to link CommandMic remote control handsets to compatible fixed-mount marine VHF transceivers. Engineered specifically for harsh marine environments, this heavy-duty extension cable routes control signals, audio output, and power between the main radio chassis and secondary helm or flybridge stations.
Featuring a 10-pin connector on one end, an 8-pin connector on the other, and a weather-sealed pass-through mounting plug, the Icom 8900014900 allows secure bulkhead installation while preserving the vessel's moisture protection. This cable serves as an OEM replacement for damaged or worn CommandMic cables, restoring clear communication and full remote radio control across your vessel.
Key Features & Benefits
-
20-Foot (6.1m) Extended Reach: Provides ample length to route wiring from hidden black box or main helm transceivers to flybridge and deck stations.
-
10-Pin to 8-Pin Interface: Precision-molded connectors ensure a tight, low-resistance connection for audio and control signals.
-
Waterproof Mounting Plug: Features an integrated rubber-gasketed bulkhead connection port to maintain IPX7 weather sealing at pass-through points.
-
Marine-Grade Shielded Cable: Heavy-duty jacketed wiring resists salt spray, UV exposure, and electromagnetic interference.
-
Factory OEM Quality: Authentic Icom replacement component guarantees full voltage transmission and signal integrity.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
8900014900 (OPC-1540 / OPC1540) |
| Product Type |
CommandMic Connection Cable |
| Cable Length |
6.1 m (20 ft) |
| Connectors |
10-Pin & 8-Pin Waterproof Plugs |
| Mounting Interface |
Waterproof Bulkhead Pass-Through Plug |
| Hardware Included |
Cable Only (Mounting Clip & Hardware Not Included) |
Compatibility
Marine VHF Transceivers
|
|
|
|
| M410BB |
M424G |
M510 EVO |
M510BB |
| M605 |
|
|
|
CommandMic Handsets
|
|
|
|
| CommandMic III |
CommandMic IV |
HM-162B |
HM-162SW |
| HM-195GB |
HM-195GW |
|
|
Recommended Accessories
CommandMic Handsets & Extensions
Marine VHF Transceivers
More Resources
Frequently Asked Questions
What is the primary function of the Icom 8900014900 cable?
The Icom 8900014900 (OPC-1540) is a 20-foot replacement connection cable used to connect a CommandMic remote control handset to a fixed-mount marine VHF transceiver.
Is the Icom 8900014900 the same part as the OPC-1540?
Yes, 8900014900 is the official factory part number for the Icom OPC-1540 (OPC1540) 20-foot replacement cable.
Does the Icom 8900014900 cable include mounting hardware?
No, the Icom 8900014900 includes the 20-foot cable assembly with waterproof plug only. Mounting screws, brackets, and microphone clips are sold separately.
What connector types are featured on the Icom 8900014900 cable?
The Icom 8900014900 features a 10-pin connector on one end and an 8-pin connector on the opposite end, along with a waterproof bulkhead plug.
Which marine radios work with the Icom 8900014900 cable?
The Icom 8900014900 is compatible with Icom M410BB, M424G, M510 EVO, M510BB, and M605 fixed-mount marine radios.
Is the Icom 8900014900 cable waterproof?
Yes, the cable features a waterproof bulkhead mounting plug designed to maintain weather-tight integrity at pass-through mounting points.
Warranty
1-year manufacturer's warranty.
