Description
Cellular & Wi-Fi Hybrid LTE Portable IP Radio
Ultra-compact, dual-mode IP transceiver featuring automatic LTE/Wi-Fi switching, dual SIM slots, USB Type-C charging, and Simultaneous TalkListen full-duplex audio

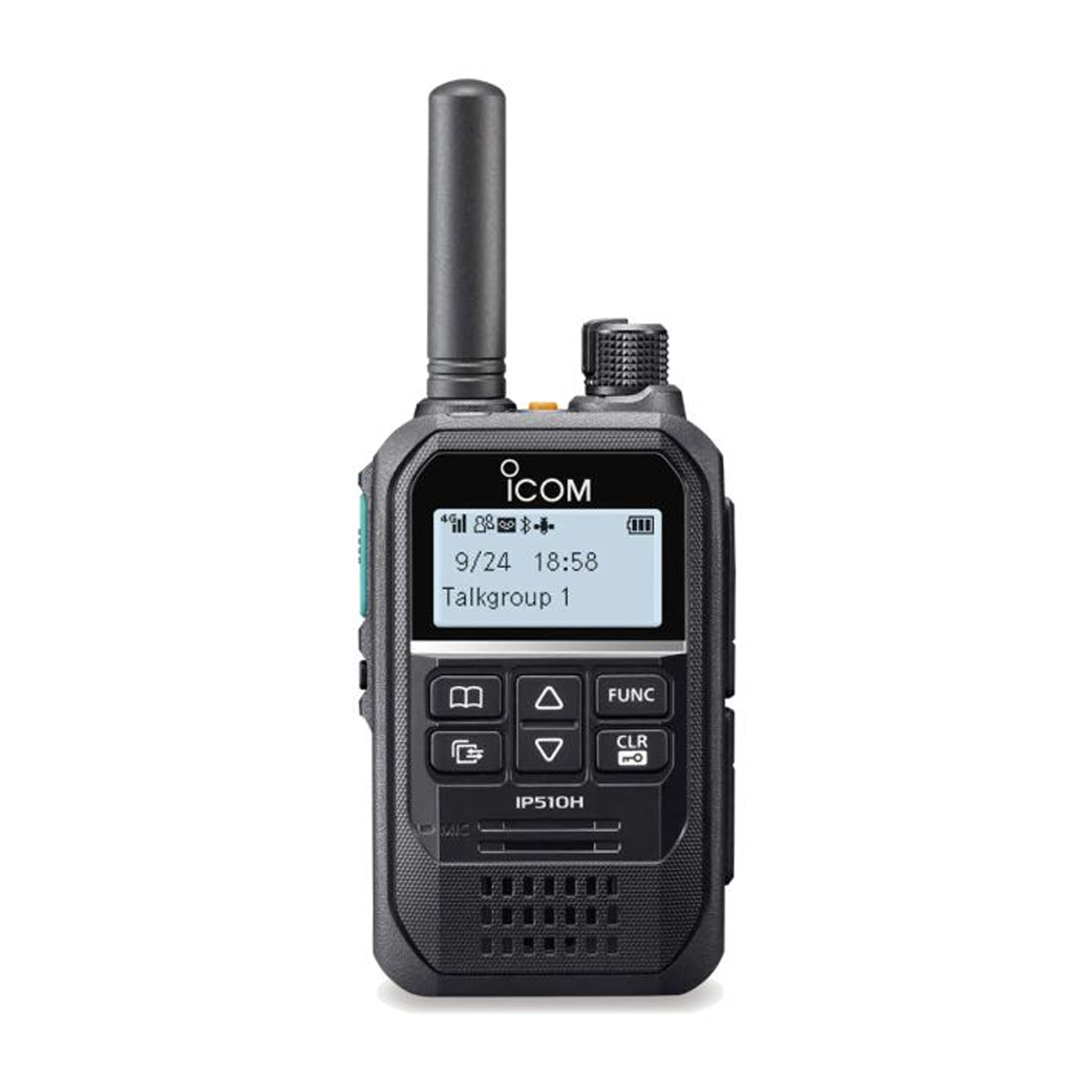

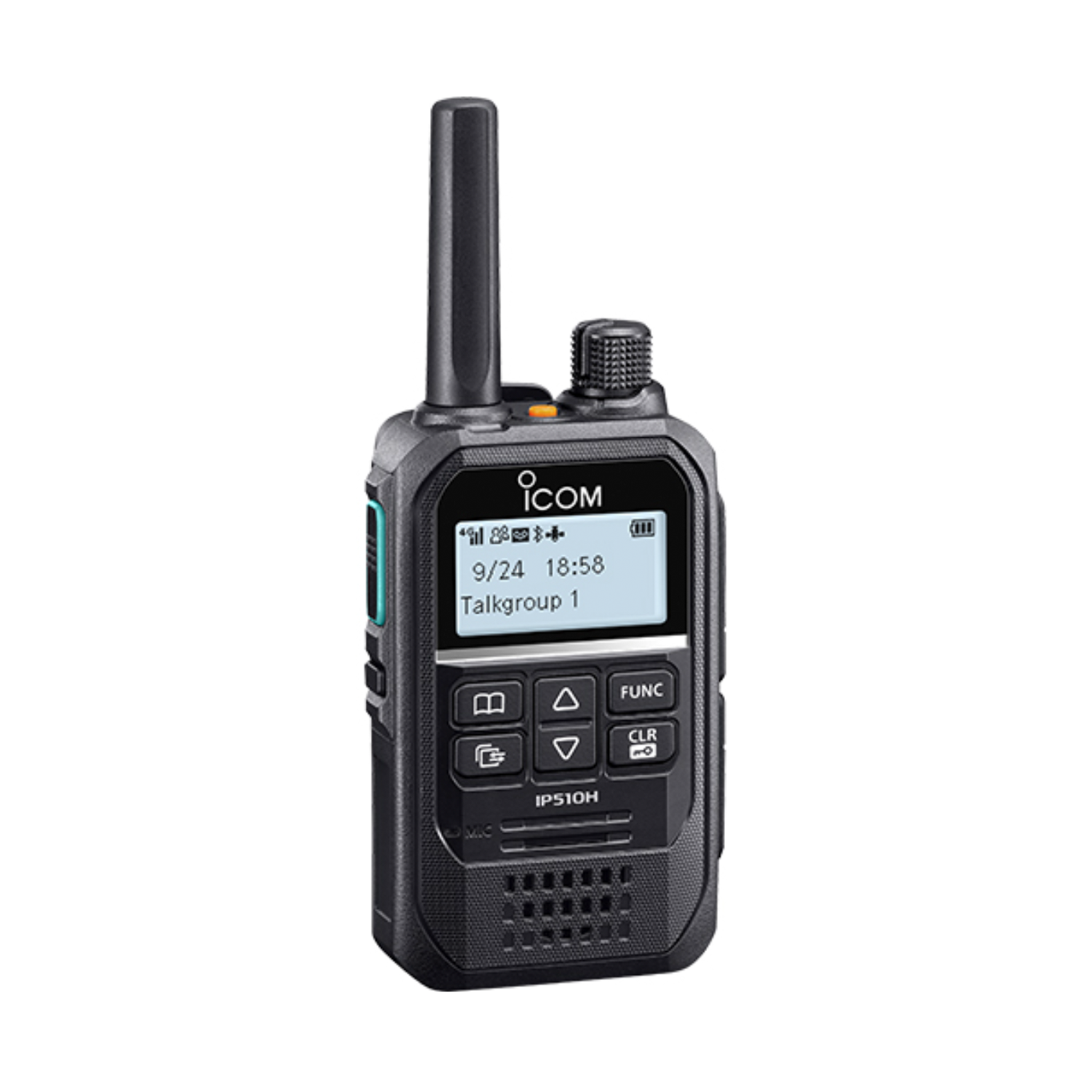

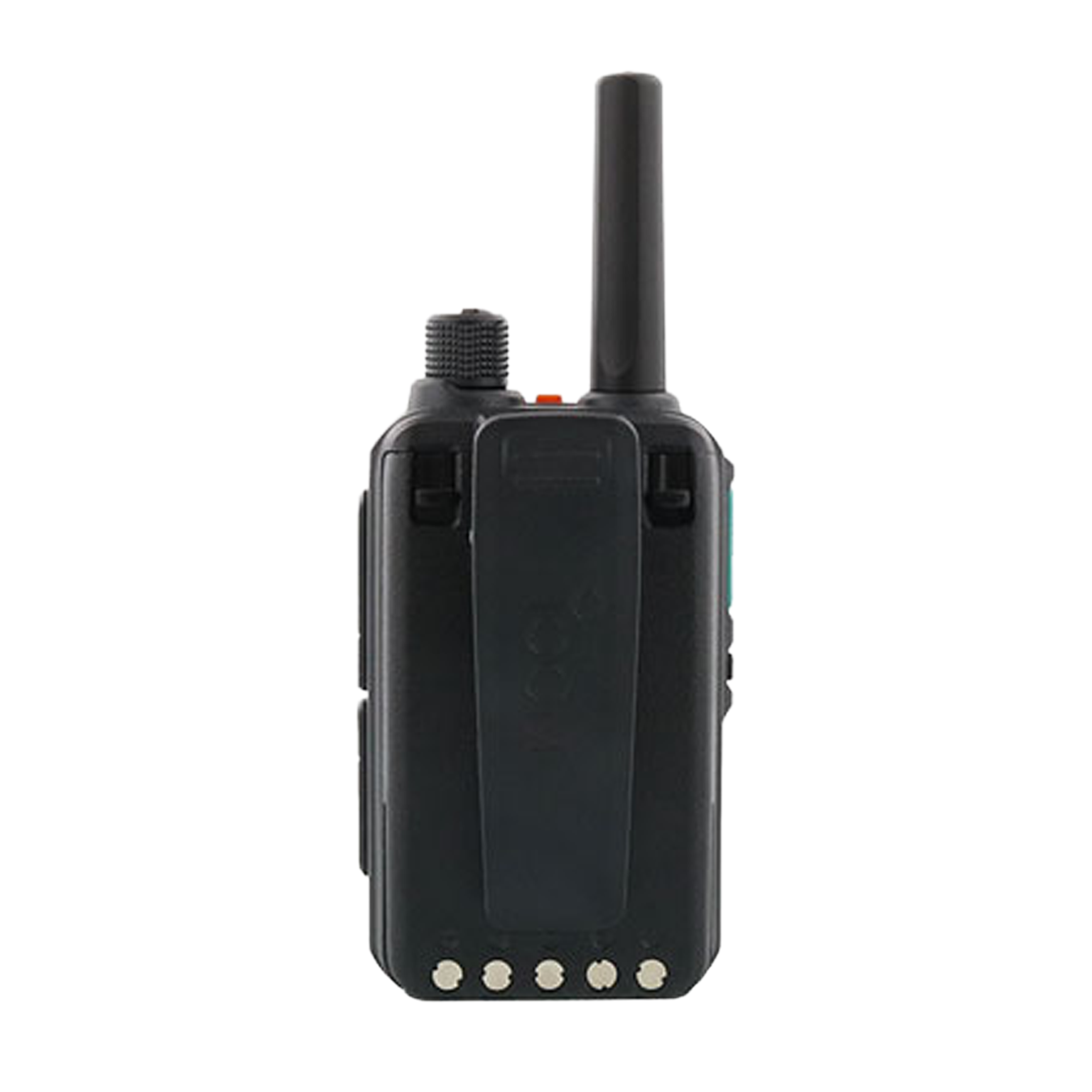

The Icom IP510H (part number IP510H 21 USA) is an advanced, ultra-compact hybrid IP transceiver designed to deliver uninterrupted voice communications across nationwide cellular LTE networks and local wireless infrastructures. Featuring dual-mode connectivity, the radio automatically and seamlessly transitions between LTE coverage and preconfigured Wi-Fi networks without requiring manual operator intervention during shifts. This intelligent switching ensures continuous, crystal-clear communications in challenging operational environments—such as underground mining facilities, manufacturing plants, large warehouses, and high-rise commercial structures—where cellular signals typically degrade.
As the lightest and smallest LTE portable in Icom's network radio lineup, the Icom IP510H is engineered for all-day ergonomic comfort without sacrificing rugged durability. The radio features an IP67 dustproof and waterproof submersible housing, direct USB Type-C charging port, enterprise-grade WPA3 Wi-Fi security encryption, dual SIM slots for carrier redundancy, and built-in Bluetooth 5.3 for wireless PTT audio accessories. Additionally, Icom's proprietary Simultaneous TalkListen™ function allows full-duplex, telephone-style conversations and multi-party conference calls, giving team leaders the ability to pause active calls to relay urgent safety dispatches. Supported across commercial fleets regulated under FCC Licensing guidelines, Connect Global network support will be available at a later date.
Key Features & Benefits
-
Dual-Mode LTE & Wi-Fi Auto-Switching: Automatically switches between nationwide LTE cellular coverage and preconfigured Wi-Fi networks for uninterrupted coverage.
-
Ultra-Compact & Lightweight Design: Represents the smallest and lightest LTE transceiver class in Icom's network radio series.
-
Direct USB Type-C Charging: Recharges directly on the radio housing using a standard USB-C cable for convenient charging in vehicles or at desks.
-
Simultaneous TalkListen™ Full-Duplex: Enables natural, phone-style full-duplex communication and multi-party conference calling with priority interrupt.
-
Dual SIM Carrier Redundancy: Dual SIM card slots allow operators to switch between two cellular carriers for enhanced network reliability.
-
IP67 Dustproof & Waterproof Submersion: Built to withstand complete dust ingress and water submersion up to 1 meter for 30 minutes.
-
WPA3 Enterprise-Grade Security: Enhanced Wi-Fi network encryption protecting internal network data against unauthorized access.
-
Built-In Bluetooth® 5.3: Supports wireless earpieces and Bluetooth PTT accessories for hands-free operation.
-
Integrated Safety & Recording: Features an Emergency button, Man Down sensor, Lone Worker alerts, and internal recording storing up to 4 minutes of audio.
Specifications
Compatibility
What’s Included
Recommended Accessories
Batteries & Charging Hardware
-
Icom BP-315 High-Capacity Battery Pack – 26-hour high-capacity Li-ion battery pack for extended shifts.
-
Icom BC-213 Drop-In Desktop Charger – Single-unit rapid desktop charger dock.
Gateway & Interoperability Infrastructure
-
Icom VE-PG4 RoIP Gateway – Radio over IP gateway bridging IP510H transceivers with conventional LMR analog/digital radio networks.
More Resources
Frequently Asked Questions
How does automatic LTE and Wi-Fi switching work on the Icom IP510H?
The Icom IP510H constantly monitors wireless signal strength and automatically transitions between LTE cellular networks and preconfigured Wi-Fi access points without dropping active calls or requiring manual user switching.
How do I charge the Icom IP510H radio?
The Icom IP510H includes a built-in USB Type-C port on the body, allowing direct charging via the included USB-C cable using standard vehicle chargers, wall blocks, or power banks.
What is the battery runtime of the Icom IP510H?
The included BP-314 battery provides up to 18 hours of standard operating time, while the optional high-capacity BP-315 battery extends operation up to 26 hours.
Does the IP510H support full-duplex phone-style conversations?
Yes, Icom's Simultaneous TalkListen™ technology enables full-duplex telephone-style conversations and multi-party conference calls.
Can the IP510H communicate with existing LMR two-way radio systems?
Yes, using the optional Icom VE-PG4 RoIP gateway, the IP510H can interconnect seamlessly with conventional analog, IDAS digital, and DMR two-way radio networks.
Does the IP510H support Connect Global?
Connect Global network support for the Icom IP510H will be released by Icom at a later date.
Warranty
2-year manufacturer’s replacement warranty.
