Description
Versatile System Integration for Icom Mobile Transceivers

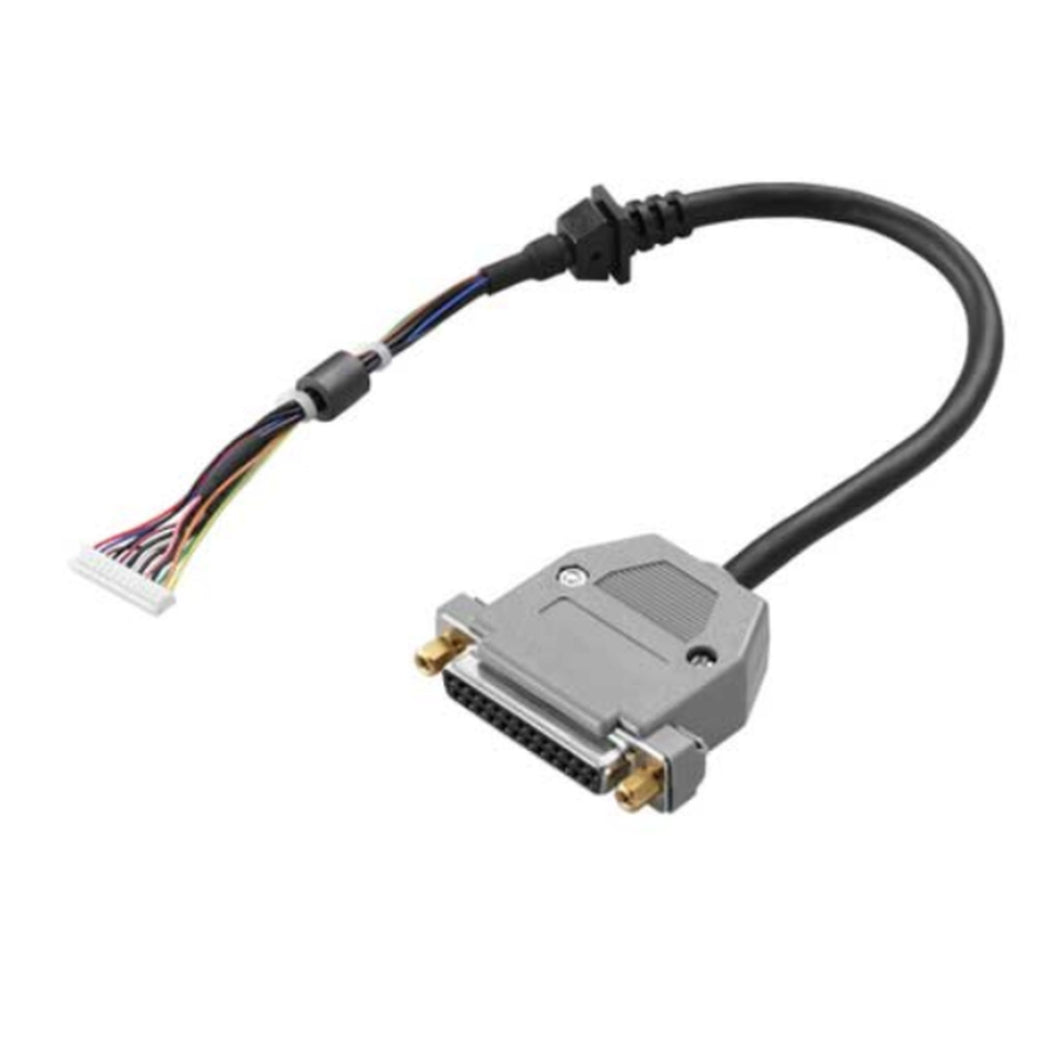

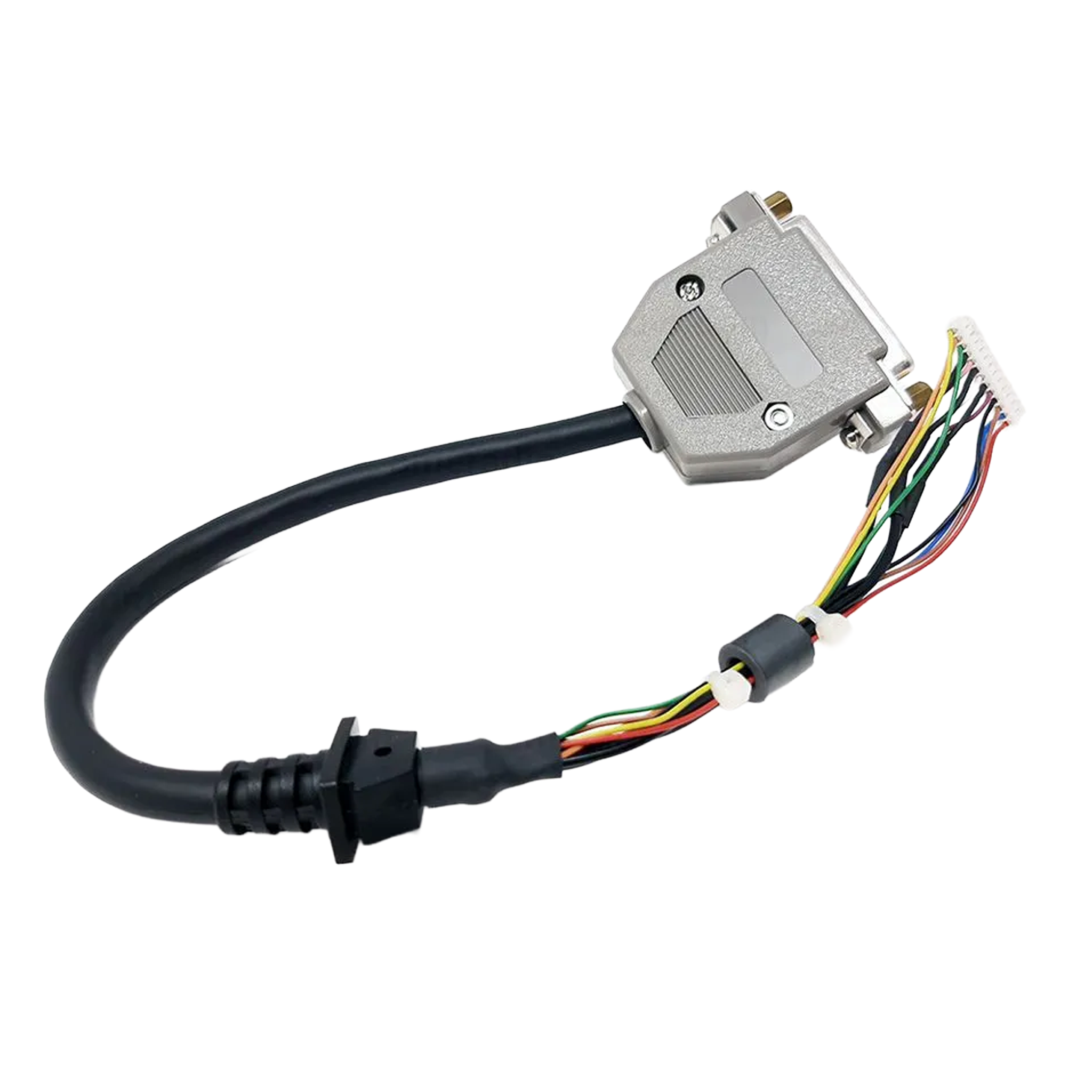

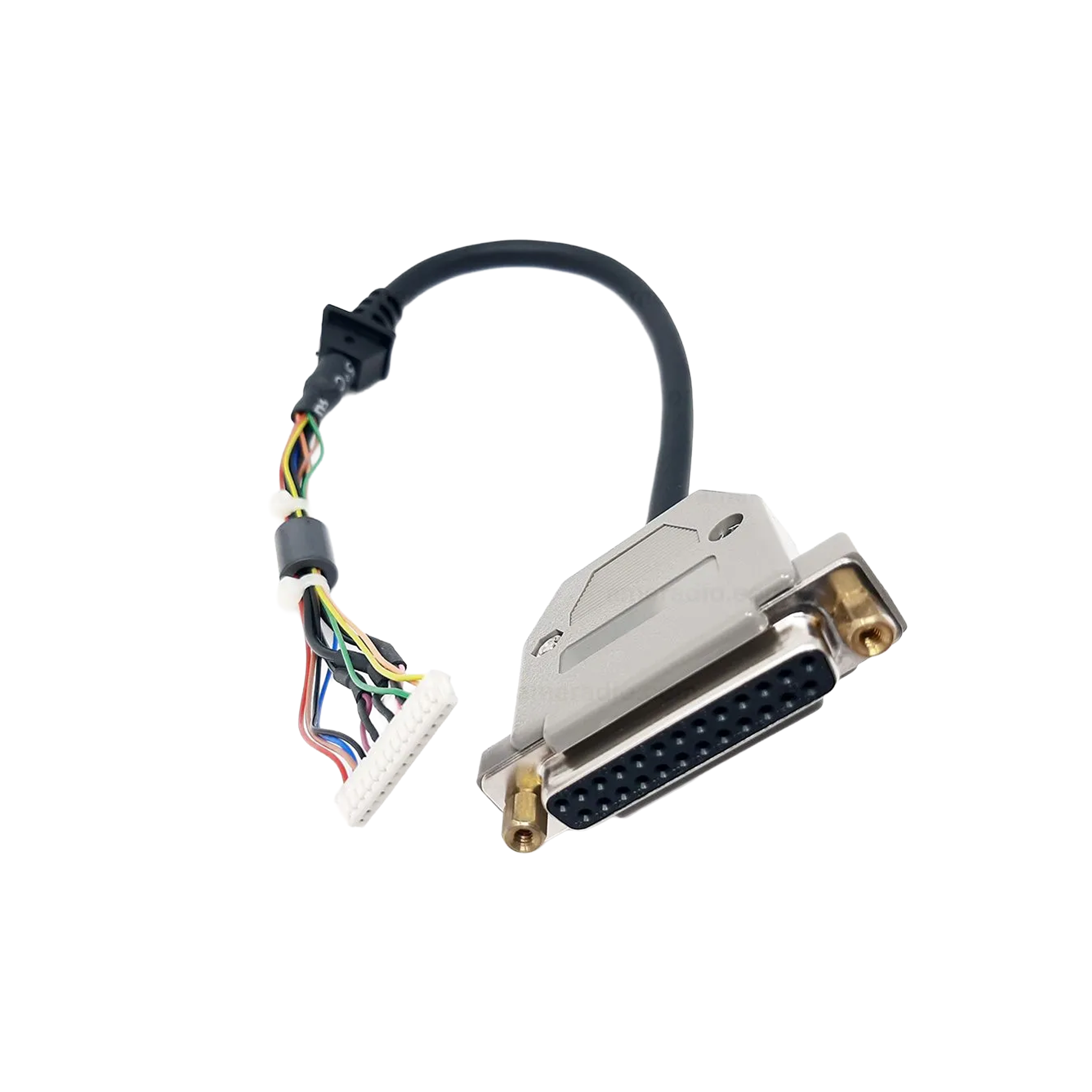

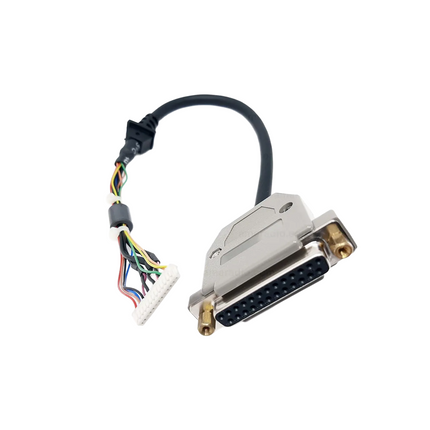

The Icom OPC2078 is a multi-function D-Sub 25-pin accessory cable designed to expand the operational capabilities of your mobile radio system. Measuring 360 mm in length, this cable serves as the primary interface for connecting Icom transceivers to a wide array of external hardware, including PCs, external speakers, and vehicle-specific controls. Whether you need to integrate an ignition sense line for automatic power management or a vehicle horn for external alerts, the OPC2078 provides the reliable, direct-wire connection required for professional mobile installations.
This high-performance interface supports both signal inputs and outputs, facilitating AF output and modulation input for advanced communication setups. Additionally, the cable allows for the direct connection of third-party GPS receivers to compatible digital transceivers, enabling real-time location tracking. Engineered for durability and precision, the Icom OPC2078 is an essential component for public safety, transportation, and industrial fleets that require seamless integration between their radio equipment and vehicle electronics.
Key Features & Benefits
-
Comprehensive Signal Access: Provides inputs and outputs for several signals, including AF output and modulation input for external audio devices.
-
GPS Integration Support: Allows for the direct connection of third-party GPS receivers to supported digital mobile models for fleet tracking.
-
Vehicle System Control: Enables easy connection to ignition sense lines for power synchronization and vehicle horn/light relays for emergency alerts.
-
External Channel Control: Facilitates remote channel switching and control through the radio's rear accessory port.
-
Professional 360 mm Length: Offers a compact and manageable cable run for clean installations within dashboards or radio racks.
-
Genuine Icom Accessory: Guaranteed mechanical and electrical compatibility with a wide range of F-series analog and digital mobile radios.
Specifications
| Feature |
Specification |
| Product Type |
Accessory Interface Cable |
| Connector |
D Sub 25 Pin |
| Length |
360 mm |
| Signal Support |
AF Out / Modulation In / Ignition / GPS |
| Color |
Black / Multi Wire |
| Warranty |
1 Year Manufacturer's Warranty |
Compatibility
|
|
|
|
| F5330D |
F6330D |
F5220D |
F6220D |
| F5121D |
F6121D |
F5122D |
F6122D |
| F5123D |
F6123D |
F5130D |
F6136D |
| F5021 |
F6021 |
F5022 |
F6022 |
| F5023 |
F6023 |
F5026 |
F5026H |
| F5011 |
F6011 |
F5012 |
F6012 |
| F5013 |
F6013 |
F5013H |
F6013H |
Recommended Accessories
- Icom Digital Mobile Transceiver (F5130D)
- Icom External Communication Speaker (SP35)
Frequently Asked Questions
Can I use this for digital modulation on the F5121D series? No. For the IC-F5121D, F5122D, and F5123D series, this cable accepts analog input only. Digital modulation input is not supported on these specific models.
Which models support GPS through this cable? GPS signals are accepted only with digital transceivers, specifically the IC-F5330D, F5130D, F5121D, F5122D, and F5123D series.
What is the purpose of the ignition sense line? The ignition sense line allows the radio to automatically power on or off when the vehicle's ignition is turned, preventing battery drain when the vehicle is not in use.
Warranty
1-year manufacturer's warranty.
