Description
Battery Contact Connector for Portable Handheld Radios
Internal Power Terminal Repair Component for MOTOTRBO Transceivers
Restore optimal battery connection reliability to your portable two-way radio chassis with a factory-genuine replacement battery contact block.

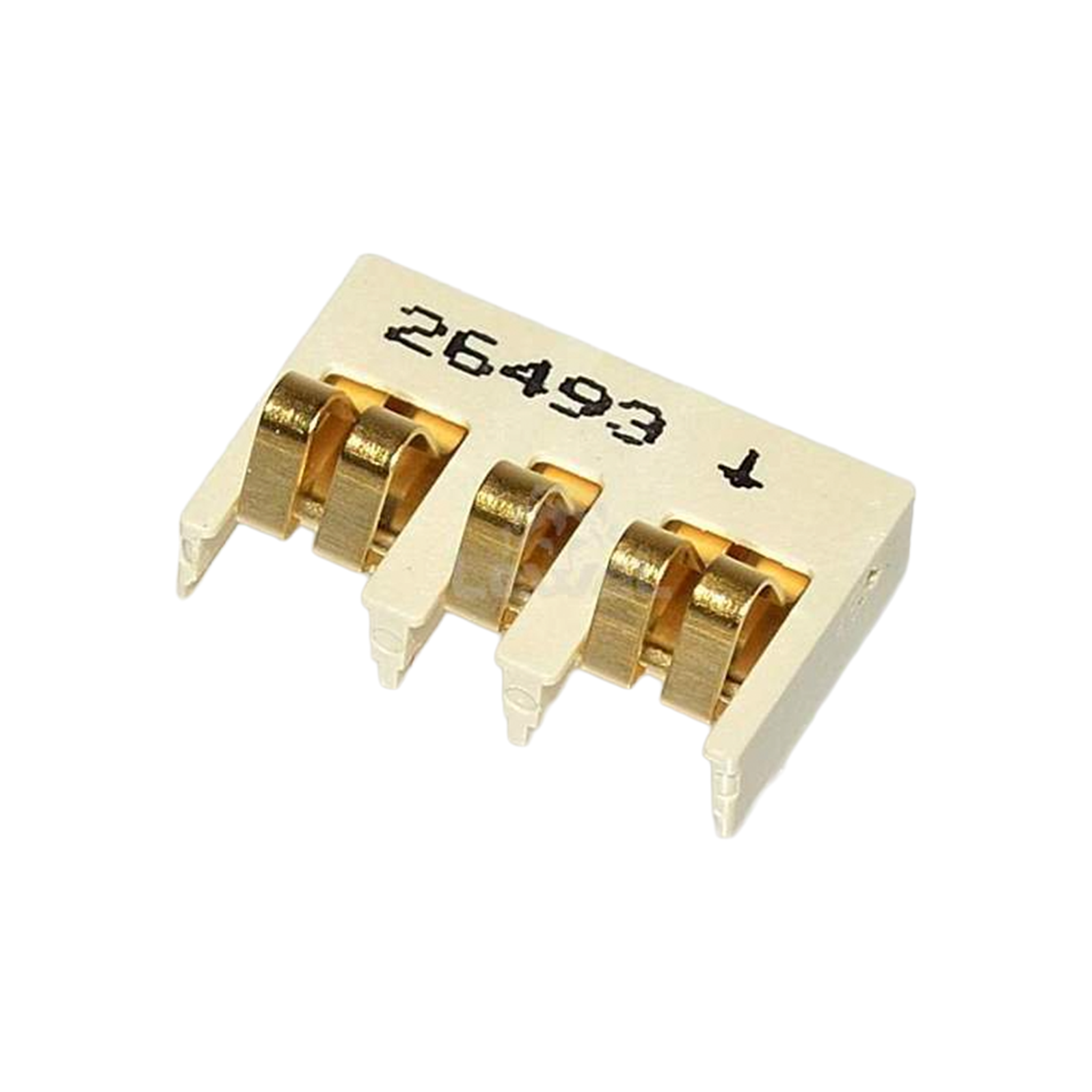

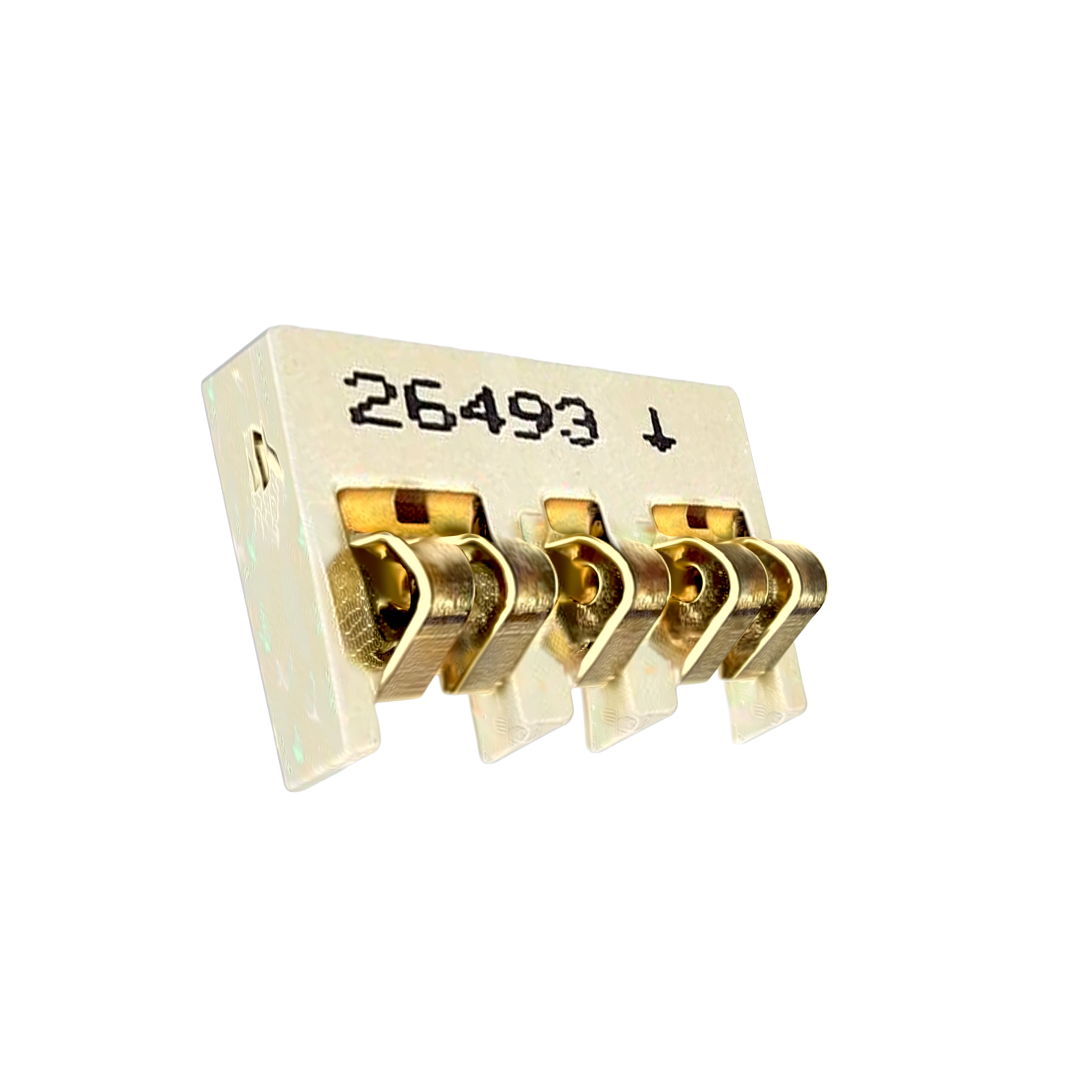

The genuine Motorola 0915184H01 is a factory-original Motorola 0915184H01 Battery Contact Connector for MOTOTRBO XPR7550e engineered to maintain standard power delivery from a rechargeable battery casing to the main internal circuit board assembly. Installing the replacement Motorola 0915184H01 component restores the critical mechanical power interface bridge required for steady, uninterrupted field operations. This internal electronic part features durable, gold-plated contacts designed to channel operational direct current without suffering from structural distortion or contact resistance.
Specially intended for internal service shop technicians, depot repair facilities, and communications equipment maintenance teams, the Motorola 0915184H01 resolves the critical physical failure point of intermittent power disconnections or a radio failing to power up at all. Over cycles of severe field use, rough battery swaps, or structural radio drops, the internal battery contact leaves can bend out of alignment, fracture, or suffer corrosive surface buildup from moisture ingress. Replacing a worn or collapsed block with this authentic component completely avoids the massive expense of sourcing an entirely new main circuit board or transceiver chassis frame.
Executing internal component replacement work requires the radio housing to be safely dismantled utilizing specialized service tools like a chassis opening key and torx drivers. This block mounts flat inside the lower structural section of the chassis block to align directly with external battery terminal rails. Technicians must conduct soldering or precision trace anchoring with careful thermal management to prevent blistering or destroying adjacent surface-mounted electronic parts inside the main layout.
Key Features & Benefits
-
Direct Battery Power Interface: Acts as a seamless Motorola 0915184H01 Battery Contact Connector for MOTOTRBO XPR7550e structural link to guarantee complete electrical transmission.
-
Corrosion-Resistant Gold Plating: Uses industrial-grade gold alloy contact surface coatings to prevent long-term oxidation from sweat, humidity, and rainy environments.
-
High-Elasticity Contact Prongs: Constructed with resilient metallic spring properties that recover their exact pre-tensioned spacing through thousands of battery latch cycles.
-
Authentic Factory OEM Fitment: Provides precise structural alignment matching standard factory engineering footprints to bypass drilling or layout adaptations.
-
Cost-Efficient Depot Servicing: Enables low-level component repair strategies to rapidly restore non-responsive or resetting hand-held devices to full field readiness.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model/SKU |
Motorola 0915184H01 (0915184H01) |
| Product Type |
Battery Contact Connector |
| Hardware Material |
Gold-Plated Spring Alloy |
| Mounting Style |
Internal Board-Level Solder Mount |
| Application |
Component Level Maintenance and Repair |
| Color |
Gold and Black |
Compatibility
Radios
|
|
|
|
| XPR7350 |
XPR7550 |
XPR7350e |
XPR7550e |
| XPR7380 |
XPR7580 |
XPR7380e |
XPR7580e |
| XPR3300 |
XPR3500 |
XPR3300e |
XPR3500e |
| CP185 |
EP350 |
DP4400 |
DP4401 |
| DP4600 |
DP4601 |
DP4800 |
DP4801 |
| DP4400e |
DP4401e |
DP4600e |
DP4601e |
| DP4800e |
DP4801e |
|
|
Recommended Accessories
- Motorola MOTOTRBO XPR7550e Portable Two-Way Radio (XPR7550E) — The primary high-tier handheld digital transceiver that utilizes this internal replacement battery contact connector part.
- Motorola IMPRES 2 Li-Ion Battery Pack (PMNN4486A) — A high-capacity rechargeable battery pack that interfaces directly with this contact connector block to power the unit.
More Resources
Frequently Asked Questions
What are the main indicators that a radio needs a replacement battery contact connector?
If your handheld transceiver randomly powers down or resets when bumped, or if it fails to activate completely despite utilizing a fully charged battery pack, the internal contact pins are likely bent, broken, or corroded.
Can this board-level component be swapped out without specialized tools or soldering gear?
No, the Motorola 0915184H01 is an internal, sub-assembly service component. Installing it requires opening the outer housing of the transceiver frame with specialized opening keys and using precision board soldering equipment to secure the electrical traces.
Is this contact piece compatible with alternative radio brands like Icom or Kenwood?
No, the Motorola 0915184H01 is a factory-genuine original part specifically designed and geometric-molded for matching Motorola MOTOTRBO and legacy series portable radio frames.
Warranty
1-year manufacturer's warranty.
